VSI sand crushing machine
In the field of mining crushing, VSI (Vertical Shaft Impact) sand making machines have become the core equipment for manufactured sand production due to their superior particle shape optimization capabilities and high yield. However, the realization of their excellent performance largely depends on correct and standardized installation and robust, scientifically constructed foundations. Many users often focus on equipment selection but neglect this "first step," leading to excessive equipment vibration, rapid wear, shortened lifespan, and even safety accidents. This article will delve into the special requirements for VSI sand making machine installation and foundation construction, ensuring the smooth implementation of your project.
I. Core Overview: Why is the foundation of a VSI sand making machine so special?
The working principle of a VSI sand making machine is to use a high-speed rotating rotor to project material onto the circumferential guard plate or material lining for impact crushing. This working characteristic determines that the equipment will generate continuous high-frequency vibration and a certain impact force during operation. Therefore, the core mission of its installation foundation is not only to bear the weight of the equipment, but also to effectively absorb, dampen, and isolate these dynamic loads, preventing vibration from being transmitted to the plant structure or other equipment, while ensuring the stability of the sand making machine's own operating trajectory. A substandard foundation is like building a skyscraper on sand—it's destined to be unstable.
II. Detailed Explanation of Special Requirements for Foundation Construction
2.1 Foundation Structure and Material Requirements
The foundation of the VSI sand making machine must be an independent, robust, monolithic reinforced concrete structure.
• Independence: It is strictly forbidden to connect it to factory columns, walls, or other equipment foundations to prevent vibration transmission and resonance, which could compromise the overall structural safety.
• Strength and Quality: The concrete grade is typically required to be C30 or higher, and the foundation mass should be significantly greater than the equipment mass (generally recommended to be 5-8 times the equipment mass) to utilize its substantial mass to suppress and dissipate vibration energy.
• Embedded Part Accuracy: The placement of anchor bolts or steel embedded boxes must be extremely precise. Errors in position, elevation, and verticality must be strictly controlled within the requirements of the installation drawings provided by the equipment manufacturer (usually ±2mm). This is a prerequisite for subsequent equipment alignment.
2.2 Key Steps in the Installation Process
A correct installation procedure is essential for ensuring equipment performance.
• Lifting and Positioning: Use appropriate lifting equipment for smooth lifting. The equipment base is usually equipped with vibration damping pads (such as rubber pads); ensure they are placed flat and without gaps.
• Leveling Correction: Use a precision level to measure on the main shaft flywheel or bearing housing. The leveling error must be less than 0.2 mm/m over the entire length. This is crucial for ensuring bearing life and rotor dynamic balance.
• Transmission Component Alignment: Alignment between the motor pulley and the sand making machine's main shaft pulley is critical. Use tools such as laser alignment instruments to ensure parallelism and angular errors are minimized to extend V-belt life and reduce vibration and energy consumption.
III. Core Advantages of Standardized Installation
Investing the necessary effort and cost in standardized infrastructure and installation will bring long-term, significant returns:
• Extremely Smooth Operation: Significantly reduces harmful vibrations, lowers equipment noise, and creates a better environment for operators.
• Doubled Equipment Lifespan: Protects core components such as main bearings and rotors, reduces abnormal wear, lowers failure rates, and extends overhaul cycles.
• Stable Production Efficiency and Quality: Stable operating conditions ensure optimal flow field and crushing effect in the crushing chamber, resulting in well-shaped and stably graded finished sand.
• Near-Zero Safety Risk: Fundamentally eliminates major safety hazards such as equipment displacement or overturning due to foundation cracking or loose bolts.
• Reduced Maintenance Costs: Significantly reduces daily tightening and adjustment workload, leading to a substantial decrease in overall operation and maintenance costs.

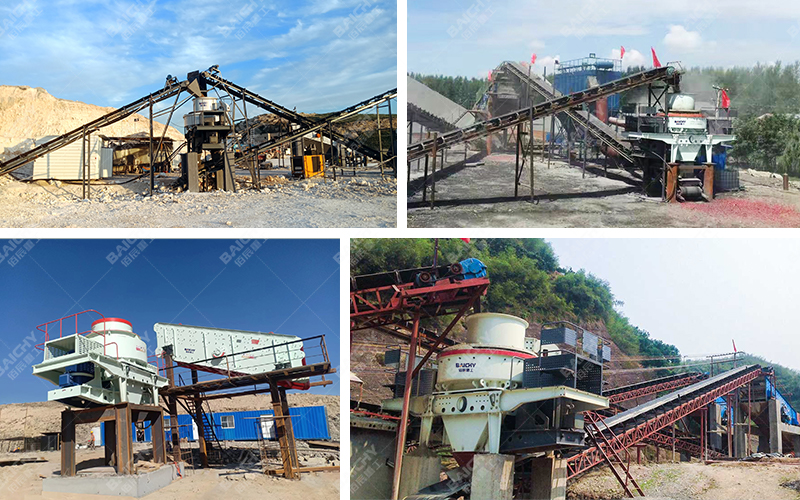

Sand making production line customer site
IV. Case Study
Case Study: A Large-Scale High-Quality Aggregate Production Line in East China
This customer added one of our VSI-1145 sand making machines during the expansion of their existing production line. We provided detailed foundation load diagrams and installation instructions. The customer strictly followed the drawings, pouring a 2.5-meter-deep independent large-block concrete foundation and using a high-precision pre-embedded steel frame. During the installation phase, our engineers provided on-site guidance and used a laser alignment instrument to achieve precise alignment. After the equipment was put into operation, the operating current was stable, the machine body exhibited minimal tactile vibration, and there was no resonance felt in the surrounding plant buildings. The equipment has been operating continuously and efficiently for over 18 months. Key parameters such as bearing temperature and vibration levels have consistently exceeded design standards. The produced manufactured sand has a perfect particle shape and continuous gradation, making it the designated material for the local high-speed rail project.
V. Recommended Related Equipment and Services
• VSI Sand Making Machine Series: Covering a full range of models from small-to-medium production to large-scale intensive production. Inquiries are welcome for model selection.
• Vibration Monitoring System: Optional online vibration monitoring instrument for real-time equipment status monitoring and predictive maintenance.
• Professional Installation Supervision Service: Our company provides full-process technical support services from foundation drawing review and installation handover to on-site commissioning, ensuring a flawless process.
VI. Frequently Asked Questions (FAQ)
Q1: How long after the foundation concrete is poured can it be cured before installing the equipment?
A1: Generally, the concrete needs to be cured for at least 28 days after pouring to reach its design strength. During the curing period and before installation, the foundation must be protected to prevent damage to embedded parts. In emergency situations, installation can proceed only after the concrete strength meets the standard (e.g., reaches 100% or more of the design strength), based on the concrete strength test report. However, shortening the curing time to meet deadlines is strictly prohibited.
Q2: What if the installation site is soft soil?
A2: This is a crucial question. Foundations must never be poured directly on soft soil. Foundation treatment must be performed first, such as using pile foundations (pipe piles, rotary piles, etc.), replacement layer, or foundation reinforcement to increase the bearing capacity to the design requirements and ensure uniform settlement. This requires a specialized design by a professional civil engineering design unit based on the geological survey report.
Q3: What should be done if the anchor bolts become loose after the equipment has been running for a period of time?
A3: The machine should be stopped immediately. This is usually due to loose bolts during installation, inadequate anti-loosening measures, or defects in the foundation itself. To fix this, the equipment must be leveled again, and then using tools such as hydraulic wrenches, the bolts should be tightened to the specified torque using a diagonal, crisscrossing, multiple, and step-by-step approach. Afterwards, it is recommended to repair and reinforce the secondary grouting layer with non-shrink grout, and check the effectiveness of the lock nuts or other anti-loosening devices. If loosening occurs frequently, check the foundation itself for cracks or settlement.
