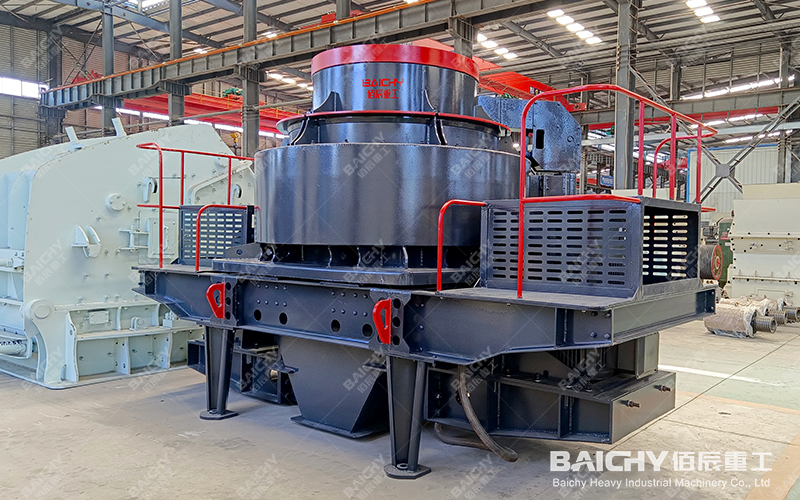

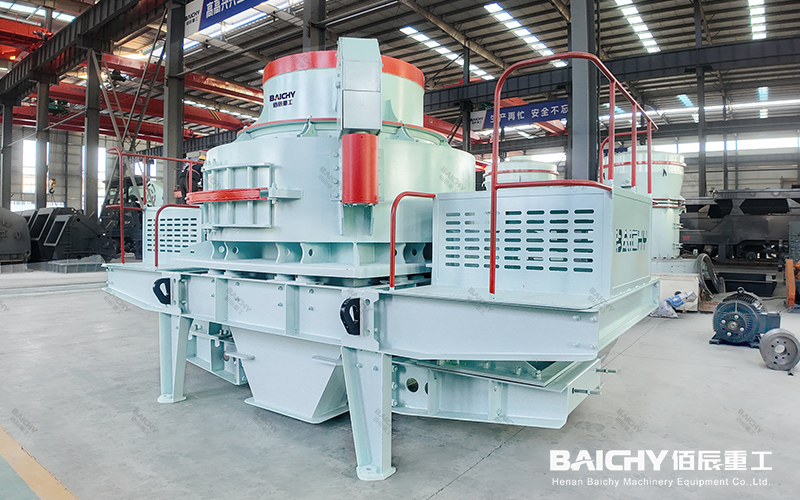

VSI Sand Making Machine
In the fields of sand and gravel aggregate production, mining, and construction waste recycling, vertical shaft impact crushers (VSI sand making machines) have become the core equipment for manufactured sand production due to their excellent particle shape shaping capabilities and high-efficiency crushing performance. However, faced with numerous models and configurations on the market, users often feel confused about how to make the most suitable choice. This article will provide a detailed analysis of the key factors in selecting a VSI sand making machine model, helping you find the most cost-effective and best-matched "powerful tool" for your production needs.
I. Core Considerations for Model Selection
Choosing a suitable VSI sand making machine is not simply a matter of comparing prices or processing capacities, but a systematic project requiring comprehensive evaluation.
1.1 Raw Material Characteristics Analysis
This is the first step in the selection process. Different properties of raw materials have a significant impact on equipment wear, energy consumption, and the final product.
• Hardness and Abrasiveness: For high-hardness materials (such as granite and basalt) or highly abrasive materials, a heavy-duty design with high-quality wear-resistant parts (such as tungsten carbide alloy shovels) is required. Stone-on-stone or mixed crushing principles may also be necessary to reduce wear part consumption.
• Feed Size and Powder Content: Strictly control the maximum feed size to ensure it does not exceed the manufacturer's specified value. Excessive powder or moisture content in the material will affect crushing efficiency and may require pre-screening or drying.
1.2 Production Objectives and Finished Product Requirements
Clear production objectives are the guiding principle for model selection.
• Capacity Requirements: Select a model with the corresponding processing capacity based on the designed hourly output (tons/hour) of your production line. Note that the capacity listed in the sample is usually based on specific medium-hardness materials and needs to be adjusted according to your actual materials.
• Finished Product Specifications and Particle Shape: What grade of sand do you need to produce? What are the specific requirements for needle-like and flaky particle content and fineness modulus? For applications requiring extremely high particle shape (cubic), the VSI model employing the "stone-on-stone" crushing principle should be prioritized. It produces manufactured sand with excellent gradation and perfect particle shape.
• Discharge Adjustment Method: Understand the discharge particle size adjustment method for different models—mechanical, hydraulic, or adjusted by rotational speed. This relates to ease of operation and adjustment range.
1.3 Equipment Structure and Configuration
The technical details of the equipment itself directly determine its performance and lifespan.
• Crushing Chamber Design: Deep chamber or shallow chamber? A deep chamber allows for higher throughput and better particle shape control.
• Rotor Structure: Enclosed rotor or open rotor? Enclosed rotors offer higher speeds and are suitable for producing fine materials; open rotors are more durable and easier to maintain.
• Drive System: Belt drive or direct drive? Belt drives buffer impacts and are easier to maintain; direct drives are more efficient but also more expensive.
• Lubrication and Cooling System: A good automatic lubrication and bearing temperature monitoring system ensures stable operation of the equipment over long periods.

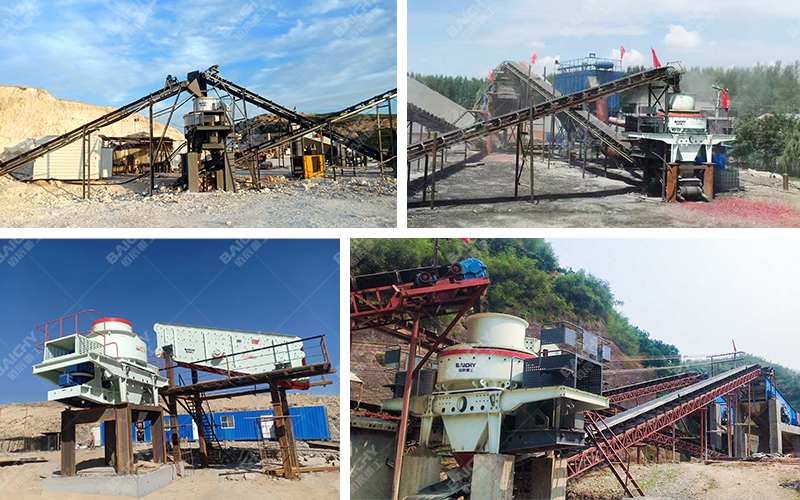

VSI sand making machine customer site
II. Comparison and Advantages of Mainstream Models
Taking several common processing capacity ranges in the market as examples, their typical models and application advantages are as follows:
| Processing Capacity Range (t/h) | Typical Model | Example Core Advantages | Recommended Applicable Scenarios |
| 50-150 | Small to Medium-Sized VSI | Low investment cost, compact structure, relatively low energy consumption, flexible installation. | Used in small to medium-sized sand and gravel plants, self-supplied sand production in commercial concrete mixing plants, and environmentally friendly recycled brick factories for processing construction solid waste. |
| 150-350 | Medium-Sized Standard VSI | High cost-performance ratio, balanced performance, balancing capacity and finished product quality, the mainstream choice in the market | Used in large and medium-sized sand and gravel aggregate production lines, sand and gravel production for highway construction, and tailings sand production in medium to large-sized mining companies. |
| 350-600+ | Large-Scale High-Efficiency VSI | Huge single-unit capacity, high degree of automation, low unit energy consumption, and significant long-term economic benefits. | Used in national-level large-scale infrastructure projects, modern green giant sand and gravel industrial parks, and mining groups with an annual output of over one million tons. |
Key Advantages Summary:
• Superior Particle Shape: The produced manufactured sand is cubic with a reasonable gradation, greatly improving the strength and durability of concrete.
• High Efficiency and Energy Saving: Crushing efficiency far exceeds that of traditional equipment, resulting in lower energy consumption.
• Multi-functional: By adjusting parameters, it can switch between "stone-on-stone" and "stone-on-iron" modes, combining sand making and shaping functions.
• Environmentally Friendly and Convenient: The fully enclosed structure generates less dust, requires fewer maintenance points, and facilitates lubrication.
III. Application Example: Granite Sand Production Line
Project Background: A large-scale green building materials base in East China uses locally sourced, high-hardness granite as raw material, aiming to produce 2 million tons of high-quality manufactured sand annually.
Challenges: The raw material is highly abrasive, requiring high wear resistance from the equipment; the market has strict restrictions on the content and particle shape of the finished sand powder.
Solution: A large-scale, high-efficiency VSI sand making machine ("stone-on-stone" chamber type) was selected. • Configuration: Employs high-chromium alloy composite flow channel plates and high-performance tungsten carbide throwing heads, equipped with a hydraulic opening device and an automatic lubrication system.
• Results: The production line operates stably, with the fineness modulus of the finished sand controllable between 2.4 and 2.8, and the content of needle-like and flaky particles less than 5%, fully meeting the standards for high-quality commercial concrete sand. Despite the high hardness of the raw materials, the advanced crushing principle keeps the cost of wear-resistant parts per ton of sand within an ideal range.
IV. Our Recommendations and Services
We recommend that you follow the principle of "test first, then select." We can provide:
1. Free raw material testing: Send your material samples to our testing center to obtain accurate crushing data reports using a small VSI testing machine.
2. Personalized solution design: Our engineers will provide one-on-one model configuration solutions and production line process design based on the test reports and your site conditions.
3. Full-cycle service: From installation guidance and operation training to rapid spare parts supply and localized technical support, ensuring efficient operation throughout the entire equipment lifecycle.
V. Frequently Asked Questions (FAQ)
Q1: What are the fundamental differences between VSI sand making machines and traditional hammer crushers and roller crushers in sand production?
A1: The fundamental difference lies in the crushing principle. VSI uses a "stone-on-stone" or "stone-on-iron" impact crushing principle. The material collides with the surrounding lining or itself under the drive of the high-speed rotor, relying more on the self-impact crushing between materials. Therefore, the finished product has a better particle shape, more cubic particles, and controllable powder production. Hammer crushers and roller crushers mainly rely on compression, impact, and shearing actions, which easily produce over-crushing and more needle-like and flaky particles.
Q2: How to control the stone powder content in VSI sand making machine products?
A2: The stone powder content can be controlled through several interconnected methods: ① Adjusting the rotor speed; the higher the speed, the greater the crushing force, and the more stone powder may be produced; ② Selecting a suitable crushing chamber type and feeding method; ③ Equipping subsequent stages with a high-efficiency classifier or air screen to dynamically separate qualified finished sand from excess stone powder, achieving precise control of the stone powder content.
Q3: What could be the cause of a sudden increase in vibration and noise during equipment operation?
A3: This is usually a warning signal requiring immediate shutdown and inspection. The main causes may include: ① Uneven wear or reaching the limit of wear-resistant parts (such as the throwing head and flow channel plate), leading to rotor imbalance; ② Damage to the rotor body or main shaft; ③ Incompatible foreign objects (such as iron blocks) entering the machine; ④ Loose foundation bolts or equipment connecting parts. Immediate shutdown and inspection should be carried out according to procedures.
