A Comprehensive Analysis of the Working Principle and Advantages of VSI Sand Making Machines
In the fields of mining crushing and artificial sand making, selecting the right sand making equipment is crucial to determining the quality of finished products, production efficiency, and operating costs. Among the many types of sand making machines, the VSI sand making machine, with its unique working principle and excellent finished sand quality, has become one of the preferred equipment for producing high-quality manufactured sand. This article will provide an in-depth analysis of the core of the VSI sand making machine to help you make informed investment decisions.
I. In-depth Analysis of VSI Sand Making Machine: What Exactly Is It?
VSI is an abbreviation for "Vertical Shaft Impact," which means "vertical shaft impact crusher." Unlike the jaw crusher and cone crusher, which rely on compression and bending forces for crushing, the VSI sand making machine belongs to the "impact crusher" category.
Its core design concept is to use a high-speed rotating rotor to throw the material out, causing it to collide violently with the surrounding guard plate or the material itself, thereby achieving efficient crushing and shaping of the material through a "stone-on-stone" or "stone-on-iron" method. This working principle makes it particularly adept at crushing and shaping medium-hard rocks (such as limestone, granite, basalt, etc.) into high-quality manufactured sand with excellent particle shape and reasonable gradation.

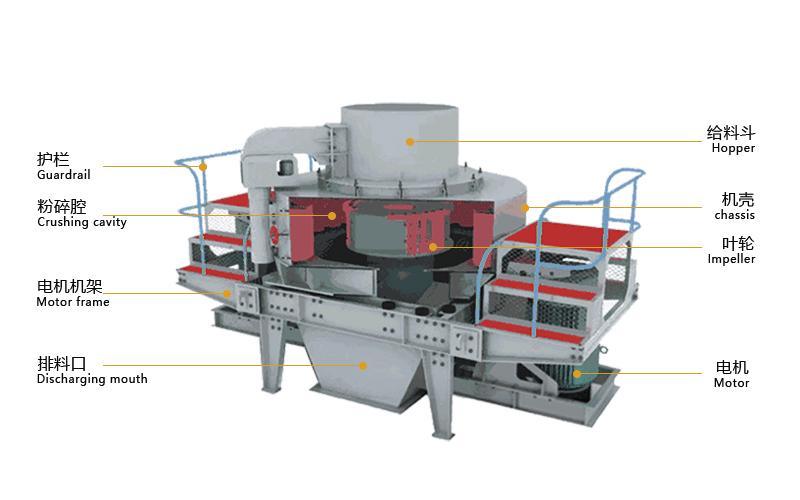

Structural diagram of VSI sand making machine
II. Core Unveiling: How Does a VSI Sand Making Machine Work?
The working process of a VSI sand making machine can be summarized into five stages: acceleration, collision, crushing, shaping, and screening, as follows:

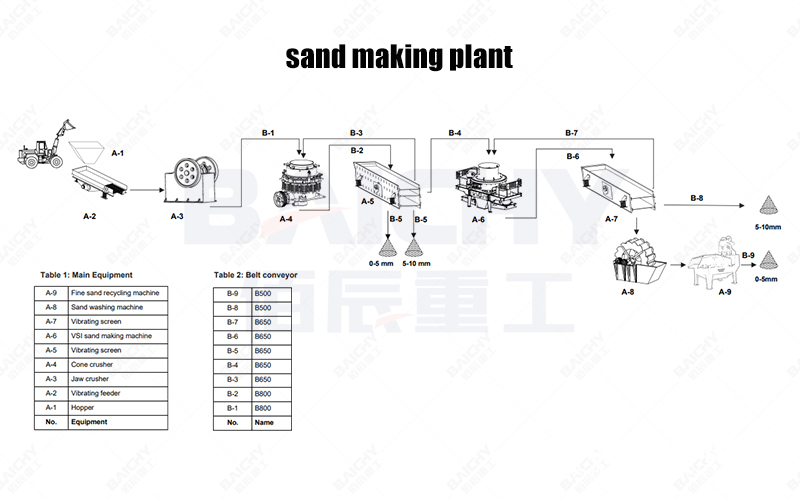

VSI Sand Making Production Line Process Flow Diagram
1. Feeding and Acceleration
The material enters the center of the machine through the top feed hopper. A high-speed rotating rotor (typically reaching 60-80 m/s) is the heart of the equipment. The material falls into the center of the rotor and is rapidly accelerated under centrifugal force, then ejected at high speed through the flow channels around the rotor.
2. Stone-on-Stone and Stone-on-Iron Collisions
The ejected materials possess extremely high kinetic energy, and they collide in two main ways:
• Stone-on-Stone: The material is thrown against a material lining ("anvil" or a lining formed by the material itself) arranged around the rotor, where it collides and rubs against each other, resulting in crushing. This mode has low wear and is suitable for highly abrasive materials.
• Stone-on-Iron: The material is thrown directly against impact blocks (wear-resistant blocks) fixed to the circumferential plates of the crushing chamber. This mode has high crushing efficiency and greater control over the finished particle shape.
3. Crushing and Shaping
During the intense impacts and multiple rebounds and friction, the material is not only crushed into smaller particles, but its sharp edges are also continuously rounded, resulting in cubic particles with a shape close to that of natural sand. This is the fundamental reason why the VSI sand making machine can produce high-quality manufactured sand.
4. Screening and Discharge
Materials meeting the particle size requirements are discharged through the discharge port at the bottom. Some equipment allows for flexible control of the output particle size by adjusting rotor speed, feed rate, and cascade feeding system.
III. Why Choose a VSI Sand Making Machine? Its Core Advantages at a Glance
• Excellent Finished Particle Shape: The produced manufactured sand particles are cubic with low needle-like and flaky content, and continuous gradation, greatly improving the strength and workability of concrete and asphalt mixtures.
• High Efficiency and Multifunctionality: It combines medium and fine crushing, sand making, and shaping functions in one machine, simplifying the process flow.
• Easy Maintenance: Major wear parts (such as the throwing head and peripheral guard plates) are easy to replace, and a hydraulic opening device is typically used, significantly reducing maintenance time and labor intensity.
• Environmentally Friendly and Controllable: It can use full center feeding or center feeding with cascade, resulting in relatively low dust generation. Combined with a closed design and dust removal system, its environmental performance is even better.
IV. Successful Application Case Study
A large building materials group introduced one of our VSI-1140 sand making machines to upgrade the quality of its commercial concrete plant's aggregates, specifically for processing limestone tailings (0-40mm). The equipment operates stably, and the final product, 0-5mm manufactured sand, achieves a sphericity of over 0.85, with an adjustable fineness modulus, completely replacing natural sand and meeting the sand requirements for C50 high-grade concrete. Customer satisfaction is extremely high.
V. Equipment Selection and Matching Recommendations
When selecting a VSI sand making machine, the hardness, abrasiveness, feed particle size, required capacity, and finished product specifications must be comprehensively considered. We recommend:
• For highly abrasive materials (such as basalt and river pebbles), prioritize the "stone-on-stone" chamber type and configure it with a highly wear-resistant material for the throwing head.
• To obtain more stable feeding and higher processing capacity, we recommend equipping the front end with a vibrating feeder and a suitable buffer hopper.
• To form a closed-loop system and optimize gradation, it is strongly recommended to integrate it with a vibrating screen to return excess particles to the sand making machine for further crushing.
VI. Frequently Asked Questions (FAQ)
Q1: What is the difference between a VSI sand making machine and a traditional hammer crusher?
A1: The core difference lies in the crushing principle and the quality of the finished product. VSI uses high-speed impact and a "stone-on-stone" principle, focusing on crushing and shaping, resulting in good particle shape and relatively uniform wear on wear parts. Hammer crushers mainly rely on hammer impact and shearing, focusing more on crushing, resulting in more needle-like and flaky particles in the finished product, and faster and uneven wear on the hammers.
Q2: Is the energy consumption of a VSI sand making machine high?
A2: Due to its kinetic energy crushing principle, compared to simple compression crushing, it has a higher energy utilization rate when producing high-quality manufactured sand. Although the single-machine power may be larger, considering the high value of the finished product and the comprehensive benefits brought by the potential simplification of the process flow, its energy cost per ton is often competitive.
Q3: How to control the fineness modulus of the VSI sand making machine output?
A3: This is mainly achieved by adjusting the rotor linear speed, feed rate and method (center feed or full center feed with cascading feed), and crushing chamber shape. Increasing the rotor speed and the "stone-on-iron" ratio usually produces finer sand; conversely, decreasing these ratios produces coarser sand. The optimal solution needs to be determined through on-site commissioning.
