3-foot Cone Crusher
In the fields of mining, aggregate production, and ore processing, the cone crusher stands as an indispensable piece of core equipment, playing a particularly critical role in the secondary and tertiary crushing stages. Among these, the 3-foot cone crusher—typically referring to models with a feed opening width of approximately 900 mm—has emerged as the ideal choice for medium-to-large-scale stone production lines and mineral processing plants, thanks to its exceptional crushing efficiency, consistent product quality, and broad adaptability to various materials. This article will provide an in-depth analysis of the 3-foot cone crusher's working principles, core advantages, and application scenarios; furthermore, through practical case studies and technical parameter tables, it aims to offer you a comprehensive reference guide for equipment selection.
Equipment Overview and Working Principles
The 3-foot cone crusher belongs to the category of gyratory-style crushers, with its core design centered around the crushing chamber formed between a gyrating mantle and a stationary concave liner. An electric motor drives the main shaft via a pulley or coupling, causing the mantle (moving cone) to execute an eccentric gyratory motion; this movement causes the surface of the mantle to alternately approach and recede from the stationary concave liner. As material falls into the crushing chamber through the top feed opening, it undergoes crushing through a continuous process of compression, bending, and shearing; material of the required particle size is then discharged from the bottom of the chamber under the force of gravity.
This principle of inter-particle crushing (or laminating crushing) enables the 3-foot cone crusher—compared to devices such as jaw crushers—to produce a final product with superior particle shape and significantly lower content of flaky or needle-like particles. Furthermore, it boasts lower energy consumption per unit of output, making it particularly well-suited for commercial concrete mixing plants and highway construction projects that demand high standards regarding product particle shape and gradation.
Key Application Scenarios and Materials
Distinguished by its powerful crushing force and flexible chamber configuration options, the 3-foot cone crusher is widely deployed across a Perse range of applications:
• Mining Operations: Utilized for the secondary crushing (medium crushing) or tertiary crushing (fine crushing) of medium-to-hard and hard ores and rocks—including iron ore, copper ore, gold ore, granite, basalt, river pebbles, and similar materials.
• Aggregate Production: Within sand and aggregate production lines, serving as the core secondary crushing equipment, it further reduces the primary crushed products (output from jaw crushers) into intermediate products smaller than 40mm; alternatively, it functions directly as a fine crusher to produce high-quality aggregates in specific size fractions—such as 0–5mm, 5–10mm, and 10–20mm.
Building Materials & Chemicals: Used for the crushing and processing of materials such as slag, cement clinker, quartz, and similar substances.
Analysis of Core Advantages
Selecting a high-performance 3-foot cone crusher brings multiple significant advantages to your production line:
1. High Efficiency and Energy Savings: The principle of inter-particle crushing (laminating crushing) enables a "crush more, grind less" approach, resulting in high energy utilization efficiency and a reduction in energy consumption of up to 15% compared to other methods at equivalent throughput levels.
2. Superior Product Shape: The produced aggregates feature a high cubicity ratio and minimal needle-like or flaky particles; this significantly enhances the compressive strength of concrete and the adhesion properties of asphalt, thereby increasing the market value of the final product.
3. Stable and Reliable Operation: Utilizing a heavy-duty frame, a large-diameter main shaft, and high-performance bearings, the equipment ensures stable operation under prolonged, heavy-load conditions, resulting in a low failure rate.
4. Intelligent Automated Control: Modern 3-foot cone crushers are typically equipped with hydraulic discharge opening adjustment and tramp iron protection systems. Furthermore, they can be integrated with automated control systems to enable remote monitoring, automatic cavity clearing, and intelligent adjustment, thereby minimizing downtime.
5. Convenient Maintenance: The modular design and hydraulic jacking mechanism make the replacement of core components—such as liners—safer and faster, effectively reducing both maintenance costs and labor intensity. Reference Table of Key Technical Parameters
The table below presents the main parameters for a typical 3-foot cone crusher (specifically the PYB/PYD 1750 series), provided for your reference during equipment selection:
| Parameter | Standard Coarse Crushing Type (PYB1750) | Standard Fine Crushing Type (PYD1750) | Description |
| Moving Cone Diameter | 1750 mm (approx. 5.7 ft) | 1750 mm (approx. 5.7 ft) | Primary model specification identifier |
| Max. Feed Size | 215 mm | 85 mm | Varies depending on the crushing chamber profile |
| Discharge Opening Adjustment Range | 25–60 mm | 5–15 mm | Hydraulic adjustment; flexible range |
| Processing Capacity | 280–480 t/h | 75–230 t/h | Varies based on material properties, chamber profile, and discharge opening setting |
| Main Shaft Speed | ~315 rpm | ~315 rpm | Influences crushing frequency and product particle size |
| Motor Power | 160–185 kW | 160–185 kW | Provides the core power for crushing |
Note: The above are general parameters; for specific values, please refer to the final technical proposal provided by our company.

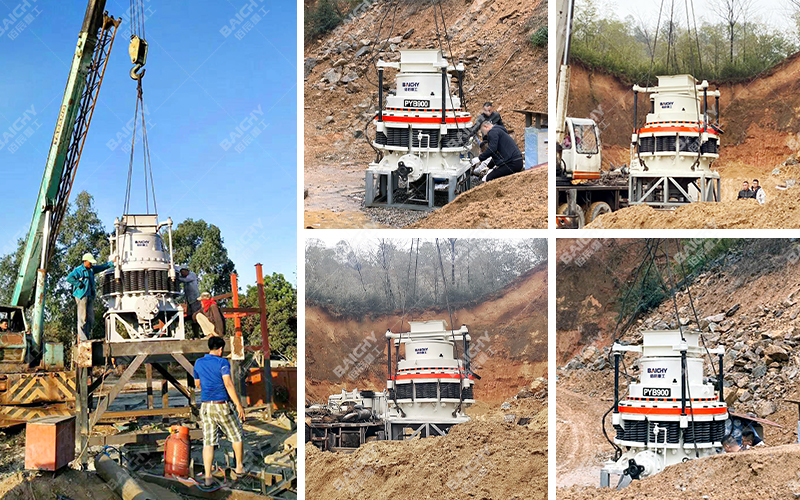

3-foot Cone Crusher Client Site
Real-World Application Case Study
Case: A Large-Scale Granite Aggregate Project in East China
The client's original production line produced aggregates with poor particle shape, resulting in weak market competitiveness. We designed a new three-stage crushing production line for them, featuring our HPM400 (3-foot) multi-cylinder hydraulic cone crusher as the core secondary crushing equipment.
• Configuration: Jaw Crusher (Primary Crushing) + HP400 Cone Crusher (Secondary Crushing) + Vertical Shaft Impact Crusher (Shaping & Sand Making).
• Feed Material: 0–400 mm granite.
• Results: Following secondary crushing by the 3-foot cone crusher, the cubicity of the product (40–100 mm) improved significantly, creating optimal conditions for the subsequent shaping stage. Ultimately, the entire production line yielded aggregate products with a needle-and-flaky content of less than 8%—far exceeding national standards. This success enabled the client to successfully enter the high-end commercial concrete market, boosting their selling price by approximately 20%. The equipment has been in operation for two years, demonstrating excellent stability, and maintenance costs have remained lower than anticipated.
Recommended Related Equipment
An efficient crushing production line often requires multiple pieces of equipment working in tandem. In addition to the 3-foot cone crusher, you may also require:
1. PE Series Jaw Crusher: Serving as reliable primary crushing equipment, it provides a stable feed supply for the cone crusher.
2. PLS Series Vertical Shaft Impact Crusher (VSI): Used for tertiary crushing or sand shaping, it pairs with the cone crusher to produce high-quality manufactured sand and premium aggregates.
3. YK Series Circular Vibrating Screen: Used for the efficient classification of crushed materials, enabling a closed-circuit crushing loop or the production of finished products in various size specifications.
4. ZSW/GZT Series Feeder: Ensures a uniform and continuous feed supply to the 3-foot cone crusher and other equipment, serving as the critical "first mile" for stable production.
Frequently Asked Questions (FAQ)
Q1: How should I choose between a 3-foot cone crusher, a 4.25-foot cone crusher, and a jaw crusher?
A1: The choice depends on the specific crushing stage and the characteristics of the material being processed. Jaw crushers are typically used for primary crushing to handle large-sized materials; the 3-foot cone crusher is suitable for medium-to-fine crushing in medium-scale production lines, offering a balanced processing capacity; larger cone crushers—such as the 4.25-foot model—are utilized in the high-output medium-to-fine crushing stages of large-scale production lines. These machines often work together to form a complete crushing and screening workflow.
Q2: How can I extend the service life of the cone crusher's wear parts (such as liners)?
A2: First, select liners made from high-manganese steel or composite alloys that match our company's original material specifications. Second, ensure a uniform feed rate to prevent uneven wear or overloading of the equipment. Regularly inspect the liners for wear; when there are noticeable changes in output volume or product particle size, promptly adjust the discharge opening or replace the liners. Maintaining an appropriate crushing chamber profile design is also crucial.
Q3: Do your cone crushers support automated control and remote monitoring?
A3: Yes, they do. The modern 3-foot cone crusher we offer comes standard with an intelligent control system capable of real-time monitoring of key parameters—such as spindle speed, power consumption, discharge opening settings, oil temperature, and oil pressure. It supports remote monitoring and fault diagnosis, and can be seamlessly integrated with the entire production line's DCS/SCADA system to facilitate intelligent production management, thereby helping you enhance operational efficiency and reduce labor costs.
Summary and Reflections
In summary, a well-designed and reliable 3-foot cone crusher represents a pivotal investment for boosting the efficiency of your crushing production line and enhancing the competitiveness of your products. It serves not only as a powerful tool for crushing hard rock but also as a dependable guarantee for the production of high-quality aggregates.
