Triple-Drum Dryer
In mining and building-material plants, moisture is the silent enemy of product quality and downstream efficiency. Wet sand clogs screens, damp slag sticks to conveyor belts, and high-moisture mineral powder ruins grinding and batching accuracy. The solution used by modern plants worldwide is the triple-drum dryer — also known as the three-drum rotary dryer or three cylinder dryer. In this guide, Baichy Heavy Industry walks you through how this triple-pass rotary dryer works, why it outperforms single-drum machines, what to check before you buy, and the real specs you should compare.
What Is a Triple-Drum Dryer?
A three-drum dryer is a compact rotary drying machine built from three coaxial, nested cylinders (inner, middle, outer) that share a single drive system. Instead of stretching a single long drum along the site, the material travels back and forth through three concentric passages inside one short body. This triple-pass rotary dryer makes full use of the drum cross-section, dramatically reducing floor area, building height and steel weight while keeping — or even raising — drying capacity.
Because it is self-insulating (the hot outer drum is wrapped by the returning gases), a triple drum dryer achieves lower heat loss than traditional long single-pass kilns. That is why the three-drum dryer has become the first choice for drying sand, slag, clay, coal, iron powder and mineral powder in dry-mixed mortar plants, mineral beneficiation lines and construction-material plants.

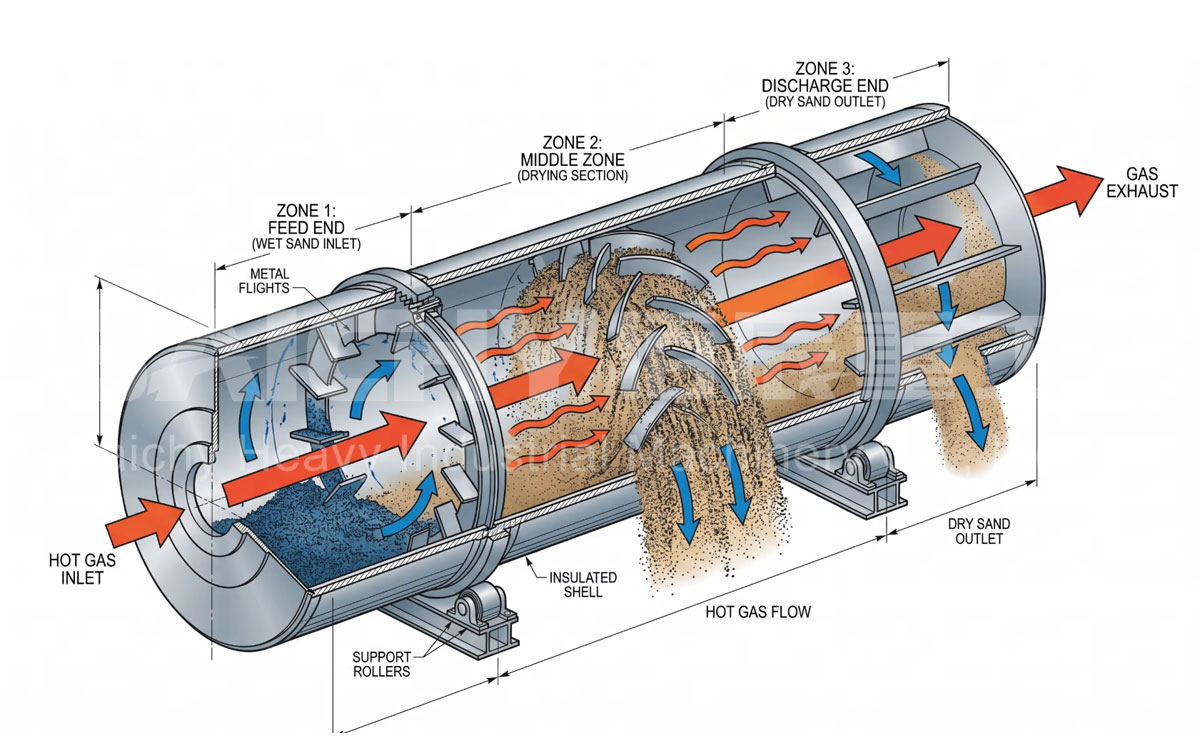

Internal Working Principle of the Triple-Drum Dryer
How Does the Three-Drum Dryer Work?
Understanding the working principle helps you appreciate why the triple-pass rotary dryer is so efficient. The wet material enters the inner cylinder at the hot end, where it meets the hottest gases.
- First pass: Material is lifted and showered by internal lifting plates through the inner drum, where the highest temperature drives off the bulk of surface moisture.
- Second pass: The semi-dried material moves to the middle cylinder, traveling in the opposite direction and picking up more heat as it tumbles.
- Third pass: In the outer cylinder the material completes drying, now with lower temperature but longer contact time, before discharging at the cold end — cool enough to handle and ready for the next process.
The key insight is simple: the three-drum dryer multiplies the effective drying path within a short footprint. Longer residence time, better heat exchange and full use of the drum cross-section add up to higher throughput per square meter of plant space — the main economic argument for choosing a triple drum dryer.
Why Choose a Triple-Pass Rotary Dryer Over a Single-Drum Dryer?
The comparison is not academic; it decides your layout, your energy bill and your payback period.
| Comparison point | Single-pass rotary dryer | Triple-drum dryer (three-pass) |
|---|---|---|
| Footprint | Long body, large footprint | Compact nested drums, ~1/3 the length |
| Heat loss | High surface area exposed | Lower, self-insulated outer shell |
| Energy efficiency | Moderate | Higher, better heat utilization |
| Residence time | Fixed single pass | Extended 3-pass contact time |
| Installation cost | Higher (structure & foundation) | Lower (smaller foundation, less steel) |
| Material range | Broad | Broad: sand, slag, clay, coal, ore powder |
| Output per footprint | Lower | Higher |
For operators who value energy and real estate, the three-drum rotary dryer is usually the better business case — which is why Baichy's triple-pass rotary dryer series ships to mining and mortar projects on every continent.
Key Applications of the Three-Drum Dryer
- River sand and yellow sand drying before dry-mixed mortar batching
- Machine-made sand drying in aggregate and manufactured-sand plants
- Blast-furnace slag drying before grinding or batching
- Clay, gypsum and coal drying in cement and power-related lines
- Iron powder and mineral powder drying in beneficiation processes
- Fertilizer and biomass granular drying for agriculture and fuel
Wherever feed size is under about 10 mm and the product must reach a controlled final moisture (often 0.5–1%), a triple drum dryer delivers repeatable results at high tonnage.
Three-Drum Dryer Technical Parameters
The table below shows representative Baichy three cylinder dryer models. Values are indicative and vary with feed moisture, particle size and fuel type — a Baichy engineer will size the unit precisely for your material.
| Model | Outer dia. (m) | Length (m) | Drum volume (m³) | Rotation (r/min) | Max. inlet temp (°C) | Capacity (t/h) | Power (kW) |
|---|---|---|---|---|---|---|---|
| Φ2.2×4.5 | 2.2 | 4.5 | 17.1 | 4–10 | 700–750 | 14–18 | 4×2 |
| Φ2.5×6 | 2.5 | 6.0 | 29.5 | 4–10 | 700–750 | 20–27 | 7.5×2 |
| Φ2.8×6 | 2.8 | 6.0 | 36.9 | 4–10 | 700–750 | 25–35 | 11×2 |
| Φ3.0×6 | 3.0 | 6.0 | 42.4 | 4–10 | 700–750 | 30–40 | 7.5×4 |
| Φ3.0×7 | 3.0 | 7.0 | 49.5 | 4–10 | 700–750 | 30–45 | 7.5×4 |
| Φ3.2×7 | 3.2 | 7.0 | 56.3 | 4–10 | 700–750 | 40–50 | 11×4 |
What to Consider Before Buying a Triple Drum Dryer
A triple-drum dryer is a long-term asset. Before you sign, weigh these factors:
- Final moisture target. Some processes need 0.5–1% residual moisture; others tolerate 5%. This single number drives size, temperature and fuel consumption more than anything else.
- Fuel and heat source. Coal, natural gas, fuel oil, biomass, steam or waste-heat gas all work, but each changes burner design and operating cost. Ask for a fuel-specific quotation.
- Inlet temperature and material. Sticky or abrasive feeds need thicker wear plates and stronger lifting flights. Confirm the lining is matched to your material.
- Emission and dust control. Pair the three-drum dryer with a cyclone or bag filter and induced-draft fan so the plant meets local environmental limits.
- Automation. PLC temperature control holds the outlet moisture stable across shifting feed rates — worth it for quality-critical product.
- After-sales and spare parts. Choose a manufacturer that guarantees local service, quick spare-part supply and process commissioning, not just delivery.

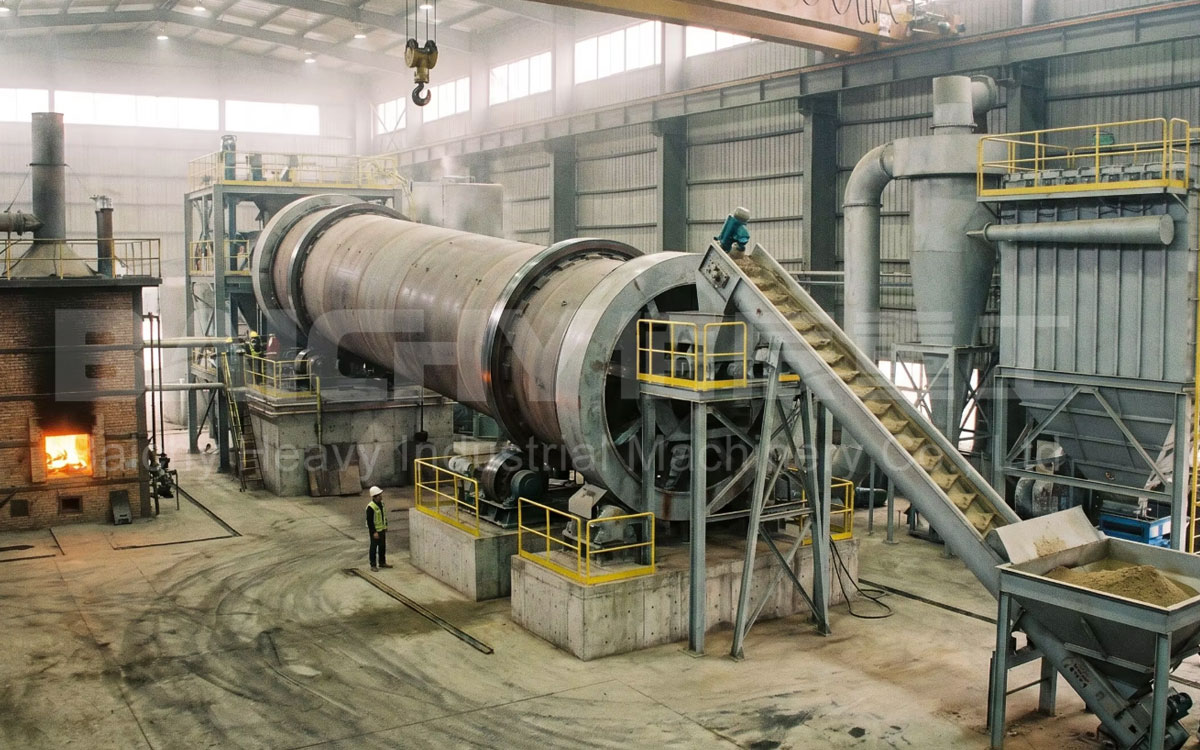

Triple-Drum Dryer for Mining: High-Efficiency 3-Pass Drying
Why Baichy Heavy Industry for Your Triple-Pass Rotary Dryer
Baichy Heavy Industry is a professional manufacturer of mining crushing, ore grinding and mineral-processing equipment with two decades of engineering experience and exports to more than 150 countries. Beyond the triple-pass rotary dryer itself, you get:
- Integrated process design — the dryer sized together with your crusher, mill, screen and dust-collection system so the whole line matches.
- Factory-direct pricing with full process commissioning and operator training.
- EPC turnkey capability — Baichy engineers handle site survey, 3D layout, erection supervision and commissioning.
- Proven global references across sand, slag, coal and mineral-powder projects.
Maintenance Tips to Keep Your Three-Drum Dryer Reliable
- Daily: Check bearing temperature, gearbox oil level and seal leakage; inspect feed evenness to avoid localized overheating.
- Weekly: Verify lifting plates for wear or loosening; clean the hot-air inlet of accumulated fines.
- Monthly: Inspect the drum shell for deformation or cracks; check the burner flame and combustion efficiency.
- Seasonally: Re-torque foundation bolts, replace worn seals and recalibrate the temperature sensors.
Consistent maintenance is what keeps a three cylinder dryer at nameplate capacity for years.

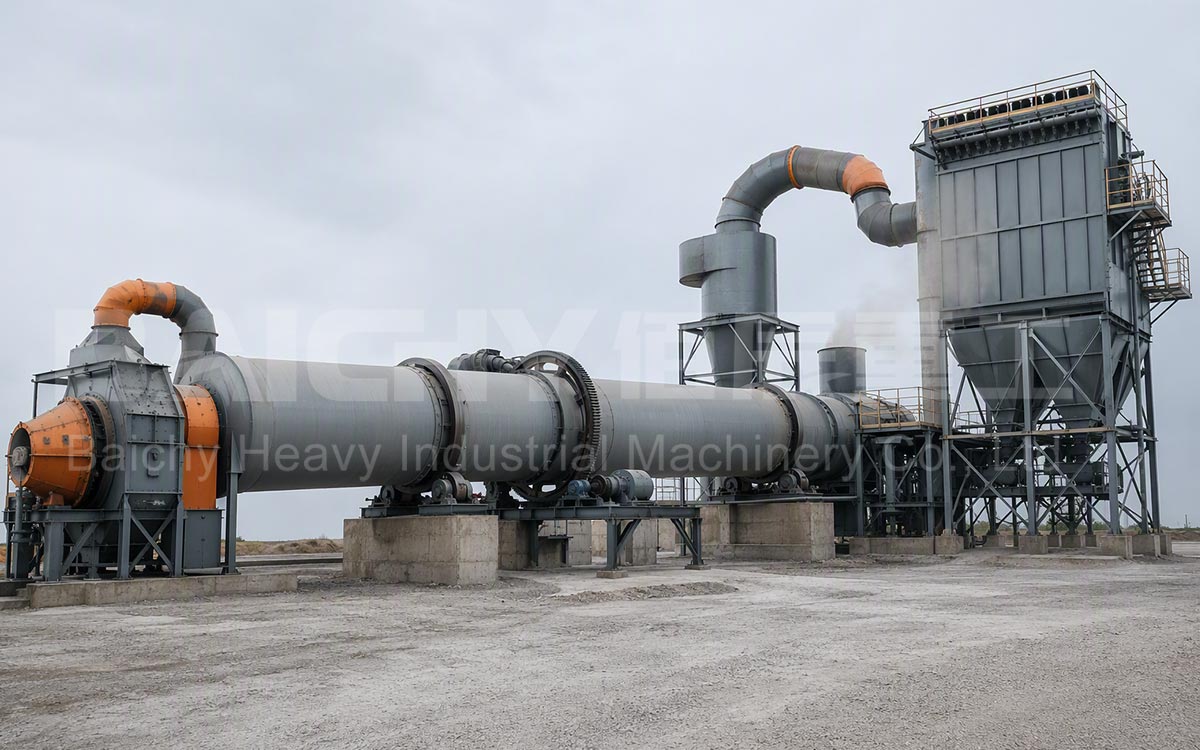

Triple-Drum Dryer for Mining: High-Efficiency 3-Pass Drying
Frequently Asked Questions (FAQ)
Q1: What is a triple-drum dryer?
A triple-drum dryer, or three-drum rotary dryer, is a compact rotary drying machine with three nested, coaxial cylinders that dry material in three passes, achieving high capacity and low heat loss in a small footprint.
Q2: What materials can a three-drum dryer process?
It handles granular, free-flowing materials such as river sand, yellow sand, machine-made sand, slag, clay, gypsum, coal, iron powder and mineral powder, generally with a feed size below about 10 mm.
Q3: How much does a triple-pass rotary dryer cost?
Cost depends on model, capacity, fuel type, automation and accessories. A small unit may start in the low tens of thousands of dollars; larger, automated lines cost more. Contact Baichy for a model-specific factory-direct quotation.
Q4: What is the typical final moisture of a three-drum dryer output?
With proper burner and PLC control, outlet moisture can be adjusted down to roughly 0.5–1%, depending on the feed and the residence time of your chosen model.
Q5: How does the triple-drum dryer save energy compared with a single-drum dryer?
The nested design shortens the drum, reduces exposed surface area and adds a third contact pass, so heat loss falls and heat utilization rises — typically meaning noticeably lower fuel consumption per ton of dried material.
