Three-Stage Crushing in Limestone Quarrying Production Lines refers to a standard process in which large blocks of raw stone undergo three continuous stages of crushing—coarse crushing, medium crushing, and fine crushing—to ultimately produce high-quality sand and gravel aggregates meeting specific size specifications (0-5mm, 5-10mm, 10-20mm, 20-31.5mm). This method is commonly employed in large-scale, high-output production lines where strict requirements regarding aggregate shape are in place.
I. Core Process and Equipment Configuration (Standard Three-Stage System)
1. Primary Crushing (Coarse Crushing)

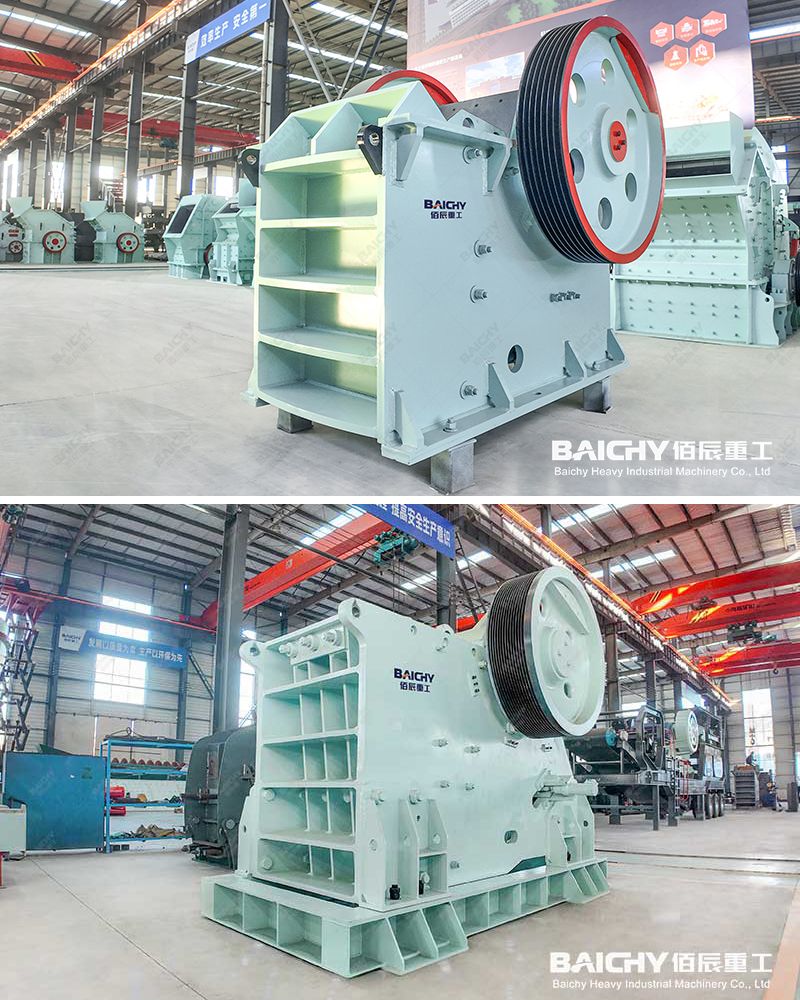

PE Jaw Crusher and C Jaw Crusher
- Task: To process large blocks of raw stone (≤1000mm) resulting from blasting operations, crushing them down to 150–300mm.
- Mainstream Equipment: Jaw Crusher (C/PE Series)
- Principle: Compression crushing; features high impact resistance and large processing capacity.
- Output: 150–300mm; material is discharged into a transfer hopper.
2. Secondary Crushing (Medium Crushing)

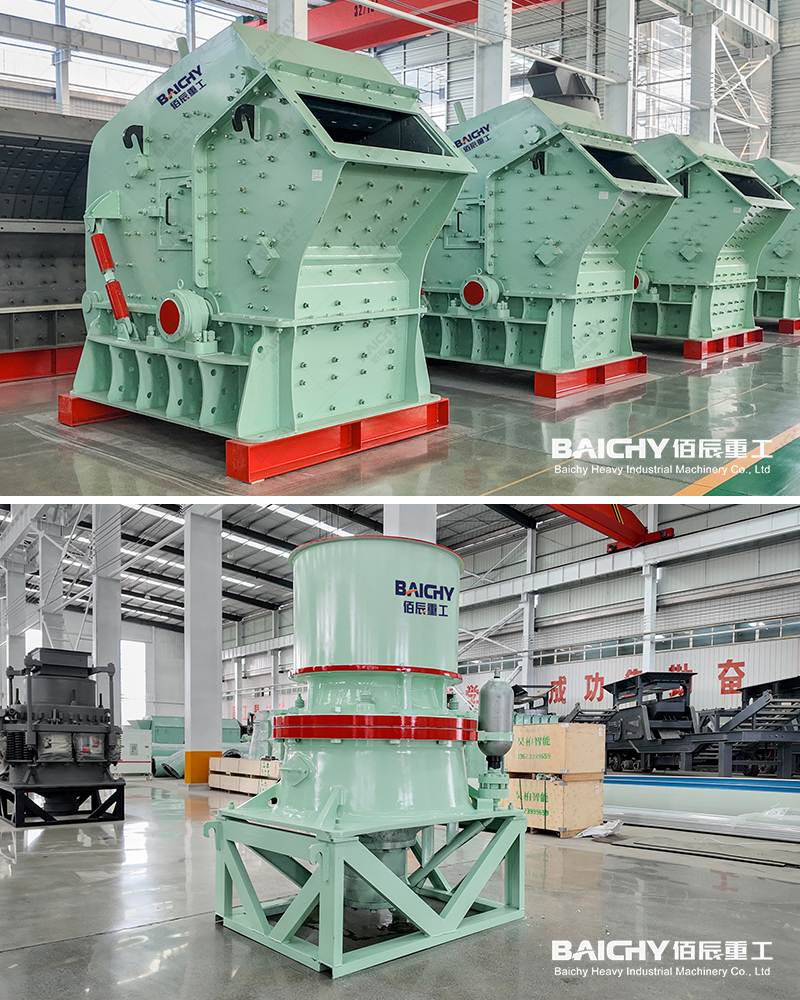

PF Impact Crusher and CH Cone Crusher
- Task: To crush the 150–300mm material down to 30–80mm, preparing it for the subsequent fine crushing stage.
- Mainstream Equipment: Cone Crusher (Single-Cylinder/Multi-Cylinder Hydraulic) or Impact Crusher (PF Series)
- Cone Crusher (For Hard Rock/High Capacity): Laminated crushing; produces aggregates with excellent shape and offers long service life for wear parts.
- Impact Crusher (Preferred for Limestone): Impact crushing; produces an output with a grain shape characterized by a high proportion of cubical particles and a low proportion of needle-like or flaky particles.
3. Tertiary Crushing (Fine Crushing/Shaping)
- Task: To finely crush the 30–80mm material down to <30mm and to optimize the aggregate shape.
- Mainstream Equipment: Fine Impact Crusher (CI Series) or Vertical Shaft Impact Crusher (Sand Making Machine)
- Core Function: Precise particle size control and shaping, ensuring the finished products meet the strict aggregate standards required for highways and high-speed railways.
II. Standard Three-Stage Crushing Process Flow (Closed-Circuit Cycle)
1. Feeding: Vibrating Feeder → Jaw Crusher (Primary Crushing)
2. Screening 1: Coarsely crushed material → Circular Vibrating Screen → Oversized material returned to Jaw Crusher
3. Secondary Crushing: Qualified material → Cone Crusher / Impact Crusher (Secondary Crushing)
4. Screening 2: Secondarily crushed material → Circular Vibrating Screen → Oversized material returned for Secondary Crushing
5. Fine Crushing/Shaping: Qualified material → Tertiary Impact Crusher / Sand Making Machine (Fine Crushing)
6. Finished Product Screening: Finely crushed material → Multi-layer Circular Vibrating Screen → Classified into finished products of 0-5, 5-10, 10-20, and 20-31.5 mm
III. Common Configuration Schemes for Limestone (2 Types)
Scheme A: Preferred for Soft Rock (Jaw Crusher + Impact Crusher + Impact Crusher)
Optimal Selection for Soft Rock (Jaw Crusher + Impact Crusher)
- Applicability: Limestone, Dolomite (Medium-to-Low Hardness)
- Advantages: Optimal particle shape, low cost, high output
- Typical Setup: PE Jaw Crusher → PF Impact Crusher (Secondary Crushing) → CI Impact Crusher (Fine Crushing)
Scheme B: General-Purpose for Hard Rock (Jaw Crusher + Cone Crusher + Sand Making Machine)

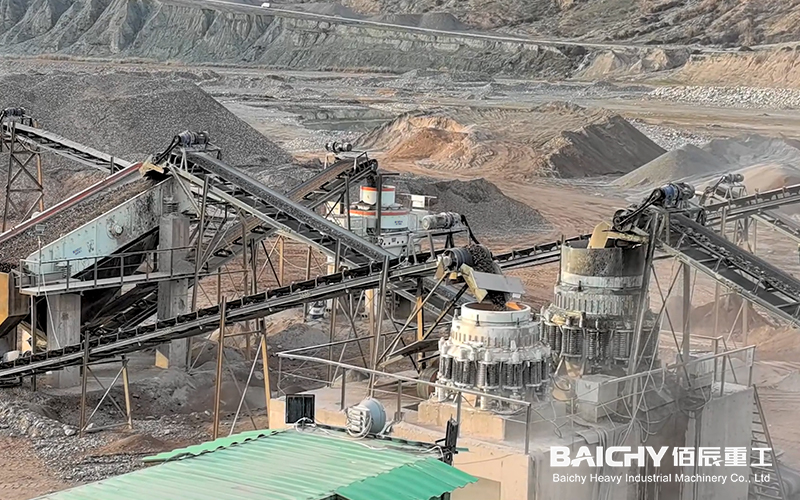

General Hard Rock Solution (Jaw Crusher + Cone Crusher + Sand Making Machine)
- Applicability: Limestone containing silica, or when high-quality manufactured sand is required
- Advantages: Wear-resistant, long service life, capable of sand production
- Typical Setup: PE Jaw Crusher → CHS Cone Crusher → VSI Sand Making Machine
IV. Three-Stage Crushing vs. Two-Stage Crushing (Key Differences)
| Comparison Item | Two-Stage Crushing | Three-Stage Crushing |
| Number of Crushing Stages | Primary + Secondary | Primary + Secondary + Tertiary |
| Total Crushing Ratio | 15–25 | 25–40 |
| Finished Product Size | Up to 31.5 mm | Achievable Range: 0–5 mm (Sand) |
| Particle Shape Quality | Average | Excellent (Predominantly Cubical) |
| Applicable Scale | Small to Medium (<500 t/h) | Large (500–2000 t/h) |
| Investment | Lower | Higher (Involves one additional stage of equipment) |
V. Core Advantages of Three-Stage Crushing (Why Choose Three Stages?)
1. Superior Particle Shape: Multi-stage crushing combined with shaping results in flaky and elongated particles of <5%, meeting the stringent requirements for high-grade concrete and asphalt.
2. Greater Particle Size Stability: Closed-circuit screening with material recirculation ensures an acceptable product rate of >95%.
3. Higher Production Capacity: Graded crushing and balanced load distribution make this system ideal for large-scale aggregate production bases.
4. Flexible Adjustment: The three-stage equipment configuration allows for the flexible switching between the production of natural aggregates and manufactured sand.
VI. Typical Case Study (500 t/h Limestone Production)
- Primary Crushing: PE1200×1500 Jaw Crusher (Feed size ≤1000 mm; Output size ≤300 mm)
- Secondary Crushing: CHS660 Single-Cylinder Cone Crusher (Output size ≤80 mm)
- Tertiary Crushing: CI1620 Impact Crusher (Output size ≤30 mm)
- Screening: Multi-layer Circular Vibrating Screen → Finished products: 0–5 mm, 5–10 mm, 10–20 mm, 20–31.5 mm
Frequently Asked Questions:
1. Why should a limestone production line utilize a three-stage crushing process rather than a two-stage process?
Compared to two-stage crushing, three-stage crushing offers a higher reduction ratio and produces aggregates with a more regular shape and lower content of flaky and elongated particles. It enables the stable production of multiple aggregate specifications ranging from 0–5 mm up to 31.5 mm. The resulting product quality better meets the high-standard engineering requirements for commercial concrete, highways, and high-speed railways. Additionally, the equipment load is more evenly distributed, making it suitable for large-scale, high-output production lines.
2. What is the typical equipment combination used for three-stage limestone crushing?
Limestone is classified as a material of medium-to-low hardness. The standard equipment configuration typically consists of a jaw crusher for primary (coarse) crushing, an impact crusher for secondary (medium) crushing, and a fine impact crusher or sand-making machine for tertiary (fine) crushing and shaping. However, if the raw material has a high silica content and is highly abrasive, the secondary crushing stage can be switched to a cone crusher to extend the service life of wear parts.
3. Is it mandatory for a three-stage crushing production line to operate as a closed-circuit system?
A closed-circuit system is highly recommended. By utilizing screening equipment to return oversized, non-conforming materials to the appropriate crusher for re-crushing, the system ensures uniform and stable product particle size with a high rate of compliance. This prevents the generation of excessive oversized particles while simultaneously boosting overall throughput and aggregate quality.
