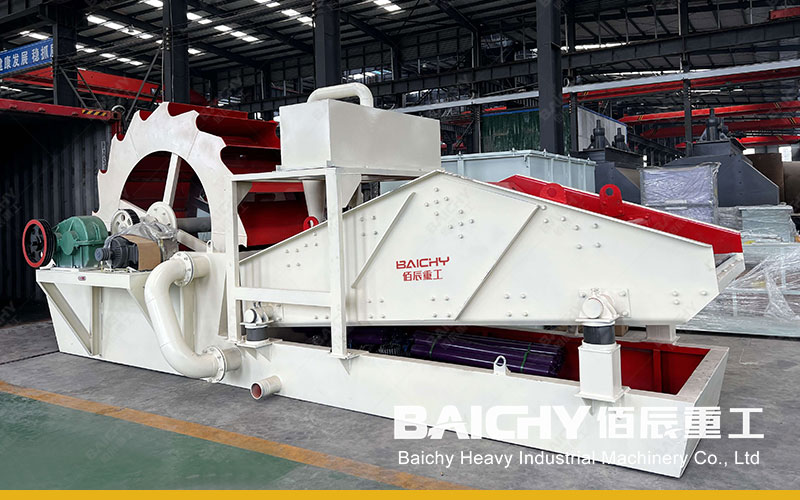

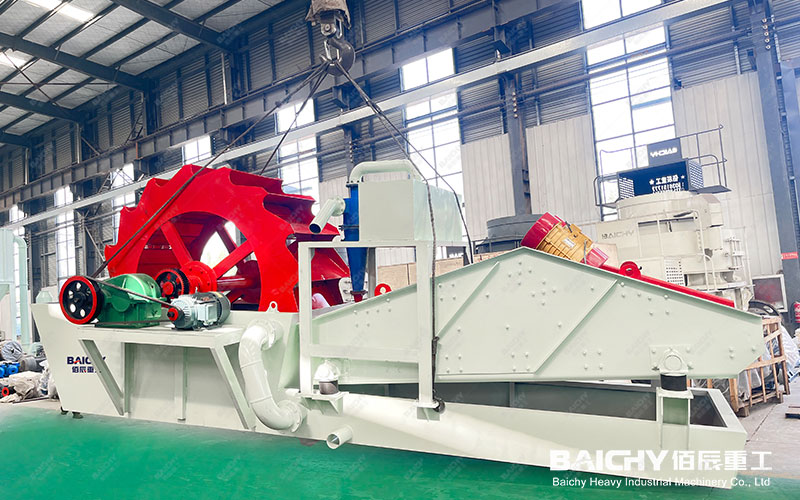

Fine Sand Recovery Machine Manufacturer
Overview: What is a Fine Sand Recovery Machine?
In modern sand and aggregate production lines, mineral processing plants, and various ore processing workflows, the fine sand recovery machine has become a critical component for achieving efficient resource utilization and clean production. As precision equipment specifically designed for the dewatering, desliming, and media removal of slurry materials (such as sand-washing wastewater, mineral pulp, mud, etc.), the core mission of the fine sand recovery machine is to address the industry pain point of significant fine-particle loss inherent in traditional wet processing methods.
As a professional manufacturer of mining equipment, our company fully recognizes that every grain of standard-compliant fine sand is a precious resource. Its indiscriminate discharge not only signifies direct economic loss but also leads to a cascade of problems, including increased pressure on tailings storage facilities, water pollution, and environmental degradation. Consequently, we have introduced and optimized the Baichy Fine Sand Recovery Machine. Utilizing a highly efficient combined process of "centrifugal thickening + high-frequency dewatering," this machine effectively recovers lost fine sand (typically particles smaller than 0.16 mm) from fine-sand-rich slurries. The moisture content of the recovered finished sand can be controlled to below 15%, thereby significantly boosting the overall sand yield and product quality.

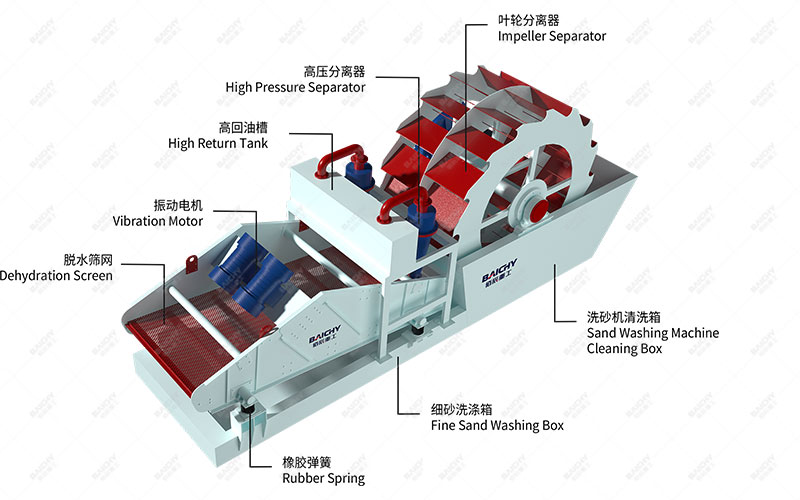

Pricing, Working Principles, and On-Site Videos
Core Application Scenarios: Where Does the Fine Sand Recovery Machine Play a Key Role?
The application scope of the fine sand recovery machine is extremely broad, extending far beyond traditional sand-making plants. Fundamentally, it functions as a highly efficient "solid-liquid separation and fine-particle recovery system," suitable for any scenario involving the separation and recovery of fine-grained materials mixed with water.
1. Sand and Aggregate Processing Systems: This constitutes the most classic application domain for the fine sand recovery machine. In mechanized sand-washing production lines, when installed as a downstream process following the sand washer, it can recover over 90% of the fine sand (particles larger than 0.16 mm) that would otherwise be lost by traditional sand-washing equipment. This results in a more rational particle size distribution for the mechanized sand (particularly regarding particles smaller than 0.6 mm), thereby enhancing the overall value of the sand product.
2. Mineral Processing Tailings Recovery: In the beneficiation processes for ores such as iron, copper, tungsten, and fluorite, substantial quantities of valuable fine-grained minerals are often lost within the tailings slurry. Fine Sand Recovery Machines can be utilized to re-concentrate and recover tailings slurry, achieving a "maximum extraction" effect that boosts metal recovery rates and minimizes tailings discharge volumes.
3. Quartz Sand Processing & Glass Raw Material Preparation: High-purity quartz sand requires strict control over particle size distribution. Fine Sand Recovery Machines can effectively separate quartz fines of the required grade and perform deep dewatering, thereby reducing the processing load for subsequent drying stages.
4. Ceramic Raw Material Processing & Slurry Dewatering: During the preparation of ceramic green bodies, these machines can be used to dewater and classify slurries containing raw materials such as pottery clay and feldspar, yielding a uniform powder with a stable moisture content.
5. Aggregate Systems for Major Infrastructure Projects (Hydropower, Highways, Railways, etc.): When constructing self-operated aggregate processing systems for large-scale projects, incorporating a Fine Sand Recovery Machine significantly enhances resource utilization efficiency. This ensures that the sand produced meets the stringent gradation requirements for high-standard concrete, while simultaneously complying with environmental regulations for construction projects.
6. Construction Waste Recycling: During the process of crushing, cleaning, and recycling discarded concrete and masonry into aggregates, Fine Sand Recovery Machines can recover fine recycled aggregates, thereby increasing the overall utilization value of the recycled materials.
Technical Advantages & Key Features: Why Choose Baichy Fine Sand Recovery Machines?
Baichy Fine Sand Recovery Machines stand out across a wide range of applications thanks to a series of market-proven technical and design advantages:
• High Recovery Rate, Significant Economic Benefits: Effectively recovers fine sand that would otherwise be lost through traditional methods, boosting sand output rates by 10–20% and allowing for a full return on equipment investment within a short timeframe.
• Thorough Dewatering, High-Quality Output: Employs a combined system featuring a high-frequency linear dewatering screen and a hydrocyclone. The dewatered fine sand features a uniform granular texture and low moisture content, making it easy to transport and store while simultaneously elevating the overall quality of the finished product.
• High Processing Capacity, Stable Operation: Features a robust structural design; core components—such as the hydrocyclone, high-pressure vacuum pump, and vibrating motor—are sourced from renowned brands or manufactured using specialized wear-resistant materials. This enables the equipment to withstand continuous, high-intensity operation around the clock (24/7) with a remarkably low failure rate.
• Eco-Friendly, Energy-Efficient, and Multi-Functional: Significantly reduces the discharge of fine sand into sedimentation ponds or waterways, thereby lowering tailings treatment costs and mitigating environmental risks. It simultaneously integrates the triple functions of washing, dewatering, and classification into a single unit, thereby simplifying the overall process flow.
• High Degree of Automation, Easy Maintenance: The entire system features a compact design with a small footprint and simple operation. Key maintenance points are concentrated on the wear parts of the screens and pumps; these components can be replaced quickly, resulting in low maintenance costs.
Baichy Fine Sand Recovery Machine: Key Technical Parameters at a Glance
| Parameter Item | Model: FC-50 | Model: FC-100 | Model: FC-200 | Remarks |
| Processing Capacity (m³/h) | 30–50 | 80–120 | 180–250 | Varies based on slurry concentration and specific gravity |
| Hydrocyclone Diameter (mm) | 250 | 350 | 500 | Wear-resistant polyurethane material |
| Dewatering Screen Dimensions (mm) | 1500 × 4500 | 1800 × 5500 | 2400 × 6000 | Screen mesh is customizable |
| Main Motor Power (kW) | 7.5 + 5.5 | 11 + 7.5 | 22 + 11 | (Pump Power + Screen Power) |
| Recovery Fineness (mm) | > 0.075 | > 0.075 | > 0.075 | Adjustable |
| Finished Sand Moisture Content | ≤ 15% | ≤ 15% | ≤ 15% | Dependent on material properties |
| Total Equipment Weight (t) | ~6.5 | ~9.8 | ~18.5 | Approximate value |
(Note: The above represents examples of common models; our company offers non-standard customization and solution design services tailored to specific client operating conditions.)
Successful Case Studies

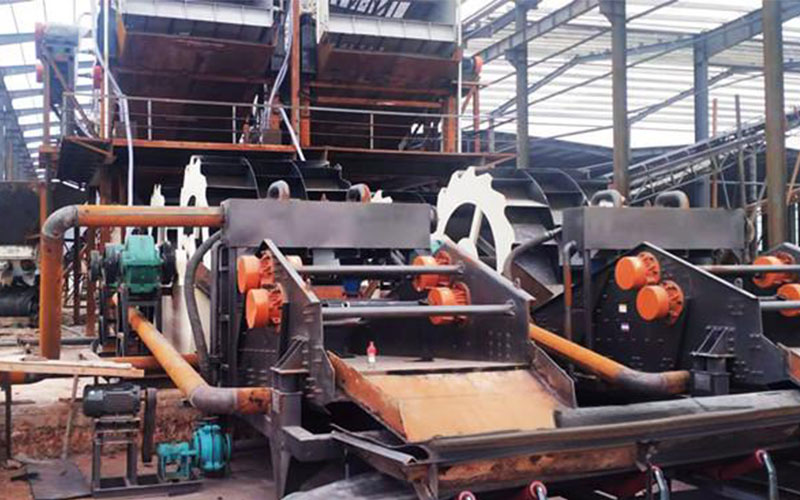

Sand washing and dewatering integrated equipment
• Case Study 1: A Large-scale Granite Sand-making Project in Hunan
In their existing wet sand-making production line, the client faced severe loss of fine sand after washing, resulting in poor sand gradation. Additionally, the cost of desilting their sedimentation ponds was prohibitively high. We provided them with a configuration consisting of two FC-100 model fine sand recovery machines. Since being put into operation, the fine sand recovery machine has recovered over 80,000 tons of high-quality fine sand annually. This not only ensured that the gradation of the manufactured sand met the Class II medium sand standard—boosting the selling price by 5–8 RMB per ton—but also completely resolved issues regarding silt accumulation in sedimentation ponds and the discharge of wastewater exceeding regulatory limits.
• Case Study 2: Tailings Recovery Project at a Tungsten Beneficiation Plant in Jiangxi
The tailings from this beneficiation plant still contained a certain amount of fine-grained wolframite. By utilizing our company's FC-50 fine sand recovery machine to re-process the tailings stream, we successfully recovered minerals of a suitable particle size for entry into the gravity separation process. This generated millions of RMB in additional economic benefits annually, truly realizing the concept of "turning waste into wealth."
• Case Study 3: Construction Waste Resource Utilization Center in Hebei
During the processing of recycled aggregates from construction waste, the washing stage generated a large volume of muddy wastewater, which was intermixed with valuable cement fines. Following the introduction of the fine sand recovery machine, micro-fine aggregates larger than 0.15 mm were effectively recovered. These recovered materials were then sold as roadbed sub-base materials, creating a new profit stream while simultaneously clarifying the circulating water and reducing water treatment costs.
To Optimize Your Production Line, We Recommend the Following Ancillary Equipment:
In an efficient and complete sand & gravel or mineral beneficiation production line, the fine sand recovery machine typically operates in conjunction with the following equipment. As a comprehensive equipment provider, our company offers you a one-stop solution:
1. Jaw Crusher (Coarse Crushing) & Cone/Impact Crusher (Medium/Fine Crushing): These machines provide raw materials with the appropriate feed size, serving as the foundational cornerstone of the production line.
2. Sand Making Machine (Vertical Shaft Impact Crusher): The core equipment for producing manufactured sand; the particle shape and size distribution of its output are directly correlated with the recovery efficiency of the fine sand recovery machine.
3. Vibrating Screen (Circular/Linear): Responsible for the screening and classification of materials; together with the dewatering screen integrated into the fine sand recovery machine, these components constitute the complete screening system.
4. Wheel/Spiral Sand Washer: Performs a preliminary wash prior to the fine sand recovery machine to remove the majority of clay and impurities; these two pieces of equipment form an ideal operational partnership. 5. Slurry Pump / Sand Pump: This serves as the critical power component responsible for conveying slurry within the fine sand recovery system; its wear resistance and reliability directly impact the overall stability of the entire recovery process.
Frequently Asked Questions (FAQ)
Q1: Just how "fine" is the sand recovered by the fine sand recovery machine? How significantly does it help improve the gradation of the finished sand product?
A1: Our fine sand recovery machine primarily recovers particles ranging in size from 0.075 mm (200 mesh) to 0.6 mm. These are precisely the particles that are most prone to loss in traditional sand washing machines. Once recovered, these particles significantly increase the content of sub-0.6 mm material in the finished sand product. This vastly improves the gradation curve, making it more closely resemble that of natural sand, thereby enhancing the workability and strength of concrete mixtures—naturally increasing the product's market value.
Q2: Does the equipment consume a large amount of water and electricity during operation? Is a complex sedimentation pond required?
A2: The fine sand recovery machine is, by design, a water-saving and eco-friendly piece of equipment. Its operating principle is based on "sand-water separation and water recirculation." After the wash water passes through the separation process, the majority of the clean water is rapidly returned to the washing tank for reuse; consequently, the actual amount of fresh water required for replenishment is minimal. Electrical energy is primarily consumed by the pumps and the dewatering screen, representing standard industrial energy consumption levels. Since the system recovers 80–90% of solid particles, the load on downstream sedimentation ponds—as well as the frequency of dredging—can be reduced by over 80%. In fact, the system can often utilize smaller, more compact water circulation tanks, resulting in substantial savings on civil engineering and operational maintenance costs.
Q3: Is the equipment prone to clogging or wear? Is routine maintenance complicated?
A3: Our fine sand recovery machine features specialized designs for components prone to wear: the hydrocyclone liners are constructed from highly wear-resistant polyurethane; the dewatering screen panels are made of wear-resistant steel or polyurethane; and the flow-contacting parts of the vacuum high-pressure pump are fabricated from high-chrome, wear-resistant alloys. These design features ensure the equipment's longevity even under harsh operating conditions. Routine maintenance primarily involves checking the integrity of the screen mesh, inspecting the pump seals, and verifying that the pipelines remain unobstructed—tasks that are simple and straightforward to perform. The equipment was designed with ease of maintenance in mind, ensuring that key components can be easily dismantled and reassembled.
