PFW Impact Crusher for Clay | Heavy-Duty Hydraulic Clay Crusher

Impact Crusher

Processing wet, sticky clay is a notorious challenge in mining and construction, often leading to clogged machinery and costly downtime. While many machines are marketed as a clay crusher, the PFW Impact Crusher series represents a technological leap forward, specifically engineered to conquer these adhesive materials. This blog explains why the PFW Impact Crusher is the optimal, heavy-duty choice for your most demanding clay crushing applications, combining European technology with robust performance.

The Unique Challenge of Crushing Clay

Clay's inherent plasticity and variable moisture content cause it to pack, smear, and tenaciously adhere to metal surfaces. Conventional crushing methods often fail because they rely on compression, which exacerbates the material's tendency to compact rather than fracture. This results in frequent blockages, reduced throughput, and increased wear on machinery not designed for such conditions. The core challenge is achieving efficient breakage while maintaining uninterrupted material flow.

Why Standard Crushers Fail with Sticky Clay

Jaw crushers risk "bridging" at the feed opening, while cone crushers are highly susceptible to chamber packing, leading to potentially severe mechanical damage. Roll crushers may simply mold the clay without effective size reduction. These limitations highlight the critical need for a crusher that utilizes a different breaking principle and incorporates design features that actively prevent material adhesion and buildup.

Overview: The PFW Impact Crusher Advantage for Clay

The PFW Impact Crusher is designed as a heavy-duty, secondary/tertiary crushing machine that excels in processing abrasive and sticky materials like clay. Its core principle utilizes a high-inertia rotor and massive blow bars to impart tremendous impact energy, shattering material on contact. For clay applications, its advanced design includes a heavy-duty rotor, a large crushing cavity, and—most importantly—the hydraulic adjustment and hydraulic assist features of the PFW series, which are invaluable for quick clearing and operational flexibility.

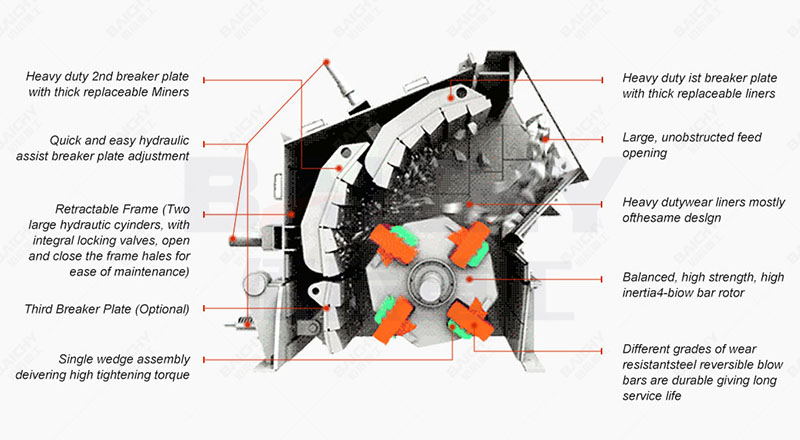

Core Design Features of the PFW Series for Clay

Heavy-Duty Integral Cast Rotor: Provides superior inertia and crushing force for breaking tough clay lumps. Its robust design is the foundation for reliable operation.
Three-Curtain Cavity Design: Offers multiple crushing stages (primary, secondary, tertiary impact) within a single machine, allowing for better control over product gradation and shape.
Hydraulic Adjustment System (Key PFW Feature): Allows operators to adjust the gap between blow bars and impact aprons hydraulically and precisely, even during operation. This is crucial for compensating for wear and optimizing product size for different clay consistencies.
Hydraulic Opening System: Enemies of downtime. The rear frame can be opened hydraulically, providing fast and easy access to the crushing chamber for maintenance, inspection, or clearing any potential blockage—a critical advantage for sticky materials.

Key Benefits of Choosing a PFW Impact Crusher for Clay

Selecting a PFW Impact Crusher as your dedicated clay crusher delivers measurable advantages in productivity, product quality, and total cost of operation.

Exceptional Product Shape: The impact crushing action produces a well-formed, cubical end product ideal for brick manufacturing, landscaping, or as a high-value construction aggregate.
High Reduction Ratio & Versatility: Capable of taking relatively large feed and reducing it to fine aggregates in a single stage, simplifying the entire crushing circuit.
Reduced Downtime & Easier Maintenance: The hydraulic opening system and accessible design drastically reduce the time and labor required for liner changes and chamber clearing, maximizing operational uptime.
Robust Construction for Longevity: Built with heavy-duty components to withstand the abrasive nature of sand and grit often found within clay deposits, ensuring a long service life.

Application Case Study: Quarry & Brick Plant Partnership

Client: A combined aggregate quarry and brick manufacturing plant in South America.

Problem: The plant's existing secondary crushing stage (a cone crusher) was constantly choking on wet clay seams, halting the entire production line for hours each week. Product shape was also poor for brick-making.

Our Solution: Installation of a PFW-1315 Impact Crusher as the dedicated secondary unit for processing clay-rich material.

Result: The hydraulic systems allowed quick adjustments and easy clearing, eliminating unplanned stoppages. Throughput increased by 35%. The superior cubical product shape from the PFW crusher significantly improved the quality and yield of pressed bricks, creating a new revenue stream from the previously problematic material.

Recommended PFW Impact Crusher Models for Clay

PFW-1214: An excellent mid-range model for medium-scale brick plants and construction material recycling centers. Ideal for capacities of 80-140 TPH, offering a great balance of power and size.
PFW-1315: Our most popular model for heavy-duty clay processing. Used in large brick manufacturing, ceramic raw material preparation, and major infrastructure projects. Handles 150-250 TPH with high efficiency.
PFW-1320: The high-capacity solution for the most demanding industrial mineral processing and large quarry operations, designed for throughputs exceeding 300 TPH of sticky and abrasive materials.

Frequently Asked Questions (FAQ)

Q1: How does the hydraulic system in a PFW crusher specifically help with clay clogging?

A1: The hydraulic system is a game-changer. If a blockage occurs, the hydraulic opening mechanism allows the rear frame to be swung open quickly and safely, providing direct access to clear the chamber. Furthermore, the hydraulic gap adjustment lets operators fine-tune the setting in seconds to optimize for changing clay moisture, preventing blockages before they start.

Q2: Is the PFW Impact Crusher suitable as a primary crusher for run-of-quarry clay?

A2: While extremely robust, the PFW is generally optimized as a secondary or tertiary crusher. For primary crushing of very large, raw clay banks with oversized rocks, a dedicated primary jaw crusher is recommended. The PFW excels as the next stage, receiving pre-broken material and creating the precise, fine product needed.

Q3: What makes the PFW series more suitable for clay than a standard PF impact crusher?

A3: The key differentiators are the heavy-duty integral rotor (vs. a welded plate rotor in some PFs) for higher inertia and durability, and the advanced hydraulic systems for adjustment and opening. These features provide the extra robustness, operational flexibility, and easy maintenance access that are critical for handling tough, sticky materials like clay over the long term.
