Cone Crusher Machine Guide 2026 | Types, Benefits & Applications

Hydraulic Cone Crusher

In the demanding world of mining and aggregate production, choosing the right crushing equipment is paramount to operational efficiency and profitability. Among the various crushers, the Cone Crusher stands as a cornerstone for secondary, tertiary, and quaternary crushing stages. This guide delves deep into the workings, advantages, and applications of this indispensable machine, positioning our solutions as the intelligent choice for modern operations.

What is a Cone Crusher Machine?

A cone crusher is a compression-type machine that reduces material by squeezing it between a rotating mantle and a stationary concave (bowl liner). As the mantle gyrates within the concave, it creates a narrowing crushing chamber where rocks are progressively crushed to smaller sizes until they fall through the discharge opening.

Core Working Principle

The operation is based on a rotating eccentric that causes the mantle to wobble, creating a compressive force. The gap between the mantle and concave at the bottom (the closed side setting) determines the final product size. This precise mechanical action ensures consistent output gradation, making it ideal for producing high-quality aggregates.

Why Choose Our Advanced Cone Crusher?

Our cone crushers are engineered with decades of industry expertise, incorporating innovations that address the core challenges of crushing operations: durability, efficiency, and ease of maintenance.

Unmatched Technical Advantages

Superior Crushing Efficiency & High Capacity: Advanced crushing chamber designs and high eccentric speeds maximize production and improve the particle shape of the end product.
Robust Construction & Durability: Key components are manufactured from high-strength alloy steel and premium wear-resistant materials, significantly extending the service life and reducing long-term operating costs.
Intelligent Automation & Control: Integrated automation systems (like our ASRi™ equivalent) constantly monitor and regulate crusher parameters in real-time, optimizing performance and protecting the machine from damage.
Ease of Maintenance & Service: Hydraulic adjustment and clearing functions allow for quick setting changes and easy clearing of the chamber, minimizing downtime. User-friendly design simplifies routine maintenance tasks.

Real-World Application: A Granite Quarry Case Study

Scenario: A large granite quarry in Southeast Asia needed to increase production of high-quality railway ballast and concrete aggregates.

Challenge: Their existing crushers could not meet the required throughput and produced excessive flaky particles.

Our Solution: We supplied a high-performance hydraulic cone crusher with a specially designed crushing chamber.

Results:

Production capacity increased by 35%.
Product cubicity improved dramatically, exceeding industry standards for railway ballast.
Total cost of ownership decreased due to lower wear part consumption and less downtime for adjustments.

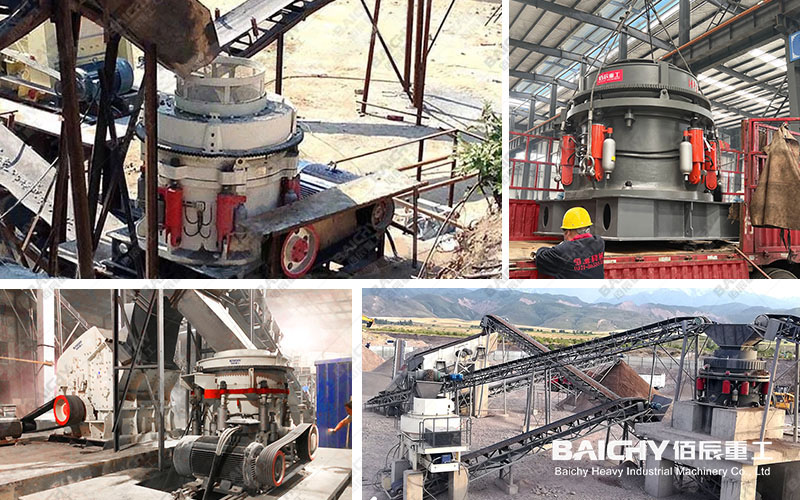

Hydraulic Cone Crusher on Site

H2: Recommended Models for Your Operation

Depending on your feed material and production goals, we recommend:

For High-Capacity Secondary Crushing: The HP Series Multi-Cylinder Hydraulic Cone Crusher. Ideal for large-scale aggregate and mining operations demanding maximum performance.
For Cost-Effective Tertiary/Quaternary Crushing: The CS Series Spring Cone Crusher. A reliable, robust solution for producing fine aggregates with proven technology.
For Mobile & Modular Plants: Our specially designed Mobile Cone Crusher Units. Offer full crushing flexibility and quick relocation for contract crushing.

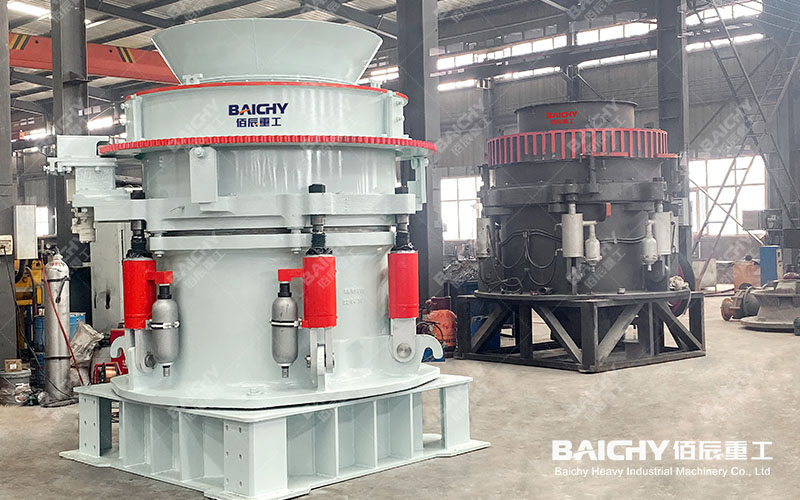

Hydraulic Cone Crusher

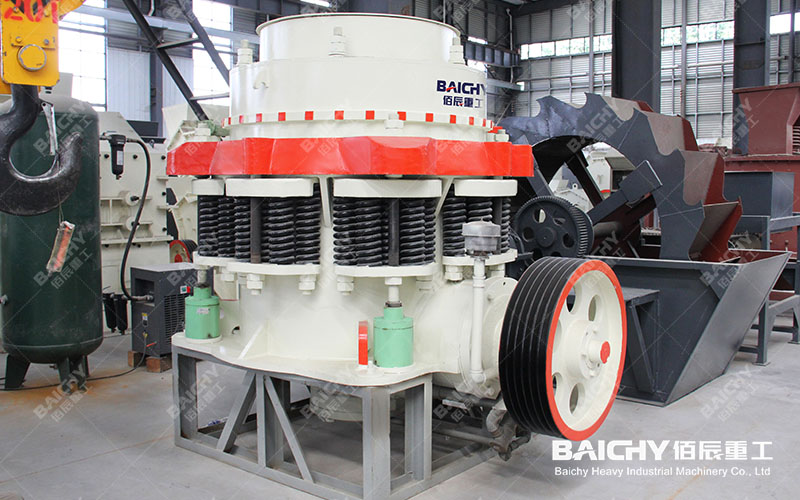

Symons Cone Crusher

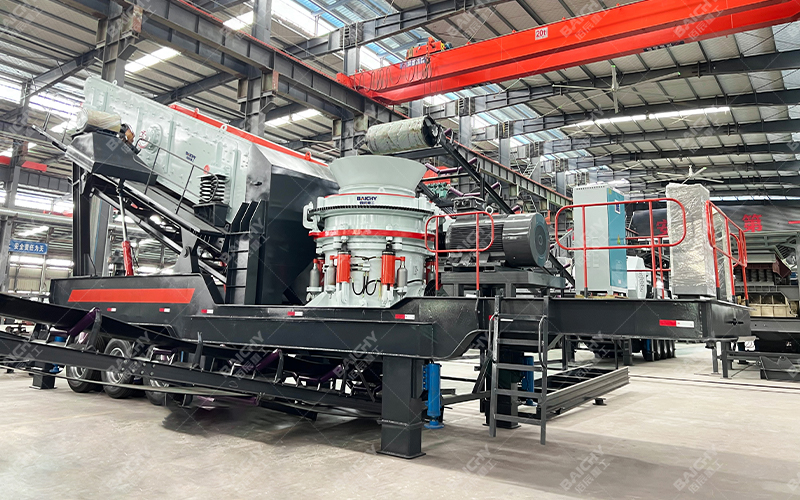

Mobile Cone Crusher

Frequently Asked Questions (FAQ)

1. What is the main difference between a cone crusher and a jaw crusher?

A jaw crusher is a primary crusher that uses a compressive "v-shaped" chamber to break large rocks. A cone crusher is typically used as a secondary or tertiary crusher, utilizing a gyrating mantle within a concave bowl to produce finer, more uniformly shaped aggregates. They are often used in sequence within a crushing circuit.

2. How often do the wear parts (mantle and concave) need to be replaced?

Replacement intervals depend entirely on the abrasiveness of the crushed material, throughput, and crusher settings. In a granite application, liners may last several months, while in a highly abrasive sandstone application, they may need changing more frequently. Our machines feature reversible liners and symmetrical designs to maximize wear part utilization and life.

3. Can cone crushers handle moist or sticky materials?

While cone crushers are primarily designed for hard, abrasive materials, modern hydraulic models with clearing functions can handle moderately moist feed better than older spring types. However, for very sticky or clay-rich materials, pre-screening or washing is strongly recommended to prevent chamber packing and excessive wear.
