Why Choose PE250x400 Jaw Crusher for Your Small-Scale Crushing Project?

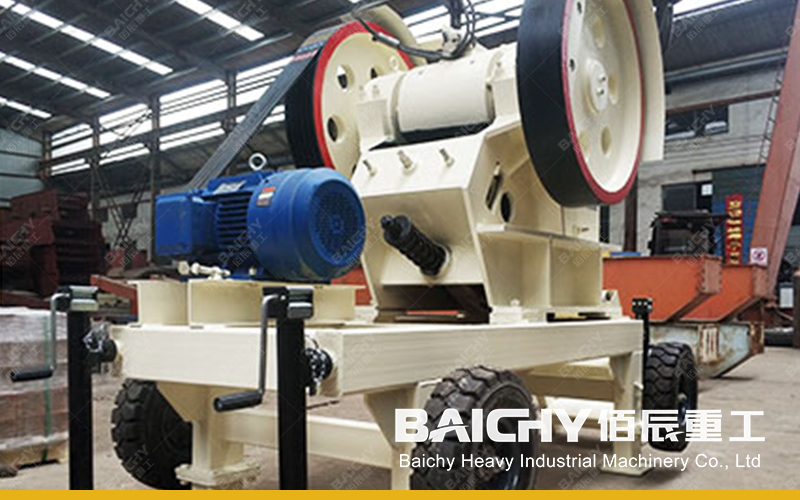

PE250x400 Jaw Crusher

As the flagship product in our small-scale primary crushing series, the PE250x400 Jaw Crusher has become the preferred equipment across various sectors—including stone processing, construction demolition, and mining operations—thanks to its compact structure, flexible adaptability, and exceptional crushing performance. This article will provide a comprehensive breakdown of the PE250x400 Jaw Crusher's core value, covering its product overview, application scenarios, key advantages, and real-world case studies. Additionally, we offer recommendations for complementary equipment and answers to frequently asked questions to assist you in making precise equipment selections and achieving highly efficient production.

PE250x400 Jaw Crusher Product Overview: The Core Tool for Small-Scale Primary Crushing

The PE250x400 Jaw Crusher—formally known as the PE250×400 Jaw Crusher—is a compact primary crushing device belonging to the PE series of jaw crushers. It stands as one of the most widely utilized small-scale crushing machines currently available on the market. Its designation is derived from the device's core specifications: a feed opening measuring 250mm × 400mm. Tailored for small-to-medium-scale crushing operations, the unit emphasizes key features such as "efficient primary crushing," "energy conservation and cost reduction," and "convenient operation." It is capable of rapidly reducing large blocks of material to a uniform particle size, thereby laying a solid foundation for subsequent crushing and screening stages.

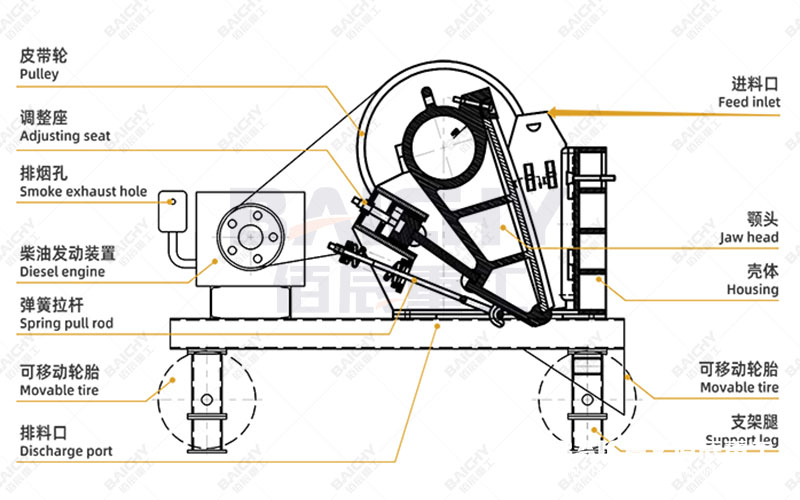

PE250x400 jaw crusher structural diagram

The PE250x400 Jaw Crusher employs a classic jaw-crushing structural design, comprising core components such as the frame, movable jaw, fixed jaw, eccentric shaft, flywheel, and liner plates. Operating on the principle of "compressive crushing," the machine utilizes the reciprocating motion of the movable jaw to generate compressive and shearing forces against the fixed jaw, effectively crushing large materials fed into the opening down to the required discharge size. As a specialized manufacturer, we have built upon the foundation of traditional jaw crushers to implement structural optimizations and performance upgrades for the PE250x400 model. We have refined the design of the crushing chamber to boost crushing efficiency, while simultaneously enhancing the wear resistance and stability of core components—measures that extend the equipment's service life and reduce operational and maintenance costs for our clients. The core positioning of this equipment centers on "compactness, high adaptability, and low cost." It is ideally suited for the primary crushing needs of small to medium-sized stone yards and mines, while also serving applications such as construction demolition waste recycling, aggregate processing in road and railway construction, and raw material crushing in industries like chemicals and building materials. Thanks to its flexible installation options and user-friendly operation, it has garnered significant favor among small-scale processing enterprises both domestically and internationally, standing out as a highly competitive, premium product within the PE250x400 jaw crusher market.

Detailed Overview of Core Parameters for the PE250x400 Jaw Crusher

Understanding equipment parameters is crucial for accurate model selection. Below are the detailed technical specifications for the PE250x400 Jaw Crusher, covering key metrics such as feed size, discharge size, capacity, and power requirements. This information facilitates matching the equipment to your specific production needs (parameters are subject to minor adjustments based on customer customization requirements):

Application Scenarios for the PE250x400 Jaw Crusher: Versatile Across Industries, Unlocking New Possibilities in Small-Scale Crushing

Thanks to its compact size, flexible operation, and stable performance, the PE250x400 Jaw Crusher is widely utilized in small-scale crushing operations across numerous industries. Whether for fixed production lines or mobile crushing requirements, it adapts efficiently to the task.

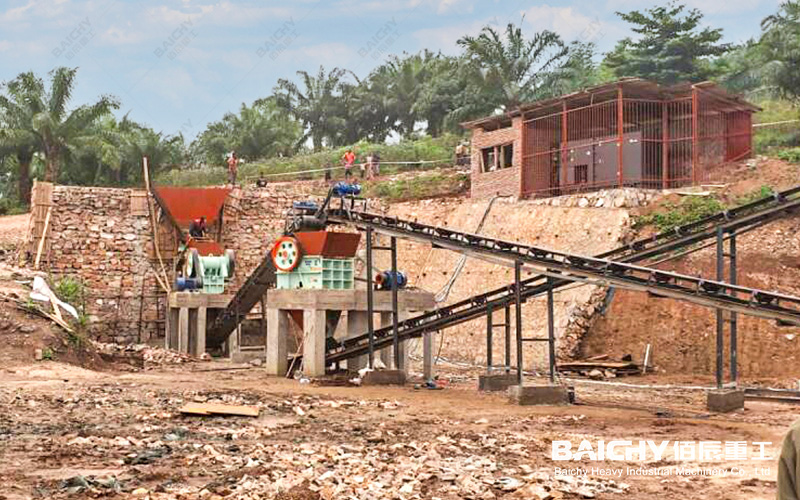

PE250X400 JAW CRUSHING PLANT

The following is a detailed introduction to its core application scenarios:

Scenario 1: Coarse Crushing Operations in Small to Medium-Sized Stone Quarries

For small to medium-sized stone quarries, the PE250x400 Jaw Crusher serves as the ideal primary crushing device. Whether dealing with quarried natural stones—such as limestone, granite, or basalt—or raw materials like river pebbles and mountain rocks, this equipment is capable of performing primary crushing operations. It reduces large blocks of material to a uniform particle size of 20–60 mm, thereby providing qualified feedstock for subsequent secondary and tertiary crushing, as well as sand-making processes. With a production capacity ranging from 5 to 21 tons per hour, it perfectly meets the daily output requirements of small to medium-sized stone processing plants. Furthermore, the equipment features a compact footprint, requires no complex installation foundations, and can be rapidly commissioned for production, significantly lowering the initial investment costs for stone processing facilities. Concurrently, the unit operates with exceptional stability and a low failure rate, minimizing downtime and boosting the overall production efficiency of the plant.

Scenario 2: Recycling of Construction and Demolition Waste

As the pace of urbanization accelerates, the recycling of construction and demolition (C&D) waste has emerged as a key priority within the environmental protection sector. Thanks to its versatile adaptability, the PE250x400 Jaw Crusher has become a core piece of equipment for C&D waste recycling operations. Materials generated during demolition—such as concrete blocks, bricks, and cement fragments—can undergo primary crushing using this device. The resulting crushed material serves as recycled aggregate, which can be utilized for road base construction, paving slabs for sidewalks, concrete mixing, and other applications, effectively transforming "waste into valuable resources." The equipment offers flexible mobility (when paired with a mobile chassis), allowing it to operate directly at demolition sites and thereby reducing material transportation costs. Moreover, the crushing process is environmentally friendly, featuring low dust emissions that comply with national environmental standards, thereby assisting clients in achieving green production goals.

PE250x400 Jaw Crusher in Action: Real-World Applications Demonstrating Quality and Capability

Since its launch, the PE250x400 Jaw Crusher has been widely deployed in small to medium-scale crushing projects across numerous countries and regions worldwide. Distinguished by its stable performance and exceptional crushing efficiency, the unit has earned unanimous acclaim and recognition from clients across the globe. The following are three real-world case studies from different industries, offering a visual demonstration of the practical application and effectiveness of our equipment:

Case Study 1: Small-Scale Limestone Quarry Project in Hunan

Client Requirements: The client is a small-scale quarry in Hunan primarily engaged in processing limestone to supply aggregates for local construction projects. They required a compact primary crushing unit with a production capacity of 5–10 tons per hour (t/h) and an output size of 30–50 mm. Key requirements included a small footprint, ease of operation, and stable performance.

Equipment Configuration: We recommended the PE250x400 Jaw Crusher, paired with a GZD-series Vibrating Feeder and a YK-series Vibrating Screen, to form a compact crushing production line.

Application Results: Following installation and commissioning, the equipment was quickly put into production. Operating for an average of 8 hours per day, the system maintained a stable output of approximately 8 t/h, producing aggregates with uniform particle sizes that fully met the client's specifications. During operation, the equipment demonstrated a low failure rate, requiring only 1–2 routine maintenance checks per month, resulting in low overall maintenance and operating costs. Furthermore, the motor exhibited low energy consumption; compared to similar equipment the client had previously used, the new system saved approximately 2,000 RMB in electricity costs per month. The equipment has now been operating stably for over a year; the client is highly satisfied with both the equipment's performance and our after-sales service, and they currently plan to acquire an additional PE250x400 Jaw Crusher to expand their production capacity.

Case Study 2: Construction Demolition Waste Recycling Project in Guangdong

Client Requirements: The client is an environmental technology company in Guangdong specializing in the recycling and utilization of construction demolition waste. They required a compact, mobile primary crushing unit capable of processing materials—such as concrete blocks and bricks—directly at demolition sites. Key requirements included flexible mobility, an output size of 20–40 mm, compliance with environmental standards, and low noise levels.

Equipment Configuration: We customized a mobile version of the PE250x400 Jaw Crusher (mounted on a mobile chassis) for the client. This unit was equipped with a dust collection system and a low-noise motor to effectively meet the client's operational requirements for mobility as well as their environmental compliance needs.

Application Results: The equipment can be driven directly to demolition sites to commence operations, eliminating the need to transport materials over long distances and thereby significantly reducing transportation costs. The resulting recycled aggregates feature uniform particle sizes and can be utilized directly for road base construction, effectively achieving the recycling and reuse of demolition waste in full compliance with environmental protection policies. During operation, the equipment generates low noise and minimal dust, earning the approval of both residents in the surrounding area and environmental protection authorities. Its flexible mobility allows for easy adjustment of the operating location based on the specific layout of the demolition site. With convenient operation, the unit processes an average of approximately 60 tons of demolition waste per day, thereby effectively boosting the client's recycling efficiency and economic returns.

Recommended Complementary Equipment: Pairing for Enhanced Overall Production Efficiency

Serving as a primary coarse-crushing unit, the PE250x400 Jaw Crusher can be paired with various auxiliary devices or downstream crushing equipment to form a complete crushing production line, thereby enhancing overall production efficiency and product quality. Listed below are three recommended pieces of equipment that demonstrate strong compatibility with the PE250x400 Jaw Crusher. All are independently developed and manufactured by us—ensuring guaranteed quality—and can be flexibly combined to meet specific client production requirements:

Recommended Equipment 1: GZD380×960 Vibrating Feeder

Compatibility Rationale: This vibrating feeder serves as the ideal auxiliary device for the PE250x400 Jaw Crusher. With a maximum feed size of ≤250mm and a feeding capacity ranging from 10 to 30 tons per hour, it precisely matches the processing capacity of the PE250x400 Jaw Crusher. Driven by a vibrating motor, the unit ensures uniform and stable feeding, effectively preventing material blockages at the feed inlet and boosting the jaw crusher's crushing efficiency. Furthermore, the equipment features an overload protection function that prevents oversized materials from entering the jaw crusher, thereby safeguarding its core components and extending the overall service life of the equipment. Characterized by a simple structure and ease of maintenance, this unit—when paired with the PE250x400 Jaw Crusher—forms a compact coarse-crushing production line suitable for various applications, including small-to-medium-scale stone processing plants and waste recycling operations.

Recommended Equipment 2: PF1007 Impact Crusher

Compatibility Rationale: If a client requires intermediate-to-fine crushing of the material processed by the PE250x400 Jaw Crusher—specifically to improve material particle size uniformity and enhance the quality of the finished product—the PF1007 Impact Crusher serves as the ideal complementary unit. This impact crusher accepts feed material with a maximum size of ≤300mm, and its discharge size can be adjusted within the range of 5–30mm. With a production capacity of 10–30 t/h, it is perfectly matched to the output capacity of the PE250x400 jaw crusher. It serves to further reduce the coarse material—previously crushed by the jaw crusher—into finer particles, catering to high-end applications such as sand making and the production of construction aggregates. Utilizing the principle of impact crushing, the equipment produces crushed material with excellent particle shape and a low content of needle-like and flaky particles. Furthermore, it features a compact structure, low energy consumption, and convenient operation. When paired with the PE250x400 jaw crusher, it enables an integrated "coarse crushing + medium-to-fine crushing" workflow, thereby enhancing the overall competitiveness of the production line.

Recommended Equipment #3: YK1235 Vibrating Screen

Reason for Recommendation: The vibrating screen is an indispensable screening component within any crushing production line. The YK1235 vibrating screen can be paired with the PE250x400 jaw crusher to classify and sort the crushed material, separating particles of different sizes to meet the Perse requirements of clients. Featuring a screen surface measuring 1200 × 3500mm and a processing capacity of 15–50 t/h, this vibrating screen is well-matched to the output capacity of the PE250x400 jaw crusher. It is capable of screening out materials of various specifications—such as 20–60mm and 10–20mm—thereby improving material utilization efficiency. The equipment employs a double-deck screen design, offering high screening efficiency, low noise levels, and structural stability, while also facilitating convenient maintenance and operation. Ultimately, it serves to effectively boost both the overall efficiency and product quality of the crushing production line.

PE250x400 Jaw Crusher: Frequently Asked Questions (FAQ)

To assist customers in making optimal use of the PE250x400 jaw crusher and to help resolve issues that may arise during operation, listed below are the three most frequently asked questions, accompanied by detailed answers covering aspects such as operation and troubleshooting:

1: The discharge particle size from the PE250x400 jaw crusher is inconsistent. How can this be resolved?

Answer: Uneven discharge granularity is a common issue encountered during the operation of a jaw crusher. There are three primary causes:

1. Improper adjustment of the discharge opening size;

2. Uneven wear on the liners of the movable and fixed jaws;

3. Uneven feeding of material.

The solutions are as follows:

① Inspect the discharge opening size; based on the required output granularity, use the wedge adjustment mechanism to adjust the gap of the discharge opening, ensuring the gap is uniform.

② Inspect the wear condition of the movable and fixed jaw liners; if the liners show uneven wear, their positions must be adjusted or they must be replaced with new liners immediately.

③ Inspect the feeding speed of the vibrating feeder to ensure uniform feeding, thereby preventing an excessive or insufficient amount of material from entering the crushing chamber, which would lead to uneven crushing. Additionally, regularly cleaning the crushing chamber to remove residual material can effectively improve the uniformity of the discharge granularity.

2: How should I handle abnormal noises occurring during the operation of the PE250x400 jaw crusher?

Answer: Abnormal noises during equipment operation are typically caused by faults in core components or material blockages. You must stop the machine immediately to conduct an inspection and prevent the fault from escalating. The specific troubleshooting steps are as follows:

① First, inspect the crushing chamber to check for blockages caused by large lumps of material or metal impurities; if present, clear them completely before restarting the machine.

② Inspect the lubrication status of core components such as the eccentric shaft and bearings; if lubrication is insufficient, add grease immediately; if the bearings are severely worn, they must be replaced with new ones.

③ Inspect the connection points of the movable and fixed jaws to check for loose bolts; if any are loose, tighten them immediately.

④ If the abnormal noise persists, please contact our after-sales service team. Our professional technicians will visit your site to inspect, diagnose, and resolve the issue, thereby preventing secondary damage that could result from attempting to dismantle the equipment yourself.

3: How often do the wear parts on the PE250x400 jaw crusher need to be replaced?

Answer: The replacement cycle for wear parts primarily depends on the hardness of the processed material, the equipment's operating duration, and routine maintenance practices. The recommended replacement cycles for key wear parts are as follows:

① Movable Jaw Liner and Fixed Jaw Liner: When crushing materials of ordinary hardness (e.g., limestone) with 8 hours of daily operation, the replacement cycle is approximately 6–8 months; when crushing high-hardness materials (e.g., granite, basalt), the replacement cycle is approximately 3–5 months.

② Bearings: Under normal maintenance conditions, the replacement cycle is approximately 1–2 years; however, improper lubrication or frequent operation under overload conditions will shorten this cycle.

③ Eccentric Shaft: This component has a relatively long service life; under normal operating conditions, it can last for 3–5 years. If signs of wear or deformation appear, it must be replaced immediately. We recommend that customers regularly inspect the condition of wear parts and maintain a stock of spare parts in advance to prevent downtime caused by component failure, thereby avoiding disruptions to production schedules.
