Placer Gold Processing Equipment
In the mining and beneficiation of placer gold deposits, efficient and reliable equipment is the key determinant of the return on investment. Unlike hard-rock gold deposits, gold in placer mines typically exists in a free or alloyed state within loose gravel and sand layers; consequently, the mining processes and equipment selection for such deposits are unique. This article systematically analyzes the core equipment commonly used in modern placer gold mining—covering their application scenarios and technical advantages—and offers professional recommendations on equipment selection to assist you in establishing an efficient and environmentally friendly placer gold production line.
Main Process Flow for Placer Gold Mining
A typical placer gold mining process primarily comprises the following stages: Raw Ore Preparation → Screening and Sizing → Gravity Concentration → Fine Selection and Purification. Each stage corresponds to specific specialized equipment, which collectively form a complete production line for gold recovery.
1. Raw Ore Excavation and Conveying Equipment
This constitutes the starting point of the production line, responsible for extracting gold-bearing sand and soil from the deposit and transporting it to the processing plant.
• Application Scenarios: Suitable for the preliminary mining of various placer gold deposits, including riverbeds, ancient river channels, and river terraces.
• Common Equipment:
◦ Excavators and Loaders: Used for stripping overburden (topsoil removal) and for the excavation and loading of raw ore.
◦ Belt Conveyors: Responsible for the continuous and efficient transport of materials, serving as the link between the various stages of the production line.
• Equipment Advantages: Enables large-scale, continuous operations; significantly reduces labor costs; and serves as the foundation for modern placer gold mining.
2. Screening and Washing Equipment
This stage aims to separate large, gold-free gravel and clay lumps from the raw ore, thereby creating optimal conditions for subsequent gravity concentration.
• Application Scenarios: Used for processing placer gold deposits with high clay content and complex particle size distributions; serves as a crucial pre-treatment step for enhancing beneficiation efficiency.
• Core Equipment: Trommel Screens / Washing Machines
◦ Function: Classifies materials by passing them through the mesh screens of a rotating drum, while simultaneously utilizing high-pressure water jets to break up clay lumps and liberate encapsulated gold particles.
◦ Advantages: Features a robust structure and high processing capacity; incorporates an anti-clogging design; and effectively improves the amenability of the material to subsequent beneficiation processes.
3. Core Equipment for Gravity Concentration
This constitutes the pivotal stage in placer gold mining, utilizing the specific gravity difference between gold and gangue minerals to achieve separation and produce high-grade rough concentrates.

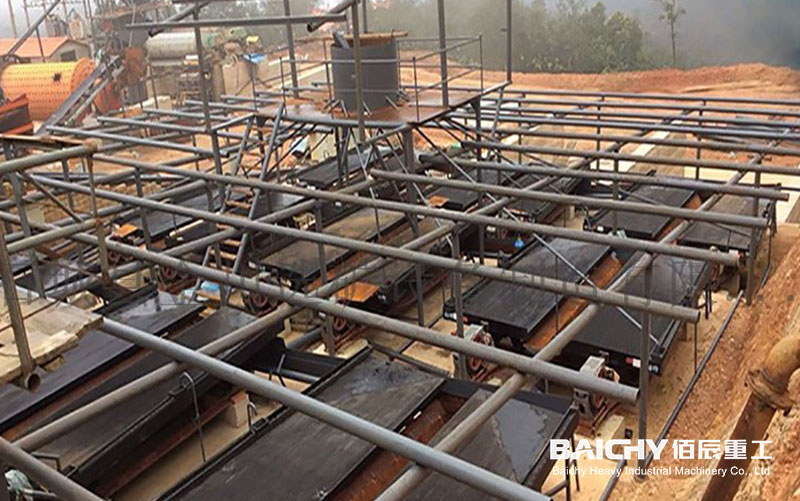

Placer Gold Production Line – Shaking Table Equipment
• Application Scenarios: Employed in the roughing and scavenging stages of almost all placer gold mining operations to recover free gold ranging from fine to coarse particle sizes.
• Core Equipment Comparison Table:
| Equipment Name | Optimal Processing Particle Size Range | Recovery Rate Characteristics | Applicable Scenarios |
| Jig | Medium-to-Coarse (0.074–5 mm) | High; particularly effective for coarse gold particles | Mainstream roughing equipment; features high throughput and stable recovery. |
| Shaking Table | Fine (0.037–2 mm) | Extremely High; high enrichment ratio | Refinement of rough concentrates; recovery of difficult-to-process fine gold. |
| Spiral Concentrator | Fine (0.03–0.6 mm) | Medium-to-High; no power consumption | Pre-treatment or roughing of low-grade ores; features low operating costs. |
| Centrifugal Concentrator | Ultra-Fine (0.01–0.1 mm) | High; strong recovery capability for ultra-fine gold | Recovery of extremely fine gold particles that are difficult for traditional equipment to capture. |
• Equipment Advantages: A physical beneficiation process involving no chemical pollution; utilizes mature technology with controllable operating costs; allows for flexible equipment combinations based on the specific characteristics of the gold particles to achieve optimal recovery results.
4. Refinement and Purification Equipment
Used to perform the final purification of the rough concentrates obtained through gravity separation, yielding high-purity gold products or gold concentrates.
• Application Scenarios: Purification of gravity-separated rough concentrates; preparatory operations prior to amalgamation or cyanidation processes.
• Commonly Used Equipment:
◦ Shaking Table: Used for the re-refinement of concentrates to further increase their grade.
◦ Amalgamation Barrel / Mercury Plate: Utilizes the affinity between gold and mercury to capture gold particles (must be operated in strict compliance with environmental regulations).
◦ Gold Smelting Furnace: Used to smelt the enriched products, producing the final doré gold (unrefined gold alloy). Recommended High-Efficiency Placer Gold Processing Equipment Combinations
Based on mineral deposits of varying scales and grades, we recommend the following equipment solutions:
1. Mobile Placer Gold Processing Unit (Suitable for small-to-medium-sized mining sites or exploration projects)
◦ Combination: Feeder + Mobile Trommel Screen + Jig + Shaking Table, integrated onto a crawler or wheeled chassis.
◦ Advantages: Extremely flexible; allows for on-site processing and rapid relocation; requires lower initial investment and delivers quick returns.
2. Fixed Placer Gold Production Line (Suitable for large-scale, stationary mineral deposits)
◦ Combination: Hopper + Belt Conveyor + Trommel Washer + Jig + Shaking Table + Spiral Chute/Centrifugal Concentrator.
◦ Advantages: Massive processing capacity (ranging from hundreds to thousands of tons per day); high degree of automation; stable recovery rates; low comprehensive operating costs.
3. Specialized Solution for Fine/Ultra-Fine Placer Gold Recovery
◦ Combination: Fine Screening + Multi-stage Spiral Chutes + Centrifugal Concentrator + Fine Shaking Table.
◦ Advantages: Specifically designed to target difficult-to-recover fine-grained and flaky gold, thereby maximizing resource utilization.
Frequently Asked Questions (FAQ)
Q1: My placer gold deposit contains a significant amount of clay/mud. What should I do?
A1: High clay content can severely interfere with the gravity separation process. We strongly recommend incorporating a robust washing stage prior to gravity separation. We recommend using our double-layer trommel washer; its inner layer breaks up clay lumps, while the outer layer screens out gravel, effectively removing clay and significantly boosting the recovery rate of gold particles by subsequent equipment.
Q2: How should I choose between a jig and a shaking table?
A2: The two are often used in combination. The jig typically serves as the *roughing* device; it processes large volumes of raw ore, rapidly discards tailings, and produces a coarse concentrate. The shaking table serves as the *cleaning* device; it processes the coarse concentrate from the jig, utilizing its high enrichment ratio to produce a high-grade gold concentrate. For raw ores with coarser particle sizes, a jig may be used independently; however, for complex or difficult-to-process ores, the "Jig + Shaking Table" combination is recommended.
Q3: How is the recovery rate of an alluvial gold processing line evaluated?
A3: The recovery rate depends on the particle size distribution of the gold grains, the degree of mineral liberation, and the suitability of the selected equipment. The professional approach involves conducting "beneficiation tests." We offer complimentary mineral analysis services to help you determine the optimal process flow and equipment parameters through small-scale laboratory trials. This allows us to scientifically predict the actual recovery rate prior to the construction of the processing line, thereby maximizing your return on investment.
Summary
Successful alluvial gold mining relies on a profound understanding of mineral properties and the precise selection of equipment. From efficient washing and pretreatment to core gravity concentration processes (such as jigging, shaking tables, etc.) and subsequent fine purification, the equipment utilized at every stage is critical. Selecting an experienced equipment supplier and securing professional process design support constitute the first step toward establishing a high-yield, high-return alluvial gold processing line.
