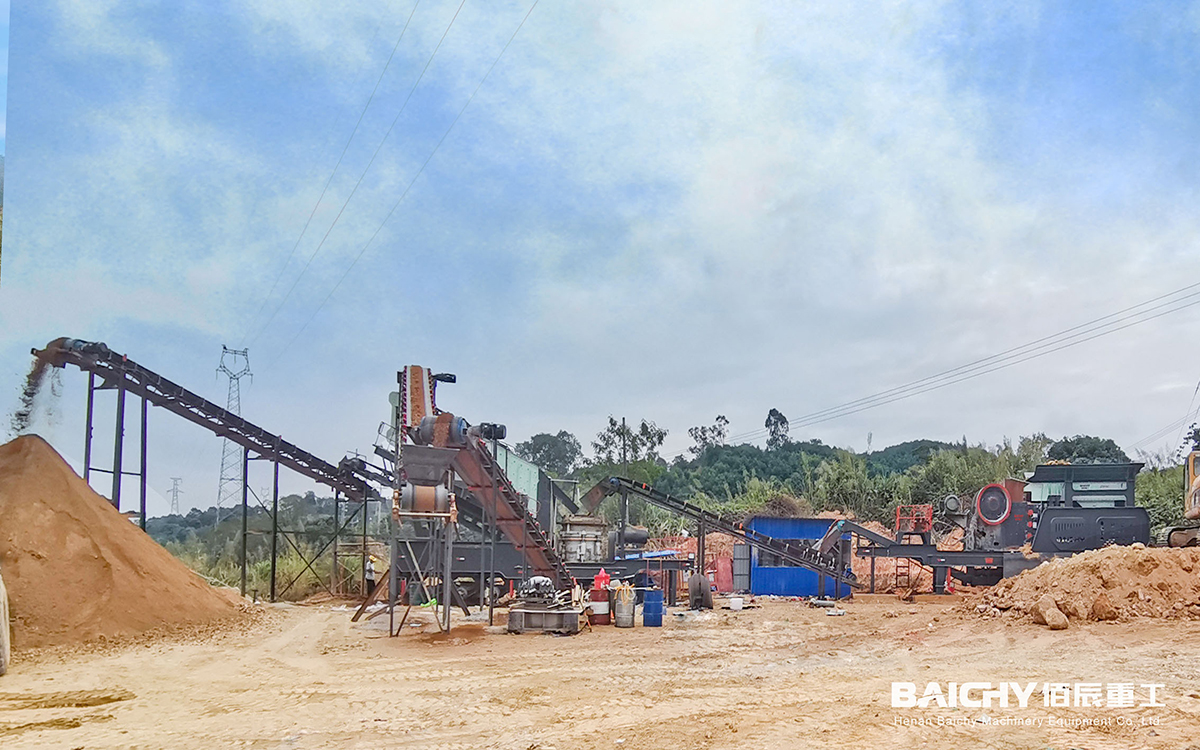

100–500 TPH High-Quality Mobile Granite Crusher
Granite is unforgiving. It is hard, abrasive, and it punishes equipment that was designed for limestone. If you are planning a quarry, a highway base-material project, or a contract crushing operation in the 100–500 TPH range, the machine you choose decides your cost per ton for the next ten years. This guide from Baichy Heavy Industry explains how a 100–500 TPH mobile granite crusher is configured, which parameters actually matter, and how to match capacity, particle shape and mobility to your site conditions.
Why Granite Needs a Purpose-Built Mobile Granite Crusher
Granite typically sits at 6–7 on the Mohs scale, with a compressive strength of 100–250 MPa and a high quartz content. Those three facts drive every engineering decision in a granite crushing plant.
Hardness, Abrasiveness and Real Wear Cost
Abrasive granite accelerates wear on jaw plates, cone liners and blow bars. In a badly matched circuit, wear parts can consume 15–25% of total operating cost. A mobile granite crusher built for hard rock answers this with:
Laminated (inter-particle) crushing in the cone stage, so rock breaks against rock rather than against steel;
High-manganese or alloy liners selected by silica content, not by price;
Generous crushing chambers that spread the load and cut specific energy consumption per ton.
Particle Shape Is a Sales Requirement, Not a Nice-to-Have
Road base, railway ballast and ready-mix concrete all specify flakiness index and cubicity. Premium markets in the EU, Middle East and Southeast Asia routinely demand flakiness below 10–15%. Only a mobile granite crusher with a dedicated VSI shaping stage can hold that number consistently while keeping fines (0–5 mm) under control.

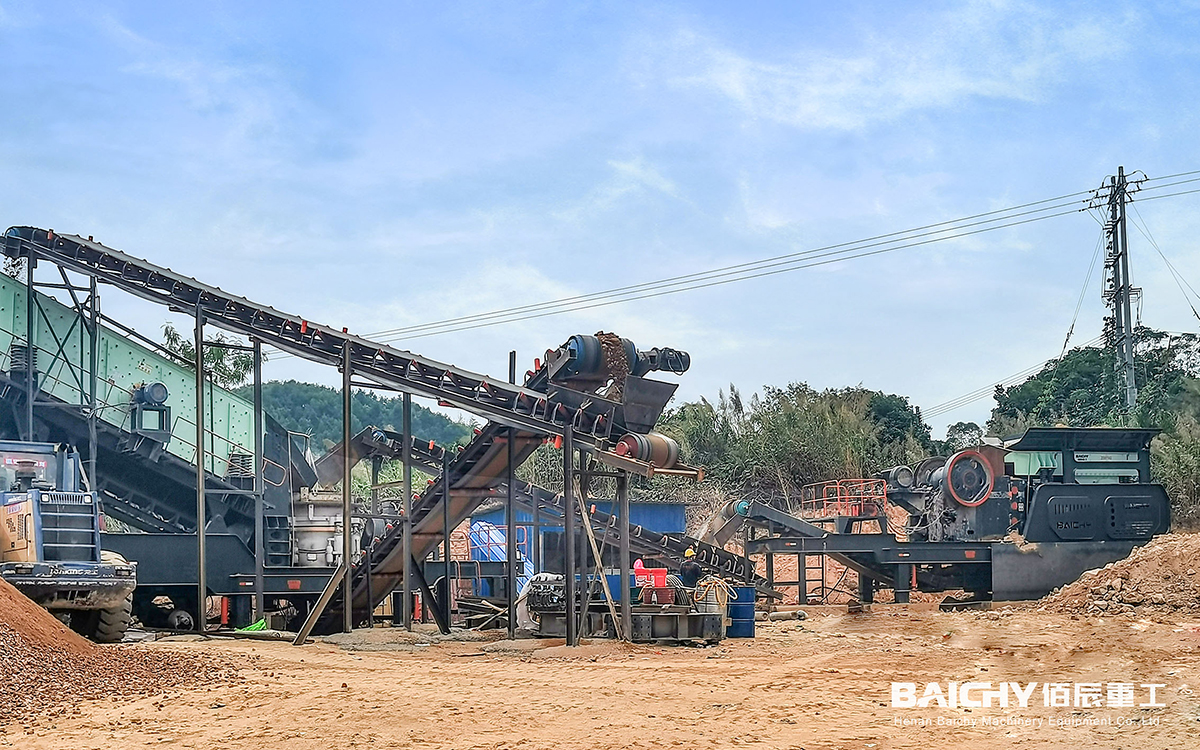

100-500 TPH Mobile Granite Crusher
Mobility Removes the Biggest Hidden Cost
Hauling granite blasts to a fixed plant can cost USD 1.5–4 per ton in trucking alone. Moving the mobile granite crusher to the face eliminates that haul, plus the foundation, the civil works and the permitting that a stationary plant requires.
What "100–500 TPH" Really Means on Site
Capacity figures printed in brochures are clean-condition numbers. Real output depends on feed gradation, moisture, clay content and how well your screens are matched. Treat the range as a design envelope:
| Design Capacity | Recommended Circuit | Typical End Use |
|---|---|---|
| 100–150 TPH | Jaw + Cone + VSI shaping, 2 screens | Regional ready-mix supply, small quarry |
| 200–300 TPH | Jaw + Cone (HP/Symons) + VSI, 3 screens | Highway & airport base material, city aggregate hubs |
| 350–500 TPH | Jaw + 2 Cone units in parallel + VSI, multi-deck screens | Large mining pre-crushing, export-grade ballast, EPC projects |
Rule of thumb: your primary jaw sets the ceiling, your cone sets the stability, and your VSI sets the product value.
Inside a Baichy Mobile Granite Crusher: Stage by Stage
Stage 1 — Primary Crushing: Mobile Jaw Crusher (the capacity anchor of your mobile granite crusher)
A heavy-duty jaw (PE series or C-series) mounted on a crawler or tyre chassis takes blasted rock up to 650–680 mm and reduces it to roughly 150–200 mm. A grizzly feeder strips out fines and soil before they reach the crusher — a detail that prevents cone chamber packing and screen blinding, and can recover 15–20% of lost throughput.
Stage 2 — Secondary & Fine Crushing: Mobile Cone Crusher
For granite, cone crushers beat impact crushers on wear cost. Baichy offers single-cylinder hydraulic cones (CH series) and multi-cylinder HP / Symons cones, both with hydraulic CSS adjustment and automatic overload release. Laminated crushing delivers uniform, cubical 5–40 mm product with far lower liner wear than impactors on quartz-rich rock.
Stage 3 — Shaping & Manufactured Sand: Mobile VSI
A VSI8518 / VSI9526 vertical shaft impact crusher running in rock-on-rock mode converts angular cone output into cubical aggregates and, where required, produces specification manufactured sand. This is the stage that turns commodity stone into premium-priced product.
Stage 4 — Screening and Closed Circuit
Two or three-deck vibrating screens (2YK / 3YK / 4YK) classify the stream and return oversize to the cone. A closed circuit guarantees that no oversized particle reaches your stockpile and that your product curve stays inside specification.
| Unit | Model Range | Max Feed (mm) | Capacity (t/h) | Power (kW) | Stage | Transport Type |
|---|---|---|---|---|---|---|
| Mobile Jaw Plant | PE600×900 – PE900×1200 | ≤680 | 85–650 | 56.5–151 | Primary | Tyre / Crawler |
| Crawler Jaw Plant | YMC series | ≤650 | 60–680 | 110–200 | Primary | Crawler |
| Mobile Cone Plant | HP / Symons / CH series | 50–300 | 90–570 | 90–265 | Secondary & fine | Tyre / Crawler |
| Crawler Cone Plant | HP300 class | ≤300 | 100–450 | 160–250 | Secondary & fine | Crawler |
| Mobile Impact Plant | PF / PFW series | ≤700 | 100–500 | 160–300 | Secondary (medium-hard rock) | Tyre / Crawler |
| Mobile VSI Shaping Plant | VSI8518 / VSI9526 | ≤45 | 100–585 | 147–350 | Shaping / sand making | Tyre |
| Mobile Screening Plant | 3YK / 4YK series | ≤400 | 80–800 | 22–55 | Classification | Tyre / Crawler |
Figures are standard-configuration ranges. Final selection is always based on feed size, silica content, required product grading and site altitude.
Crawler or Tyre-Mounted? Pick by Terrain, Not by Habit
Crawler (tracked) mobile granite crusher — fully hydraulic chassis, no foundation, climbs rough bench floors, and relocates under its own power. Best for mines, steep quarries and short-term contracts where the face moves every few weeks. Setup can be completed in a single shift.
Tyre-mounted mobile granite crusher — faster on public roads, lower purchase price, easier maintenance access, and ideal when moves happen monthly or seasonally between well-prepared pads.
Both platforms accept the same crusher cores, so a fleet can mix tracked and wheeled mobile granite crusher units, so you can standardise wear parts and operator training across a mixed fleet.
Operating Cost Levers Most Buyers Miss
• Pre-screening pays for itself. Removing soil before the jaw protects every downstream component.
• Size the cone, not just the jaw. An undersized secondary stage is the most common cause of a "300 TPH" plant running at 220 TPH.
• Specify liner alloy by rock analysis. Send a sample; Baichy's engineers match manganese grade to silica content.
• Plan power early. A 300–500 TPH granite line typically needs 450–900 kW installed, or a diesel-electric hybrid package on remote sites.
• Stock critical spares. One set of jaw plates, cone liners and screen meshes on site removes weeks of downtime risk.
Typical Applications
• Highway, railway and airport base and sub-base aggregate produced by a mobile granite crusher
• Railway ballast with strict flakiness and Los Angeles abrasion limits
• Ready-mix and precast concrete aggregate (0–5, 5–10, 10–20, 20–31.5 mm)
• Manufactured sand for asphalt and concrete
• Construction & demolition waste recycling with mixed hard feed
• Mine pre-crushing ahead of grinding and beneficiation circuits
How Baichy Configures Your 100–500 TPH Granite Line？
Baichy Heavy Industry has manufactured crushing, grinding and beneficiation equipment since 2003 and delivers full EPC turnkey service: rock analysis → flowsheet design → equipment manufacturing → civil and electrical guidance → installation → operator training → spare parts supply. Every configuration starts from four inputs: capacity target, rock type and hardness, maximum feed size, and finished product grading. No catalogue templates.

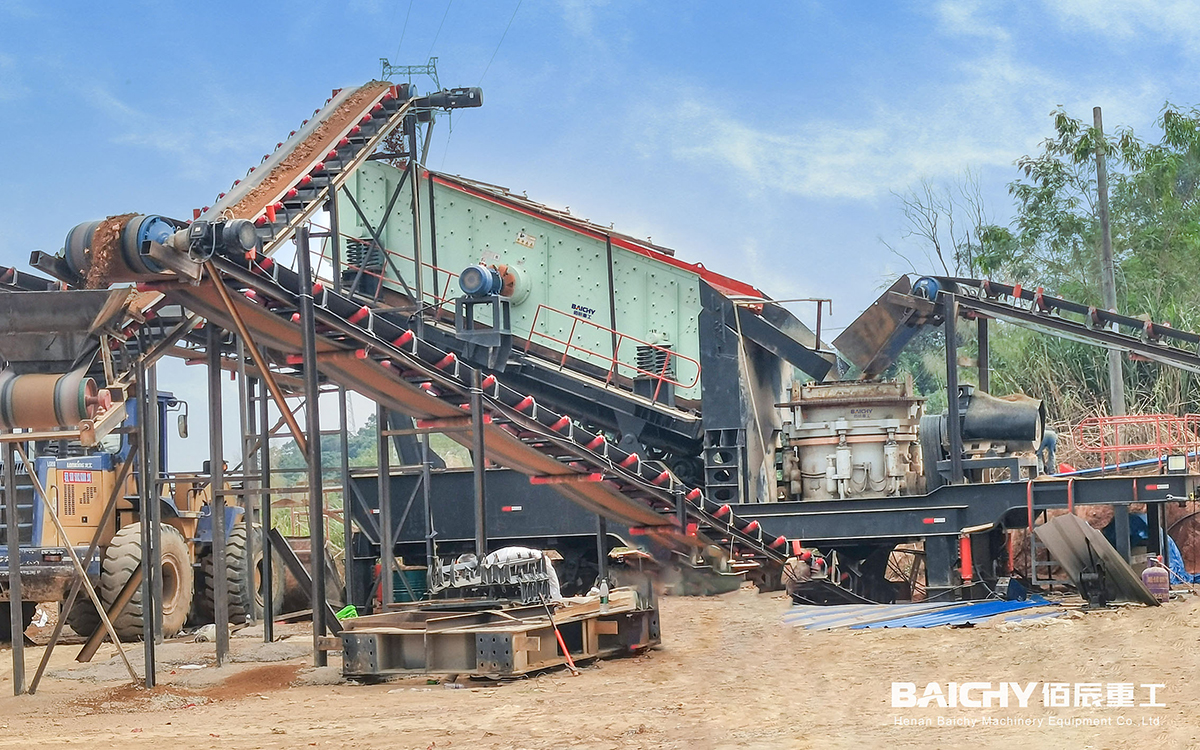

100-500 TPH Mobile Granite Crusher
Frequently Asked Questions
1. Can one mobile granite crusher really cover the whole 100–500 TPH range?
A single unit cannot. The 100–500 TPH range is delivered by a combination of mobile units — jaw, cone, VSI and screens — working as one synchronised line. Baichy sizes each unit so no stage becomes a bottleneck, and every mobile granite crusher in the line is matched to the same design throughput.
2. Cone or impact crusher for granite?
Cone. Granite's quartz content makes blow-bar wear uneconomic above roughly 150 MPa. Impact crushers still make sense for softer, less abrasive stone or for recycling applications.
3. How long does installation take on site?
Tyre-mounted units are typically production-ready within 1–3 days; crawler units often within one shift, because no concrete foundation or anchor bolts are needed.
4. What product sizes can I produce?
Standard gradings are 0–5, 5–10, 10–20, 20–31.5 and 20–40 mm, adjustable through screen media and cone CSS. With a VSI shaping stage, flakiness index can be held below 10%.
5. What after-sales support does Baichy provide?
Twelve-month warranty, lifetime spare parts supply at factory cost, on-site installation guidance, operator training and remote troubleshooting — with response within hours, not days.
