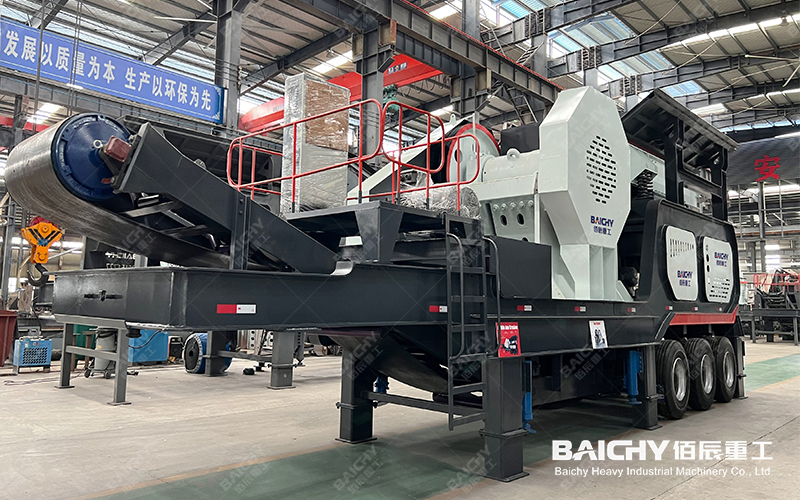

Mobile Jaw Crusher With PE600x900 Jaw Crusher

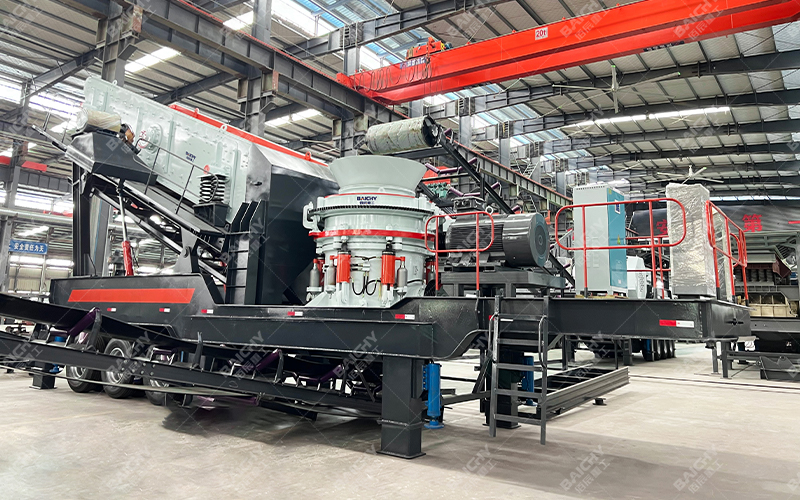

Mobile Cone Crusher With HP300 Cone Crusher
An 80–150 tph mobile crushing solution designed specifically for Chile’s high-altitude environments and high-hardness ores (such as copper ore, granite, and andesite). This solution utilizes a PE600x900 jaw crusher for primary coarse crushing, paired with a high-performance HP300 multi-cylinder hydraulic cone crusher for secondary medium and fine crushing. While ensuring high mobility, this combination delivers an exceptionally high crushing ratio and superior finished product shape, making it the ideal choice for small to medium-sized mines and contractors in Chile.
Core Equipment Configuration
| Equipment Type | Model/Specification | Key Performance Indicators |
| Primary Crushing Station | Mobile PE600x900 | Feed Opening: 600×900mm; Throughput: 50–160 tph |
| Secondary Crushing Station | Mobile HP300 Cone Crusher | Motor Power: 220–250kW; Laminar Crushing Technology |
| Overall Capacity | Combined Unit | 80–150 tph (depending on finished product requirements) |
| Chassis System | Wheeled Heavy-Duty Chassis | Modular design; supports rapid site transfers and setup |
Why is this combination the "Hardcore" Choice for the Chilean Market?
1. Conquering the Andes' "Hard Nuts to Crack"
The copper ores found in northern Chile and the andesite in the south are typically of extremely high hardness (with compressive strengths exceeding 300 MPa).
PE600x900 Jaw Crusher
• Features a deep-cavity crushing design with an optimized nip angle; it can effortlessly "swallow" even large, hard raw stones, thereby reducing the load on downstream equipment.
HP300 Cone Crusher
• Representing the pinnacle of multi-cylinder hydraulic technology, the HP300 combines high rotational speed with a large stroke to achieve a significant laminar crushing effect—effortlessly pulverizing ultra-hard rocks while ensuring a longer service life for wear parts.

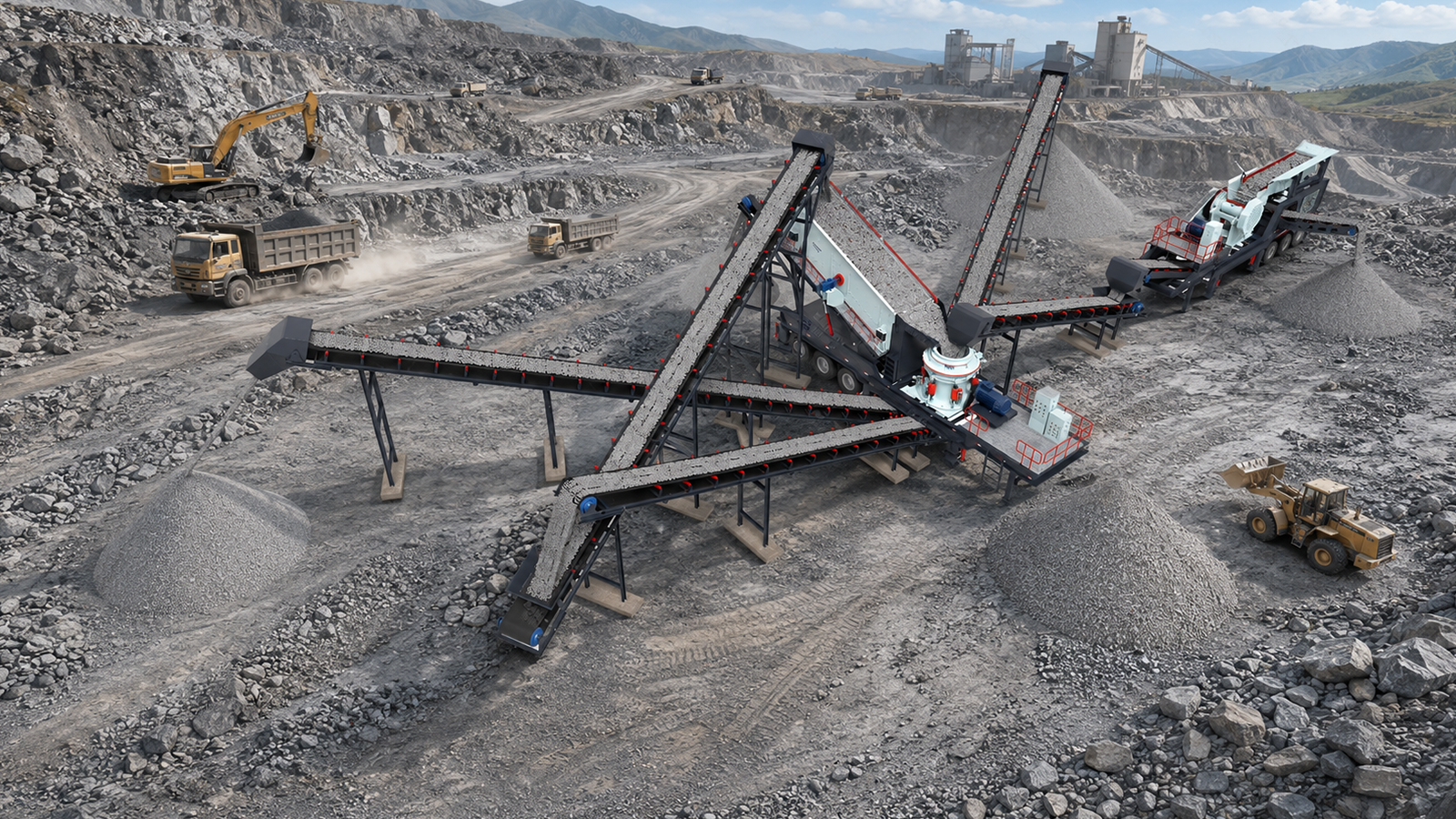

80–150 tph Mobile Jaw + HP300 Multi-Cylinder Hydraulic Cone Crusher Unit
2. Precise Finished Product Control (Cubical Shape)
Infrastructure development projects in Chile impose extremely strict requirements regarding the shape of aggregate materials. • The HP300’s unique crushing chamber profile ensures that material undergoes thorough compression and attrition within the chamber; the resulting finished product features extremely low levels of flaky and needle-like particles, while boasting a high cubicity—fully meeting the material requirements for high-standard asphalt and concrete applications.
3. Flexible Mobility: Ready for Remote Mining Sites
Mining sites in Chile are often dispersed and frequently located in remote, high-altitude regions.
Ready-to-Go Deployment
• No need for complex concrete foundation construction.
Integrated Design
• Feeding, crushing, screening, and conveying functions are highly integrated, significantly shortening the time required to commence operations.
Rapid Relocation
• For contract-based crushing projects, the equipment can be easily relocated as the project moves to a new site, thereby greatly enhancing the return on investment.
4. Intelligent Hydraulic Protection
Automatic Chamber Clearing and Protection
• To address common operating conditions in Chile—such as tramp iron entry or overloading—the HP300’s multi-cylinder hydraulic system features an automatic release mechanism. This protects the main shaft from damage and allows for rapid resumption of production, thereby minimizing downtime.
Frequently Asked Questions (FAQ)
Q: Will the power system be affected by the high-altitude environment (above 4,000 meters) found in Chile?
A: The power configuration of our mobile units takes into account the power loss coefficients associated with high-altitude environments. We recommend selecting a higher-power electric motor or a specifically optimized diesel generator set based on the specific altitude of the site to ensure the hydraulic system operates stably in the cold, high-altitude conditions.
Q: What is the maintenance cycle for this unit?
A: The jaw plates for the PE600x900 jaw crusher are made of high-manganese steel; their replacement cycle depends on the abrasiveness of the processed material. The HP300 features an advanced lubrication system monitoring function, making daily inspections simple. We also provide a comprehensive spare parts stocking program to ensure local availability and supply within Chile.
Q: Is it possible to add a screening unit?
A: Yes. This unit can be flexibly configured with a three-deck or four-deck vibrating screen, allowing it to simultaneously produce 3 to 4 different specifications of finished products (e.g., 0–5 mm, 5–10 mm, 10–20 mm, etc.). [Contact us for a detailed quote and flowchart for our Chile project] Your Hard Rock Fracture Experts - Baichy Heavy Industry
