Impact Crushers for Mineral Crushing
Impact crushers, as highly efficient and energy-saving mineral crushing equipment, have become one of the core pieces of equipment in modern mining crushing due to their unique crushing principle and superior performance. They use a high-speed rotating rotor to project material onto an impact plate, utilizing impact force to crush the material, making them particularly suitable for crushing medium-hard ores and below.
As a manufacturer of mining crushing equipment with 20 years of professional experience, we are committed to providing comprehensive solutions for the global mining industry, helping customers improve production efficiency and reduce operating costs.
| Key Words | Impact Crushers for Mineral Crushing |
|---|---|
| Product Model | PF Impact Crusher |
| Feed Size | ≤700mm |
| Motor Power | 45-355kw |
| Capacity | 15-800t/h |
| Core Design | The heavy-duty rotor has high inertia, enabling it to crush harder materials and operate more smoothly. |
| Brand | Baichy Heavy Industry |
| Please note: The above table data is for reference only. For specific information, please contact us. | |

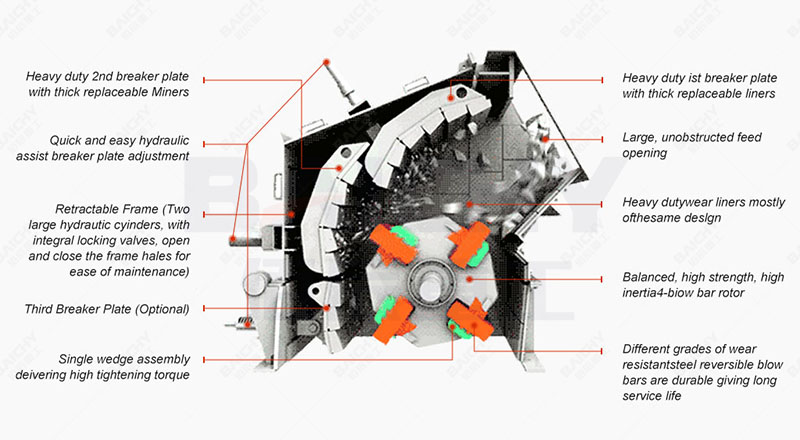

PF Impact Crusher Structure Diagram
Product Advantages
1. High Efficiency and Energy Saving: Impact crushers utilize the impact crushing principle, resulting in a large crushing ratio, high production efficiency, and energy consumption approximately 30% lower than traditional equipment.
2. Excellent Finished Particle Shape: The crushed material is cubic in shape with low needle-like and flaky content, suitable for high-standard aggregate production requirements.
3. Easy Maintenance: The reasonable structural design and the use of wear-resistant materials for key components ensure a long service life and reduce downtime.
4. Environmentally Friendly and Low-Noise: The equipment operates with low dust and noise levels, meeting modern mining environmental protection requirements.
5. Intelligent Control: Optional intelligent monitoring system for real-time monitoring of operating status and automated production.
Application Scenarios
Impact crushers are widely used in various mining crushing scenarios:
• Medium and fine crushing of metallic and non-metallic ores
• Construction aggregate production, such as crushing of granite, limestone, and river pebbles
• Raw material crushing for cement production
• Mineral processing in the metallurgical and chemical industries
• Resource recovery of solid waste

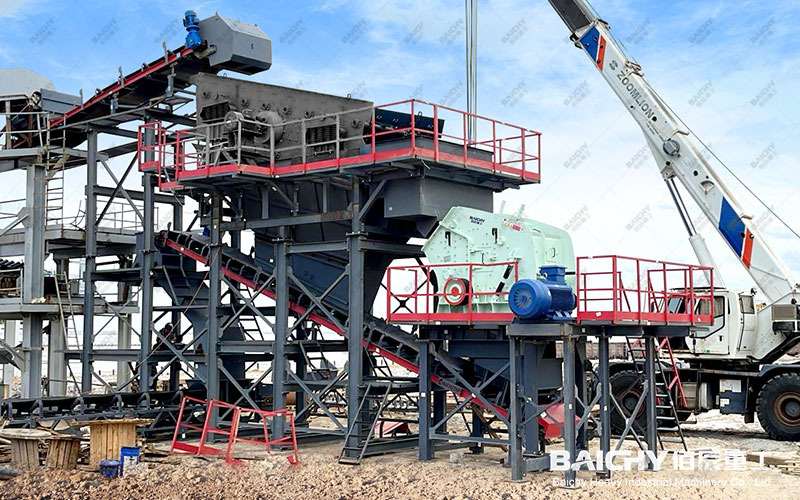

PF Impact Crusher Crushing Site
Project Cases
Case 1: Australian Iron Ore Project
We provided two high-performance impact crushers for a large iron ore mine in Australia for secondary crushing of iron ore. The equipment operated stably, with an output of 800 tons per hour. The finished product particle size fully met the feed requirements of the ball mill, and the customer reported a 25% increase in production efficiency.
Case 2: Southeast Asian Granite Aggregate Project
In a granite aggregate production line in Vietnam, our impact crushers achieved highly efficient crushing, with a cubic proportion of finished aggregate exceeding 95%. This helped the customer successfully obtain high-end construction aggregate certification, and the products are exported to the international market.
FAQ
Q1: Is an impact crusher suitable for crushing high-hardness ores?
A: Impact crushers are suitable for medium-hard ores and below (compressive strength ≤ 350MPa). For extremely high-hardness ores, a layered crushing system is recommended.
Q2: What is the lifespan of the wear parts?
A: We use high-chromium alloy wear-resistant materials. When crushing medium-hardness ores, the hammer plate life can reach 3-6 months, depending on the material hardness and output.
Q3: Do you support customized production?
A: Yes, we can provide customized solutions based on customer capacity, material characteristics, site conditions, etc., including special materials and structural optimization.
Q4: How is after-sales service guaranteed?
A: We have more than 20 service centers worldwide, providing comprehensive services such as 24-hour technical response, original parts supply, and regular equipment inspections.
