Looking for a Cost-Effective Crusher for Limestone or Construction Waste? Have You Considered a Hammer Crusher?

Stone Hammer Mills

In the fields of mining and crushing, Stone Hammer Mills play a pivotal role in both secondary crushing and fine crushing operations. Notably, when interacting with international clients, we frequently encounter the specific designation "Stone Hammer Mills." This is not merely a linguistic distinction; rather, it reflects a widespread consensus regarding this type of equipment within the global industrial sector. In practical application—whether referred to as a "Hammer Crusher" or a "Hammer Mill"—the core operating principle remains consistent: they rely on high-speed rotating hammers to exert impact, shearing, and collision forces upon materials, thereby achieving highly efficient crushing.

Renowned for their relatively simple structure, high crushing ratio, and exceptional production efficiency, these machines occupy a central position in the processing of stone and rock materials ranging from moderate hardness downward. Stone Hammer Mills (or "Stone Hammer Mills," as they are commonly known internationally) have become indispensable key components in countless sand-making and aggregate production lines, as well as mining crushing plants, worldwide; their value has been extensively and thoroughly validated within the international market.

Terminology Clarification: Hammer Mills vs. Hammer Crushers

In the international engineering sphere, these two terms are often used interchangeably; however, subtle distinctions do exist between them:

• Hammer Mills: This term emphasizes the "grinding" function of the equipment. It typically refers to machines featuring a closed-chamber structure equipped with screens or grates; the crushing process is achieved through the combined action of the hammers' impact and the friction generated between the material, the screens, and the liner plates. This structural configuration is generally better suited for fine crushing operations.

• Hammer Crushers: This term, conversely, emphasizes the "crushing" action of the equipment. Their structure may be either open or closed; material size reduction is achieved primarily through the direct impact force of the hammers. This structural configuration is typically better suited for secondary crushing and coarse crushing operations.

However, in actual industrial practice, the boundary between these two categories has become increasingly blurred. Many international clients are accustomed to collectively referring to this type of equipment—used for the size reduction of stone materials—as "Stone Hammer Mills." This usage has, in fact, evolved into a standard industry term globally. Understanding this terminological nuance helps us better align with the international market, facilitating more precise technical communication and enabling us to provide clients with equipment selection recommendations that are truly practical and relevant to their needs.

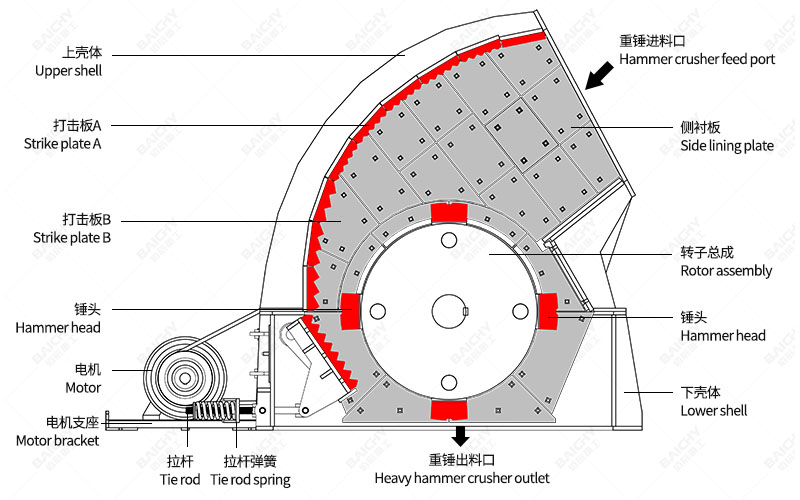

Structural Diagram of a Hammer Crusher

Core Application Scenarios

Leveraging their highly efficient impact crushing mechanism, Stone Hammer Mills (known internationally as "Stone Hammer Mills") have found widespread application across numerous industries worldwide:

1.  Primary Crushing of Medium-Hard Rocks (e.g., Limestone, Bluestone): In international engineering projects, this represents the most typical application scenario for Stone Hammer Mills. They are capable of directly crushing large blocks of raw material down to the required particle size, thereby achieving "single-stage crushing" and significantly simplifying the overall process flow.

2.  Construction Waste Recycling: In global environmental recycling initiatives, this equipment serves as a primary workhorse for processing construction debris such as concrete blocks, bricks, and tiles; indeed, many European nations have adopted it as a standard component within their operational workflows.

3.  Cement Raw Material Preparation: Used for crushing cement raw materials—such as limestone and marl—to supply the global cement industry with materials that meet precise particle size specifications.

4.  Manufactured Sand Production Lines: As a critical component within international sand-making and aggregate production systems, it provides high-quality feed material for subsequent sand-making processes.

Key Advantages of the Equipment

1.  High Crushing Ratio; Simplified Process Flow: The machine boasts an exceptionally high single-stage crushing ratio, which reduces the number of crushing stages required and, consequently, lowers overall investment costs.

2.  Robust Structure; Easy Maintenance: The machine body features a compact structural design; key components are easily dismantled and replaced, thereby minimizing maintenance costs.

3.  Superior Product Shape; Controllable Particle Size: By adjusting the gap between the grate bars, the discharge particle size can be effectively controlled; the finished product consists predominantly of cubical particles, exhibiting excellent shape characteristics.

4.  Economical Operating Costs: Compared to other crushers in the same class, this equipment typically offers superior cost-effectiveness in terms of energy consumption and the wear rate of consumable parts. Sample Technical Specifications (Based on Our PC Series)

The table below lists the key technical parameters for one of our classic stone hammer crushers, provided for your reference only:

Note: Processing capacity varies depending on material properties, feed size, and discharge requirements; the data provided above are approximate values.

Success Story

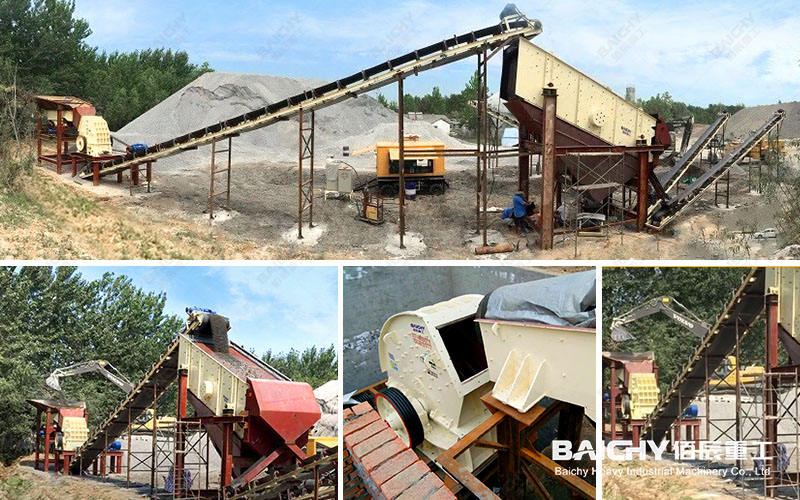

Hammer Crusher Customer Site

Case Study: Large-scale Eco-friendly Building Materials Project in Shandong

This client specializes in the comprehensive utilization of construction waste and limestone. We equipped their production line with two PC1212 stone hammer crushers to serve as the core secondary crushing machinery. The equipment has operated with great stability, successfully crushing a mixture of construction waste and raw stone into uniform material—sized under 30mm—thereby providing the perfect preparation for subsequent screening and sand-making processes. Since the project went into operation, its annual processing volume has exceeded 1 million tons; the client has expressed high praise for the equipment's consistent discharge granularity and exceptional reliability.

Recommended Related Equipment

A complete stone processing production line involves far more than just a single crusher. Depending on specific process requirements, we recommend pairing the stone hammer crusher with the following equipment to maximize operational efficiency:

1.  Jaw Crusher – Serving as the ideal primary crushing device, it provides the hammer crusher with a suitable feed size, forming the "Jaw Crusher + Hammer Crusher"—a highly effective combination.

2.  Vibrating Feeder – Ensures a uniform and continuous feed into the hammer crusher, thereby protecting the equipment and stabilizing production operations.

3.  Vibrating Screen – Classifies the crushed material; properly sized products are screened out, while oversized particles are returned for further crushing, forming a closed-circuit loop that optimizes the quality of the finished product.

4.  Sand Making Machine – If the objective is to produce high-quality manufactured sand, the material processed by the hammer crusher can be fed into a sand making machine for shaping, yielding finished sand with perfect grain shape.

Frequently Asked Questions (FAQ)

Q1: What hardness of stone is the hammer crusher primarily designed to process?

A1: The stone hammer crusher is best suited for crushing medium-hardness materials (and softer) with a compressive strength not exceeding 200 MPa—such as limestone, bluestone, marl, coal, gypsum, etc. For high-hardness materials (e.g., granite, basalt), its use is generally not recommended, as this would lead to accelerated wear of the hammer heads.

Q2: What is the service life of the hammer heads, and how are they replaced?

A2: The service life of the hammer heads varies significantly depending on the hardness of the material being processed and the throughput volume, ranging anywhere from a few hundred to over a thousand hours. To replace the hammer heads, the machine casing must be opened, and specialized tools are required to detach the worn heads from the rotor's pivot pins. Our equipment features a modular design and comes with specialized tools, making the replacement process both safer and more convenient.

Q3: How is the discharge particle size controlled?

A3: The discharge particle size is primarily controlled by adjusting the gap (or spacing) between the bottom grate bars (or screen plates). The smaller the gap, the finer the resulting particle size; conversely, a larger gap yields coarser particles. Additionally, different particle size requirements can be met by swapping in grate bars of different specifications, offering flexible operational control.
