Efficient Guide to Crushing Philippine Volcanic Rock with a Crawler Jaw Crusher

Crawler Jaw Crusher

The Philippines, situated on the Pacific Ring of Fire, boasts abundant resources of volcanic rock. Known for its porous, hard, and often abrasive nature, this material is in high demand for construction aggregates and road base. However, its unique physical properties pose significant challenges to crushing equipment. As a leading manufacturer of mining crushing machinery, we frequently address a core question from our clients: Can a crawler-mounted jaw crusher efficiently handle Philippine volcanic rock? This article provides a comprehensive analysis, from theory to practical application.

Analysis of Volcanic Rock Characteristics and Crushing Challenges

Overview of Physical and Chemical Properties

Philippine volcanic rocks (e.g., andesite, basalt) typically exhibit high hardness, high compressive strength, and often contain vesicles (gas pores). These pores create uneven stress distribution upon impact. Furthermore, the common presence of minerals like quartz makes these rocks highly abrasive, accelerating wear on crusher wear parts.

Key Crushing Difficulties

High Hardness and Toughness: Requires immense crushing force to fracture.
High Abrasiveness: Causes rapid wear on jaw dies, cheek plates, and other direct-contact components.
Variable Feed Size: Run-of-quarry rock comes in uneven sizes, demanding excellent feed acceptance capability from the crusher.

The Crawler-Mounted Jaw Crusher: A Targeted Solution

The crawler-mounted jaw crusher, combining the powerful jaw crushing principle with high mobility, is an ideal solution for the complex terrain and specific rock characteristics found in the Philippines.

Core Working Principle

It operates via the periodic reciprocating motion of a movable jaw against a fixed jaw, compressing and crushing the material between the jaw dies. This "compression-dominated" method is more advantageous for hard, abrasive volcanic rock compared to pure impact crushing, generating less fines and producing a more desirable grain shape.

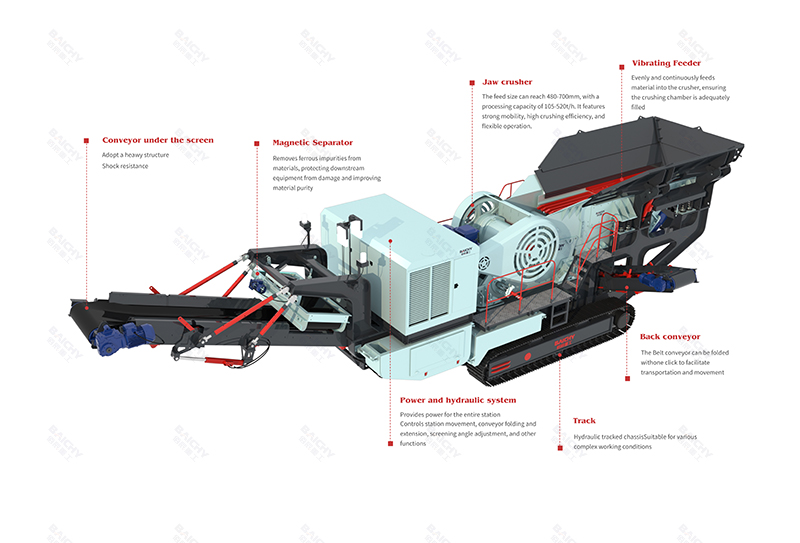

Working Principle Diagram of Track-Mounted Mobile Jaw Crusher

Four Key Advantages for Crushing Volcanic Rock

Powerful Crushing Force & Robust Structure: Features a heavy-duty frame and high-strength bearings to withstand the enormous cyclic loads from crushing volcanic rock, ensuring stable operation.
Premium Wear Parts Solution: We offer jaw dies made from super manganese steel or composite ceramics, with wear resistance improved by over 50% compared to standard materials. This drastically reduces downtime for part changes and operational costs caused by abrasion.
Exceptional Mobility & Site Adaptability: The crawler undercarriage allows the unit to access rugged, wet quarry sites in the Philippines. It enables primary crushing directly at the face, eliminating intermediate material haulage and boosting overall operational efficiency.
Flexible Feed and Discharge Adjustment: A hydraulic setting adjustment system allows quick changes to the output product size, meeting various aggregate specifications and enabling multi-purpose use with a single machine.

Case Study: A Quarry in Cebu, Philippines

Client Pain Points: A traditional stationary plant couldn't cover scattered mining points, leading to high material transport costs. The old crusher's jaw plates wore out excessively, requiring weekly shutdowns for replacement, severely hampering productivity.
Our Solution: We supplied a JC Series Heavy-Duty Crawler Jaw Crusher equipped with specially designed, wear-resistant jaw dies.
Results Achieved: The unit moved freely between sites within the quarry, achieving a stable output of 180-220 tons per hour. The specialized jaw dies lasted 2.5 times longer under the same conditions, increasing the client's overall productivity by over 35% and significantly reducing maintenance costs.

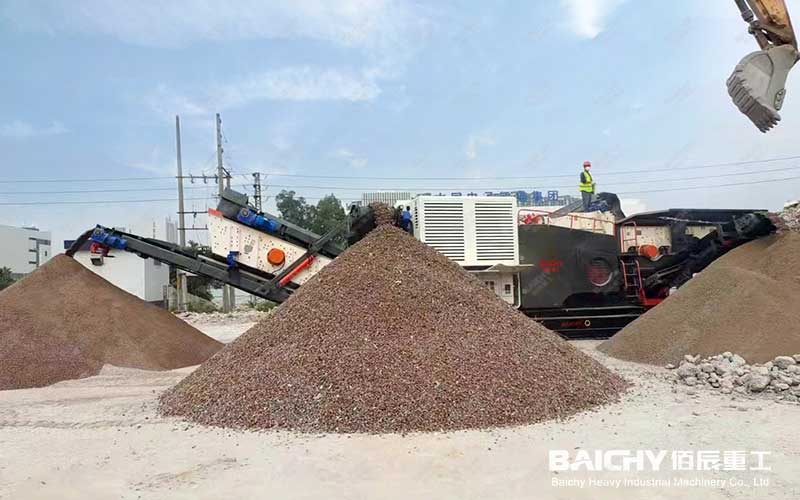

Crawler Jaw Crusher on Site

Equipment Selection and Recommendation

For Philippine volcanic rock crushing, we highly recommend the C Series Heavy-Duty Crawler Jaw Crusher:

Key Features: Optimized crushing chamber design for a larger reduction ratio and higher output; fully hydraulic operation for easy maintenance; equipped with a heavy-duty vibrating grizzly feeder to effectively pre-screen fines and prevent chamber blockage.
Ideal Applications: Medium to large-scale quarries, primary crushing of virgin rock in mining, and recycling of construction & demolition waste (where concrete shares similar properties to volcanic rock).

Frequently Asked Questions

FAQ 1: Will the wear part cost for crushing volcanic rock with a crawler jaw be prohibitively high?

A: This is a valid concern. For the initial investment, we recommend opting for premium wear parts. In the long run, while the unit cost of these parts is higher, their significantly extended service life and reduced downtime result in a much lower cost per ton crushed compared to standard parts. We offer jaw plate materials specifically optimized for volcanic rock to effectively control long-term wear costs.

FAQ 2: Can the equipment operate effectively during the rainy season in the Philippines when volcanic rock is wet and muddy?

A: Yes. Our crawler jaw crushers are designed for harsh conditions. Effective dust and water seals protect core bearings from mud and water ingress. Additionally, optimized discharge chutes and sufficient power reserve help prevent clogging from damp, sticky material, ensuring reliable operation even in the wet season.

FAQ 3: Besides the main crusher, what other supporting equipment is recommended to boost overall production line efficiency?

A: We recommend pairing the jaw crusher with a crawler-mounted screening plant to form a closed-circuit system. This allows for immediate screening of crushed volcanic material—directing sized product to stockpile and oversize back to the crusher. This maximizes the primary crusher's efficiency and yields precisely graded end products, enhancing overall project profitability.

Conclusion

In conclusion, the answer is a definitive yes. A well-designed, robustly built crawler-mounted jaw crusher is not only capable of crushing Philippine volcanic rock but, with its powerful crushing force, targeted wear solutions, and unparalleled mobility, can achieve efficient, low-cost, and high-yield operations. Choosing the right equipment partner is the crucial first step to successfully developing the Philippines' abundant volcanic rock resources.
