South African mines (iron, manganese, and platinum) have extremely demanding requirements for equipment durability and ease of maintenance. When selecting equipment, distinguishing between the application boundaries of CH (GP) single-cylinder engines and HP multi-cylinder engines is crucial in determining the overall cost per ton of the production line.
I. Core Model Selection Comparison Table
| Application Scenarios | Recommended Models | Corresponding School/Structure | Core Technological Advantages | Marketing Value for South Africa |
| Large Hard Rock Secondary Crusher | CH Series (GP Type) | Single Cylinder Hydraulic | Minimalist structure, floating spindle, convenient hydraulic adjustment of discharge port | Handles f=16 iron ore, single person can complete cavity clearing within 1 minute |
| Medium Crushing/Fine Crushing/Shaping | HP Series | Multi-Cylinder Hydraulic | High lamination crushing frequency, excellent finished product cubic ratio | Meets export-grade manganese ore and SANRAL highway aggregate standards |
| Classic Cost-Effective Solution | CS Series | Simons/Spring Type | Mature structure, does not rely on complex hydraulics, low maintenance threshold | Suitable for remote mining areas and small to medium-sized quarries with limited maintenance capabilities |
| Power Limitation Resistant/Flexible Operation | YDPZ Series | Mobile Crushing Station | Diesel and electric dual-use, self-contained unit, no foundation deployment required | Addresses the load shedding pain point, output immediately upon deployment |
Ⅱ. Recommended Model In-Depth Analysis
1. CH Series (GP Type): The "King of Secondary Crushing" for South African Iron Ore
Structural Characteristics: Single-cylinder hydraulic structure. The main shaft is supported by a bottom hydraulic cylinder, and the discharge port is adjusted by piston lifting.
Single-cylinder-cone-crusher-granite-crushing-site
Core Logic (South African Application):
• Extreme Simplification: Due to the harsh environment of South African mining areas, the CH series has a naturally lower failure rate than multi-cylinder machines due to its fewer parts.
• Optimal Secondary Crushing: Its large feed opening can directly handle 200-300mm materials after jaw crusher (PE series), making it the "standard configuration" for secondary crushing in iron ore production lines.
• One-Button Adjustment: The discharge port particle size can be remotely adjusted from the control room, perfectly adapting to large-scale mechanized operations in South Africa.
2. HP Series: The "Shaping Master" for Manganese Ore and Export-Grade Aggregates
• Structural Characteristics: Multi-cylinder hydraulic structure. Multiple sets of hydraulic cylinders are distributed externally, providing extremely high locking force and crushing frequency.

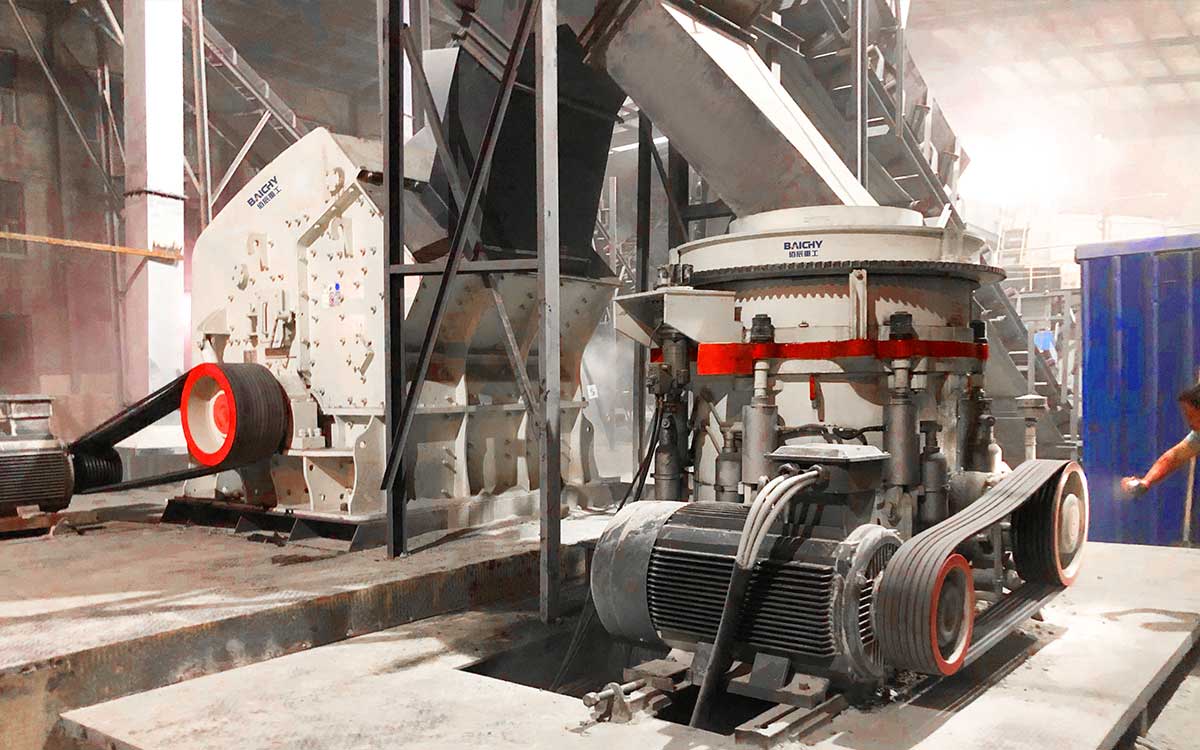

Multi-cylinder-hydraulic-cone-crusher-customer-site
Core Logic (South Africa Application):
• Laminated Crushing Frequency: The crushing force of the HP series primarily comes from high-frequency compression, resulting in less powder and more particles from hard and brittle manganese ore during crushing.
• Increased Yield: If your customers produce 1/2" or 3/4" export aggregate in South Africa, the cubic pellets produced by the HP series guarantee a high premium.
3. CS Series (Simons): A "Perennial" in South Africa's Long-Established Mines

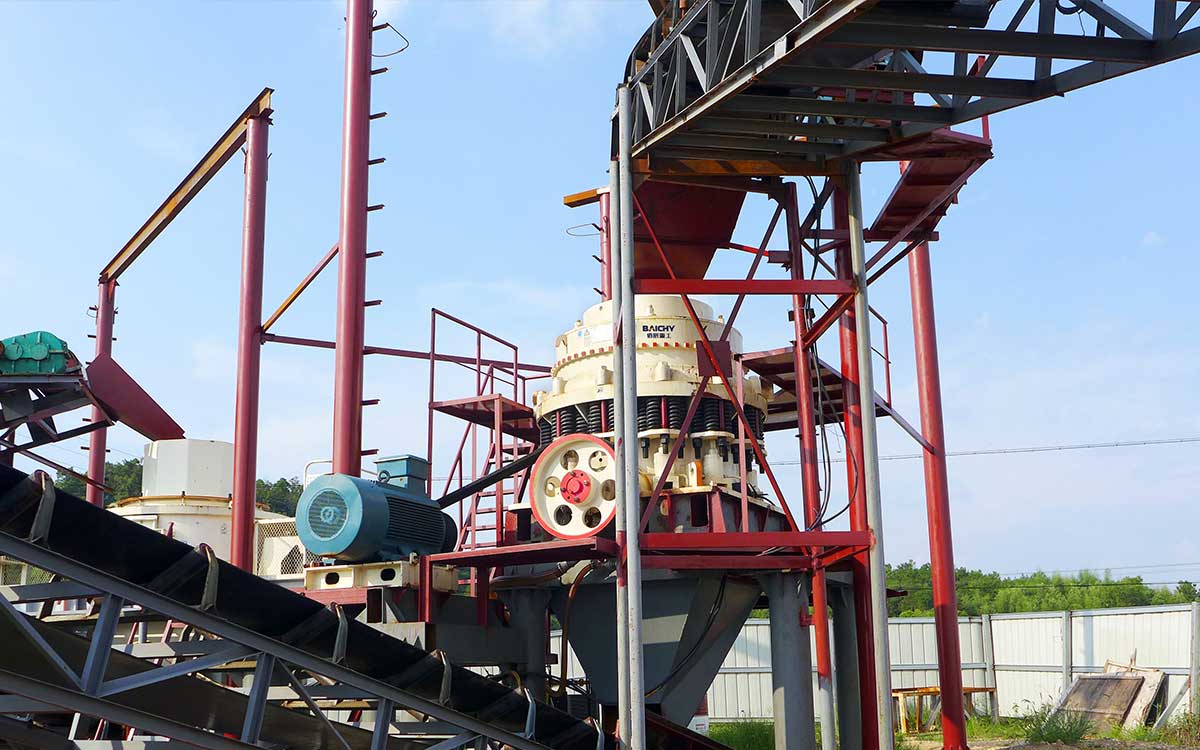

Symons-cone-crusher-customer-site
• Structural Features: Spring safety + mechanical adjustment.
Core Logic (South Africa Application):
• Rugged Operation Capability: In areas with extremely limited power supply or operator training, the CS series remains the most reliable choice for small and medium-sized mines due to its purely mechanical stability.
• Low Operating Costs: No complex hydraulic system required; basic maintenance can be performed at local repair shops.
Frequently Asked Questions:
Q1: How to choose a cone crusher in South Africa's unstable power environment?
A: We recommend choosing a mobile hydraulic cone crusher equipped with a diesel-powered generator set (such as the Baichy YDPZ series). This configuration not only eliminates dependence on a fixed power grid but also allows for migration with the ore vein, significantly reducing short-distance transportation costs.
Q2: Why is a cone crusher recommended instead of an impact crusher for South African iron ore production lines?
A: Iron ore typically has a Mohs hardness of 6 or higher. Impact crusher hammers wear extremely quickly in highly abrasive environments (potentially requiring replacement every 24-48 hours). Cone crushers use compression crushing, and their liner life is more than 10 times that of the hammers, resulting in lower maintenance costs.
Q3: Which type of cone crusher is most popular in South Africa?
A: Multi-cylinder hydraulic cone crushers. They combine high crushing force and high speed, making them suitable for processing the widely distributed hard limestone and metamorphic rocks of South Africa, offering an excellent balance between production capacity and yield.
