Tracked Jaw Crusher
In modern mining, demolition, and aggregate production, continuous and efficient productivity is key to profitability. However, unpredictable weather conditions, such as rain, snow, mud, extreme heat, or extreme cold, often hinder project progress. Tracked jaw crushers, as the core equipment of mobile crushing plants, are solutions designed to address these challenges. They integrate feeding, crushing, screening, and conveying, and are equipped with a robust tracked chassis, ensuring stable and reliable operation even in harsh weather and complex terrain, minimizing downtime risks.
Core Advantages: Why Can It Cope with Harsh Working Conditions?
The core design philosophy of the tracked jaw crusher is mobility, adaptability, and reliability. This makes it perform exceptionally well in harsh weather conditions.

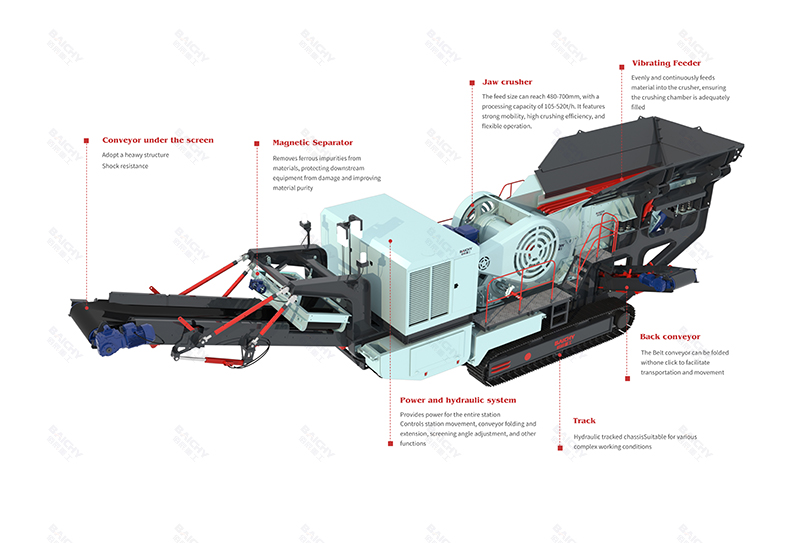

Structural diagram of tracked jaw crusher station
All-Weather Resilience from Design and Structure
1. Strong Mobility and Passability
The tracked chassis is one of its biggest highlights. Compared to traditional stationary or wheeled crushers, the tracked design features low ground pressure, easily handling muddy ground after rain, soft sand, or uneven gravel areas, effectively preventing equipment sinking and ensuring safe entry and exit from work sites.
2. Integrated Design and Protection
The entire machine adopts a highly integrated design. The electrical system, hydraulic pipelines, and key bearing components are equipped with professional dustproof and waterproof seals and protective covers. This effectively prevents rainwater and dust intrusion, protecting core components and providing a certain level of protection even in rainy or snowy weather, ensuring normal start-up and operation.
3. Stable Power and Control System
Typically equipped with a stable diesel engine (meeting China III/China IV or higher emission standards) as the power source, it does not rely on an external power grid and is self-sufficient in power. The advanced electronic control system has self-diagnostic capabilities and can adapt to certain temperature and humidity changes, ensuring accurate transmission and execution of control commands under harsh weather conditions.
Performance Analysis Under Severe Weather Conditions
| Weather Conditions | Potential Challenges | Track Jaw Crusher's Ability to Cope | Precautions |
| Heavy Rain/Muddy Ground | Slippery terrain, equipment slippage and sinking, electrical short circuits | Tracked chassis provides excellent traction and mobility; key components have high IP protection ratings. | It is recommended to check track tension and clean accumulated mud after rain. |
| Extreme Cold | Hydraulic oil and fuel flow deteriorates, engine starting becomes difficult, and steel brittleness increases. | Optional features include fuel preheating, oil heater, and low-temperature battery; equipment steel is made of low-temperature resistant materials. | Use low-temperature resistant oils and preheat at idle before operation. |
| Extreme Heat | Engine overheating, decreased hydraulic system efficiency, and the risk of continuous high-load operation. | High-power cooling system with optimized cooling airflow; | Hydraulic system equipped with oil temperature cooling device. Regularly clean radiator dust and avoid prolonged overload operation. |
| Strong Winds and Dust | Clogged feed inlet, dust accumulation on electrical components leading to malfunctions, low visibility affecting operational safety. | Can be equipped with a pre-screening device to remove fine powder; control cabinet is well-sealed; remote monitoring system optional. | Reinforced sealing at connections; operation can be suspended when necessary to ensure safety. |
Case Study: A Production Line Uninterrupted by Weather
A large granite quarry in Russia is located in a rainy, hilly area. In previous years, the fixed production line was often forced to shut down during the rainy season due to disruptions in raw material transportation routes. Last year, the quarry introduced a YMC series tracked jaw crusher manufactured by our company. Throughout the entire rainy season of the Year of the Horse, the equipment directly crushed near the mining face, initially crushing large stones before connecting to a mobile cone crusher and screening station to form a compact mobile production line. Even in continuous rain, thanks to the excellent mobility of the tracked chassis, the equipment could flexibly adjust its position and continue operating, increasing the quarry's production efficiency by more than 40% compared to the same period last year, truly achieving "production continues regardless of weather."
Equipment Recommendations: Choose the "All-Weather Warrior" for You
For different harsh working conditions and capacity requirements, we recommend the following models:
• YMC-96 Tracked Jaw Crusher: Suitable for small to medium-scale processing, and for demolition and mining operations in confined and variable spaces. It is highly mobile, flexible, and cost-effective.
• YMC-120 Tracked Jaw Crusher: The mainstay of medium-sized production lines, with a large crushing ratio and strong processing capacity. Suitable for quarries and construction waste processing projects that require a balance between capacity and adaptability.
• YMC-150 Tracked Jaw Crusher: The first choice for large-scale mining and aggregate production. Equipped with heavy-duty jaw plates and a high-power engine, it is designed for continuous operation in high-intensity, harsh environments, offering extremely high reliability.
All models can be customized with dust suppression systems, high-level protective electrical cabinets, extreme weather start-up packages, and other optional features to meet specific weather challenges.
Frequently Asked Questions (FAQ)
Q1: Is it safe to operate a tracked jaw crusher during thunderstorms?
A1: Safety is paramount. Although the equipment itself has some protection, outdoor operation is strongly discouraged during extreme weather conditions such as thunderstorms, lightning, and strong winds. In such cases, the equipment should be moved to a safe, open area, and personnel should be evacuated to a safe location. The lightning protection device equipped on the equipment is mainly for protection against induced lightning strikes and cannot protect against direct lightning strikes.
Q2: How is corrosion protection ensured when the equipment operates in a long-term humid or salty coastal environment?
A2: We have special anti-corrosion treatment solutions for coastal conditions. These include heavy-duty anti-corrosion coatings for structural components (such as epoxy zinc-rich primer + epoxy micaceous iron oxide intermediate paint + polyurethane topcoat), Dacromet or hot-dip galvanizing treatment for critical fasteners, and higher protection levels (such as IP65) for electrical components. This effectively resists salt spray corrosion and extends the service life of the equipment in humid, coastal environments.
Q3: Can the equipment still start and operate normally in extremely cold regions (such as below -30℃)?
A3: Yes, but additional preheating and configuration are required. For equipment intended for use in extremely cold regions, we offer the "Arctic Package" option, which includes a high-power fuel preheater, oil preheater, high-capacity cryogenic battery, cab heater, and insulated hydraulic lines. During operation, a thorough preheating process must be strictly followed, and diesel, engine oil, and hydraulic fluid suitable for extremely low temperatures must be used.
Conclusion
Investing in a tracked jaw crusher is not just purchasing a crushing machine; it's purchasing "production insurance" to protect your project from the risks of severe weather. Its superior mobility and robust reliability minimize the impact of uncontrollable natural factors on production schedules, ensuring a stable return on your investment in any weather. In the Year of the Horse, let us help your project forge ahead like a galloping horse, fearless of wind and rain!
