While traditional fixed crushing lines are stable, they are limited by space, transportation, and flexibility, making them unable to meet the high-efficiency, environmentally friendly, and dynamic adaptability requirements of modern mines. The emergence of mobile crushing stations, particularly the combination of mobile jaw crushers and mobile impact crushing and screening plants, is revolutionizing this traditional model with its unique advantages, becoming the optimal solution for mining crushing.
1. Why do we need mobile crushing stations?
Traditional crushing lines require fixed infrastructure and a long equipment installation cycle. Furthermore, if mining resources are depleted or the site needs to be relocated, relocation costs are extremely high.
Mobile crushing stations offer the following core advantages:
1. Flexible relocation: Driven by tires or tracks, they can quickly access the work area and adapt to rugged terrain.
2. Fast commissioning: No infrastructure installation is required; they can be operated immediately upon power-up, significantly shortening project cycles.
3. Cost reduction: Reduced transportation, infrastructure, and labor investment improve overall efficiency by over 30%.
4. Environmental compliance: The enclosed design, combined with dust and noise reduction technology, meets green mining requirements.
II. Core Combination: Mobile Jaw Crusher + Mobile Impact Crusher and Screening Station
1. Mobile Jaw Crusher: A Powerful Pioneer in Primary Crushing
• Function: As a primary crushing unit, it specializes in primary crushing of high-hardness ores (such as granite and basalt), offering a high crushing ratio and adjustable discharge size.
• Advantages: Hydraulically adjustable discharge opening and intelligently controlled iron protection provide strong adaptability and easy maintenance.
• Application Scenarios: Direct access to mining areas, achieving "source crushing" and reducing raw ore transportation costs.
2. Mobile Impact Crusher and Screening Station: An All-Round Partner for Secondary and Tertiary Crushing and Screening
• Function: Accepts jaw crushed material for secondary and tertiary crushing, shaping, and screening, producing finished aggregates of various specifications.
• Advantages: The impact crusher produces fine-shaped particles with low flake content, while the screening module enables multi-stage sorting.
• Application Scenarios: Operates in conjunction with a mobile jaw crusher to form a continuous closed-loop production process, directly producing commercial-grade sand and gravel.
III. The Unique Value of the Combined Solution
1. Seamless Process Integration: The two units can be connected in series via a belt conveyor to form a mobile crushing and screening production line, eliminating the need for intermediate transportation.
2. Dynamic Capacity Adjustment: Flexible adjustments to equipment layout and operating parameters are possible based on resource changes or demand fluctuations in the mining area.
3. Adaptability to perse Mineral Types: From metal ores to building stone, production can be optimized by adjusting the crushing chamber type, speed, and screen configuration.
4. Intelligent Operation and Maintenance Support: Remote monitoring and fault diagnosis systems enable unmanned or reduced-manpower operations.
IV. Case Scenario: How to Achieve "Direct Delivery from the Mine to the Finished Product Yard"?

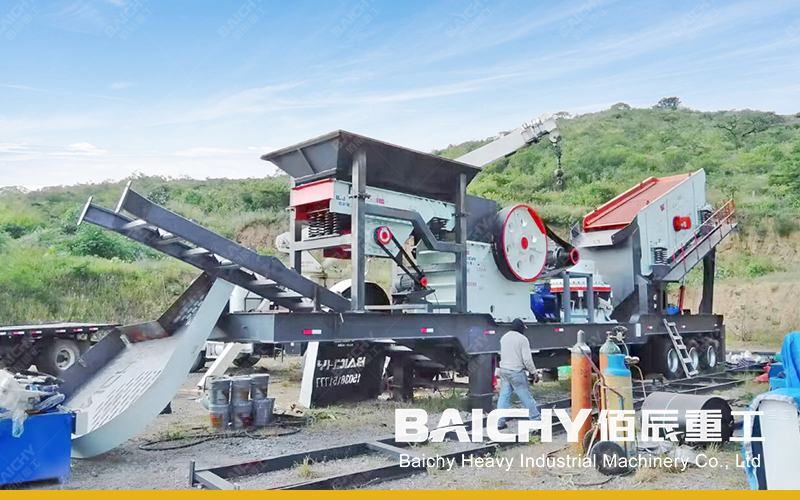

Mexican granite mines use the following process:
• Mobile jaw crushers are stationed at the mining site, crushing the raw ore to less than 250mm;
• Mobile impact crushers and screening stations receive the coarse material nearby and, after crushing and screening, produce finished products in three grades: 0-5mm, 5-10mm, and 10-25mm;
• Finished materials are directly loaded onto trucks and transported to the customer's site, reducing intermediate steps by 50% and lowering costs by over 20%.
V. Future Trends: Deep Integration of Green and Intelligent Operations
As the mining industry transitions toward intelligent operations, mobile crushing stations will further integrate:
• New energy power: Electric or hybrid systems will replace diesel engines, achieving zero emissions;
• AI-powered collaborative control: Using big data to predict changes in ore hardness and automatically adjust crushing parameters;
• Modular expansion: Adding modules such as dust removal and water washing to meet higher environmental standards.
The combination of a mobile jaw crusher and a mobile impact crusher and screening station represents not only a technical upgrade but also a revolution in mining operations. It breaks the shackles of fixed production lines and, with its flexibility, cost-effectiveness, and environmental friendliness, becomes the core choice for future mining crushing. For companies pursuing cost reduction, efficiency improvement, and sustainable development, investing in this solution means seizing the commanding heights of industry competition.
