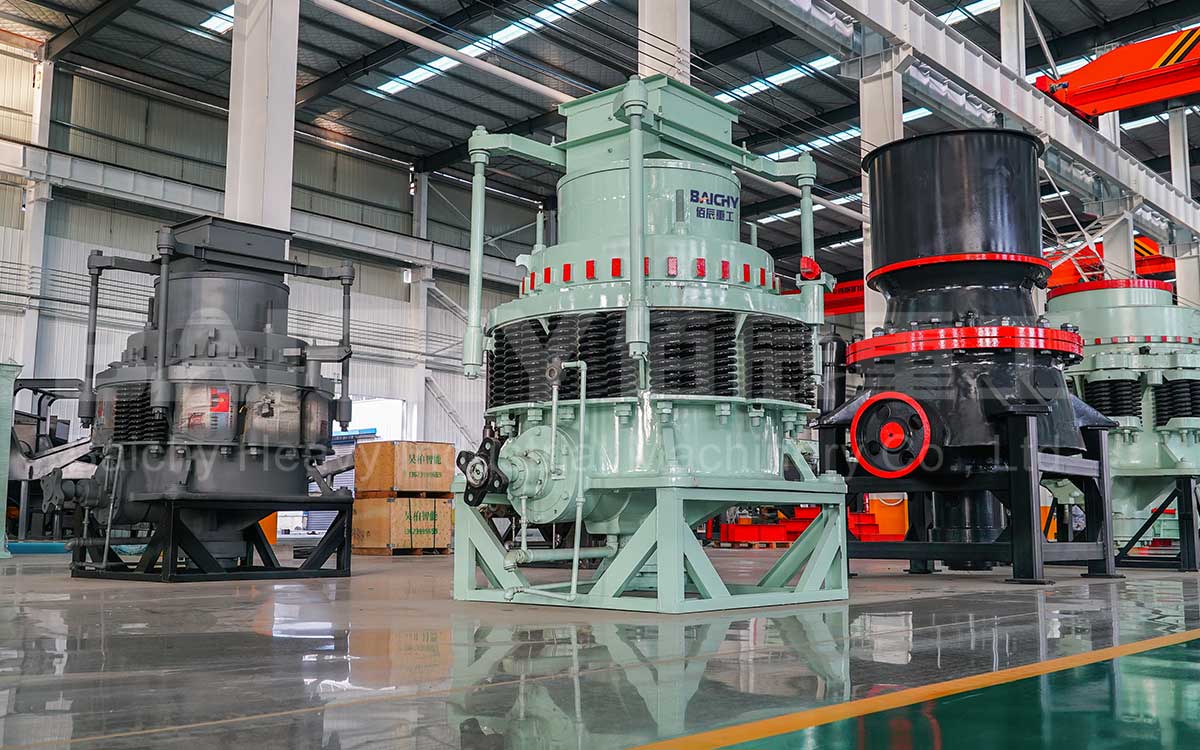

PYB900 Spring Cone Crusher
The PYB900 spring cone crusher is a medium-sized secondary crushing machine designed for hard rock and ore processing. With a crushing cone diameter of 900 mm, it delivers a throughput of 15–50 tons per hour and handles feed sizes up to 115 mm, making it ideal for aggregate production lines, small to medium mining operations, and construction material processing.
As part of Baichy's proven PYB series, the PYB900 combines reliable spring overload protection with a simple maintenance structure, offering low operating costs over a long service life.
Key highlights at a glance:
• Crushing cone diameter: 900 mm
• Capacity: 15–50 tph
• Max feed size: 115 mm
• Discharge opening range: 15–50 mm
• Motor power: 55 kW
• Total weight: ~11.2 t
Technical Specifications
| Parameter | Specification |
| Model | PYB900 |
| Crushing Cone Diameter | 900 mm |
| Max Feed Size | ≤115 mm |
| Discharge Opening Range | 15–50 mm |
| Capacity | 15–50 tph |
| Eccentric Shaft Speed | 330 r/min |
| Motor Power | 55 kW |
| Machine Weight (approx.) | 11.2 t |
| Overall Dimensions (L×W×H) | 1990×1640×2380 mm |
| Spring Sets | 8 groups |
| Lubrication System | Thin oil circulation |
Note: Actual capacity depends on material hardness, moisture content, feed gradation, and working conditions. Contact Baichy engineers for a customized production estimate.

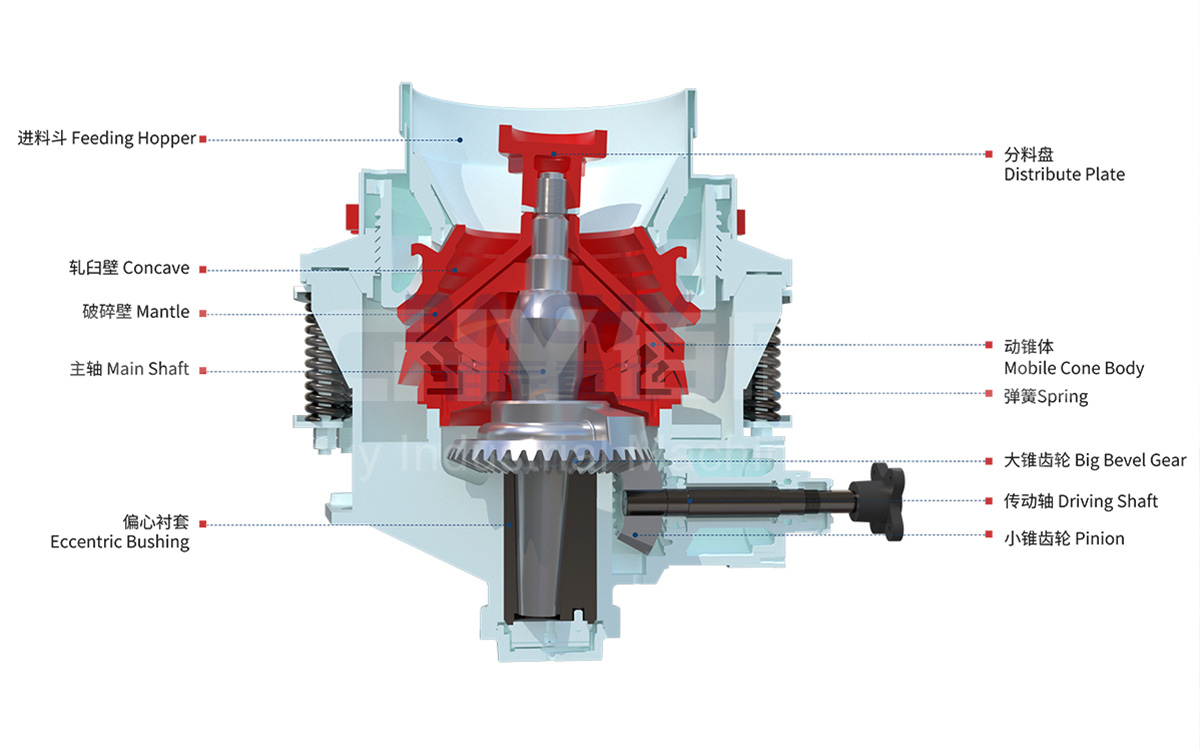

Spring Cone Crusher Structure Diagram
Structural features and advantages
1. Spring Overload Protection System
Eight sets of high-strength coil springs provide reliable protection against uncrushable materials (tramp iron, oversized feed). When overload occurs, the springs compress and the discharge opening widens automatically, then resets once the foreign object passes — preventing damage to the crushing chamber and main shaft.
2. High-Strength Crushing Components
The mantle and concave are cast from high-manganese steel (Mn13Cr2), offering excellent wear resistance under high-frequency impact. The eccentric sleeve uses Babbitt alloy lining, reducing friction and extending service intervals.
3. Hydraulic Adjustment & Cavity Cleaning (Optional Upgrade)
Available with an optional hydraulic station for quick discharge gap adjustment and cavity cleaning, reducing downtime between material changes.
4. Thin Oil Circulation Lubrication
A dedicated lubrication station continuously pumps filtered oil to the eccentric bushing and spherical bearing, keeping critical friction surfaces at safe operating temperatures during continuous running.
5. Standardized Modular Design
All PYB series crushers share interchangeable wear parts and common components, simplifying spare parts management for multi-machine operations.
Philippine PYB900 spring cone crusher crushing site
Typical application scenarios
| Application | Material | Configuration |
| Aggregate crushing plant | Granite, basalt, limestone | Jaw crusher (primary) → PYB900 (secondary) → Vibrating screen |
| Iron ore processing | Iron ore, copper ore | Feeder → Jaw crusher → PYB900 → Ball mill |
| Construction waste recycling | Concrete, brick, asphalt | Mobile jaw crusher → PYB900 → Sand making machine |
| Highway & railway ballast | Hard stone | Combined with impact crusher or sand maker |
PYB Series Comparison
| Model | Cone Dia. (mm) | Max Feed (mm) | Capacity (tph) | Motor (kW) |
| PYB600 | 600 | ≤65 | 5–20 | 30 |
| PYB900 | 900 | ≤115 | 15-50 | 55 |
| PYB1200 | 1200 | ≤145 | 30-110 | 110 |
| PYB1750 | 1750 | ≤215 | 90-280 | 160 |
| PYB2200 | 2200 | ≤300 | 210-490 | 280 |
Need a different capacity? View the full PYB series product line or contact us for a recommendation.
Need a PYB900 for your project?
Get a customized quotation with detailed configuration, shipping cost to your port, and estimated delivery time — usually within 24 hours.
WhatsApp Online
Free technical consultation included — tell us your material, required output size, and target capacity.
FAQ
Q1: What rock hardness can the PYB900 handle?
The PYB900 is rated for rocks with compressive strength up to 300 MPa, including granite, basalt, diabase, and high-silica ores. For materials softer than limestone, a hammer crusher or impact crusher may be more cost-effective.
Q2: What is the minimum closed-side setting (CSS)?
The minimum CSS is 15 mm. Running tighter than 15 mm accelerates wear on the mantle and concave and may overload the motor. For finer output (below 15 mm), consider pairing with a sand making machine (VSI) downstream.
Q3: How often should wear parts be replaced?
Under normal conditions crushing granite or basalt:
Mantle liner: ~1,500–2,000 operating hours
Concave (bowl liner): ~2,000–3,000 hours Lower-abrasion materials (limestone, dolomite) can extend these intervals by 40–60%.
Q4: Can the PYB900 be operated in a mobile crushing plant?
Yes. The 11.2 t weight and compact footprint make it compatible with trailer- or skid-mounted mobile configurations. Baichy provides integrated mobile solutions combining jaw + cone + screen on a single chassis.
Q5: What's the typical delivery time?
Standard configuration orders ship within 15–25 working days. Custom configurations (hydraulic upgrade, special voltage, specific paint scheme) may require 30–45 days. Spare parts in stock ship within 7 days.
