PYB900 Cone Crusher

PYB900 Cone Crusher

Capacity : 15-90t/h
Motor : 55kw
Applied materials : PYB cone crusher is suitable for medium-hard and high-hard ores, such as ore, copper ore, limestone, granite, basalt, diabase, etc.
Application scenario : PYB cone crusher is one of the very common crushing equipment in mine crushing operations, widely used in mining, smelting, building materials, roads, railways, water conservancy, the chemical industry, and many other fields.

PYB900 Cone Crusher



PYB900 Cone Crusher Product advantages

  •  1. Increase the eccentric distance and improve the processing capacity.

  •  2. Accelerate the speed, increase the power, and improve the crushing fineness.

  •  3. Elevate the swing center of the moving cone and optimize the cavity design.

  •  4. The liner is thickened to prolong the service life.

  •  5. The key components are made of high-strength materials, and the weight is increased appropriately for better reliability.

  •  6. The moving cone rotates continuously, and the crushing process and unloading processes of materials are carried out alternately and continuously along the working surface, with high productivity.

  •  7. The material is sandwiched between the two cones and subjected to extrusion, bending, and shearing, so it is easier to break and the power consumption is lower.

  •  8. The product material is relatively uniform, in the shape of a cube, and the wear of the working surface of the moving cone is also relatively uniform.

  •  9. It has a complete lubrication system, which will automatically shut down when the temperature is too high or the flow rate is too slow.

  •  10. The internal structure has good sealing performance, which can effectively protect the equipment from dust and other small particles.




Technical Parameters

Model PYB-900 PYZ-900 PYD-900
Cone Dia.(mm) 900 900 900
Max feeding size (mm) 115 60 40
Adjusting Range of Output Size(mm) 15-50 5-20 3-13
Capacity(t/h) 50-90 20-65 15-50
Motor Power(kw) 55 55 55
Overall Dimension(mm) 3050×1640×2350 3050×1640×2350 3050×1640×2350


Product Images

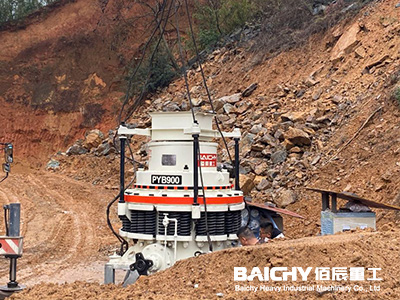

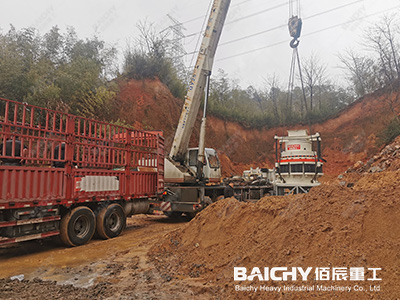

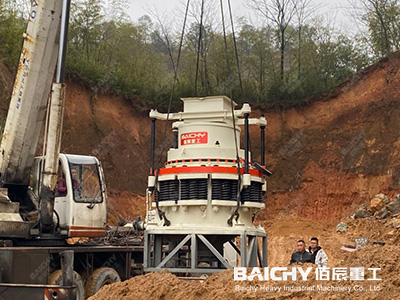

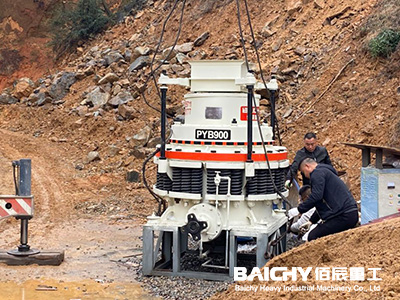

PYB900 Cone Crusher PYB900 Cone Crusher PYB900 Cone Crusher PYB900 Cone Crusher


30-50t/h granite crushing plant

PYB900 Cone Crusher
NO. Product Name Model Quantity
1 Vibrating Feeder ZSW0625 1
2 Jaw Crusher PE400x600 1
3 Cone Crusher PYB900 1
4 Vibrating Screen 3YK1548 1
5 Belt Conveyor B650 2
6 Belt Conveyor B500 4

The output per hour of the PYB900 cone crusher is between 50-90 tons, and the output particle size is between 15-50mm.



The working principle of the PYB900 cone crusher:the eccentric sleeve driven by the motor rotates through a horizontal shaft and a pair of bevel gears, and the crushing cone shaft is forced by the pendulum motion of the eccentric sleeve to move to the vicinity of the work surface, so sometimes the crushing arm leaves the wall The surface of the mortar is rolled so that the ore crushing cavity is continuously squeezed and crushed by bending.



Outstanding advantages of the PYB900 cone crusher

1. Reasonable and compact structure, small footprint, easy installation, operation, and later maintenance.

2. Equipped with an advanced electric motor with a power of 55Kw, the power is strong, the crushing force is strong, and the crushing effect is good.

3. The structure of the equipment adopts a modular design, and the cavity type can be changed freely. It can realize coarse, medium, and fine crushing according to the needs of users, and has high flexibility in use.

4. The grain shape of the laminated and crushed finished product is excellent, which greatly increases the content of the fine-grained finished product and greatly reduces the needle flake.

5. The sealing performance is good, which improves the reliability of blocking dust and has a good environmental protection effect.
