In the world of industrial minerals processing, efficiency and precision are paramount. For manufacturers of mining crushing equipment, providing a complete, high-performance solution for grinding limestone into calcium carbonate (CaCO3) is a significant value proposition. The core of such a solution often lies in the Roller Mill Plant. This comprehensive guide will delve into the intricacies of a complete Limestone Calcium Carbonate Roller Mill Plant, exploring its operation, advantages, and why it represents a superior investment for modern processing operations.
Understanding the Complete Plant System

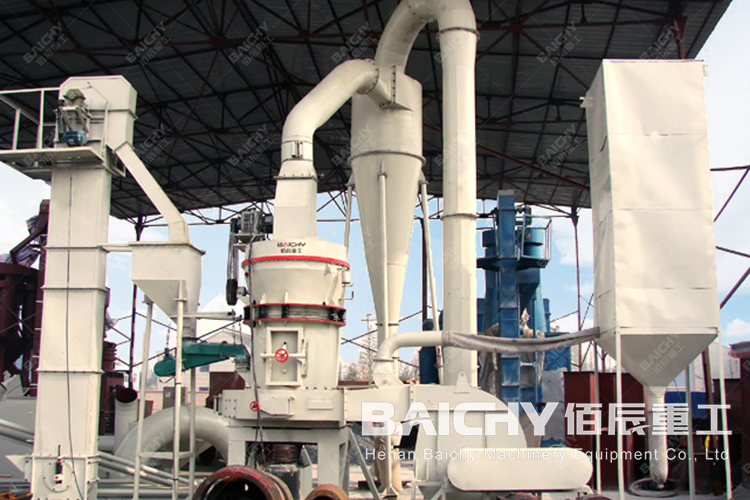

A Complete Roller Mill Plant for Limestone Calcium Carbonate production is far more than just the grinding mill itself. It is an integrated system designed to transform raw limestone into finely ground calcium carbonate powder of various grades, from coarse fillers to ultrafine powders used in paints, plastics, and pharmaceuticals.
The system typically includes:
-
Primary Crushing Unit: Jaw crushers or hammer mills to reduce large limestone rocks to a manageable feed size (e.g., 0-30mm).
-
Raw Material Handling & Storage: Conveyors, elevators, and silos for efficient material transfer and buffer storage.
-
Grinding Core - The Roller Mill: The heart of the plant, where grinding occurs. Modern vertical roller mills (VRMs) use rollers to compress and shear the material against a rotating grinding table.
-
Classification System: An integrated or external dynamic classifier (like a turbo classifier) that immediately separates fine, in-spec powder from coarse particles, which are recirculated for further grinding. This ensures precise particle size distribution (PSD).
-
Product Collection: High-efficiency baghouse filters or cartridge collectors that capture the final product while ensuring emission standards are met.
-
Packing & Loading System: For bagging, big-bag filling, or bulk loading of the finished calcium carbonate powder.
-
Automated Control System: A PLC-based control panel that monitors and optimizes the entire grinding process for consistency and energy savings.
Jaw Crusher

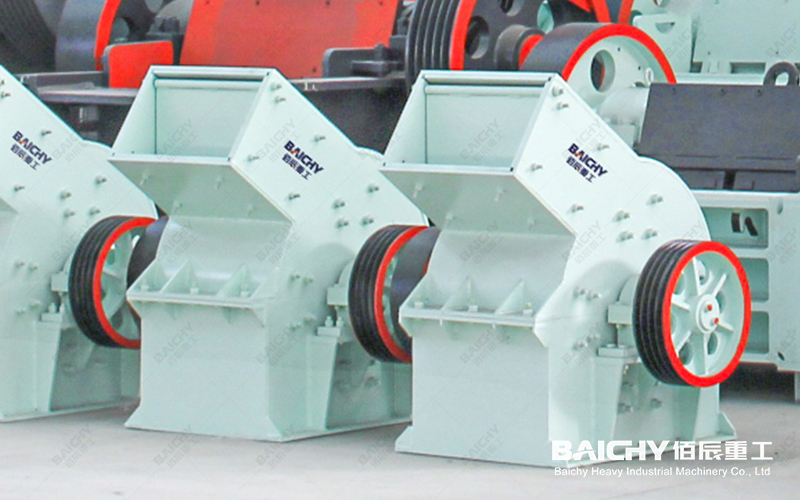

Hammer Crusher
Key Advantages of the Integrated Roller Mill Solution
Investing in a complete plant from a single, experienced manufacturer like ours offers unparalleled benefits:
-
Exceptional Energy Efficiency: Roller mill technology is renowned for its lower specific energy consumption compared to traditional ball mills, especially for finer grinding. The material is ground by compression and shear, a more efficient mechanism than impact alone.
-
Superior Product Quality: The integrated classifier allows for extremely tight control over the calcium carbonate product's fineness and particle size distribution. This consistency is critical for high-value applications.
-
Low Operating Noise and Vibration: The grinding mechanism in a vertical roller mill operates with less direct metal-to-metal contact, resulting in a significantly quieter and smoother operation than ball mills.
-
Integrated Drying Capability: The mill can handle feed material with a certain moisture content by utilizing hot gas introduced into the grinding chamber, eliminating the need for a separate dryer in many cases.
-
Compact Plant Footprint: The vertical design of the core mill and the streamlined system layout require less floor space than horizontal milling circuits.
-
Reduced Maintenance: With fewer moving parts subject to wear compared to complex ball mill circuits, and with wear parts like rollers and table liners designed for easy replacement, maintenance downtime is minimized.
A Practical Application Scenario
Consider a calcium carbonate producer aiming to supply GCC (Ground Calcium Carbonate) to the paper industry. Their requirement is for a consistent 10-micron top-cut product with high brightness. A tailored Complete Roller Mill Plant would process 0-25mm limestone feed.
The primary crusher reduces larger quarry stone. The pre-homogenized limestone is then conveyed to the roller mill feed silo. Inside the vertical roller mill, the material is ground, and the rising air stream carries it to the integrated dynamic classifier. Oversize particles are rejected back to the grinding table, while the in-spec fine calcium carbonate powder is conveyed to the baghouse for collection. The final product exhibits excellent whiteness and consistent PSD, directly meeting the paper coating manufacturer's stringent specifications, all while achieving energy savings of 20-30% over their old milling system.
Complementary Equipment Recommendations
To maximize the performance and longevity of your Roller Mill Plant, we recommend considering:
-
Precision Weigh Feeders: For consistent and accurate feeding of limestone to the mill, which is crucial for stable operation and product uniformity.
-
Metal Detectors & Tramp Iron Removal: Installed before the mill to protect the grinding rollers and table from damage caused by stray metal.
-
Advanced Process Control (APC) Software: Upgrading the basic PLC controls with APC can optimize mill pressure, classifier speed, and feed rate in real-time, pushing energy efficiency to its theoretical maximum.
Frequently Asked Questions (FAQ)
Q1: What is the typical fineness range achievable with a Roller Mill Plant for calcium carbonate?
A1: Modern vertical roller mills with high-efficiency classifiers are highly versatile. They can reliably produce calcium carbonate powders from about 100 microns (100 mesh) down to 5-10 microns (1250-2500 mesh) and even finer for specialized models. The target fineness is precisely controlled by adjusting the classifier speed.
Q2: How does the wear protection for grinding components work?
A2: The key wear parts—grinding rollers and the grinding table liner—are protected by durable wear plates made from high-chromium cast iron or similar abrasion-resistant materials. These are designed as modular segments or tires that can be replaced individually, significantly reducing maintenance cost and downtime compared to replacing entire components.
Q3: Can one plant produce multiple grades of calcium carbonate?
A3: Yes, this is a major strength. By adjusting the operational parameters, primarily the speed of the integrated dynamic classifier, the same roller mill plant can switch between producing different fineness grades of calcium carbonate. Quick product changeovers are possible with proper process control, making the plant flexible to market demands.
