1.8x3m Ball Mill for Gold Mining in East Africa | Reliable Supplier

Overview of the Topic

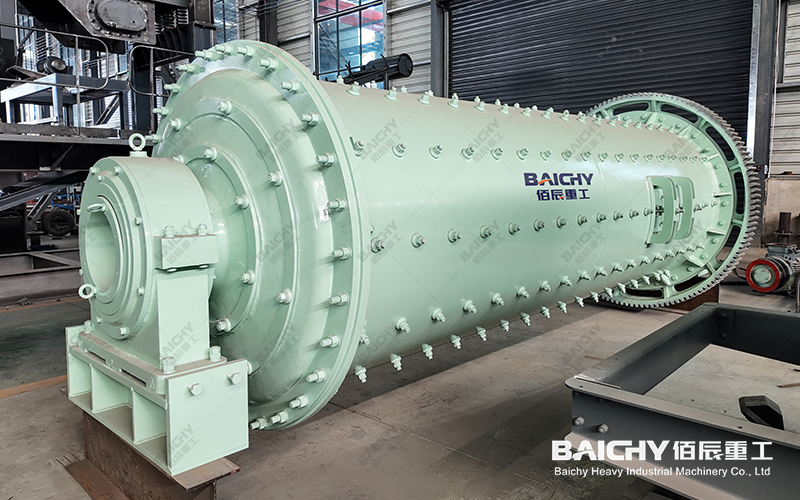

The specification "1.8x3m Ball Mill" represents a critical piece of industrial equipment. In the context of a gold project in East Africa, this size of ball mill is ideally suited for small to medium-scale mining operations, which are prevalent in the region. It strikes a balance between processing capacity, energy consumption, and initial capital outlay, making it a prudent choice for miners looking to optimize their gold recovery processes efficiently.

In-Depth Analysis

The East African gold mining sector is characterized by diverse deposit types, from hard rock veins to alluvial concentrations. A 1.8x3m ball mill is primarily designed for the grinding stage, reducing crushed ore to a fine slurry to liberate gold particles for subsequent extraction methods like cyanidation or gravity concentration. Its dimensions indicate a cylinder 1.8 meters in diameter and 3 meters in length, which typically offers a processing capacity suitable for operations targeting a specific daily throughput. Selecting the right grinding mill is paramount, as it directly impacts grind size, recovery rates, and overall operational costs.

Key Advantages of the 1.8x3m Model

Optimized for Scale: Its capacity aligns perfectly with the output of many East African projects, avoiding the inefficiency of an oversized mill or the bottleneck of an undersized one.
Robust Construction: Built to withstand demanding site conditions and continuous operation, ensuring longevity and reducing downtime.
Energy Efficiency: Modern designs and drive systems help manage power consumption, a significant operational cost factor.
Operational Flexibility: Can be configured for different liner types and grinding media to handle varying ore hardness and achieve the required product fineness.
Relatively Easy Maintenance: The size allows for manageable component access and servicing, which is crucial in remote locations.

Project Application Case

Consider a gold project in Tanzania processing quartz-gold ore. The operation utilizes a primary jaw crusher and a cone crusher to reduce run-of-mine ore to below 20mm. This feed is then conveyed to the 1.8x3m ball mill for wet grinding. The mill, operating in closed circuit with a cyclone classifier, grinds the material to 75 microns (200 mesh). The resulting slurry flows to leaching tanks, where a high gold recovery rate of over 92% is consistently achieved. The mill's reliability has been instrumental in the project meeting its steady-state production targets.

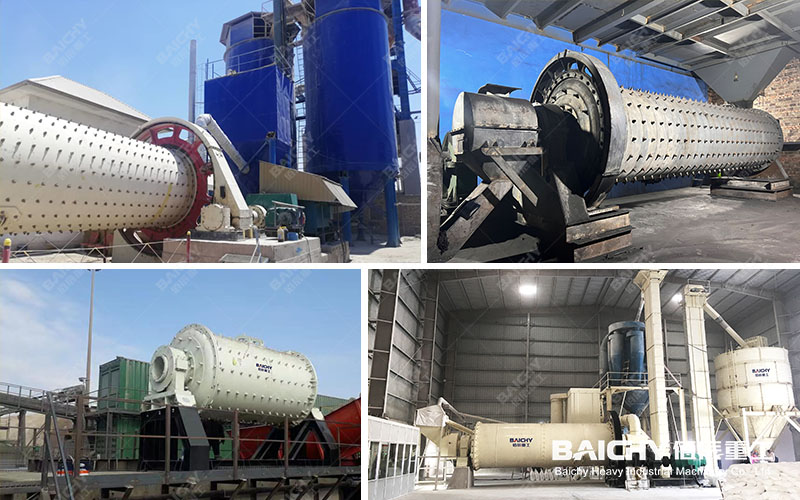

Ball Mill on the Site

Recommended Supporting Equipment

To maximize the efficiency of your grinding circuit, we recommend considering these complementary products from our manufacturing line:

Jaw Crusher (PE Series): For primary crushing of raw ore to a manageable size for secondary crushing.
Cone Crusher / Hammer Crusher: For secondary crushing to produce the optimal feed size (typically 0-20mm) for the ball mill.
Spiral Classifier or Hydrocyclone: Essential for forming a closed grinding circuit, ensuring oversized particles are returned for regrinding.
Belt Conveyors: For efficient material handling between crushing and grinding stages.
Gold Centrifugal Concentrator or Leaching Tanks: For gold recovery from the ground slurry.

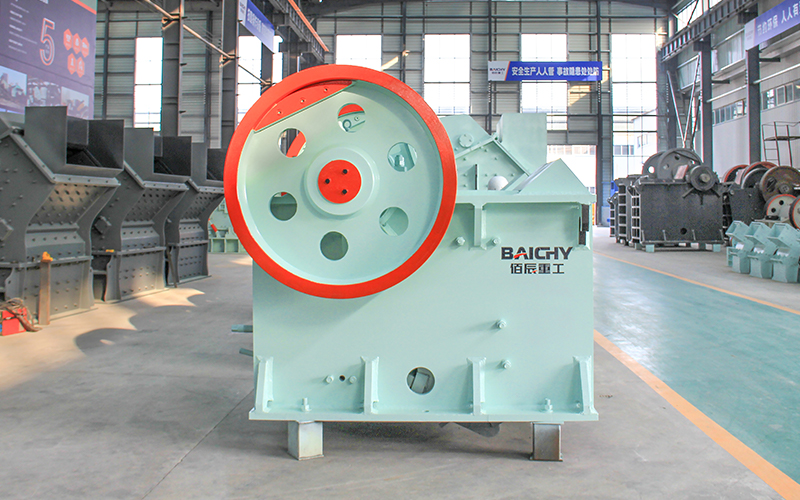

Jaw Crusher

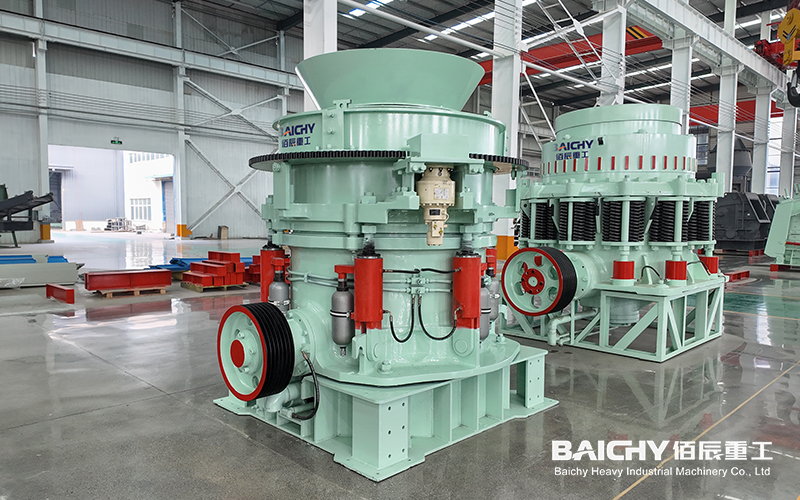

Hydraulic Cone Crusher

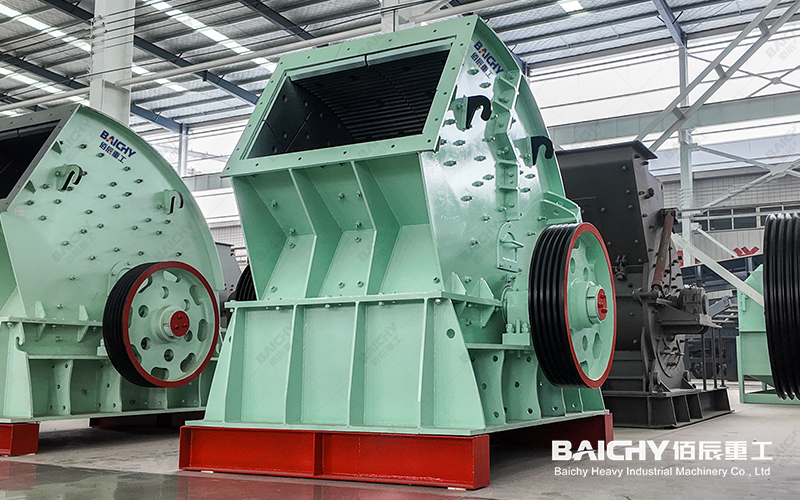

Heavy Hammer Crusher

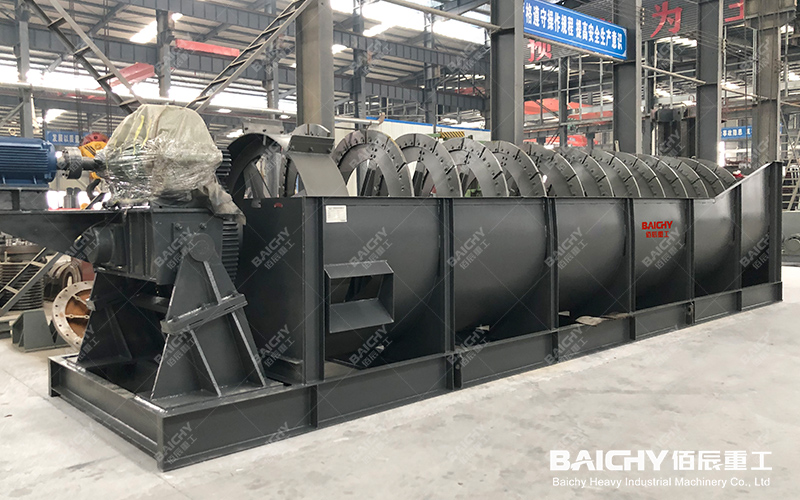

Spiral Classifier

Frequently Asked Questions (FAQ)

Q1: What is the approximate processing capacity of a 1.8x3m ball mill for gold ore?

A1: The capacity varies with ore hardness, feed size, and required fineness. Typically, for medium-hard gold ore ground to 75-100 microns, such a mill can process between 2 to 5 tons per hour. A detailed test with your ore sample is recommended for precise sizing.

Q2: What type of drive system is best for this mill in remote East African sites?

A2: For reliability, a gearbox and pinion drive powered by an electric motor is standard and robust. In areas with unstable grid power, the system can be coupled with a diesel generator set. We also offer options with slip-ring motors and soft starters for smoother operation.

Q3: Can you provide a complete plant design around this ball mill?

A3: Yes. As a full-scale manufacturer, we offer Engineering, Procurement, and Construction (EPC) services. We can design and supply a complete modular processing plant, from crushing and screening to grinding and gold extraction, tailored to your specific project parameters and ore characteristics.
