Plant Overview & Configuration Analysis
Typical Process Flow for Fine Output Control
-
Primary Crushing (Jaw Crusher): Large raw rock (up to 600-800mm) is reduced to a smaller size (approx. 150-250mm).
-
Secondary Crushing (Cone Crusher): The material from the primary stage is further crushed to produce smaller aggregates (e.g., 20-40mm, 10-20mm).
-
Tertiary/Fine Crushing (Impact Crusher or VSI Crusher): This is the key stage for achieving the 0.5mm and finer sizes. A Vertical Shaft Impactor (VSI) is highly recommended for shaping aggregates and producing high-quality, cubical sand.
-
Screening & Grading (Vibrating Screens): Multiple decks of screens precisely separate the crushed material into the required size fractions: coarse aggregate, fine aggregate (sand), and stone powder (0-5mm, including the 0.5mm+ fraction).

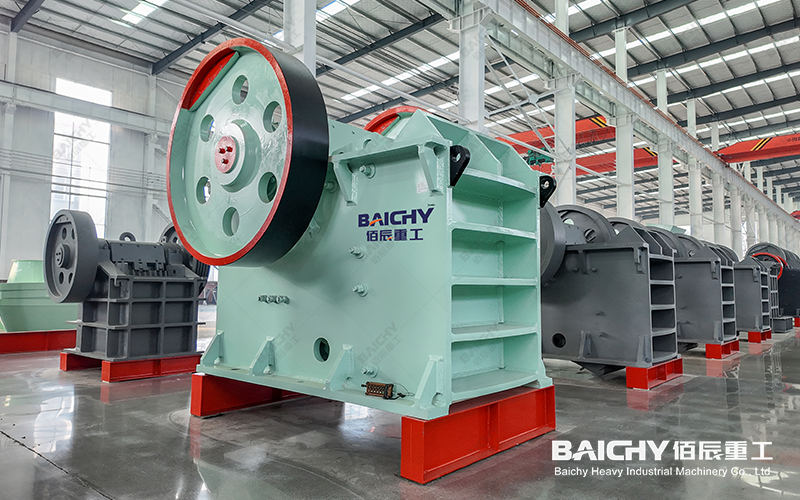

Jaw Crusher

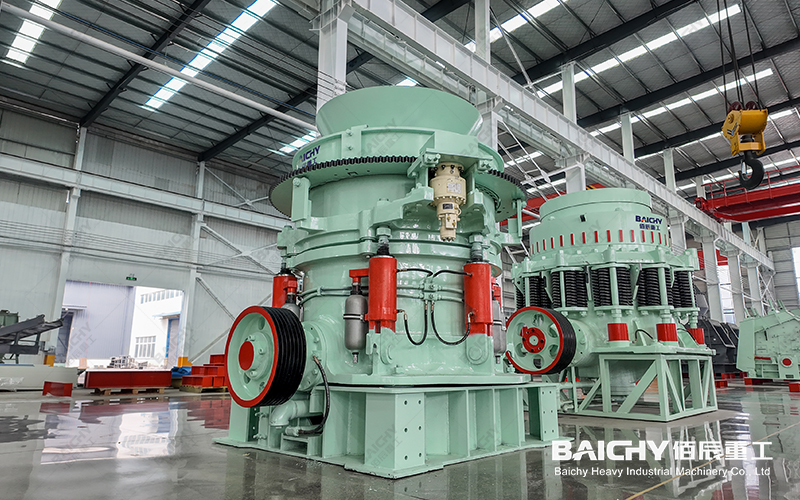

Hydraulic Cone Crusher

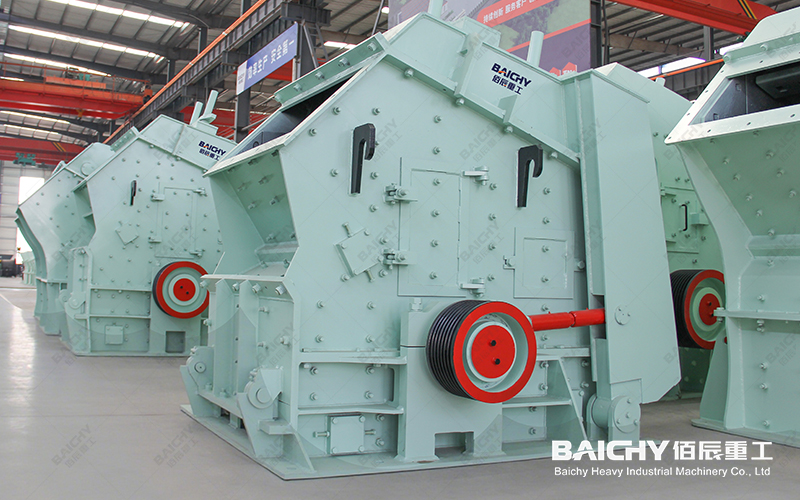

Impact Crusher

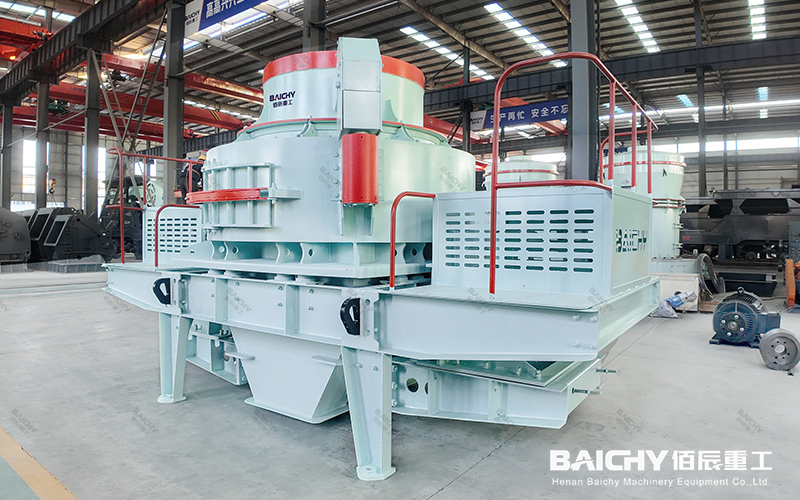

VSI Sand Making Machine

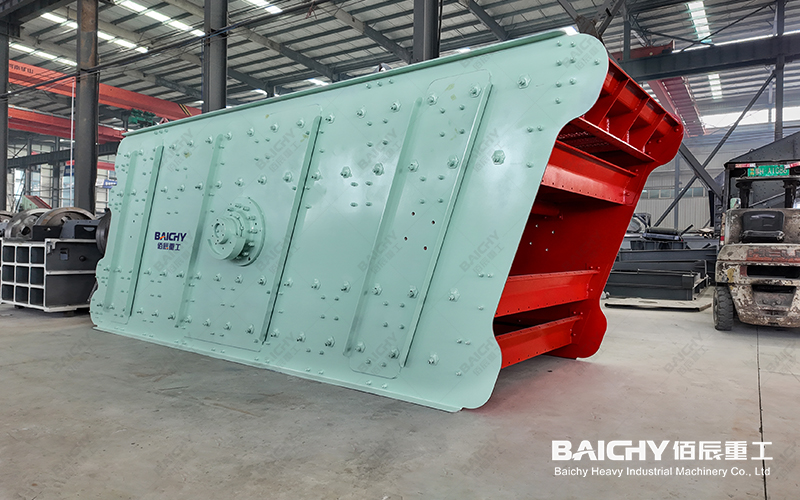

Vibrating Screen
Key Advantages of This Crushing Plant Design
-
High Production Efficiency: With a 150-200 TPH capacity, it ensures a high return on investment by meeting the demands of medium to large construction projects and asphalt plants.
-
Excellent Product Shape & Gradation: The inclusion of a tertiary stage, especially a VSI crusher, produces well-shaped, cubical aggregates and high-quality sand that meets international standards for concrete and asphalt mixes.
-
Output Versatility: The ability to control screens and crusher settings allows operators to shift production ratios between different aggregate sizes and sand, adapting to market demand. Producing from 0.5mm onwards enables a complete product range.
-
Automation & Reliability: Modern plants in this range feature advanced control systems for monitoring performance, ensuring consistent output size, and maximizing uptime.
Ideal Applications & Project Fit
-
Commercial Aggregate Quarries supplying to ready-mix concrete plants and large infrastructure projects.
-
Road and Highway Construction requiring a full spectrum of materials from base layers to asphalt sand.
-
Production of Manufactured Sand (M-Sand) as a sustainable alternative to river sand.
-
Mining and Industrial Projects needing consistent, sized material.
Recommended Equipment Configuration
-
Primary Crusher: Jaw Crusher (PE750×1060 or equivalent)
-
Secondary Crusher: Multi-cylinder Hydraulic Cone Crusher (HPC160 or equivalent)
-
Tertiary/Fine Crusher: Vertical Shaft Impact Crusher (VSI1140 or equivalent) for optimal sand making and shaping.
-
Vibrating Screens: 3-4 deck heavy-duty screens for accurate sizing.
-
Belt Conveyors & Centralized Electric Control System: For seamless material flow and operation.
Frequently Asked Questions (FAQ)
