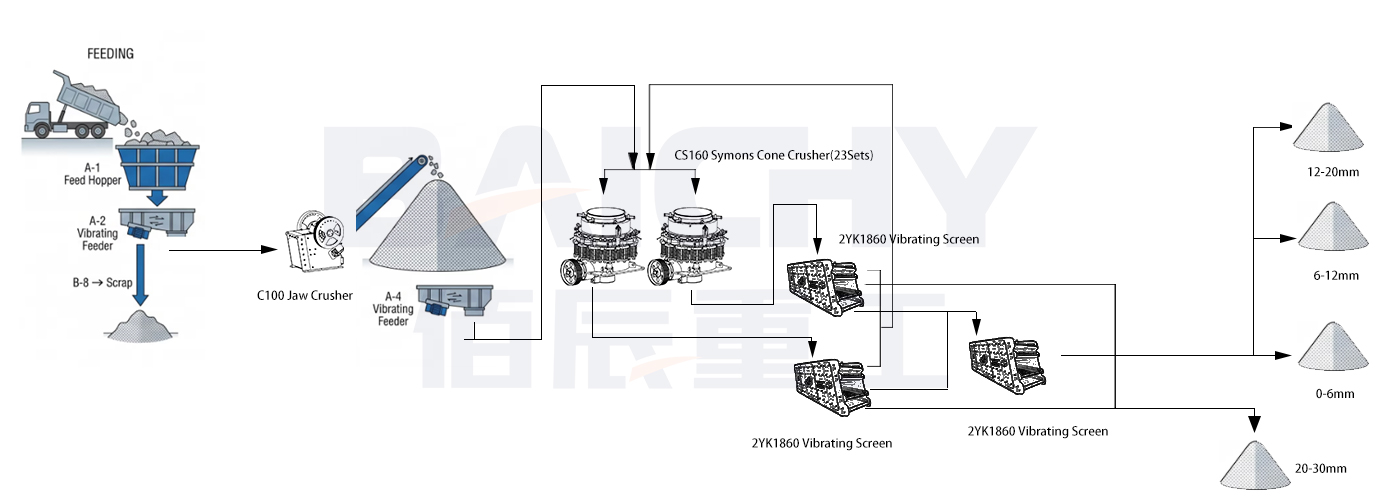

200-250 TPH Hard Rock Crushing Plant is a stationary, 3-stage configuration engineered for medium-scale aggregate operations processing granite, basalt, and river stone (Mohs 6–7).
|
Equipment configuration |
Hopper | ZSW1142 Vibrating Feeder | C100 Jaw Crusher | CS160 Symons Cone Crusher（2Sets）| 2YK1860 Vibrating Screen(3Sets) | Belt conveyor. |
|
Closed-circuit |
3-stage closed circuit, 100% Controllable Finished Size |
|
Raw materials |
Applicable to 120+ ore types including limestone, granite, basalt, and river stone. |
|
Feed Size |
≦ 600mm |
|
Capacity |
250-300t/h |
|
Finished product |
0~30 mm |
|
Design requirements |
1. Required production capacity (t/h) 2. Raw material type, hardness, and abrasiveness 3. Maximum feed size (mm) 4. Target finished product size(s) |

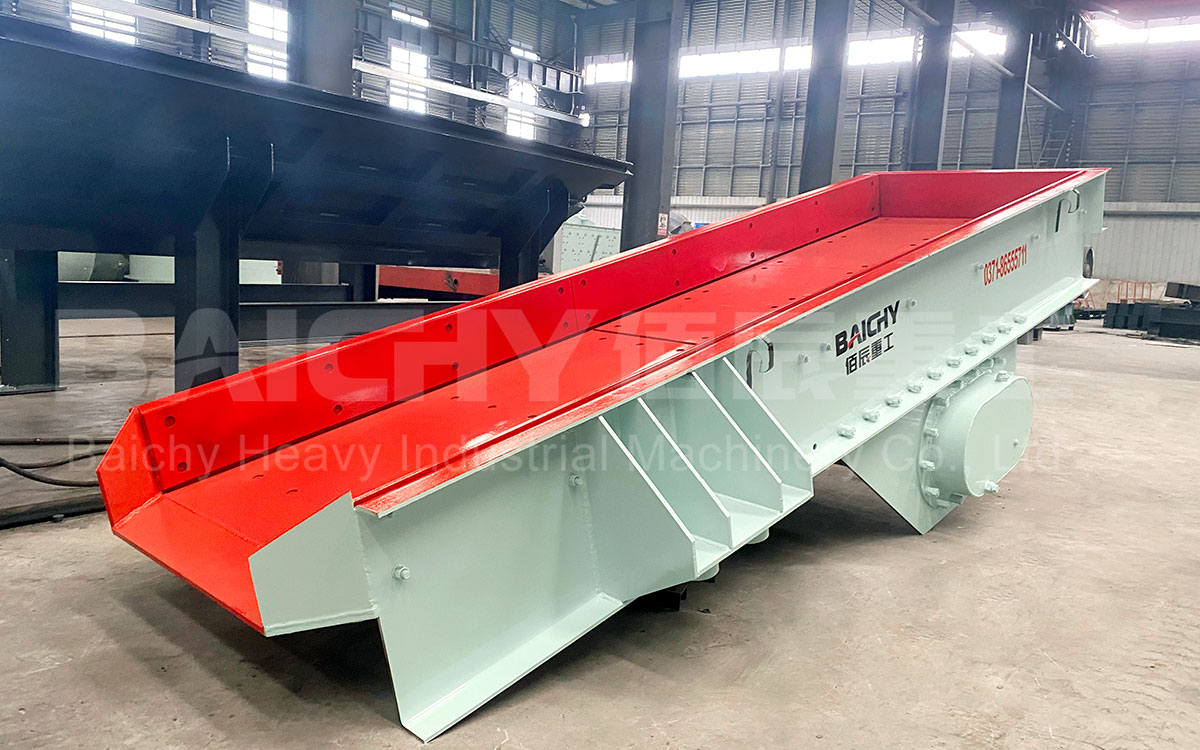

Size of Feed Spout: 1100x4200mm
Max. Feed: 1000mm
Processing Capacity: 200-430t/h
Feed opening size: 760x1060mm
Max. Feed: 600 mm
Processing capacity: 200-400 t/h
Feed Size: ≤205 mm
Discharge Size: 13-50mm
Capacity: 109-349t/h
Screen Mesh Size: 1800x6000mm
Max. Feed: 400 mm
Processing Capacity: 65-586t/h
If you are processing granite, basalt, or river stone at a target output of 200-250 t/h, this configuration is the most cost-effective hard rock solution Baichy has deployed across 20+ sites globally:
C100 jaw (primary) + 2 × CS160 Symons cone (secondary) + 3 × 2YK1860 screen (classification)
1. Primary Crushing - C100 Jaw Crusher
760×1060mm feed opening, 200–400 t/h capacity. Deep-chamber design absorbs ±20% feed-size variation without choking. CSS range 70–200 mm.
2. Secondary Crushing - 2× CS160 Symons Cone Crushers (Selection for hard rock)
109–349 t/h each. Dual-unit redundancy keeps 60–70% capacity online during single-unit maintenance. Laminating crushing produces cubic aggregates.
3. Classification — 3× 2YK1860 Vibrating Screens
32.4 m² total screening area. Simultaneously classifies 0–5mm, 5–15mm, 15–25mm, 25–30mm fractions without a bottleneck.
No two quarries are the same. That's why every Baichy configuration starts with your raw material and target capacity — never a catalog template. The installations below are just a sample. Your project could be the next one on this list.
300t/h River Stone Crushing & Sand Making Plant in Tajikistan
Raw Material：River Stone (Mohs 7-8, high silica)
Processing Capacity：300 t/h
Plant Type：Stationary, three-stage closed-circuit
Finished Products：0-5mm manufactured sand, 5-10mm, 10-20mm, 20-31.5mm aggregates
Location：Tajikistan
Climate Adaptation：Engineered for -25°C winter operation
PYB900 Spring Cone Crusher 30-40 TPH Hard Stone Crushing Plant in Philippines
Location: Philippines
Raw Material: Andesite / Basalt (Mohs 6–7)
Feed Size: ≤ 115 mm (post-blasting)
Required Output: 30–40 TPH
Final Product: 0–5 mm (sand), 5–15 mm, 15–25 mm (concrete aggregate)
End Use: Ready-mix concrete, road base, hollow block production
Installation: Fixed stationary line, commissioned Q3 2025
Tell us your raw material and target capacity. Our engineers will design a custom line and send you a quote within 24 hours.
Get Your Custom Layout & Quote NowWe don't just sell machines. We deliver production lines that work — on time, on spec, on budget.
Certified manufacturing. 35,000 m² facility. 200+ skilled workers. All key components made in-house.
Senior engineers analyze your rock type, feed gradation, moisture content, and site elevation before proposing a single machine.
Foundation drawings, steel structure, electrical controls, dust suppression, installation supervision, and operator training — all included.
No dealer, no trader, no markup. You pay the ex-factory price. Competitive freight to your seaport.
Full warranty on main equipment. Wearing parts always in stock. Shipped within 48 hours via DHL/FedEx.
Lines operating in Indonesia, Philippines, Saudi Arabia, Nigeria, Kenya, Peru, Kazakhstan, Russia, and more.
