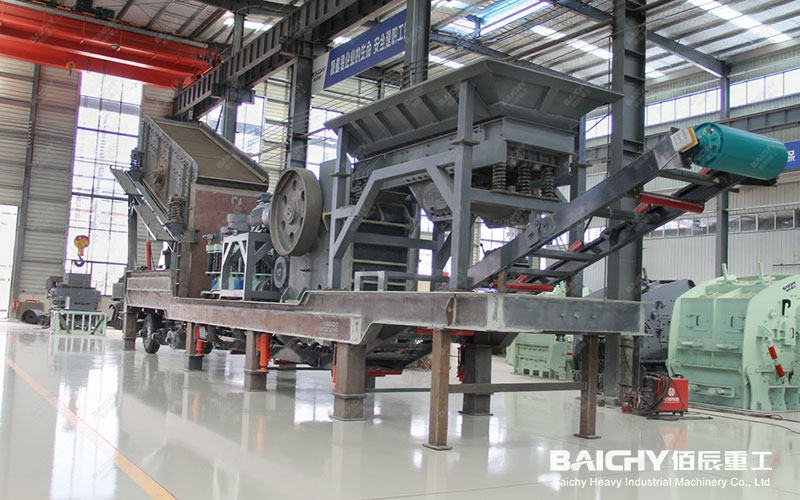

YDPZ57-75 Four-in-One Mobile Crushing Station
For remote mining sites or urban construction waste disposal projects in Argentina, the YDPZ57-75 4-in-1 Mobile Crushing Station offers a highly cost-effective solution for operations requiring a capacity of 100–150 TPH. By integrating a "PE500×750 Jaw Crusher + CS75 Cone Crusher" onto a single mobile chassis, this unit effectively reduces logistics and transportation costs by 30% and cuts on-site installation time by 50%.
I. Technical Parameters: Hard Metrics Supporting High Returns
| Key Components | Model/Performance Indicators | Core Value |
| Primary Crusher (Stage 1) | PE500×750 Jaw Crusher | Large feed opening; specifically designed to process large raw stones or concrete blocks from construction waste. |
| Secondary Crusher (Stage 2) | CS75 Cone Crusher | High-efficiency crushing and shaping of hard rock materials (e.g., granite, basalt). |
| Screening System | 4-Deck Vibrating Screen | Produces four different finished product sizes simultaneously in a single pass, eliminating the need for a separate, external screening unit. |
| Designed Capacity | 100 – 150 TPH | Meets the continuous operation requirements of medium-scale engineering projects and private quarries. |
| Chassis Configuration | Heavy-Duty Steel-Structure Wheeled Chassis | Adapted to handle the complex road conditions found in Argentina's Andes Mountains and arid regions. |
II. Why is the YDPZ57-75 the "Universal Solution" for the Argentine Market?
Argentina is rich in mineral resources, yet its infrastructure distribution is highly uneven. Consequently, traditional stationary production lines face three major challenges: lengthy approval processes, high dismantling and assembly costs, and a lack of flexibility when relocating sites.
1. Adaptability to Extreme Road Conditions: The YDPZ57-75 features a modular design, with overall dimensions (height and width) that comply with international transport standards. Whether navigating the winding mountain roads leading to Mendoza or traversing the shale oil production zones of Neuquén, the unit enables rapid and seamless site relocation.

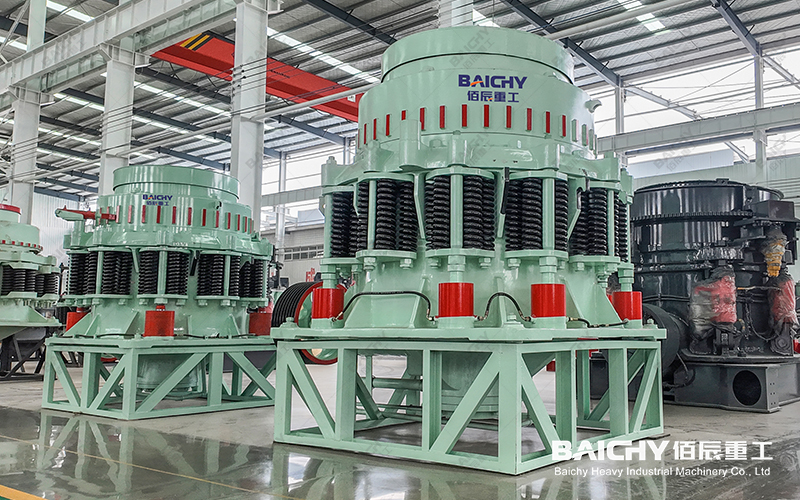

CS75 Cone Crusher
2. Premium Configuration: Jaw Crusher + Cone Crusher: Unlike the standard combination of a jaw crusher paired with an impact crusher, the CS75 Cone Crusher is specifically engineered to excel at processing materials characterized by high hardness and strong abrasiveness. This means that when processing waste construction concrete containing rebar or high-hardness ores, the service life of wear parts is extended by over 15%, resulting in an annual saving of approximately 120 hours in downtime for maintenance.
3. Enclosed Operation & Environmentally Friendly: The integrated conveyor belt system minimizes dust generation caused by secondary material handling, ensuring compliance with increasingly stringent environmental regulations in urban areas such as Buenos Aires.
III. Customer Benefits
• "Four-in-One" Integration → Eliminates Investment in 3 Auxiliary Machines: There is no need to separately purchase a feeder, a screening machine, or multiple belt conveyors, saving approximately $150,000 to $200,000 in upfront investment.
• CS75 High-Efficiency Cone Crusher → Superior Product Shape: The produced sand and gravel aggregates are predominantly cubical in shape with low needle-like and flaky content; they can be directly supplied for the production of high-strength concrete (H30/H40), thereby enhancing product market value.
• Mobile Operation → Bypasses Cumbersome Infrastructure Approvals: The equipment features its own integrated power and control systems, allowing for immediate production upon arrival at the site without the need for lengthy civil engineering foundation construction.
IV. Expert Selection Advice
Baichy Engineers' Tip: If your project in Argentina primarily involves crushing high-hardness granite or requires the production of high-quality aggregates for road and bridge construction, the YDPZ57-75 combination of a jaw crusher and a cone crusher is our sole recommendation. Compared to impact crusher models—while the initial investment may be slightly higher—this configuration can reduce operating costs (OPEX) by approximately 12% when processing high-hardness materials.

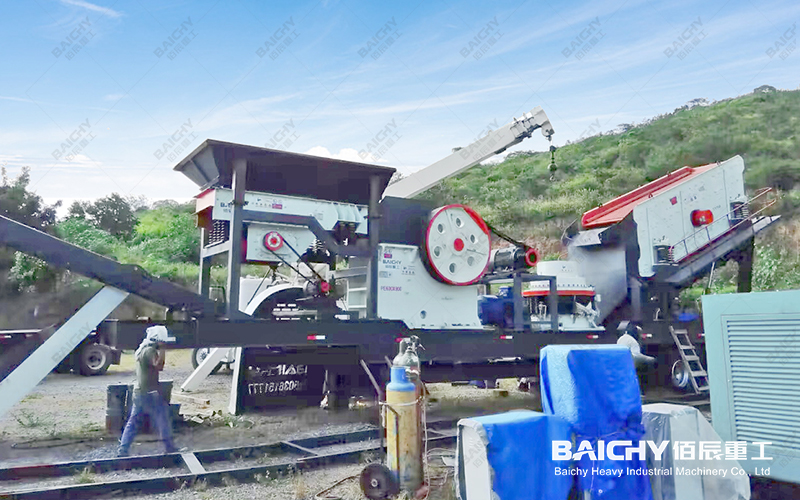

YDPZ57-75 Four-in-One Mobile Crushing Station Client Site
Frequently Asked Questions (FAQ)
Q1: How does the YDPZ57-75 address power supply issues in remote mining areas in Argentina?
A1: The equipment supports electric drive (either via an external power grid or a diesel generator set). For regions without grid coverage, we can provide a high-power Cummins diesel generator set to enable independent operation.
Q2: When the CS75 cone crusher processes construction waste, will the rebar contained within it cause the machine to jam?
A2: No. This model is equipped with a hydraulic chamber-clearing system and an iron-overload protection system. When encountering uncrushable objects—such as steel rebar—the hydraulic cylinder automatically releases pressure to protect the main unit from damage.
Q3: Under what material conditions was the 100–150 t/h production capacity measured?
A3: This figure is calculated based on an input feed size of ≤425 mm and medium-hardness limestone. If crushing extremely hard granite, the production capacity will vary; we recommend consulting with an engineer to perform a site-specific operational simulation.
Q4: Is this machine street-legal for road travel within Argentina?
A4: The equipment's axle load and external dimensions are designed in accordance with international standards; however, traveling on specific road sections in Argentina requires strict adherence to local traffic regulations. For site-to-site relocation, transport via a flatbed trailer is typically utilized.
Q5: Does Baichy offer after-sales support in the South American market?
A5: We provide 24/7 remote video technical support. Furthermore, in accordance with contractual terms, we offer recommendations for stocking critical wear parts at overseas warehouses to ensure that our clients' production lines in Argentina do not suffer downtime due to part shortages.
