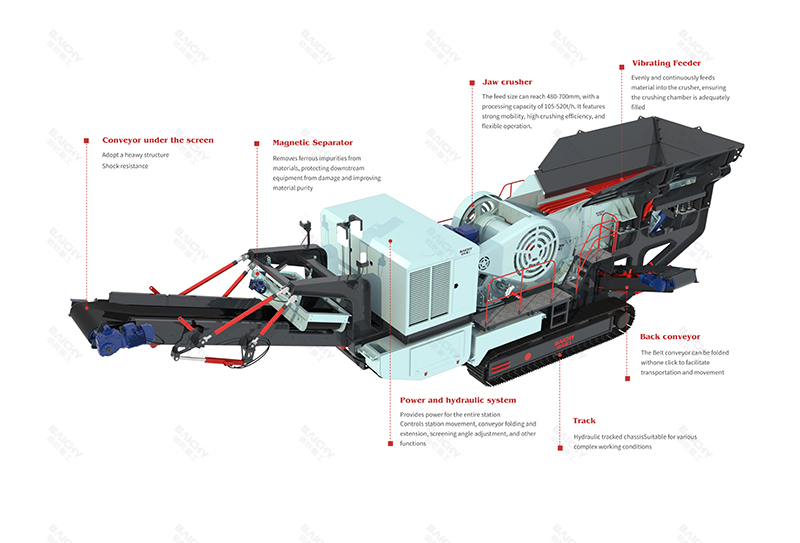

Tracked Jaw Crusher
The mining industry faces the dual challenges of higher production requirements and sustainable development. As a core piece of equipment in mining crushing, the performance of tracked jaw crushers directly impacts project profitability and environmental indicators. How to effectively reduce energy consumption while improving crushing efficiency has become a shared focus for equipment manufacturers and operators. This article will delve into this issue and provide you with practical solutions.
I. Core Contradiction Analysis: The Art of Balancing Efficiency and Energy Consumption
Improving crushing efficiency and reducing energy consumption, seemingly two separate goals, are actually complementary. High energy consumption often stems from inefficient crushing processes, improper equipment configuration, or outdated process design. Therefore, the essence of optimizing energy efficiency is to convert every unit of energy consumed by the equipment into more effective crushing work, reducing wasted effort and energy expenditure.
1.1 Key Factors Affecting Efficiency and Energy Consumption
• Material Characteristics: Hardness, moisture content, soil content, feed particle size.
• Equipment Condition: Jaw plate wear, bearing lubrication, transmission system efficiency.
• Process Parameters: Discharge port setting, feeding method and uniformity, equipment operating speed.
• Technological Applications: Whether variable frequency technology, intelligent control systems, etc., are adopted.
II. Five Core Strategies for Improving Efficiency and Reducing Energy Consumption
2.1 Optimizing Process Design and Feed Control
Uniform and continuous feeding is the cornerstone of efficient crushing. "Overcrowded" or "starved" feeding should be avoided. Pre-screening equipment should be used to remove fine materials and mud in advance, ensuring that the main crushing chamber always processes materials within the design range. This can significantly improve the processing capacity of the tracked jaw crusher and reduce unit energy consumption.
2.2 Practicing Lean Maintenance and Intelligent Monitoring
Regular and precise equipment maintenance is the guarantee of stable and efficient operation. Special attention should be paid to the wear of the jaw plates, adjusting or replacing them in a timely manner to maintain the ideal cavity shape. An online condition monitoring system should be adopted to monitor key parameters such as bearing temperature and vibration values in real time, enabling predictive maintenance and avoiding efficiency losses and energy waste caused by unplanned downtime.
2.3 Application of Advanced Technologies and Energy-Saving Components
• Variable Frequency Drive Technology: Automatically adjusts motor speed according to actual load, saving energy under light loads and achieving soft start to protect the motor.
• High-Efficiency Motors: Employs motors with an energy efficiency rating of IE3 or higher, reducing power consumption at the source.
• Automatic Lubrication System: Ensures precise and quantitative lubrication at all lubrication points, reducing friction loss and extending bearing life.
2.4 Matching a Scientific Discharge Opening Adjustment Strategy
The size of the discharge opening directly determines the product particle size and throughput. It should be dynamically optimized according to production needs. While meeting finished product specifications, the discharge opening should be maximized to increase throughput at one time, reduce cyclic load, and thus improve overall system efficiency.
2.5 Selection of High-Performance Wear-Resistant Components
Using new composite materials or optimized tooth profiles for jaw plates not only extends service life and reduces replacement downtime but also maintains the ideal crushing chamber shape for a longer period, ensuring stable crushing force and product particle shape. This is the material basis for achieving long-term, efficient, and low-consumption operation.
III. Successful Practice: A Case Study of a Granite Quarry Upgrade
We upgraded the old jaw crusher production line at a large granite quarry in East China, focusing on energy conservation and efficiency.
| Upgrade Measures | Before Implementation | After Implementation |
| Addition of Pre-screening and Frequency Converter | High soil content in the material led to uneven feeding and constant motor operation at industrial frequency. | Soil removal ensured uniform feeding, resulting in an average motor power saving of 15%. |
| Replacement with a New Generation Curved Jaw Plate | Ordinary jaw plates had a lifespan of approximately 2 months and produced products with high needle-like and flaky content. | Lifespan extended to 4 months, resulting in superior particle shape and better gradation. |
| nstallation of an Intelligent Monitoring System | Relying on manual inspections resulted in delayed fault response. | Bearing temperature and vibration early warning systems reduced unplanned downtime by 60%. |
Overall Results: The quarterly report for the Year of the Horse showed an average hourly output increase of approximately 18%, a unit product power consumption decrease of over 20%, and a return on investment period of less than 10 months for the client.
IV. Our Recommended High-Efficiency and Energy-Saving Products
To meet different customer needs, we recommend the following two tracked mobile jaw crushers that emphasize energy efficiency:
• "Swift Wind" Series: Integrates an advanced frequency conversion control system and intelligent discharge port adjustment, particularly suitable for flexible production scenarios with multiple product and specification requirements, offering outstanding intelligent energy-saving performance.
• "Rock Solid" Series: Utilizes a heavy-duty design and ultra-wear-resistant components, primarily for crushing high-hardness materials, achieving low operating energy consumption throughout its entire lifecycle with ultra-long stable operating time and low maintenance costs.
V. Frequently Asked Questions (FAQ)
Q1: Is installing a frequency converter suitable for all models of tracked jaw crushers?
A1: Not all. It is more suitable for operating conditions with higher motor power and frequent load fluctuations. Our engineers can evaluate your equipment to determine the technical feasibility and economic viability of the modification.
Q2: To save energy, can the discharge port be always adjusted to its maximum?
A2: No. The discharge port needs to be adjusted according to the final required product particle size. An excessively large discharge port can lead to excessively large product particle sizes, increasing the load on downstream equipment and potentially causing a decrease in overall system efficiency and an increase in energy consumption. It is necessary to find the optimal balance between output and particle size.
Q3: Besides the equipment itself, what other external factors affect energy consumption?
A3: Site layout and power supply quality are key. Excessively long conveyor lines increase additional power loss; unstable voltage leads to decreased motor efficiency and increased heat generation. Optimizing the logistics layout and using voltage stabilization equipment are equally important.
