Toothed roll crusher
Coal is characterized by low hardness (Protodyakonov scale *f* = 1–3), high moisture content in certain varieties, and the frequent presence of tramp iron impurities; these three factors make the toothed roll crusher the mainstay equipment for coal crushing operations. It achieves size reduction through the shearing and splitting actions of two counter-rotating, toothed rolls. It maintains a fine-particle generation rate of under 10%, handles wet coal (with >15% moisture) without clogging, and can reduce run-of-mine coal (≤800 mm) to a product size of 50–150 mm in a single pass. For coal and coke operations where value is determined by particle size, this crusher preserves 5–15% more marketable product per ton—a key reason for its long-standing dominance in primary crushing stages at coal preparation and coking plants.
I. What is a Toothed Roll Crusher? Working Principle of Coal Crushing
A toothed roll crusher features two rolls with wear-resistant teeth on their surfaces, rotating towards each other at low speeds. As material enters the gap between the rolls, it is "gripped" by the teeth and fractured along natural bedding planes by the combined forces of shearing and wedging. This process is one of "splitting" rather than "grinding" or "crushing"; consequently, the generation of fines is significantly lower than that produced by the compressive action of jaw crushers or the high-speed impact of hammer crushers. The output particle size is determined by both the roll gap and the tooth profile, and can be adjusted using shims or a hydraulic mechanism.
The differences compared to hammer crushers are immediately apparent:
| Comparison Criteria | Toothed Roll Crusher | Hammer Crusher |
|---|---|---|
| Crushing Mechanism | Low-speed shearing & splitting | High-speed impact & grinding |
| Fines Generation Rate | <10% | 18%–25% |
| High-Moisture Adaptability | No clogging with >15% moisture | Grate bars prone to clogging/blinding |
| Specific Power Consumption | >30% lower than hammer crushers | Higher |
| Protection Against Tramp Iron | Automatic retraction (hydraulic/spring) | Hammer damage; requires shutdown to clear |
II. Typical Application Scenarios for Toothed Roll Crushers in Coal Processing
1. Primary Crushing of Run-of-Mine (ROM) Coal at Coal Preparation Plants
ROM coal requires crushing to 50–150mm before processing. The crusher's low fines generation significantly reduces coal slime volume and the load on downstream washing and slime-water treatment systems, directly lowering operating costs per ton of coal.
2. Coal Crushing for Power Plants
Boiler feed coal generally requires a size of ≤30mm. A toothed roll crusher combined with a secondary roll crusher consistently meets this requirement. Low-speed operation minimizes coal dust generation; when paired with enclosed conveying and dust collection systems, it meets environmental and explosion-proof standards.
3. Coke Sizing and Coking Coal Crushing at Coking Plants
Coke is priced by size, and coke fines represent a financial loss. Toothed roll shearing/sizing significantly reduces the proportion of <10mm fines, increasing the yield of usable coke. For coking coal, primary crushing is followed by a four-roll, two-stage series setup to produce 0–3mm material in a single pass, ensuring stable blending ratios and uniform particle size distribution.
4. Comprehensive Utilization of Coal Gangue
Applications such as brick making, power generation, and backfilling require preliminary crushing of coal gangue. This crusher model outperforms impact-type equipment in handling high-moisture or clay-rich gangue, allowing for uninterrupted production during the rainy season.
Typical Production Line Flow: ROM Coal Bin → ZSW Vibrating Feeder → Toothed Roll Crusher (primary crushing to <50mm) → 2PG Roll Crusher (secondary crushing to target size) → Vibrating Screen (sizing) → Finished Product Bin. III. Key Advantages of Toothed Roll Crushers for Coal Crushing
| Technical Features | Direct Benefits |
|---|---|
| Shearing and splitting action; fines generation <10% | Lump coal yield increases by 5–15%; for a 100 tph line, this saves hundreds of thousands of yuan annually in lost revenue from fines |
| Grate-free design; no clogging even with >15% moisture content | Operates normally in rainy weather or with high-moisture coal; downtime for cleaning reduced by 90% |
| Adjustable roll gap (via shims or hydraulics) | Rapid switching of output size (25–150 mm) without stopping the machine or changing equipment |
| Low-speed, high-torque operation; low electricity consumption per ton | Consumes ~30% less power than hammer crushers for the same capacity; less coal dust and higher safety |
| Hydraulic overload retraction + iron remover | Rolls automatically retract upon encountering roof bolts or wire (0.2s response time), preventing damage to the toothed rolls |
| Toothed rolls can be repaired via hardfacing 2–3 times | Repair cost is only 20–30% of a new roll; avoids scrapping the entire roll |
In addition to the benefits above, the machine features a simple structure with few wear parts, ensuring stable operation without requiring a highly skilled maintenance team. This places minimal pressure on staffing for new coal preparation plants or power plants—another factor contributing to a lower Total Cost of Ownership (TCO) compared to hammer crushers.

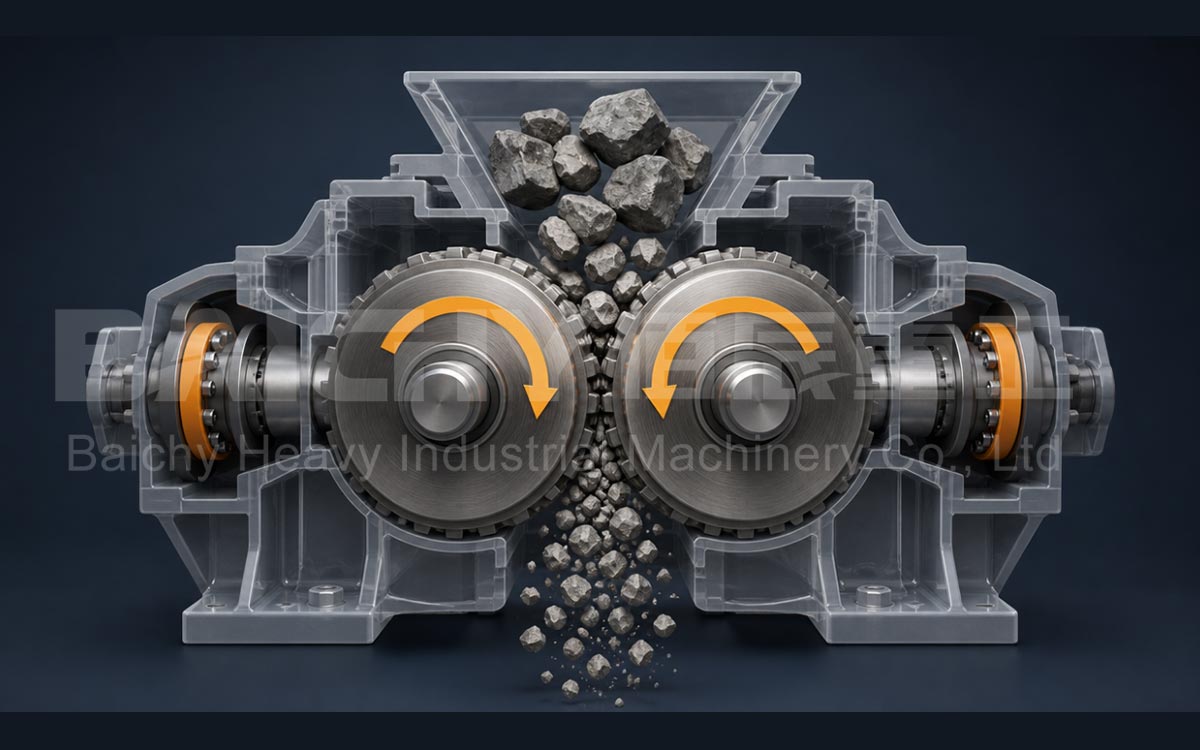

Working Principle of the Double-Roll Crusher
IV. Technical Parameters of 2PGC Series Toothed Roll Crusher (Coal Application)
| Model | Roll Diameter × Roll Length (mm) | Feed Size (mm) | Discharge Size (mm) | Capacity (t/h) | Motor Power (kW) |
|---|---|---|---|---|---|
| 2PGC450×500 | 450×500 | ≤100 | ≤25 | 20–55 | 2×11 |
| 2PGC600×750 | 600×750 | ≤300 | ≤50 | 60–100 | 2×22 |
| 2PGC900×900 | 900×900 | ≤800 | ≤150 | 100–160 | 2×45 |
| 2PGC1200×1500 | 1200×1500 | ≤1000 | ≤150 | 150–350 | 2×75 |
Note: Capacity is rated based on raw coal (bulk density approx. 0.8–1.0 t/m³); for lighter materials such as coke or coal gangue, a conversion factor of 0.45–0.55 applies. Actual capacity depends on specific material testing.
V. Application Cases of Toothed Roll Crushers in Coal Crushing
Case 1: Raw coal primary crushing retrofit at a coal preparation plant in Inner Mongolia. Previously, a hammer crusher was used for lump coal; hammer heads required monthly replacement, and the lump coal yield was under 70%. After switching to the 2PGC900×900 toothed roll crusher, raw coal (≤800 mm) is fed directly into the machine with a discharge size of ≤150 mm. Lump coal yield increased to over 85%, electricity consumption per ton dropped by approximately 32%, the repair cycle for roll teeth (via hardfacing) extended to 6 months, and annual maintenance costs decreased by nearly 40%.
Case 2: Coal crushing line at a power plant in East China (30–50 t/h). Operating conditions: raw coal lump size ≤200 mm, moisture content 10–12%, and presence of small amounts of tramp iron. Configuration: ZSW380×96 feeder + 2PGC600×750 toothed roll crusher (primary crushing) + 2PG750×500 smooth roll crusher (secondary crushing to ≤30mm) + iron remover. The toothed roll handles impacts from large lumps and the risk of tramp iron, while the smooth roll ensures stable particle size for furnace feed; this two-stage configuration further minimizes the fines generation rate compared to single-stage crushing, reducing coal slime volume by approximately 20%.
Case Study 3: High-moisture lignite crushing at a coal preparation plant in Southeast Asia (80–120 t/h). The material was prone to sticking and clogging, causing frequent shutdowns due to chamber plugging when using the original impact crusher during the rainy season. After switching to a 2PGC900×900 toothed roll crusher equipped with a scraper device, production continued uninterrupted during the rainy season; the output (≤50mm) fed directly into the washing stage, significantly reducing the load on coal slime water treatment.
Note: The above summarizes typical operating conditions; specific parameters vary based on coal type and site conditions. Please contact us for detailed technical proposals tailored to specific coal types.
VI. Recommended Equipment Related to Toothed Roll Crushers
For coal crushing applications involving toothed roll crushers, Baichy Heavy Industry recommends the following auxiliary equipment:
• 2PG Series Smooth Roll Crusher: The primary choice for fine coal crushing; adjustable output size (2–50mm); suitable for power plant boiler feed and coking coal blending.
• ZSW Series Vibrating Feeder: Ensures uniform, continuous feeding; prevents large lumps from damaging the hopper and guarantees full-load operation.
• YK Series Circular/Linear Vibrating Screens: For post-crushing classification to ensure product size compliance.
• Iron Removers and Bag-type Dust Collectors: Essential for removing tramp iron to prevent damage and controlling coal dust; standard equipment for safe production.
• Raymond Mill/Vertical Mill: If further grinding into pulverized coal is required (e.g., for boiler injection or pulverized coal preparation), these can be combined with the toothed roll crusher to form a complete "crushing + grinding" production line.
VII. Toothed Roll Crusher FAQ
Q1: When crushing coal, should I choose a toothed roll crusher or a hammer crusher?
Consider two factors: First, material value—coal and coke are priced based on particle size, so "fines" represent a financial loss. A toothed roll crusher is the better choice (producing <10% fines compared to 18%–25% for hammer crushers), as it preserves an additional 5%–15% of usable product per ton. Second, material characteristics—toothed roll crushers handle wet, sticky, or iron-bearing coal without clogging and feature hydraulic protection. While hammer crushers offer higher single-unit capacity for hard rock and high-volume operations, toothed roll crushers are the recommended choice for coal applications.
Q2: What is the maximum moisture content of coal that a toothed roll crusher can handle? Will it clog?
The machine features a grate-free design with clearance gaps between the teeth, allowing it to process run-of-mine coal and lignite with 15%–25% moisture content under standard conditions without clogging or gumming up. For coal with higher moisture or clay content, continuous operation can be maintained by configuring the machine with hydraulic roll gap adjustment and variable-frequency feeding, while lowering the rotation speed and increasing the roll gap—this is a key capability that distinguishes it from hammer crushers.
Q3: What happens when the toothed roll wears out? What is its service life?
The roll shells are made of high-manganese steel or alloy hard-facing materials; their service life in coal and coke applications typically ranges from 6 to 12 months, depending on the abrasiveness of the coal type. After wear occurs, the rolls can be repaired via on-site hard-facing 2–3 times, with each repair costing only 20%–30% of a new roll shell. Baichy Heavy Industry provides original roll shells and hard-facing process support to prevent the need to scrap the entire roll. To maintain consistent output particle size as the roll surface wears, the roll gap can be fine-tuned for compensation every 300–400 hours.
