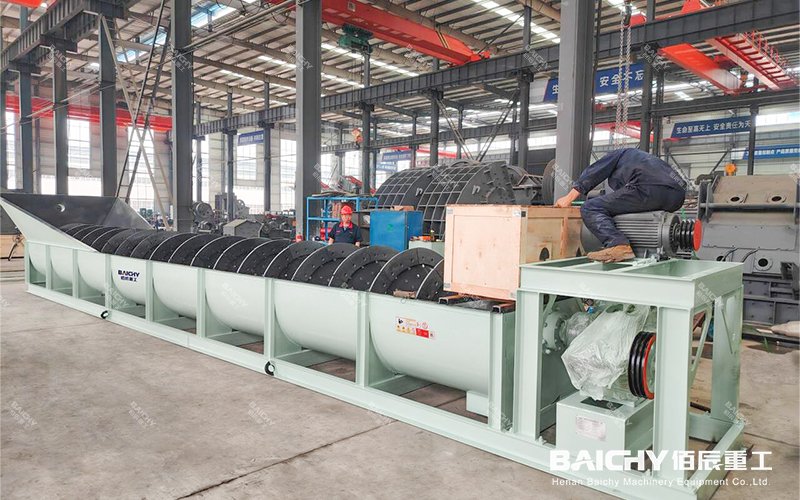

Spiral Sand Washer

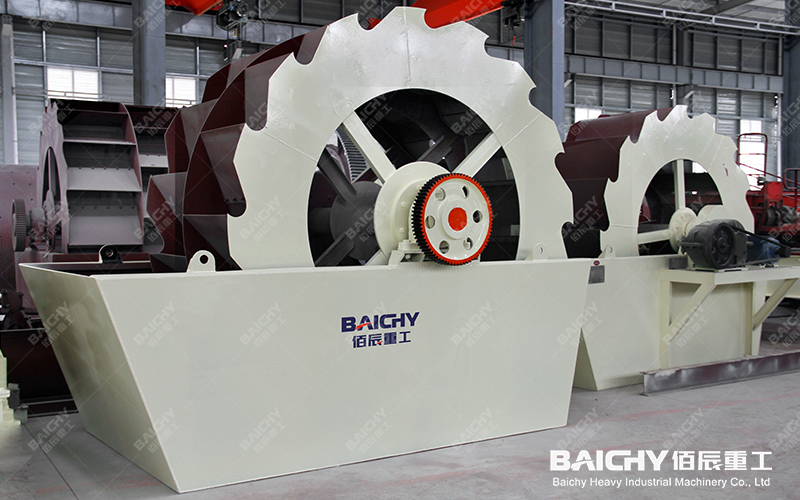

Bucket-wheel sand washing machine
Spiral sand washers rely on spiral blades within a trough to churn and push material, offering superior cleaning performance and the ability to handle large particles and high silt content; wheel-bucket sand washers utilize a rotating wheel to scoop up material, resulting in lower fine sand loss and reduced energy and investment costs. Neither type is inherently superior; the choice depends on the specific application scenario—selecting the wrong model can lead to issues ranging from the wasteful loss of fine sand to frequent production line blockages. This article breaks down the differences across four dimensions—working principle, specifications, application scenarios, and costs—and provides a decision-making guide for equipment selection at the end.
I. Working Principle: "Push-and-Wash" vs. "Scoop-and-Wash"

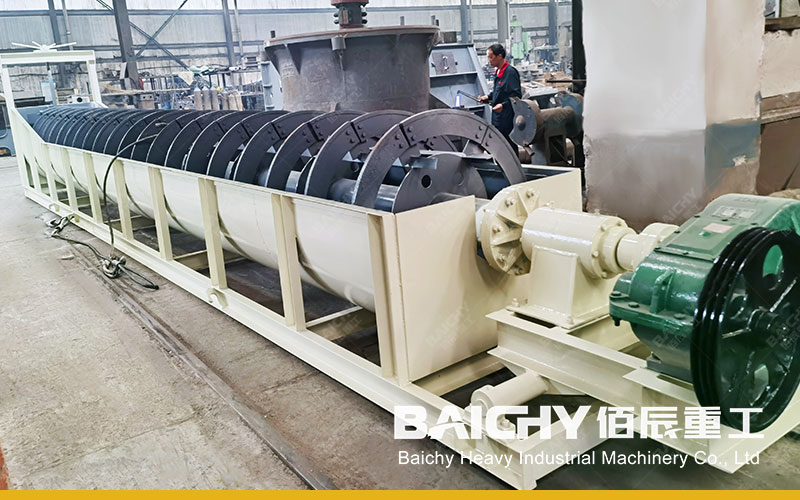

Spiral Sand Washer: Push-style water washing

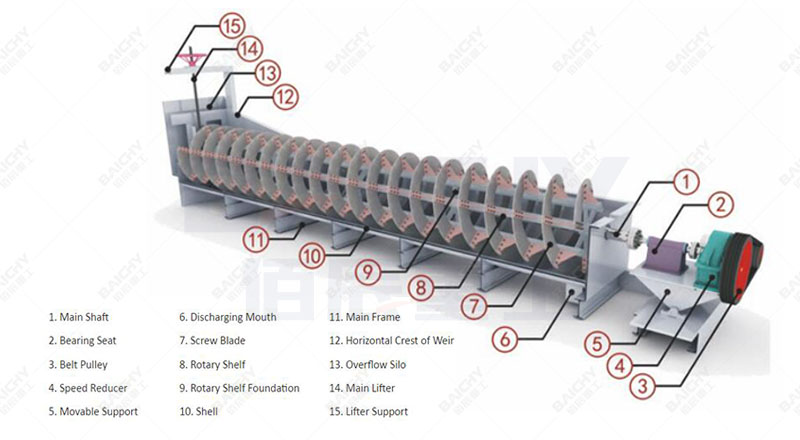

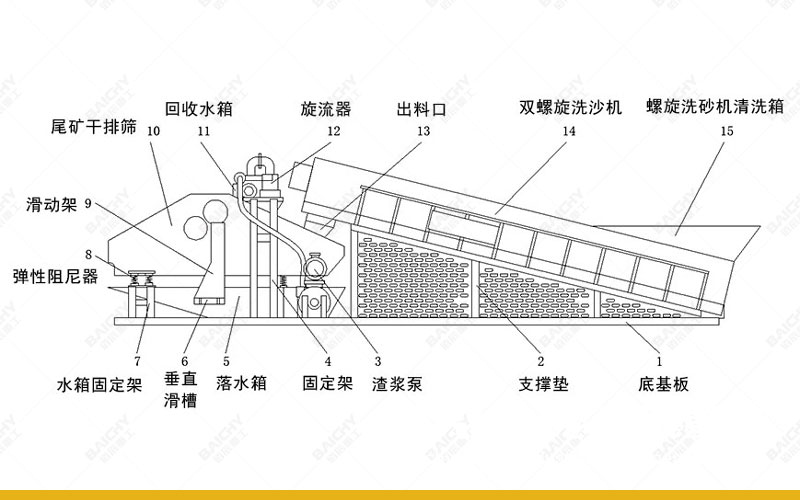

Structural diagram of the spiral sand washer
The core component of a spiral sand washer is the spiral blade assembly housed within an inclined trough. A motor drives the rotation of the spiral shaft; sand enters the bottom of the trough from the feed inlet and is pushed upward by the blades. During this process, continuous tumbling and friction occur between sand grains and between the grains and the blades. Combined with a counter-current water flow, this action strips away silt and impurities from the sand surfaces, discharging them with the overflow water. The extended retention time and long friction path within the trough are the fundamental reasons for its high cleaning efficiency.

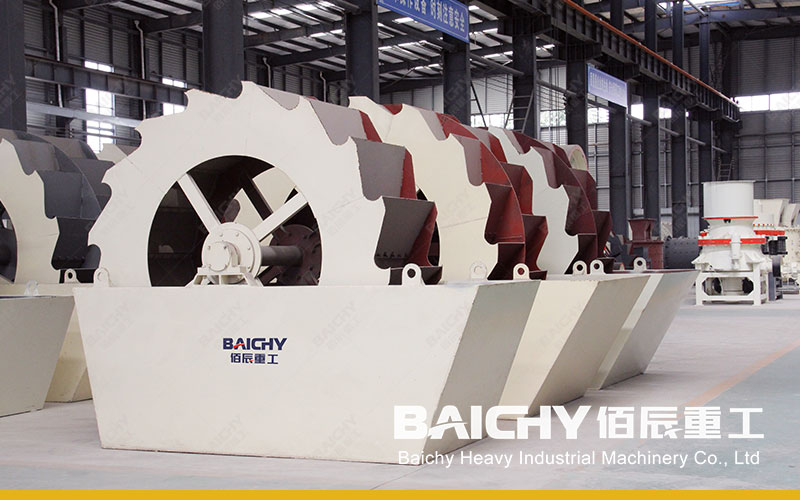

Wheel/Bucket Sand Washer: Scoop-style water washing

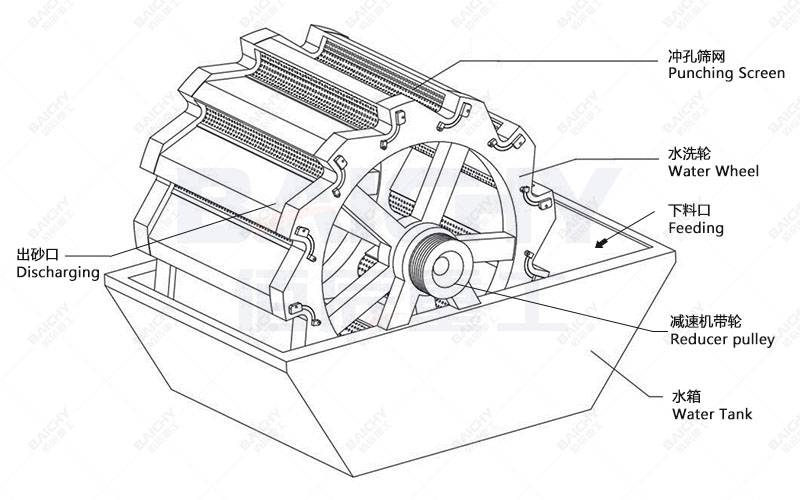

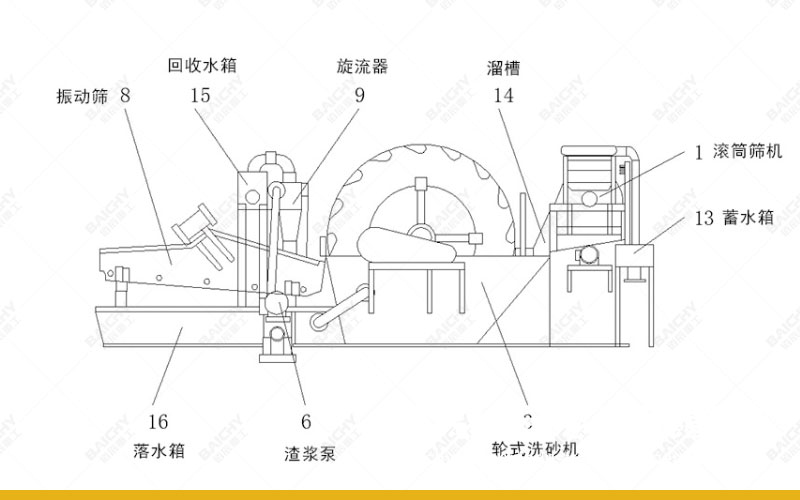

Structural diagram of a bucket-wheel sand washing machine
The core component of a wheel-bucket sand washer is the impeller (or bucket wheel) mounted on a drive shaft. The impeller rotates slowly, continuously scooping up sand settled at the bottom of the trough and lifting it to the top, where it is discharged into the outlet chute. As the sand is scooped and tumbled, it is repeatedly washed by water, carrying silt away over the overflow weir. Because the sand spends less time in the settling zone and is scooped up quickly, the loss of fine sand is minimized.
II. Comparison Table of Key Specifications (Typical Industry Values)
| Comparison Dimension | Spiral Sand Washer (Single/Double Screw) | Wheel-Bucket Sand Washer (XSD Series) |
|---|---|---|
| Processing Capacity | 50–180 t/h | 20–180 t/h |
| Cleaning Efficiency (Surface Silt Removal) | >95%; suitable for high-silt materials | 85%–90%; suitable for standard silt content |
| Fine Sand Loss Rate (-0.075mm fraction) | Approx. 5%–8% (fine sand recovery unit recommended) | Approx. 1%–3%; low loss rate |
| Applicable Material Particle Size | 0–40mm; capable of handling larger particles | Mainly 0–10mm; optimal for medium-to-fine sand |
| Suitable Silt Content | High (clayey sand, high-silt river sand) | Low to Medium (manufactured sand, natural sand under standard conditions) |
| Single-Unit Power | 11–37 kW | 5.5–15 kW |
| Water Consumption per Ton of Sand | Relatively high | 20%–30% lower |
| Footprint | Large (long trough structure) | Compact; facilitates production line layout |
| Investment Cost (for same capacity) | Medium-to-high | 10%–20% lower |
| Maintenance Focus | Spiral shaft bearings, blade wear | Wheel-bucket teeth, drive bearings |
Note: The above figures represent typical industry ranges; actual specifications depend on Baichen Heavy Industry's specific configurations and actual material testing results.
III. Application Scenarios: Respective Strong Suits
Application scenarios for spiral sand washers—operations involving high silt content, coarse particles, and strict cleanliness requirements:
| Application Scenarios for Spiral Sand Washer | |
|---|---|
| River and lake sand extraction | High silt content requiring vigorous scrubbing |
| Washing of recycled aggregates from construction waste | Mixed particle sizes, high silt content |
| Combined use with fine sand recovery machines | "Washing + recovery" dual-benefit system |
| Application Scenarios for Wheel-Bucket Sand Washer | |
|---|---|
| Manufactured sand production lines | Standard washing after crushing and sand making |
| Desliming of stone powder and purification of concrete sand | — |
| Sand washing units paired with mobile crushing stations | Space is limited |
IV. Advantage Comparison: Four Key Factors for Selection
Advantages of spiral sand washers: ① High upper limit for cleanliness; capable of handling clay clumps; ② High tolerance for 10–40mm coarse particles; resistant to clogging; ③ Double-spiral structure doubles capacity; suitable for large-scale production lines.
Advantages of wheel-bucket sand washers: ① High fine sand recovery rate; minimizes loss of particles smaller than 0.075mm, thereby preserving sand gradation and market value; ② Low energy consumption; saves approximately 0.5–1 kWh of electricity per ton of sand; ③ Compact structure; low civil engineering and installation costs; quick return on investment.
Value Proposition: Taking a manufactured sand line with an annual output of 300,000 tons as an example—if the fine sand loss rate drops from 6% to 2%, and assuming a fine sand price of 60 RMB/ton, the operation saves approximately 7,200 tons of sand annually, directly recovering over 400,000 RMB in value. This explains why many production lines install fine sand recovery machines downstream of spiral washers.
V. Application Case Studies

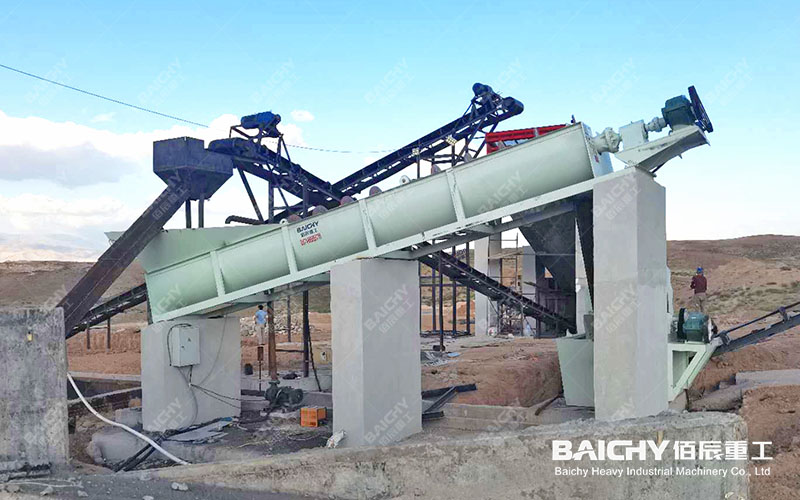

Spiral Sand Washing Production Line
Case Study 1 (Southeast Asia manufactured sand plant, wheel-bucket configuration)
A manufactured sand line in Vietnam utilized an XSD series wheel-bucket sand washer to process crushed sand material. Measured fine sand loss was kept under 3%, overall water consumption dropped by approximately 25%, and significant annual savings on electricity and water costs were achieved, resulting in an investment payback period of about 14 months.
Case Study 2 (High-silt river sand, spiral process)
An African river sand washing project faced raw sand with a silt content exceeding 12%. By selecting a spiral sand washer paired with a fine sand recovery unit, the silt content in the washed sand dropped below 1%, meeting concrete sand standards and resolving the issue where wheel-bucket washers alone failed to achieve sufficient cleanliness.
Note: The data provided represents typical industry operating conditions; specific metrics depend on raw sand properties and equipment configuration.
VI. Selection Decision: Three Steps to Choose the Right Model
Check Silt Content: Raw sand silt >8% or containing clay clumps → Choose spiral sand washer; silt <8% → Wheel-bucket washer is sufficient.
Check Particle Size: High content of coarse particles (>10mm) in feed → Spiral washer; 0–10mm medium-fine sand → Wheel-bucket washer offers higher efficiency.
Calculate Total Costs: Compare 3–5 year TCO (purchase + energy consumption + water consumption + fine sand loss). Under standard conditions, wheel-bucket washers usually have 10%–15% lower total costs, whereas spiral washers offer better overall returns in high-silt conditions.
VII. Recommended Related Equipment
Fine Sand Recovery Unit: Recovers fine sand from the spiral washer's overflow, reclaiming 5%–8% of lost production capacity; an ideal partner for the spiral washer.
Linear Dewatering Screen: Reduces washed sand moisture content to 12%–15%, allowing for direct truck loading or silo feeding without the need for yard air-drying.
Vibrating Screen (YK Series): Screens and removes impurities before washing, stabilizing feed particle size and extending the sand washer's service life.
Complete Sand Washing Line: Baichen Heavy Industry provides an integrated "screening–washing–recovery–dewatering" solution, including process design and electrical control systems.
VIII. FAQ
1. Which washes cleaner: the spiral sand washer or the wheel-bucket sand washer?
The spiral sand washer achieves higher cleanliness (over 95%) because the material spends more time in the tank undergoing friction; the wheel-bucket sand washer achieves approximately 85%–90% cleanliness. If the raw sand has a high clay content or quality requirements are strict, choose a spiral washer; for standard manufactured sand washing, a wheel-bucket washer is sufficient.
2. Which type of sand washer should be chosen for sand with high clay content?
A spiral sand washer is recommended as the primary choice, as it offers superior scrubbing capabilities for materials with high clay content and clay clumps. If there are concerns about fine sand loss, a fine sand recovery unit can be installed downstream of the spiral washer to achieve both effective washing and fine sand recovery.
3. Why does the wheel-bucket sand washer have a lower fine sand loss rate than the spiral type?
The wheel-bucket sand washer uses an impeller to rapidly scoop sand from the settling zone; fine particles spend less time in the water and are less likely to be carried away by the overflow, resulting in a loss rate of approximately 1%–3%. In contrast, the spiral type involves prolonged pushing and agitation of the material by spiral blades, making it easier for 0.075mm-grade fine particles to wash away with the overflow, resulting in a loss rate of approximately 5%–8%.
