30–50 TPH Small-to-Medium Rock Crushers
Market losses due to grid instability are a very real pain point for every mine owner in Africa. At many remote infrastructure project sites, power outages translate into a daily loss of 4 to 6 hours of effective operating time, amounting to a production loss of 120 to 300 tons. To address production requirements in the 30–50 TPH range, Baichy Heavy Industry has introduced a comprehensive "Diesel-Powered + Mobile Platform" solution designed to definitively resolve the challenges of aggregate production in regions with limited or no—grid electricity.

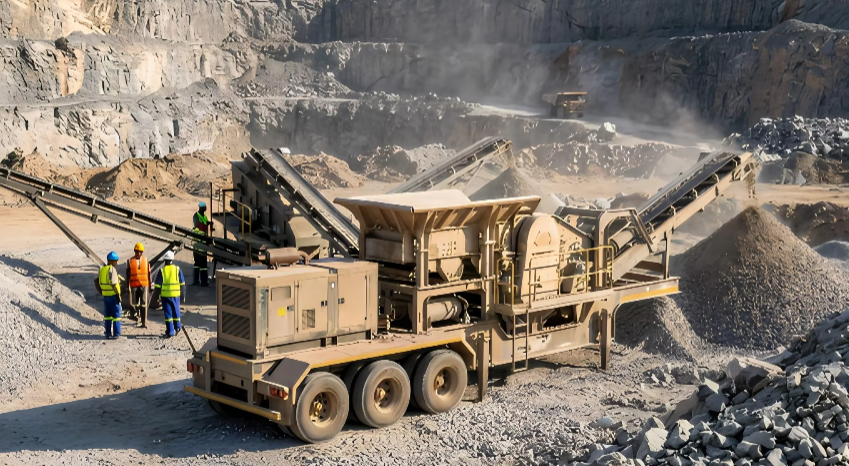

The diesel-powered mobile crushing station serves as the optimal solution for infrastructure projects on a 30–50 TPH scale, as it reduces installation time by 70% while boosting production flexibility by 100%. Unlike traditional stationary production lines, our mobile combined units (comprising a jaw crusher paired with either an impact crusher or a cone crusher) require no hardened ground foundations, thereby truly enabling "immediate production upon arrival." When processing materials commonly found in Africa—such as granite, basalt, and limestone—this system reliably produces construction aggregates in various specifications, including 0–5mm (manufactured sand), 10–20mm, and 20–40mm.
30-50 TPH Typical Equipment Configuration Scheme (Diesel-Powered Version)
| Equipment Component | Recommended Model | Feed Size (mm) | Discharge Size (mm) | Power Requirement |
| Primary Crushing: Jaw Crusher | PE-400×600 | <340 | 40-100 | 30 kW / Diesel Engine Driven |
| Secondary/Tertiary Crushing: Impact Crusher | PF-1007 | <300 | 0-40 (Adjustable) | 45 kW / Diesel Engine Driven |
| OR- Cone Crusher | PYB-900 | <115 | 3-25 | 55 kW / Diesel Engine Driven |
| Auxiliary: Vibrating Screen | 2YA-1548 | - | 4 Selectable Specifications | 15 kW / Diesel Engine Driven |
| Generator Set | 150 kVA | - | - | Cummins / Yuchai Power |

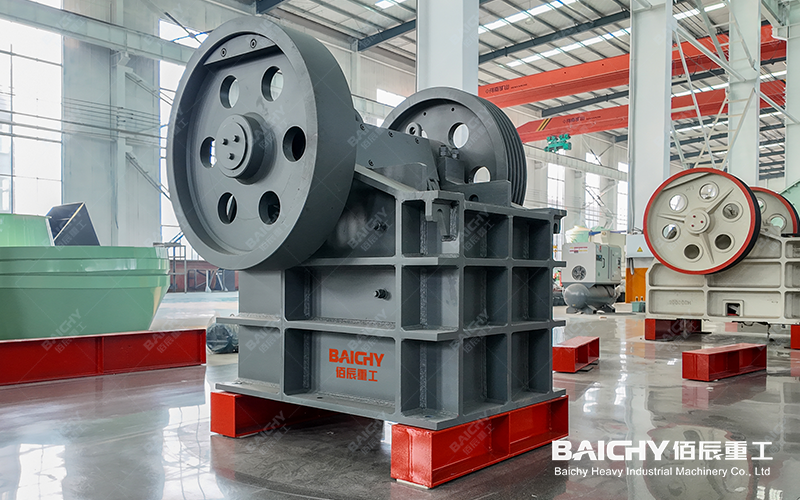

PE400x600 Jaw Crusher

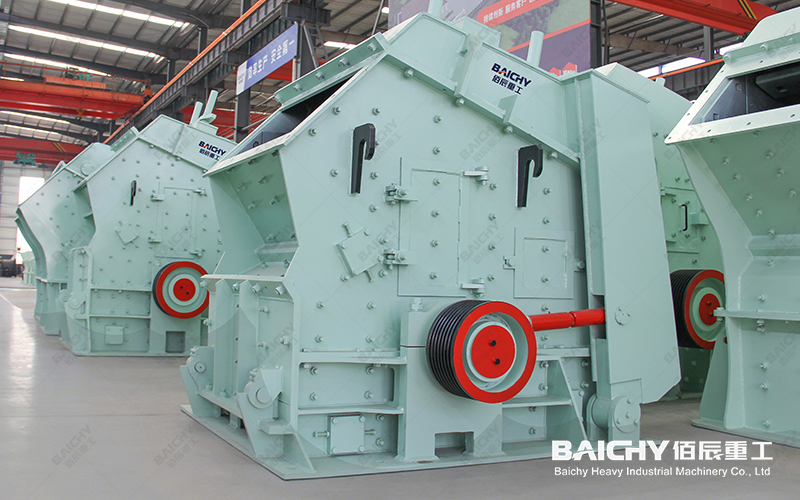

PF1007 Impact Crusher

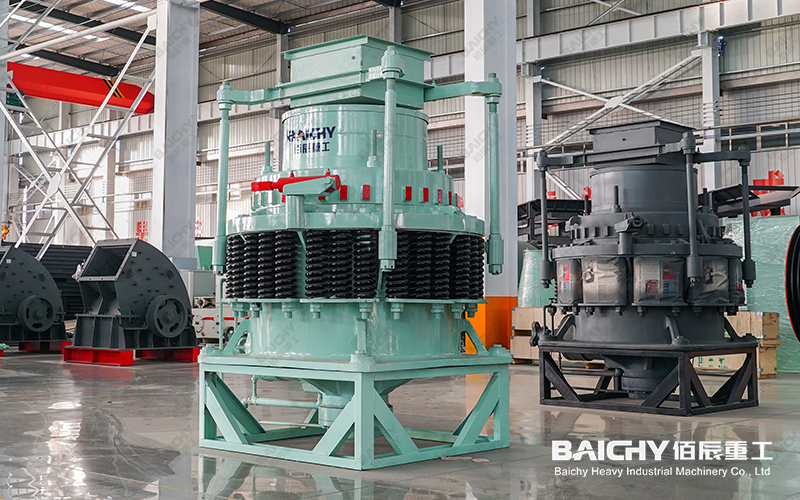

PYB900 Cone Crusher
Transforming technical specifications into tangible customer benefits is Baichy's core philosophy:
• Integrated Diesel Power Generation: This means your project is no longer constrained by the local power grid, potentially increasing your average annual stable operating days by approximately 60 days.
• Wheeled Mobile Chassis: Capable of being towed directly to the core area of the quarry, thereby reducing annual costs associated with secondary material handling by approximately $5,000–$8,000.
• High-Manganese Steel Wear Parts: Optimized specifically for Africa's hard rock conditions (granite/basalt), these parts offer a replacement cycle that is 15%–20% longer than standard market alternatives, directly lowering maintenance costs per ton.
Application Scenario: Why is 30–50 TPH considered the "Golden Capacity" for small-to-medium scale investors in Africa? In county-level road construction projects across Kenya, Nigeria, and Zambia, the most common daily demand for crushed stone falls within the 300–500 ton range. For an investment of this scale, the Return on Investment (ROI) is typically realized within 6 to 10 months. Baichy’s equipment is capable of not only producing high-quality concrete aggregates but also—by adjusting the crushing gap—producing base course materials that fully comply with roadbed paving standards.
Frequently Asked Questions
Q1: How does a 30-50 TPH crusher operate in the absence of grid electricity?
A1: Baichy offers integrated diesel generator sets (e.g., 150kVA) or crushers directly driven by diesel engines, ensuring the equipment operates stably and completely off-grid in remote mining areas.
Q2: Why is it recommended to use mobile crushing stations rather than stationary ones in Africa?
A2: Mobile stations do not require expensive concrete foundations; they offer extremely rapid installation and can be easily relocated as the worksite changes, thereby saving significant costs on material transport and initial civil engineering works.
Q3: Can this equipment produce 0-5mm manufactured sand?
A3: Yes. By configuring the system with a high-efficiency impact crusher paired with fine-mesh vibrating screens, it can consistently produce 0-5mm fine sand that meets construction standards.
Q4: How can the equipment be maintained in African regions where skilled technicians are scarce?
A4: Baichy equipment features a simplified structural design, with critical components equipped with centralized lubrication systems. We provide a complimentary "One-Year List of Wear Parts" and video tutorials with every shipment; general laborers can master the operation and basic maintenance after just three days of training.
Q5: Approximately how long does it take to recoup the investment in a 30-50 TPH crushing production line?
A5: Based on feedback from numerous projects in Africa, under conditions of ample material supply and standard market selling prices, the full investment in the equipment can typically be recouped within 6 to 10 months.
