Crushing plants have become essential core equipment in modern operations, including mining, demolition, and road construction. Skid-mounted crushing plants, with their highly integrated design, flexible mobility, and rapid deployment, are becoming a new industry favorite.
Today, we'll delve into the synergy between the feeder and jaw crusher—the most critical component of a skid-mounted crushing plant—and uncover how this combination redefines crushing efficiency and reliability.
What is a skid-mounted crushing plant?

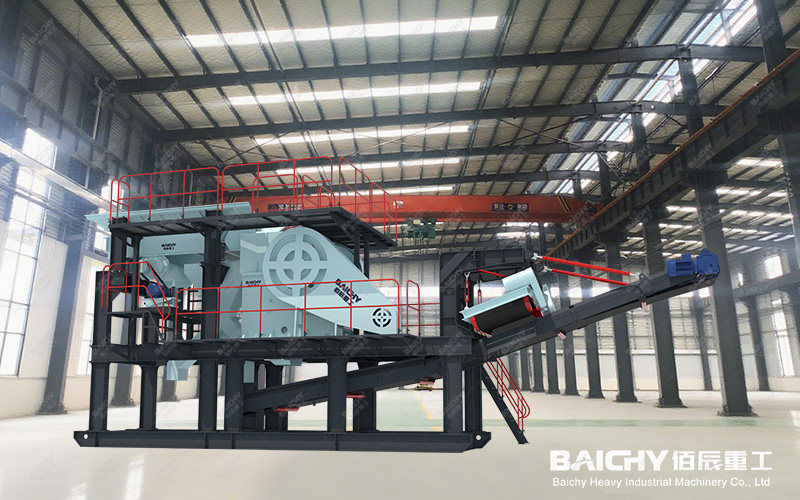

A skid-mounted crushing plant is a mobile crushing solution that integrates feeding, crushing, and conveying equipment onto a single steel chassis. Its core advantage lies in its "integrated skid" design—all equipment is pre-assembled and commissioned at the factory. Upon arrival, it requires only simple connections and is ready for production, significantly reducing on-site installation time and costs.
1. Feeder: A Stable and Efficient "Throat" System
The feeder, the "throat" of the crushing plant, fulfills the crucial task of evenly and continuously feeding material to the crusher. In skid-mounted designs, the feeding system typically utilizes a vibrating feeder. Its unique advantages include:
• Intelligent speed regulation: Automatically adjusts the feed speed based on the jaw crusher's load, preventing overloading or idling.
• Pre-screening: Initially separates fine material during the feeding process, reducing the burden on the crusher.
• Uniform material distribution: Ensures that material enters the crushing chamber at an optimal layer thickness, improving crushing efficiency.
• Impact-resistant design: Directly withstands impact loads from excavators or loaders, protecting downstream equipment.
2. Jaw crusher: A rugged and reliable "heart" component.
As the oldest type of crushing equipment, the jaw crusher still dominates skid-mounted crushing plants due to its:
• Simple structure: The crushing chamber is formed by a movable jaw plate and a fixed jaw plate, and its operating principle is intuitive and reliable.
• High processing capacity: Can directly handle larger materials (maximum feed size up to 1,500 mm).
• High adaptability: Can effectively crush rocks of varying hardness, from limestone to granite.
• Flexible Discharge Size: Product particle size distribution can be quickly adjusted by adjusting the outlet gap.
3. 1+1>2: Synergistic Effects of Feeder and Jaw Crusher
When the feeder and jaw crusher are perfectly integrated on a skid-mounted platform, a remarkable synergy is achieved:
Intelligent Matching, Doubled Efficiency
The feeding system of a modern skid-mounted station is equipped with intelligent sensors that monitor the motor current and material level in the crushing chamber in real time. When the jaw crusher load increases, the feed rate is automatically reduced; when the load decreases, the feed rate is increased. This dynamic adjustment ensures that the equipment always operates at optimal conditions, improving efficiency by over 20%.
Integrated Vibration Isolation Design
The skid-mounted platform features a specially designed vibration isolation system that takes into account the vibration characteristics of both the feeder and jaw crusher. Through optimized layout and vibration-damping measures, overall vibration is significantly reduced, extending equipment life and minimizing environmental impact.
Optimized Space Layout
Within the limited skid space, the feeder is mounted above the jaw crusher at a specific angle, creating a natural material drop curve. This fluid-dynamically calculated layout reduces material impact, minimizing wear and dust generation. Quick Maintenance Access
The skid-mounted design takes all maintenance needs into consideration. Convenient access and work platforms are located around the feeder and jaw crusher, making routine maintenance tasks like jaw plate replacement and discharge adjustment safer and more efficient. Practical Application Scenarios
This feeder + jaw crusher skid-mounted combination performs particularly well in the following scenarios:
• Urban construction waste disposal: Crushing concrete blocks directly at the demolition site, reducing transportation costs
• Mountain mining: Rapid deployment in complex terrain, eliminating long-distance transportation of raw ore
• Road construction projects: Moving with the project progress to produce roadbed materials on-site
• Emergency rescue projects: Rapidly establishing temporary aggregate production lines to meet urgent needs
Future Development Trends
With the widespread adoption of digital technology, feeder-jaw crusher skid-mounted stations are evolving towards a more intelligent approach:
• Remote monitoring and fault warning systems
• AI-based automatic adjustment and optimization
• Hybrid and new energy solutions
• Modular design, allowing for rapid component replacement as needed
The integration of a feeder and jaw crusher on a skid-mounted platform represents a significant development in crushing technology—moving beyond the simple stacking of inpidual devices. Instead, through systems engineering, the integrated integration of various components creates a more efficient, reliable, and flexible crushing solution. This design philosophy not only improves equipment performance but also delivers real economic benefits and operational convenience to users. When choosing a skid-mounted crushing station, it's crucial to consider the matching and coordinated design between the feed and crushing units, as this is often a key factor in determining overall station performance. In the future, as technology continues to advance, this classic combination will continue to evolve, bringing even more surprises to the industry.
