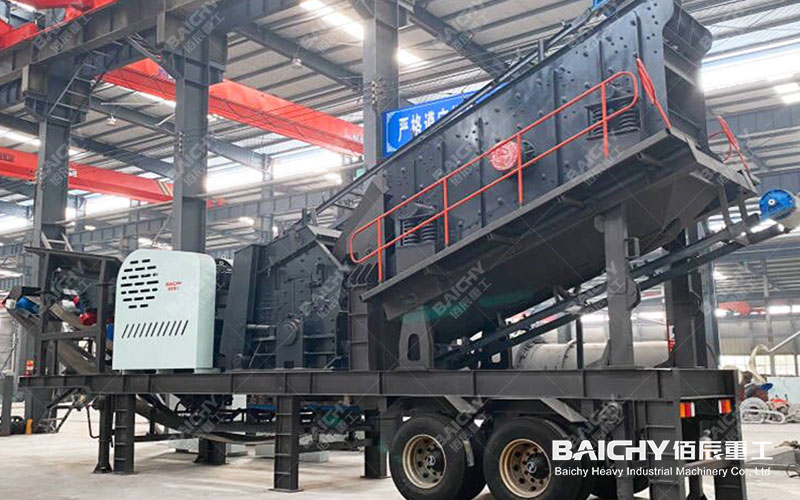

Four-Unit Tire-Mounted Mobile Crushing Plant
The Philippines' "Build Better More" infrastructure initiative has driven the demand for construction aggregates to historic highs; however, the archipelago's geography, typhoon seasons, and dispersed mining sites place fixed production lines at a disadvantage. The "four-in-one" wheeled mobile crushing station integrates the four process stages—feeding, primary crushing, secondary crushing, and screening—onto a single wheeled chassis. It eliminates the need for concrete foundations or steel structure assembly, allowing for commissioning and production within 1–2 days of arrival and site relocation with a return to production in just one day. With an all-in cost of approximately ¥3.1 per ton, it offers a superior return on investment (ROI) compared to fixed lines for projects with tight schedules in the Philippines.
I. Overview: The Philippine Infrastructure Boom Meets "Mobile Crushing"
The Philippine construction market reached a value of US$45.48 billion in 2025 and is projected to grow to US$61.7 billion by 2034 (CAGR of 4.56%, per Mordor Intelligence). The "Build Better More" program maintains annual public infrastructure spending at 5%–6% of GDP, with a pipeline of 176 Public-Private Partnership (PPP) projects totaling PHP 2.6 trillion. Yet, this surge in aggregate demand is accompanied by supply challenges unique to the Philippines:
Archipelagic geography — Aggregates require localized supply, necessitating independent crushing stations on each major island;
Short project windows — Timelines for mining permits and environmental approvals often fail to align with production windows, creating a high risk of fixed lines sitting idle after construction;
Typhoon season disruptions — Hot, humid, and rainy conditions extend on-site concrete foundation construction by 15–30 days.
The "four-in-one" wheeled mobile crushing station is designed specifically for markets characterized by high demand, short timelines, and dispersed sites. It offers mobility via the chassis rather than the main machinery—delivering full production capacity while eliminating the infrastructure and relocation costs associated with fixed lines.
Mobile Crusher In the Philippines
II. Application Scenarios: Best-suited operating conditions in the Philippines
| Scenario | Operating Characteristics | Recommended Configuration |
|---|---|---|
| River stone/cobble crushing (Luzon) | Mohs 6–7; high silica content & abrasiveness | Hard rock configuration: PE750×1060 + PYB1200 Cone Crusher |
| Construction waste recycling (Metro Manila) | Contains rebar; uneven lump sizes | Soft rock configuration: PE750×1060 + PF1315 Impact Crusher |
| Temporary land lease / Indefinite project duration | Rapid site clearance; no permanent foundations | Any configuration; foundation-free, plug-and-play |
| Inter-island transfer / Concurrent multi-site operations | Single-point capacity requirement: 120–250 t/h | Standard or soft rock configuration; 1-day site transfer |
| Road & bridge projects (linear progression) | Work area moves with the project | Wheeled chassis; 40 km/h transfer speed via towing vehicle |
III. Core Specifications (Two standard configuration tiers; capacity rated based on limestone)
Soft Rock/Medium-Hard Rock Configuration (Limestone, Construction Waste):
| Equipment Unit | Main Unit Model | Quantity | Power (kW) | Feed Size (mm) | Output Size (mm) | Single-Unit Capacity (t/h) |
|---|---|---|---|---|---|---|
| Mobile Feeding Unit | ZSW490×110 | 1 | 15 | ≤500 | — | 120–280 |
| Mobile Jaw Crushing Unit (Primary) | PE750×1060 | 1 | 110 | ≤630 | 80–140 | 110–180 |
| Mobile Secondary Crushing Unit | PF1315 Impact Crusher | 1 | 220 | ≤350 | 5–40 (Adjustable) | 130–250 |
| Mobile Screening Unit | 4YK2160 (4-Deck) | 1 | 37 | ≤200 | 0–5/5–20/20–40/40–80 | 80–320 |
| Total Line | — | 4 | ~400 | ≤630 | Four product grades | 200–250 |
Hard Rock Configuration (River Pebbles, Granite, Basalt):
| Equipment Unit | Main Unit Model | Quantity | Power (kW) | Feed Size (mm) | Output Size (mm) | Single-Unit Capacity (t/h) |
|---|---|---|---|---|---|---|
| Mobile Feeding Unit | ZSW490×110 | 1 | 15 | ≤500 | — | 120–280 |
| Mobile Jaw Crushing Unit (Primary) | PE750×1060 | 1 | 110 | ≤630 | 80–140 | 110–180 |
| Mobile Secondary Crushing Unit | PYB1200 Cone Crusher | 1 | 110 | ≤145 | 20–50 (Adjustable) | 110–168 |
| Mobile Screening Unit | 4YK2160 (4-Deck) | 1 | 37 | ≤200 | 0–5/5–20/20–40/40–80 | 80–320 |
| Total Line Capacity | — | 4 | ~280 | ≤630 | 4 Product Grades | 150–200 |
Transport & Power Compatibility: Inpidual unit dimensions are within 13.5m × 3.0m × 4.2m, suitable for 40HQ flat-rack containers or Ro-Ro (Roll-on/Roll-off) vessels; sea freight from China to Manila takes 7–10 days. Standard configuration includes 440V/60Hz US-standard motors (380V/50Hz or 400V/50Hz options available); plug-and-play compatibility with the Philippine power grid—no transformer required.
IV. Equipment Advantages: Designed Specifically for Philippine Operating Conditions
The five major advantages of this four-unit wheeled mobile crushing station directly address the dual pain points of "cost" and "project timeline" for Philippine customers:
1. Integrated processing line: Produces four grades of finished products in a single pass. Feeding, primary crushing, secondary crushing, and four-deck screening operate in a closed-loop circuit within the station; materials do not touch the ground, require no re-handling, and need no intermediate stockpiles. It produces four aggregate grades (0–5mm, 5–20mm, 20–40mm, and 40–80mm) in a single pass, directly supplying concrete mixing plants and roadbed projects.
2. Foundation-free; operational within 2 days of arrival. It eliminates the ¥250,000–400,000 investment in foundations and installation, as well as the 15–30 day construction period required for fixed lines. Upon arrival, the process involves simply "connecting power → test run → feeding material," with output ready in 24–48 hours. Ideal for mining sites in the Philippines with uncertain lease terms, it allows for site clearance without leaving a trace or residual foundation structures.
3. Native 60Hz grid compatibility. The Philippines uses US-standard 60Hz/220V/440V three-phase power; the four-unit combination comes standard with motors featuring custom 60Hz windings. This eliminates the need for variable frequency drives (VFDs) or transformers, preventing issues like excessive rotational speed or overheating shutdowns caused by connecting 50Hz motors directly to the grid.
4. Proven resilience against ocean transport and typhoon seasons. Transport dimensions for each unit fit within a 40HQ frame container; fully enclosed electrical cabinets and anti-corrosion coatings withstand hot, humid, and salt-spray environments, ensuring continuous operation even during heavy rain seasons.
5. Dual configuration for hard and soft rock; switch main units on the same chassis. Choose a cone crusher for high-silica materials like river pebbles (liner lifespan is 3–4 times that of blow bars), or an impact crusher for limestone and construction waste (superior particle shape and cost-effectiveness); switching requires only replacing the secondary crushing main unit.
V. Related Case Studies: Validation of Mobile and Fixed Production Lines in the Philippine Market
Case Study 1: Mobile production line for river stone on Luzon Island. A "four-unit combination" hard-rock configuration (PE750×1060 + PYB1200) is used on Luzon Island to process river cobbles. It achieves an actual production capacity of 150–200 t/h, yielding four aggregate sizes (0–5mm, 5–10mm, 10–20mm, and 20–40mm) to supply concrete batching plants and provincial highway projects. With a two-year lease term, the entire equipment set can be relocated upon expiration; since no concrete foundations are left behind, site decommissioning costs are virtually zero.
Case Study 2: Construction waste recycling in Manila. A soft-rock configuration (PE750×1060 + PF1315) processes urban demolition waste. The impact crusher handles rebar and impurities effectively, achieving an hourly output of 200–250 tons, with recycled aggregates used directly for municipal road base backfilling. This single "four-unit combination" replaces a previous setup of three independent mobile stations linked in series; this improves feeding continuity and reduces capacity loss from the original 15–20% to under 5%.
Case Study 3 (Comparison): Luzon Island C90 fixed production line. A Baichy C90 European-style jaw crusher fixed line also processes river stone on Luzon Island (100–150 t/h capacity; commissioned in 2024). The two systems complement each other: fixed lines are ideal for long-term mining sites with stable power supplies, whereas the "four-unit combination" mobile station is the superior choice for short-term land leases, multiple work sites, and projects requiring accelerated schedules.
VI. Recommended Equipment
| Equipment | Recommended Model | Application Scenario |
|---|---|---|
| 4-Unit Mobile Station (Standard) | PE600×900 + PF1214 + 4YK1860 | Small-scale material yards; 120–180 t/h capacity |
| Mobile Jaw Crusher Unit | PE750×1060 / C90 (European Series) | Standalone primary crushing or production line expansion |
| Cone Crusher | PYB1200 / CS Series | Secondary crushing of hard rock; high wear resistance |
| Wheel-type Sand Washer | XSD Series | Connected downstream of screening; produces 0–5mm high-quality sand |
| Fine Sand Recovery Machine | LZ Series | Recovers fines from washing wastewater; minimizes fine sand loss |

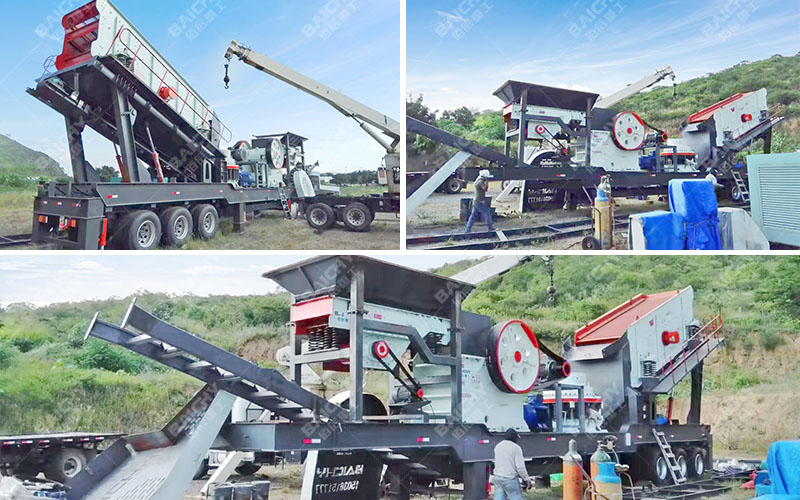

Customer site featuring a four-unit mobile crushing station
VII. FAQ
Q1: Does the 4-unit mobile station require an additional transformer for the 60Hz power grid in the Philippines?
No. The Philippines uses the US standard 60Hz/220V/440V three-phase power system. The standard 4-unit station comes with motors custom-wound for 60Hz and a total line power of 280–400kW, allowing for direct connection. If there is no grid access at the site, a diesel generator set can be used (approx. 350kW+ required for hard rock configurations; a 500kVA transformer is recommended for soft rock). Simply specify the local voltage and frequency when ordering, and the motors will be custom-wound to local standards at the factory.
Q2: Do the shipping dimensions exceed limits? How long does it take from order to production?
No limits are exceeded. Each unit measures within 13.5m × 3.0m × 4.2m, making it compatible with 40HQ flat-rack containers or Ro-Ro (Roll-on/Roll-off) vessels; shipping from China to Manila takes 7–10 days. Total timeline: 30–40 days for production + 7–10 days for shipping + 5–7 days for customs clearance and inland transport. Production can begin 24–48 hours after arrival on-site. Compared to the 15–30 days required for "foundation curing + installation and commissioning" of a stationary line, this allows for production to start 2–4 weeks earlier—translating to 2–4 extra weeks of cash flow.
Q3: For river pebble processing in the Philippines, should an impact crusher or a cone crusher be selected?
Choose a cone crusher. River pebbles are high-silica, highly abrasive materials—with an abrasiveness index 3–5 times that of limestone—which causes the service life of impact crusher blow bars to drop by approximately 60% (from around 180 hours to 70 hours), with spare part costs eating into profits. In contrast, cone crushers utilize inter-particle (lamination) crushing, and their liner lifespan is 3–4 times that of blow bars; although the initial unit price is 150,000–200,000 higher, the Total Cost of Ownership (TCO) over five years is actually lower. However, if the material is limestone, construction waste, or other medium-soft rock, an impact crusher offers better particle shape and superior cost-performance.
