Looking for a Complete Grinding and Drying Solution for High-Moisture Limestone in Mexico?

YGM160 Grinding Mill and Rotary Dryer Production Line

In the mineral processing industry, limestone, as a basic raw material, directly impacts the quality and cost of downstream products through the efficiency and quality of its grinding and drying processes. For raw materials with high moisture content, traditional separate drying and grinding processes are often energy-intensive, require large land areas, and involve complex dust control. This article will delve into a mature solution: a YGM160 high-pressure suspension roller mill paired with a rotary dryer production line. Using our successful case study for a Mexican client, we will explain how this solution achieves efficient, energy-saving, and integrated production of limestone from wet material to qualified powder.

I. Solution Overview: Why Choose Integrated Grinding and Drying?

Limestone raw materials, especially during the rainy season or in specific mining areas, often contain high levels of surface and internal moisture. Directly grinding high-moisture materials can lead to adhesion and blockage inside the mill, severely affecting grinding efficiency, finished product fineness, and equipment stability.

The core design concept of the YGM160 grinding mill paired with a rotary dryer production line is "drying before grinding, seamless integration." The rotary dryer, as a pretreatment device, first uses hot air to efficiently dehydrate lumpy or granular limestone, reducing its moisture content to the optimal operating range of the mill (typically below 1%). Subsequently, the dried, hot material enters the YGM160 grinding mill directly or via a closed conveyor system for fine grinding. This integrated design solves the processing challenges of high-moisture raw materials.

Core Advantages of the Production Line

Compared to separate drying and grinding systems, this combined solution offers several significant advantages:

• Significant Energy Saving and Consumption Reduction: Part of the waste heat from the rotary dryer's exhaust can be recovered for preheating the air entering the mill or for plant heating, reducing system heat loss. The dried material carries this waste heat into the mill, further reducing the energy required for moisture evaporation within the mill.

• High System Integration and Space Saving: The compact design of the drying and grinding modules reduces intermediate material transfer links and storage space, lowering civil engineering costs and plant footprint.

• Excellent Environmental Performance: The entire system can be designed for negative pressure or closed-loop operation, minimizing dust emission points and facilitating centralized collection and treatment, meeting stringent environmental standards.

• High Degree of Automation and Stable Operation: Utilizing a centralized control system, key parameters such as drying temperature, mill feed rate, and fan airflow can be adjusted in a coordinated manner, ensuring stable moisture content and fineness of the output powder and reducing manual intervention.

• High Return on Investment: Although the initial investment may be slightly higher than a single mill, its advantages in operating energy consumption, maintenance costs, product qualification rate, and space saving bring considerable economic returns in the short term.

II. Detailed Explanation of Core Equipment

YGM160 High-Pressure Suspension Roller Mill

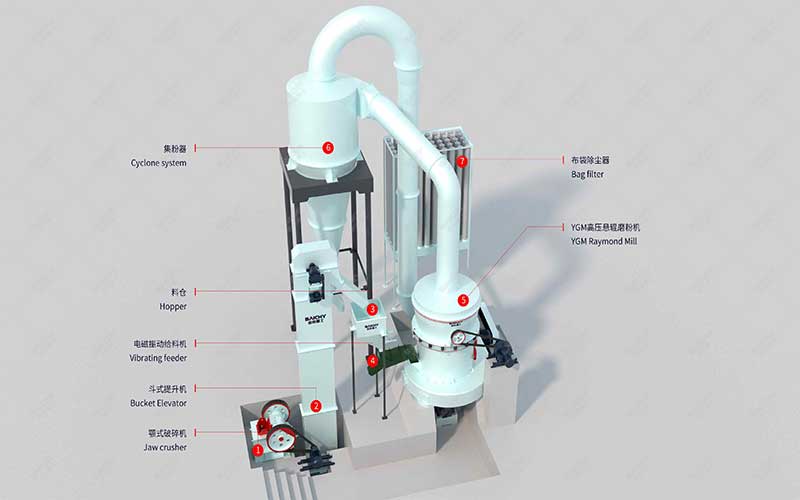

YGM Grinding Production Line Flow Diagram

The YGM160 is the flagship model in our medium-sized mill series, ideally suited for grinding non-metallic minerals such as limestone, calcite, and barite with a Mohs hardness of 7 or lower and a moisture content of 6% or lower.

• Working Principle: Material is fed between the grinding rollers and grinding ring by a feeder, where it is crushed and pulverized under centrifugal force. It is then carried by airflow to an analyzer for classification. Qualified fine powder enters the cyclone collector, while coarse powder falls back for regrinding.

• Performance Characteristics: Employs an overlapping multi-stage sealed grinding roller device for excellent sealing performance; equipped with a high-efficiency cage classifier with a wide fineness adjustment range (80-600 mesh); stable transmission system with low vibration and low noise.

Supporting Rotary Dryer

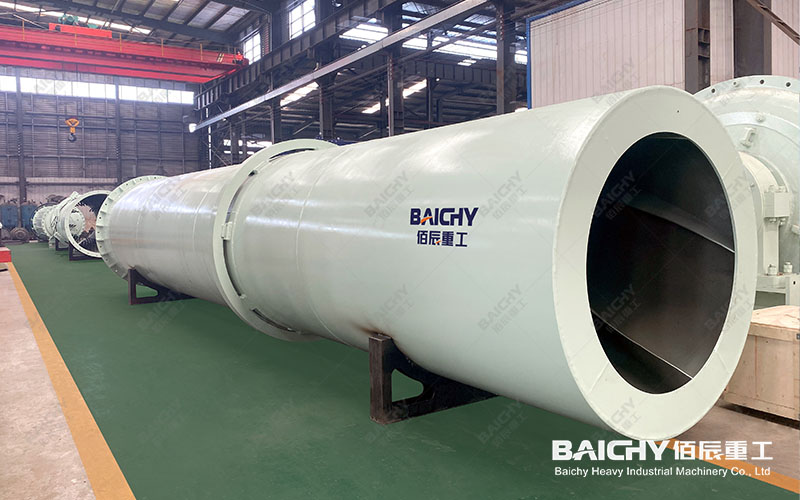

Single-drum dryer

A rotary dryer is a high-efficiency drying device that uses a low-speed rotating cylinder to lift materials within the cylinder, allowing them to fully contact the hot medium for heat exchange.

• Working Principle: Wet material is added from the high end of the cylinder. Inside the cylinder, the lifting plates tumble the material, causing it to come into co-current or counter-current contact with hot air (or exhaust gas) entering from the low end. Moisture evaporates rapidly, and the dried product is discharged from the low end.

• Adaptability: Particularly suitable for processing granular and lumpy materials that can be tumbled, such as limestone, slag, and clay. It has a large processing capacity and is highly adaptable to fluctuations in material moisture content.

Typical Production Line Configuration and Parameter Table

The table below shows the main technical parameters of a standard configuration YGM160 grinding and drying production line. Specific configurations can be customized according to the customer's raw material characteristics (such as initial moisture content, particle size, and output requirements).

III. Success Story: Sharing a Mexican Limestone Processing Project

One of our Mexican clients, located in a major building materials production area, had limestone raw materials with an average moisture content of 10%-12% after mining. Their existing old production line required natural sun-drying or separate drying, which was highly susceptible to weather conditions, inefficient, and resulted in inconsistent finished product fineness.

Solution: We designed and provided a complete YGM160 rotary dryer production line for them. The core solution lay in optimizing the dryer's hot air furnace parameters and the internal lifting plate structure based on the local climate and raw material characteristics, ensuring that the moisture content was stably reduced to below 0.8% while minimizing energy consumption. Simultaneously, the grinding system adopted a windproof and rainproof outdoor layout design, adapting to the client's factory environment.

Operating Results:

• Output Target Achieved: The stable output of the final product (250 mesh limestone powder) reached 7.5 tons/hour, far exceeding the client's expectations.

• Significant Energy Savings: Overall power and heat consumption were reduced by approximately 18% compared to their old production line. • Stable Quality: The finished product has uniform fineness and constant moisture content, greatly enhancing the competitiveness of customers' products in the downstream mortar and coating markets.

• Environmental Compliance: The entire production line has a dust collection efficiency exceeding 99.9%, easily passing local environmental inspections.

IV. Recommended Equipment

Depending on different raw material conditions and budgets, you can also consider the following combinations:

1. For medium-moisture raw materials: If the raw material moisture content is 6%-8%, consider the MTW European-style mill. Its unique design with built-in drying airflow inside the grinding roller chamber can handle materials with a certain moisture content, simplifying the process.

2. For large-scale, high-yield demands: If the annual output requirement is extremely high, we recommend the LM vertical roller mill paired with a dedicated flash dryer. This system integrates drying, grinding, and powder selection, making it the first choice for large-scale modern projects. Although the investment is higher, the system efficiency and energy-saving effects are superior.

3. For small-scale or experimental production: Consider a small Raymond mill with an airflow drying tube. This requires less investment and offers flexible layout.

V. Frequently Asked Questions (FAQ)

Q1: Does this production line have requirements for the initial moisture content and particle size of the limestone?

A1: Yes. Typically, the rotary dryer is designed to handle raw materials with an initial moisture content of 15%-20%, and the recommended feed particle size is ≤30mm. If the raw material moisture or particle size is too high, a crushing or pre-dehydration process needs to be added before the dryer. We will test based on the specific raw material sample you provide and give the most accurate feed requirements.

Q2: What are the main differences between an integrated grinding and drying line and purchasing the dryer and mill separately and assembling it yourself?

A2: The main differences lie in system compatibility, energy consumption control, and automation level. An integrated production line is designed, selected, and debugged by the supplier to ensure a perfect match between drying and grinding capacities, optimal heat utilization, and an integrated control system, avoiding problems such as "oversized equipment" or incompatible interfaces. Self-assembly may face risks such as mismatched equipment parameters, high energy consumption, difficulties in linkage control, and unclear after-sales responsibility.

Q3: Is there after-sales service and support for the equipment in Mexico?

A3: We place great importance on overseas markets. For key markets such as Mexico, we have regional offices or authorized service partners that can provide localized installation guidance, commissioning support, and supply of consumable parts. We also provide detailed English operation and maintenance manuals and support remote video technical guidance to ensure the stable operation of our customers' production lines.
