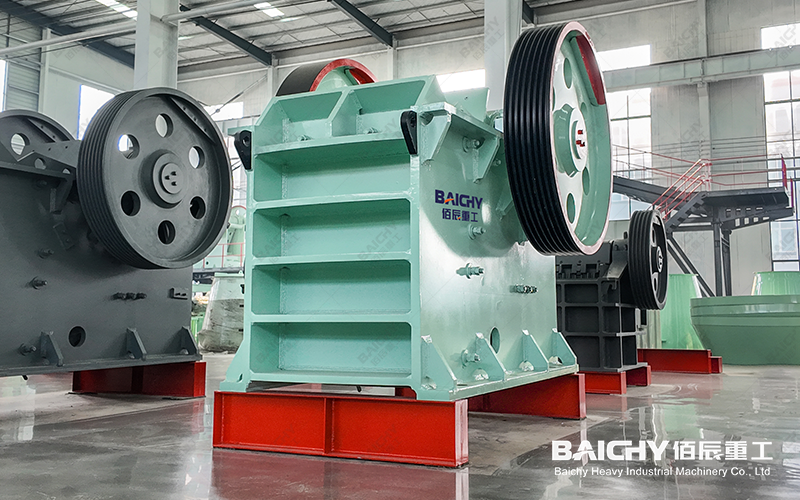

Jaw Stone Crusher
Overview: Why It's the Foundation of Every Rock Line
A jaw stone crusher is the primary crushing workhorse for granite, basalt, river stone, and ore worldwide. It compresses 500 mm-plus feed between fixed and moving jaw plates, reducing it to 65–160 mm in one pass. It sets your whole line's capacity ceiling and cost per ton — so choosing the right jaw is the highest-ROI decision a quarry or mine owner makes.
Jaw Stone Crusher — Application Scenarios
Typical feed and output targets by working condition
| Application | Typical Feed | Output Target |
|---|---|---|
|
1
Quarry aggregate production Aggregate
|
Granite, basalt, limestone | 0–40 mm for concrete/asphalt |
|
2
Mining (gold, iron, manganese) Mining
|
ROM ore up to 500 mm | Coarse ore for cone/VSI |
|
3
C&D recycling Recycling
|
Concrete, asphalt rubble | Reusable 0–50 mm aggregate |
|
4
River stone / pebble crushing Sand & Gravel
|
Cobbles 100–300 mm | Sand & gravel for local markets |
Key Advantages of Baichy Jaw Stone Crushers
1. High Reduction Ratio, Lower Cost Per Ton
A deep crushing chamber and optimized toggle angle deliver a 4:1–6:1 ratio. A 55 kW motor moves up to 100 t/h — roughly 12% less electricity per ton than older designs.
2. Built for Hard, Abrasive Feed
High-manganese Mn13Cr2 jaw plates last 8–12 months on granite; plates are bolted, not welded, so a full change takes under 2 hours and downtime stays below 3%.
3. Simple, Serviceable, Globally Supported
No complex hydraulics — any local fitter can maintain it. Baichy supplies 400V/50Hz or 380V/60Hz motors to match your grid, with spare parts dispatched to 80+ countries.
Core Parameters (PE Series)
PE Series Jaw Crusher — Technical Specifications
Feed opening, capacity and motor power by model
| Model | Feed Opening (mm) | Max Feed (mm) | Discharge (mm) | Capacity (t/h) | Motor (kW) |
|---|---|---|---|---|---|
|
1PE-250×400
|
250×400 | 210 | 20–60 | 5–20 | 15 kW |
|
2PE-400×600
|
400×600 | 340 | 40–100 | 16–64 | 30 kW |
|
3PE-500×750
|
500×750 | 425 | 50–100 | 45–100 | 55 kW |
|
4PE-600×900
|
600×900 | 500 | 65–160 | 60–160 | 75 kW |
|
5PE-750×1060
|
750×1060 | 630 | 80–140 | 110–320 | 110 kW |
Real Case: 120 t/h Granite Plant, Rwanda
A Rwandan contractor feeding 500 mm granite into a PE600×900 jaw stone crusher plus PF1214 impactor now produces 0–40 mm aggregate for road projects: 120 t/h stable output, 350,000+ tons in year one, jaw plate life of 10 months, and all-in production cost under $3.2/ton. See the full Rwanda case study.

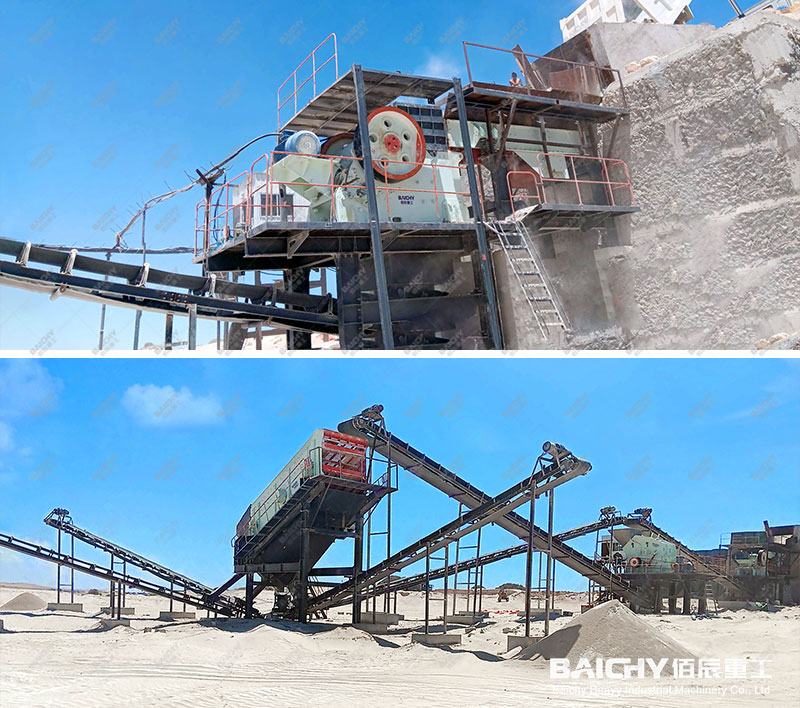

Compare jaw stone crusher
Recommended Equipment for Your Complete Line
PE Series Jaw Crushers — primary, 5–320 t/h
C Series Hydraulic Jaw — hydraulic adjustment
Cone Crusher — secondary for hard rock
VSI Sand Maker — shaping, 0–5 mm sand
Mobile Crushing Station — movable plants
FAQ
Q1: Jaw crusher or impact crusher — which do I need?
Use a jaw stone crusher for primary crushing of hard, abrasive rock (granite, basalt, ore). Use an impact crusher for soft material (limestone, concrete) where shaping matters. Typical hard-rock line: jaw → cone → VSI.
Q2: How do I size a jaw crusher for my stone?
Match max feed to 85% of the feed opening (500 mm feed → PE600×900). Capacity = annual tonnage &pide; working hours, plus 20% safety margin. Send rock hardness, moisture, and feed size for a free line design.
Q3: What is real maintenance cost?
Wear parts dominate: Mn13Cr2 jaw plates last 8–12 months on granite, about 3–5% of machine price per change. Weekly checks take 2–4 hours; annual O&M stays under 6% of purchase price.
