Jaw Crusher Industrial
In the field of heavy machinery, a qualified industrial jaw crusher is more than just a crushing machine; it's the flow gate for the entire aggregate production line. Whether in the high-humidity mining areas of the Philippines or the high-altitude working faces of Chile, the stability of primary crushing directly determines the return on investment of the entire line.
Comparison of Core Technical Specifications
To meet the perse production needs of different scales worldwide, we have selected three of the most representative PE series models:
| Core Model | Maximum Feed Opening (mm) | Discharge Opening Adjustment Range (mm) | Processing Capacity (t/h) | Motor Power (kW) | Optimal Application Scenarios |
| PE-400×600 | ≤ 340 | 40 - 100 | 15 - 60 | 30 | Laboratory/Small-scale Construction Waste Processing |
| PE-600×900 | ≤ 500 | 65 - 160 | 50 - 160 | 55 - 75 | Medium-sized Hard Rock Mine Primary Crushing |
| PE-900×1200 | ≤ 750 | 95 - 165 | 220 - 450 | 110 | Large Aggregate Plant/River Stone Production Line |
1. Structure and Compression Resistance: Designed for Extremely Hard Rock
Jaw crushers are known as "hard rock killers" due to their pure compression logic. Baichy Heavy Industry's PE series jaw crushers utilize heavy-duty eccentric shafts and manganese steel moving jaw plates, capable of handling materials with compressive strengths up to 320 MPa:
• Deep Cavity Crushing Design: Optimized nip angle and increased feed rate ensure thorough crushing of basalt, granite, and river rocks within the cavity.
• Mn18Cr2 Wear-Resistant Parts: For highly abrasive materials, we standardize high-manganese steel alloy parts, extending service life by over 25% compared to ordinary castings, significantly reducing downtime for maintenance.

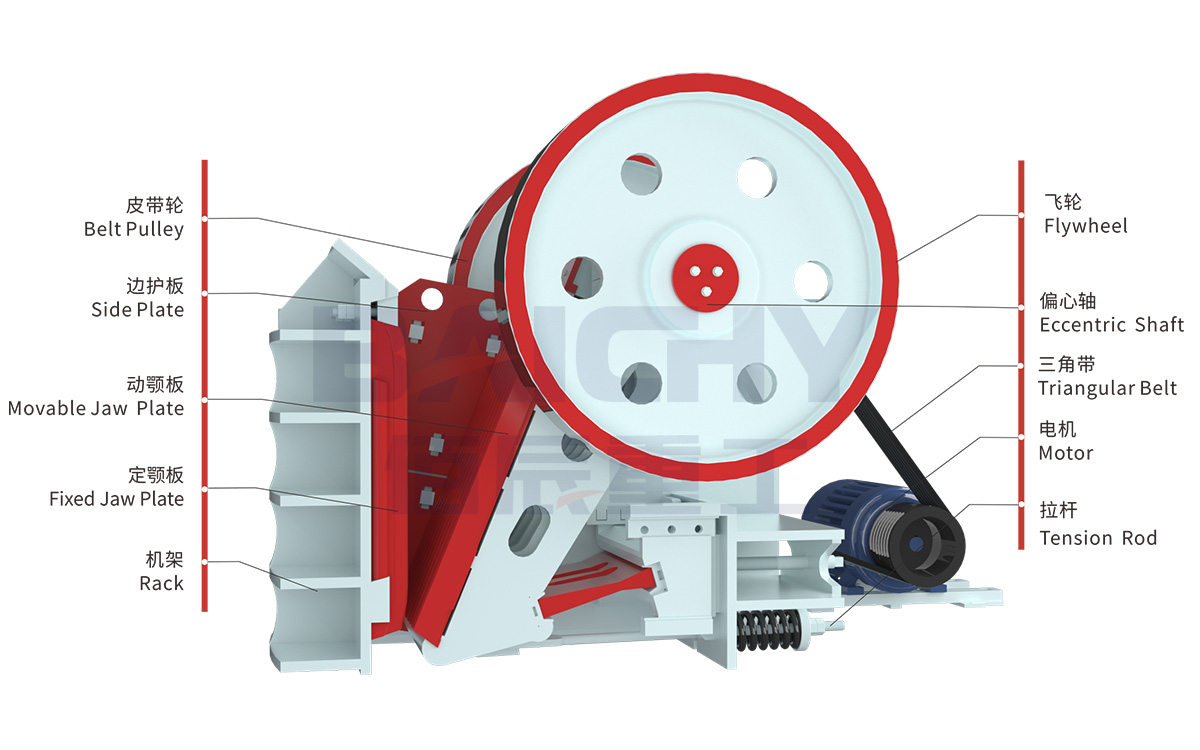

PE series jaw crusher structural diagram display
2. Scenario Adaptability: From Fixed to Off-Grid Mobile Stations
Modern industrial needs are no longer singular. Our crushing solutions cover perse operating modes:
• Fixed Sand and Gravel Production Lines: Adaptable to large-scale production of 320 t/h and above, with precise control over output specifications through adjustment of the discharge port.
• Mobile Crush Machine: Designed for rapid deployment in construction waste processing and mining areas in Mexico, Vietnam, and other regions, it utilizes a tire-mounted or tracked chassis for "on-demand crushing" without the need for complex concrete foundations.
3. Global Adaptability: More Than Just Hardware
We understand the specific pain points of the international market:
• Grid Adaptability: Supports multiple global grid standards (60Hz/380V-440V), and can integrate diesel generator sets for off-grid mining areas.
• High-Temperature Resistant Design: Large-capacity fuel tank and efficient cooling system ensure continuous operation without shutdown in high-temperature environments in Africa or Southeast Asia.
Frequently Asked Questions:
Q: Why are industrial jaw crushers often used as primary crushers?
A: Because of their large crushing ratio (typically between 4-6), simple and robust structure, and ability to handle feed sizes exceeding 1000mm, relieving pressure on subsequent impact crushers or cone crushers.
Q: How to assess the operating costs of a crusher?
A: Aside from the initial purchase cost, the key factor is "wear per ton". This depends on the durability of the liner material (such as Mn18Cr2) and the energy efficiency ratio of the motor.
