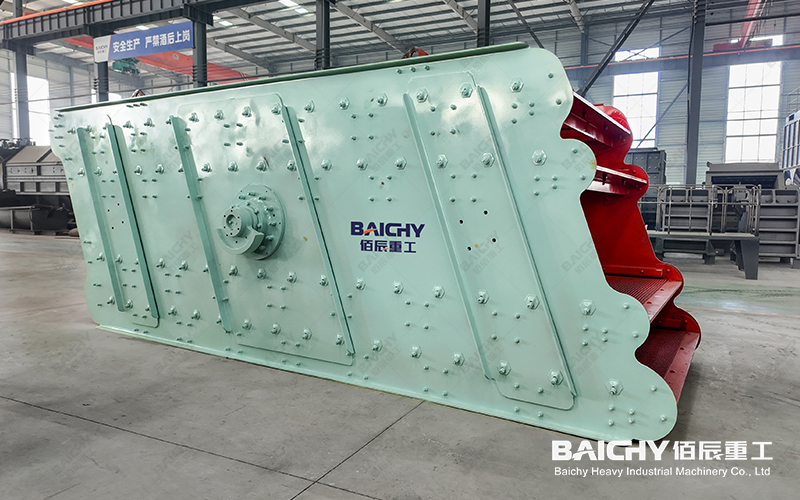

Vibrating Screen

As a leading manufacturer of crushing and screening equipment, we understand that the efficiency of your entire crushing plant hinges on one critical component: the stone screening machine. Often overlooked in favor of the primary crusher, a high-performance screen is the workhorse that sorts, grades, and ensures the quality of your final aggregate products. This guide delves deep into the world of stone screening equipment, explaining its vital role, different technologies, and how choosing the right machine can directly boost your bottom line.

Why Screening is Non-Negotiable in Aggregate Production

Crushing is only half the battle. Raw, crushed stone comes in a jumble of sizes, from oversized rocks to fine dust. A screening machine’s primary function is to separate this mixture into specific, marketable fractions—such as coarse aggregate for concrete, drainage stone, or asphalt chips. Without precise screening, you end up with contaminated, out-of-spec product that sells at a discount or requires costly re-processing. Effective screening enhances product value, improves plant throughput, and reduces wear on downstream crushers by removing already-sized material.

Types of Stone Screening Machines: Finding the Right Fit

Not all screening machines are created equal. The choice depends on your material type, desired output sizes, and production volume.

Vibrating Screens

The most common type, they use rapid vibration to stratify and separate material.

Inclined Screens: Ideal for high-volume, coarse sizing. The incline uses gravity to move material, while vibration does the sorting.
Horizontal Screens: Excellent for fine screening, dewatering, and high-moisture materials. They offer a straight-line material flow for precise sizing.

Trommel Screens (Rotary Screens)

A rotating drum that gently tumbles material, ideal for handling sticky, clay-bound, or wet feed. They are excellent for scrubbing and are often used in C&D waste recycling and sand production.

Grizzly Scalpers

Heavy-duty, static or vibrating bar screens placed before the primary crusher. Their job is to remove fine material and small stones that are already to size, protecting the crusher from unnecessary wear and increasing its efficiency.

Key Advantages of Investing in a Modern Screening Plant

Upgrading to a modern, well-matched stone screening machine offers tangible returns:

Increased Profitability: Produce multiple, in-spec products simultaneously from a single feed source, catering to different market segments and price points.
Enhanced Crushing Circuit Efficiency: By removing fines and correctly sized aggregate, you prevent crusher overload and reduce energy consumption.
Superior Product Quality: Consistent, clean aggregate commands premium prices and builds your reputation as a reliable supplier.
Reduced Downtime & Maintenance: Robust construction, easily replaceable screen decks, and advanced bearing systems minimize unplanned stops.
Operational Flexibility: Modular designs and portable chassis options allow you to move the screen to the material, reducing hauling costs.

Real-World Application: A Quarry Case Study

A granite quarry in Texas was struggling with low yields of their premium 1/2" chip product. Their old screen was inefficient, allowing too many fines into the chip pile and letting oversized rocks pass through. After consulting with our engineers, they installed a high-frequency horizontal vibrating screen with specialized polyurethane screen panels.

Result: The chip product specification compliance increased from 85% to 98%. The recovery of saleable material from the same feed stock increased by 15%, paying for the new stone screening machine in under 18 months. Additionally, the cleaner separation reduced wear on their tertiary cone crusher.

Related Equipment Recommendations

To maximize your screening plant’s performance, consider pairing it with:

Feed Hoppers & Conveyors: Ensure a steady, even feed to the screen deck to prevent overload and blinding.
Stockpile Conveyors: Efficiently move sorted fractions to separate stockpiles.
Washing Screens or Sand Plants: For operations requiring clean, washed concrete sand or grit removal.

Frequently Asked Questions (FAQ)

Q1: How often should I change the screen panels (decks)?

A: It depends on the abrasiveness of your material. For highly abrasive granite or trap rock, inspect monthly. For limestone, it might be every 2-3 months. The key is regular inspection for wear, tears, or plugging. Modern, modular panels make replacement a quick process.

Q2: Can one screen produce more than 3 product sizes?

A: Yes, but with limitations. Most standard screens have 2 or 3 decks, producing 3 or 4 product sizes. For more fractions, a multi-stage screening setup with two or more screens in series is recommended for optimal efficiency and screening accuracy.

Q3: My material is very wet and sticky. What’s the best solution?

A: Sticky materials are a common challenge. Solutions include:

Using a trommel screen with internal breakers.
Installing a vibrating screen with heated decks, rubber-ball cleaning systems, or tensioned polyurethane panels that resist blinding.
Adding a water spray bar (scrubbing) if the process allows it.
