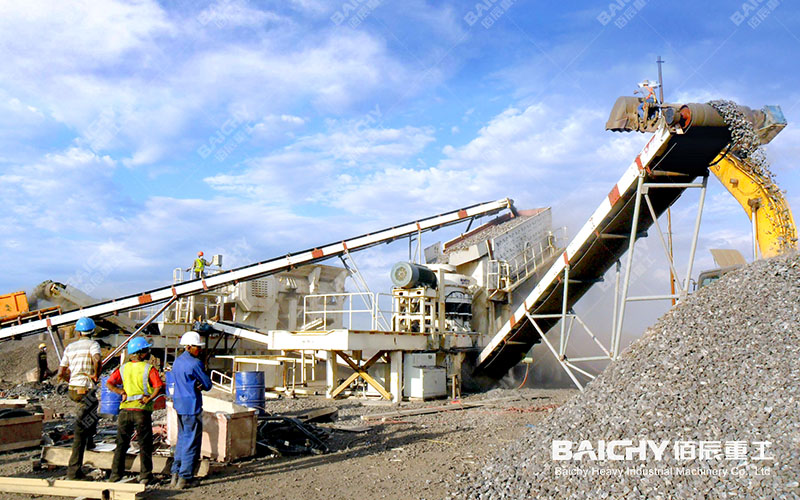

Mobile crushing plants
In mining, construction waste processing, and aggregate production, mobile crushing plants have become core equipment in modern material handling due0 to their exceptional flexibility and efficient operation. Faced with the perse types available on the market, choosing the right equipment for a specific project is a critical issue for customers. As experts with 20 years of experience in manufacturing mining crushing equipment, this article will provide an in-depth analysis of mobile crushing plant types and offer a practical selection guide.
I. Analysis of Main Types of Mobile Crushing Plants
Mobile crushing plants are not all the same. Based on the driving method, crushing process, and main equipment, they are mainly pided into the following categories:
1. Classified by Walking Method
• Wheel-type Mobile Crushing Plant: Uses a vehicle chassis and is towed by a tractor. Its advantage lies in convenient road transfer, complying with road traffic regulations. It is suitable for projects with dispersed materials and requiring frequent site changes, such as urban construction waste processing and rotational operations between multiple quarries.
• Crawler-type Mobile Crushing Plant: Uses a crawler chassis and is fully hydraulically driven. Its greatest feature is its strong passability, allowing it to move independently on rugged, slippery, and complex terrain, and even supporting remote control operation, ensuring high safety. It is suitable for mines and earthwork projects with complex terrain and harsh site conditions.
2. Classified by Crushing Process Flow
This is the core of the selection process, determining the final form and output of the production line.
• Mobile Jaw Crushing Plant: As the "pioneer of coarse crushing," its core is the jaw crusher. Its structure is robust, with a large crushing ratio, specifically designed for the first stage of crushing large raw materials (such as boulders and concrete blocks), providing raw materials of suitable particle size for subsequent processes.
• Mobile Cone/Impact Crushing Plant: As the "expert in medium and fine crushing."
◦ Mobile Cone Crusher: Suitable for crushing medium to high-hardness materials (such as granite and basalt), using the lamination crushing principle, resulting in good product particle shape and relatively low wear costs.
◦ Mobile Impact Crusher: Suitable for crushing medium to low-hardness materials (such as limestone and construction waste), using the impact crushing principle, resulting in excellent product particle shape. It can achieve both "stone-on-metal" and "stone-on-stone" crushing, offering high flexibility.
• Mobile Impact Crusher (Sand Making Plant): The core component is the vertical shaft impact crusher (VSI), a professional "sand making and shaping expert." It is used to produce high-quality manufactured sand and to perform final shaping of aggregates to obtain perfect cubic particles.
• Mobile Screening Plant: Not a crushing machine itself, but the brain of the production line. It is responsible for screening and classifying the crushed materials, separating qualified products, and returning oversized materials for further crushing or sending them to the next stage of crushing, forming a closed-loop cycle. It is crucial for ensuring the final product's gradation.
3. Combination Forms
• Single Machine Operation: Independently completes one type of crushing or screening function.
• Multi-Unit Collaborative Operation: Combining different types of mobile stations (such as "mobile jaw crusher + mobile cone crusher + mobile screening plant") into a complete mobile production line, achieving integrated operation from feeding to multi-stage crushing, screening, and conveying, reaching peak capacity and product control capabilities.
II. 20 Years of Expert Perspective: How to Scientifically Select a Mobile Crushing Plant?
Selecting equipment is not simply a matter of comparing parameters, but a systematic process. Based on our 20 years of experience serving thousands of customers, we have summarized the following "four-step method":
Step 1: Clarify Material Characteristics and Product Requirements
• Material Characteristics: Hardness (Mohs hardness), moisture content, clay content, maximum raw material particle size. This is the primary basis for selecting the type of core crushing machine (jaw crusher, cone crusher, or impact crusher).
• Product Requirements: Target output, final product specifications (particle size, particle shape, gradation). This determines the production line configuration (single machine or combination), the number of screening layers, etc.
Step 2: Evaluate Project Working Conditions and Site Conditions
• Site Terrain and Environment: Wheeled type is suitable for flat construction sites, while tracked type is preferred for complex mountainous or muddy terrain.
• Relocation Frequency: If frequent transfers between different construction sites are required, the wheeled type has a clear advantage; for long-term operation in a fixed mine, the stability and passability of the tracked type are better.
• Environmental Requirements: Is it necessary to equip dust removal, noise reduction, and spraying systems? This is crucial for operations in urban areas. Step 3: Weighing Investment and Operating Costs
• Initial Investment: Typically, crawler-mounted crushers, due to their higher level of technological integration, have a higher unit price than wheeled crushers of the same specifications. Multi-unit operations require a higher investment than single-unit operations.
• Operating Costs: A comprehensive calculation should include fuel/electricity consumption, wear and tear rate and replacement costs of wear parts (such as jaw plates, impact plates, and cone liners), and the ease of equipment maintenance. A well-designed and easy-to-maintain piece of equipment can significantly reduce overall costs in the long run.
Step 4: Evaluating the Manufacturer's Overall Strength
• Technical Experience and Customization Capabilities: Manufacturers with 20 years of experience can provide more reliable equipment solutions and can provide non-standard customization based on your specific working conditions.
• Quality of Core Components: The performance of the main machine, the brand and stability of the hydraulic system and electrical control system.
• After-Sales Service Network: Mobile crushing plants operate in various locations, so a strong after-sales service system and rapid spare parts supply capabilities are crucial for ensuring continuous production.
III. Summary of Core Advantages
A correctly chosen mobile crushing plant can bring you:
• Reduced Transportation Costs: Achieving "bringing the equipment to the material," rather than "bringing the material to the equipment," saving significant material transfer costs.
• Increased Operational Flexibility: Quickly responding to production needs at different construction sites and improving equipment utilization.
• Rapid Commissioning and Increased Efficiency: Requires almost no concrete foundation after arrival on site; production can begin immediately after connecting to power, significantly shortening project cycles.
• Environmental Protection and Safety: Integrated design reduces dust and noise, and remote control enhances operational safety.
Choosing a mobile crushing plant is a professional decision-making process, from "understanding your own needs" to "matching the equipment." It's not just a purchase; it's an investment in your production efficiency and profitability for the next several years. As a partner with 20 years of experience in the industry, we can not only provide you with a full range of high-quality mobile crushing and screening equipment, but also, with our extensive project experience, provide you with full lifecycle services from site survey and solution design to installation and commissioning, and operation and maintenance support.
