Coal crushing
In the field of industrial fuels and raw materials, processing large lumps of raw coal or coal raw materials into uniformly sized, specified small coke particles is a crucial step in improving combustion efficiency, ease of transportation, and economic viability. As a mining crushing equipment manufacturer with 20 years of professional experience, we understand that a scientifically designed and stably operating coal crushing and screening production line is not only a guarantee of production capacity but also the core of your return on investment.
So, how do you build an efficient and reliable coal crushing and screening production line? This article will provide you with an in-depth analysis based on our industry experience.
I. Analysis of the Core Process of the Production Line
A complete coal crushing and screening production line aims to transform large lumps of coal from the mine (which may contain impurities and have varying particle sizes) into clean, size-controlled coke products through multiple processes. The core process typically includes:

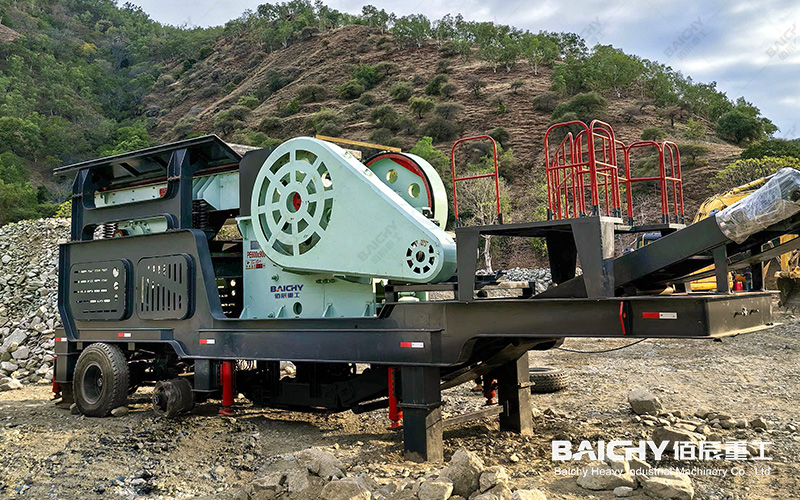

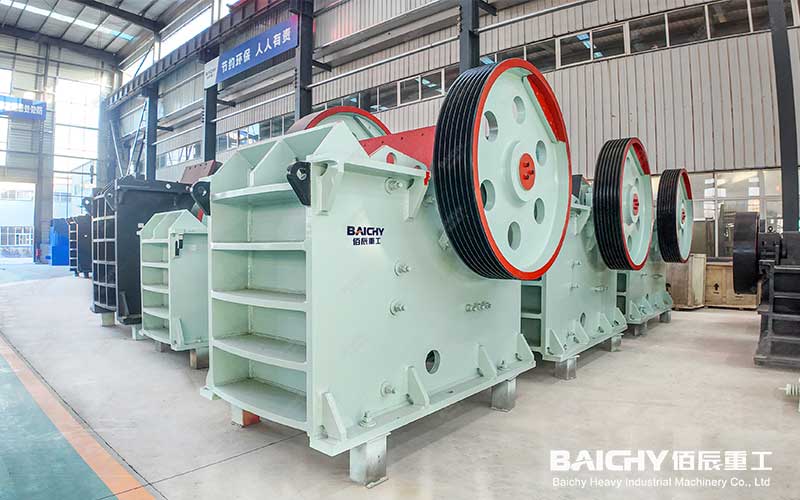

PE Jaw Crusher for Crushing coal
Heavy hammer crusher for Crushing coal
1. Coarse Crushing Stage: This stage mainly processes large lumps of raw coal from the mine (particle size may reach 300-500mm or even larger). The core equipment is a jaw crusher or a heavy-duty hammer crusher. Its task is to perform the first size reduction, crushing the material to a medium particle size (such as below 150mm), laying the foundation for subsequent fine processing. This stage requires equipment with extremely strong impact resistance and high processing capacity.
Impact Crusher for Crushing coal

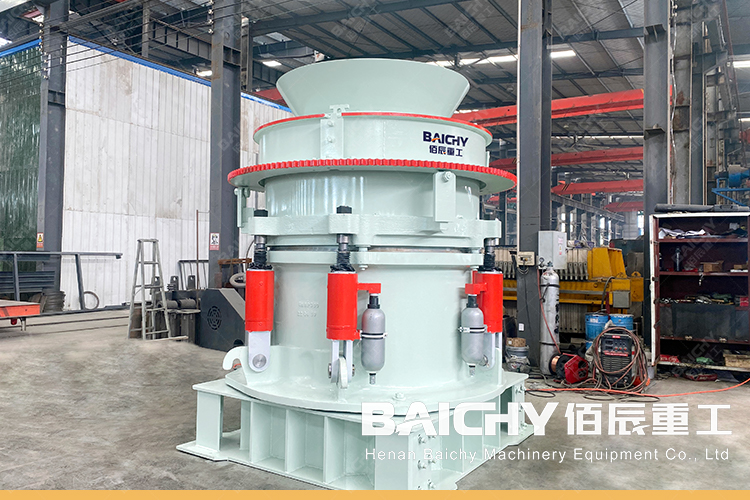

Hydraulic Cone Crusher for crushing coal
2. Medium and Fine Crushing and Shaping Stage: The material after coarse crushing enters this stage, with the goal of further crushing it to a smaller size (such as below 30-50mm). Impact crushers or cone crushers are recommended. Impact crushers combine crushing and shaping functions, resulting in better product particle shape and relatively lower energy consumption; if the raw material hardness is extremely high or there are extreme requirements for equipment wear resistance, a cone crusher is a better choice.
3. Screening and Grading Stage: This is the core link for controlling the final product particle size. The crushed mixed material is strictly graded through a vibrating screen (multi-layer heavy-duty linear vibrating screen or circular vibrating screen). The number of screen layers and aperture size can be customized according to your requirements for the finished coke particle size (e.g., 0-5mm, 5-10mm, 10-25mm, etc.). Materials meeting specifications enter the finished product stockpile, while oversized particles are returned to the crusher for closed-loop reprocessing, ensuring 100% compliance with particle size requirements.
4. Impurity Removal and Cleaning (Optional): Depending on the quality of the raw coal, iron separators (to remove metal impurities), coal washing equipment, or air classifiers can be integrated into the process to improve the purity and quality of the final coke product, meeting the demands of high-end industrial applications.
II. Advantages of Key Equipment Selection and 20 Years of Manufacturing Experience
Equipment is the backbone and muscle of the production line. Our 20 years of dedicated experience allow us to provide more valuable solutions for your project:
• Durability First: Coal crushing conditions are harsh, with high dust levels and heavy wear. Our equipment uses specially made high-manganese steel or alloy wear-resistant materials in critical parts (such as hammer plates, crushing chamber liners, and screen plates), and through optimized structural design, maximizes the lifespan of wear parts, directly reducing your long-term operating and maintenance costs.
• Efficiency and Energy Saving Balance: The crushers we provide all adopt advanced crushing chamber designs, ensuring crushing force while improving throughput and output. The drive system is optimized to avoid oversized motors for small loads, maximizing output per unit of energy consumption.
• Intelligence and Stability: The production line can integrate a PLC central control system for one-button start/stop, fault alarms, and remote monitoring. Vibration equipment uses dynamic analysis and balancing technology to ensure stability and low failure rates during long-term high-load operation.
• Customized Design: We don't just sell inpidual machines; we provide turnkey system solutions. From site surveys, process design, equipment layout, to installation guidance and after-sales support, our 20 years of project experience ensure that the production line perfectly matches your specific raw material characteristics, production capacity targets (50 tons/hour, 200 tons/hour, or higher), and site conditions.
III. The Long-Term Value of Investing in a Professional Production Line
Choosing a professional production line means you gain not just a few machines, but a system that continuously creates value. It can:
• Increase product added value: Uniformly sized coke products are more competitive in the market and command higher prices.
• Reduce overall operating costs: Efficient equipment means lower labor, energy, and maintenance expenses. • Ensuring production continuity: Equipment reliability is the cornerstone of on-time order delivery and maintaining customer reputation.
If you are planning or upgrading your coal processing project, our extensive product line (from PE series jaw crushers and PF/CI series impact crushers to multi-layer heavy-duty vibrating screens) and deep industry knowledge are ready to serve you. Let our 20 years of expertise help make your business more solid and secure.
