Heavy mobile unit with jaw crusher
Baichy Heavy Industry's YDPZ series mobile jaw crusher plant is a "mobile mine" that highly integrates a high-performance jaw crusher (such as PE600x900 or PE750x1060) with a feeder, belt conveyor, and mobile chassis. It solves the pain points of traditional fixed production lines, such as long construction cycles, high relocation costs, and the need for large-scale infrastructure construction. Whether for granite quarrying or on-site processing of urban construction waste, this unit can achieve "arrival on-site, deployment and immediate production," saving approximately 30%-50% of the initial comprehensive investment costs compared to traditional solutions.
Core Technical Parameters
| Parameter Name | Specifications (Typical Configuration) | Practical Application Value |
| Core Crusher Model | PE600×900 / PE750×1060 | Designed for hard rock, maximum feed size 500-600mm |
| Processing Capacity | 100 - 250 tph | Meets the high-intensity production needs of medium to large-scale projects |
| Chassis Type | Pedestrian-mounted heavy-duty chassis | Meets road transport standards, supports rapid relocation |
| Power Configuration | Electric drive / Optional diesel generator set | Flexible handling of power outages or unstable power conditions |
| Integrated Components | Vibrating feeder + jaw crusher + conveyor belt | Integrated design, reducing on-site installation and commissioning time |
| Total Weight | 35 - 55 t (depending on configuration) | Robust Structure Ensures Equipment Stability During High-Speed Operation |

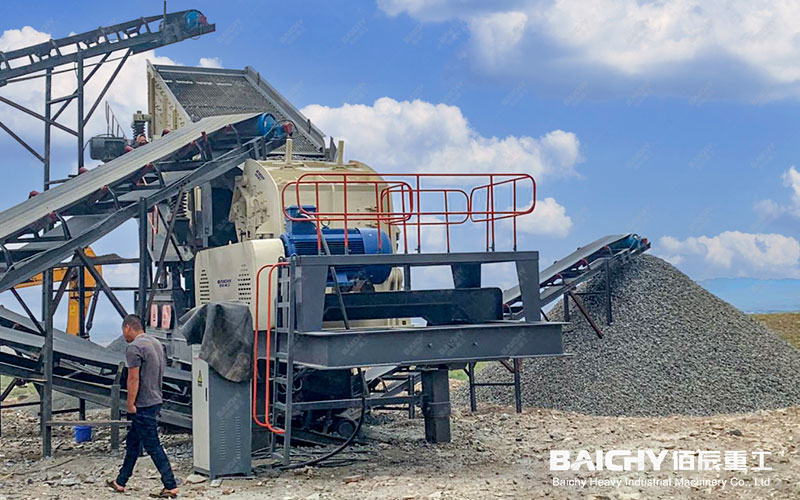

250tph Mobile Crushing Plant, Mobile Crushing Equipment
Why is YDPZ the "All-Round King" of Mobile Operations?
1. Eliminating "Infrastructure Held Back": Start-up Within 24 Hours
Traditional crushing lines require complex concrete foundations. The YDPZ series adopts an integrated vehicle-mounted design, requiring only simple leveling and support upon arrival.
Cost Savings: Directly saves tens of thousands of yuan in civil engineering and foundation hardening costs.
Time Savings: From equipment arrival to stone output, it takes as little as 24 hours, greatly improving project response speed.
2. "Hard Rock Buster" Core: Inheriting the Classic PE Series
Built in a Baichy Heavy Industry deep-cavity jaw crusher, employing high centrifugal force and an optimized crushing chamber shape.
Super Strong Biting Force: Easily crushes extremely hard materials such as granite, basalt, and quartzite.
Low Wear Design: The high-manganese steel jaw plates are thickened, resulting in a longer service life when processing hard rock and significantly reducing downtime for parts replacement.
3. Flexible Modular Combination
The YDPZ is not just a standalone machine, but a flexible "building block" production line.
Independent Crushing: Can be used as a primary crushing station to independently produce coarse material.
Multi-Machine Combined Operation: Can be connected in series with mobile impact crushers or mobile cone crushers to form complete two-stage and three-stage crushing and screening processes, producing various specifications of high-quality aggregates such as 0-5mm, 5-10mm, and 10-20mm.
4. Heavy-Duty Chassis Designed for Harsh Environments
Considering the rugged terrain of mining areas, our chassis uses heavy-duty I-beam main beams and high-strength turning axles.
Short Wheelbase Design: A small turning radius allows for extremely flexible transport in narrow construction demolition sites or mountainous mining areas.
Typical Application Scenarios
Mining: Preliminary crushing and pretreatment of ores such as gold, copper, and iron ore.
Aggregate Processing: On-site processing of sand and gravel for highway, railway, and water conservancy projects.
Construction Waste Recycling: Directly entering urban demolition sites to crush concrete blocks and bricks into recyclable sand and gravel.
Mobile Contracting Operations: Suitable for renters and engineering contractors who need to frequently move between multiple mining sites.
Frequently Asked Questions (FAQ)
Q: Will the steel bars inside the mobile crushing plant get stuck when processing construction waste?
A: No. Our feeder has a pre-screening function, and the jaw crusher outlet has ample discharge space. For steel bars in construction waste, a powerful magnetic separator can be used for automatic separation, ensuring the safe operation of the conveyor belt and subsequent equipment.
Q: Can we choose diesel engine drive?
A: Yes. YDPZ supports both "pure electric drive" and "dual-fuel" configurations. For remote mining areas with limited power, we can install original imported or top-tier domestic diesel generator sets for one-button power switching.
Q: Is equipment maintenance convenient?
A: The equipment platform features foldable maintenance walkways on both sides for easy daily inspection and lubrication. The replacement space for key components such as the jaw plates has been specially optimized, making it easier to maintain than stationary equipment.
