In crushing processes across industries such as mining, building materials, and metallurgy, hammer mills, with their simple structure, large crushing ratio, and high production efficiency, have become the core equipment for medium and fine crushing operations. Faced with perse production capacity plans, selecting equipment with the right processing capacity is crucial to ensuring both return on investment and smooth production. This article will provide an in-depth analysis of two mainstream hammer mill types with processing capacities of 5-8 tons/hour and 20-25 tons/hour, offering comprehensive selection guidance.
I. Needs Analysis and Equipment Overview
Your requirements (feed 20-50mm, output <10mm, capacity 5-8t/h and 20-25t/h) clearly point to a secondary or tertiary crushing stage for medium-to-low hardness materials (such as limestone, coal gangue, gypsum, etc.). These two capacity ranges cover common scenarios from small-to-medium-sized production lines to medium-scale production.

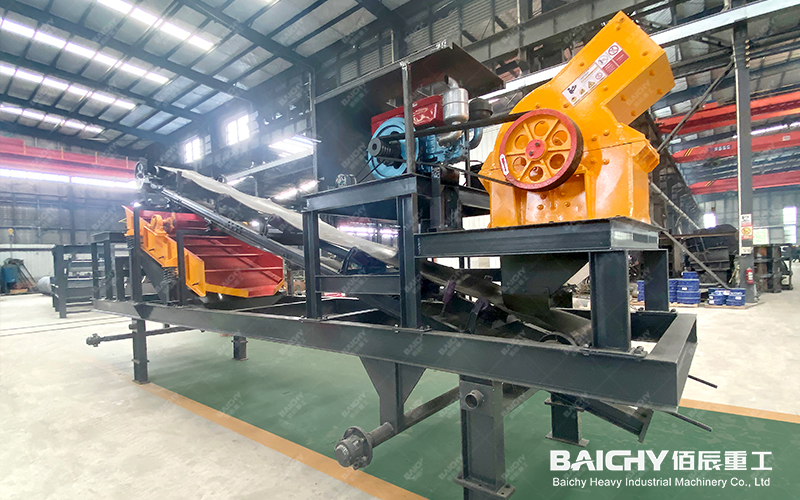

Mobile Hammer Crusher
• 5-8 tons/hour level equipment: Typically a small hammer mill, with moderate power, small footprint, and lower investment cost. Suitable for new projects with low capacity requirements, small stone quarries, or as a supplement or pilot line to large production lines.
mobile hammer crusher
• 20-25 tons/hour class equipment: This is a medium-sized hammer crusher with a more robust structure, significantly increased rotor width and number of hammers, making it ideal for achieving stable, large-scale output. It can meet the capacity requirements of most small and medium-sized sand and gravel aggregate production lines for core crushing equipment.
Both types of equipment use a high-speed rotating rotor to drive hammers, impacting, shearing, and grinding materials to achieve efficient crushing from 20-50mm to <10mm.
II. Core Advantages of Recommended Models
For the above-mentioned capacity requirements, our optimized hammer crusher series has the following common advantages to ensure your crushing operations are efficient, stable, and economical:
1. High Crushing Ratio and Output Control
A single-stage crushing process can achieve a crushing ratio of 5:1 or even higher, easily crushing 50mm feed material to below 10mm in one pass. By adjusting the bottom grate gap, the output particle size can be flexibly controlled to meet your precise requirements for product particle shape.
2. Robust Structure and Convenient Maintenance
The integral cast steel bearing housing and heavy-duty rotor design ensure the stability of the equipment under continuous impact loads. The casing adopts a hydraulic opening or flip-top design, making it very convenient to replace vulnerable parts such as hammers and liners, greatly reducing downtime for maintenance.
3. Optimized Energy Consumption and Economical Operation
The scientific cavity design and optimized hammer movement trajectory improve the utilization rate of impact energy, resulting in lower energy consumption for the same processing capacity. Wear-resistant parts are made of new composite alloy materials, with a long service life, effectively reducing the cost per ton of production.
III. Application Scenarios and Case References
• Case 1 (5-8t/h Equipment): A certain environmentally friendly brick product enterprise in Northeast China purchased our PCΦ600×400 hammer mill to crush construction waste concrete blocks (feed particle size ≤50mm) into aggregates <8mm. The equipment operates smoothly, with a stable processing capacity of 7 tons/hour, perfectly matching the rhythm of its brick production line and realizing the resource utilization of construction waste.
• Case Study 2 (20-25t/h Equipment): A limestone aggregate production line in Henan Province uses our PCΦ800×600 hammer mill in its secondary crushing section. It crushes the 40-80mm material from the primary jaw crusher into 0-10mm finished products. The actual average processing capacity reaches 23 tons/hour, with uniform output particle size, making it a key link in ensuring the production capacity and finished product quality of the entire production line.
IV. Recommended Related Product Lines
In addition to selecting the core crushing equipment, an efficient crushing system also requires the cooperation of other equipment:
• Feeding Equipment: ZF series heavy-duty plate feeder or GZT series vibrating feeder to ensure uniform and continuous feeding to the hammer mill, avoiding idling or overloading.
• Screening Equipment: YK series circular vibrating screen, which can classify the crushed material. Qualified products are screened out, and oversized particles are returned for re-crushing, forming a closed-loop cycle, further improving efficiency and yield.
• Primary Crushing Equipment: If you are processing raw ore or large stones, you can use our PE series deep-cavity jaw crusher for coarse crushing, providing the ideal feed particle size for the hammer crusher.
V. Frequently Asked Questions (FAQ)
Q1: Will the occasional feed particle size exceeding 50mm damage the equipment?
A1: Our hammer crusher is designed to handle a certain amount of oversized material, but long-term or frequent processing of oversized materials will accelerate the wear of the hammers and liners, and may even lead to grate damage or excessive stress on the main shaft. It is recommended to install a reliable screening or manual sorting system at the front end to strictly control the feed particle size. This is the best practice for protecting the equipment and maintaining stable production capacity.
Q2: How can I ensure that the output particle size is consistently below 10mm?
A2: First, the grate gap at the bottom of the equipment is the primary factor controlling the output particle size, which we will preset according to your needs. Second, the wear of the hammers will gradually affect the output particle size, so it is necessary to regularly inspect and replace worn hammers. Finally, maintaining a suitable feed rate and uniformity also helps to obtain stable output products.
Q3: When upgrading from a 5-8 ton capacity to a 20-25 ton capacity, besides the main unit, what else should be considered?
A3: Upgrading capacity is a systemic project. You will need to simultaneously assess and potentially upgrade upstream feeding equipment, downstream conveyor bandwidth and speed, matching motor power and power supply lines, and the airflow of the dust removal system. We can provide comprehensive production line design solutions and equipment matching suggestions.
