Malaysian Tin Ore Mining and Processing Equipment
Malaysia was once renowned for its abundant tin resources, boasting a long history of tin mining and mature technology. Efficient ore beneficiation is the core element for the economical utilization of tin resources. Understanding the key equipment used is crucial for both mine operations and equipment suppliers. This article will provide a deep analysis of the ore beneficiation process and core equipment in Malaysian tin mining for manufacturers of mining crushing equipment.
I. Overview of Malaysian Tin Ore Beneficiation
1.1 Characteristics of Tin Ore Resources and Beneficiation
Malaysian tin ore is primarily placer tin ore, occurring in alluvial deposits. It is characterized by easy extraction but significant grade fluctuations. In the raw ore, cassiterite (SnO₂) is associated with a large amount of gangue (such as quartz, feldspar, clay, and iron minerals), resulting in significant density differences. Therefore, its core beneficiation process mainly revolves around gravity separation, utilizing the density differences between minerals for separation, often supplemented by magnetic separation and electrostatic separation for further refinement.
1.2 Typical Beneficiation Process
A typical Malaysian placer tin ore beneficiation process includes: ore preparation (screening, washing), roughing (obtaining rough concentrate), cleaning (improving concentrate grade), and tailings treatment. The entire process heavily relies on a series of physical separation equipment.
II. Detailed Explanation of Core Beneficiation Equipment
2.1 Crushing and Screening Equipment
This is the preparatory stage before beneficiation, designed to crush large ore pieces to suitable particle sizes and classify them.
PE Jaw Crusher
• Jaw Crusher: Used for primary crushing of raw ore; robust structure, large throughput, suitable for processing raw materials containing clay and gravel extracted from rivers or mines.
• Vibrating Screen: Mainly used for screening and dewatering, separating materials of different particle sizes to provide suitable feed for subsequent gravity separation operations.
2.2 Gravity Separation Equipment
This is the core of tin ore beneficiation; almost all placer tin ore mines rely on this type of equipment.
• Jigs: Used for roughing and cleaning of coarse and medium-sized tin minerals.
• Pulsed water flow loosens the bed, causing minerals to stratify according to density, efficiently recovering liberated cassiterite.

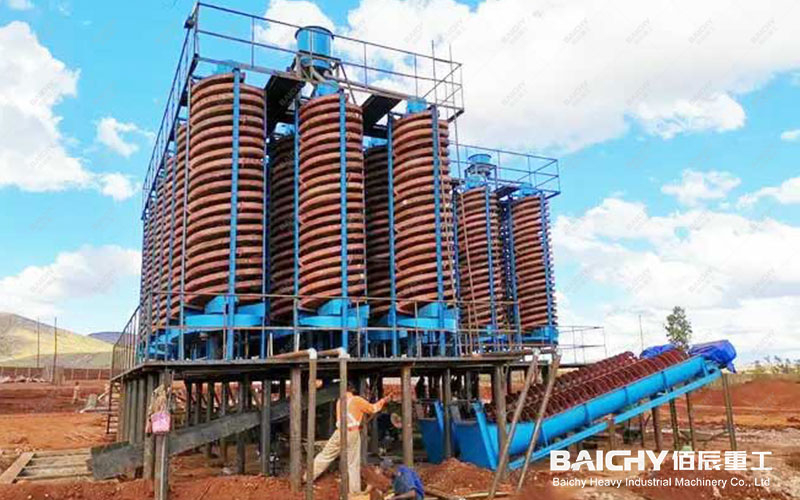

Spiral Chutes
• Spiral sluice: An economical and effective device for processing fine-grained materials (-2mm). It utilizes the centrifugal force generated by water flowing in an inclined trough for separation, requiring little floor space, having no moving parts, and being simple to operate.

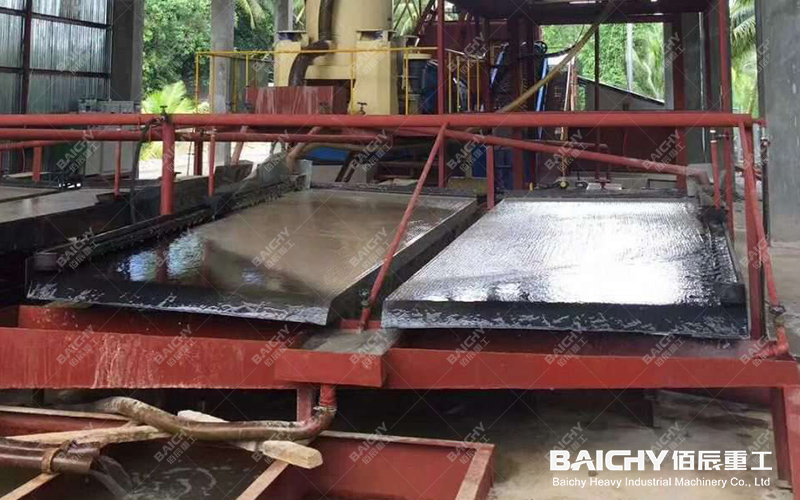

Shaking bed
• Shaking table: Used for the fine selection of muddy materials, achieving extremely high separation accuracy and producing high-grade tin concentrate and various by-products. It requires a high level of operational skill and is a key piece of equipment for improving the final concentrate quality.
2.3 Auxiliary Selection and Dewatering Equipment
• Magnetic separator: Used to remove magnetic iron minerals (such as magnetite and ilmenite) from tin concentrate, a necessary step to improve concentrate purity.
• Spiral washer/scrubber: Used to clean and break up raw ore with high mud content before beneficiation, removing clay coatings from the surface of cassiterite and significantly improving separation efficiency.
• Thickeners and filters: Used for dewatering concentrates and tailings, facilitating transportation and storage, and enabling the recycling of water resources.
III. Why Choose Professional Mining Crushing and Beneficiation Equipment?
3.1 Technological Advantages
Equipment provided by professional manufacturers is designed to better suit the specific physical characteristics of Malaysian tin ore (such as hardness, mud content, and particle size distribution). For example, wear-resistant materials and optimized structures designed for abrasion significantly reduce long-term maintenance costs and downtime.
3.2 Efficiency and Profit Advantages
Highly efficient crushing equipment provides ideal feed particle size for subsequent gravity separation, which is the cornerstone of gravity separation efficiency. Every percentage point increase in recovery rate from a highly efficient jig or shaking table translates into significant economic benefits. Stable and reliable equipment ensures continuous and stable operation of the entire beneficiation plant, directly increasing capacity and profits.
3.3 Case Study Insights
Taking a medium-sized placer tin mine redevelopment project in Malaysia as an example, its core challenge was handling the cohesive ore soil. We provided a combined solution of a high-powered scrubbing machine and a heavy-duty vibrating screen, effectively solving the problems of material blockage and fragmentation, and increasing the recovery rate of the subsequent jig by more than 15%. This demonstrates the decisive impact of front-end pretreatment equipment on overall beneficiation efficiency.
IV. Recommended Equipment
For manufacturers intending to enter or serve the Malaysian tin ore market, we recommend focusing on the research and development and promotion of the following equipment lines:
1. Modular heavy-duty scrubbing/washing system: Adaptable to various sticky ores, quick deployment.
2. High-recovery, energy-saving jig: Core gravity separation equipment; its adaptability and energy-saving performance should be emphasized.
3. Multi-layer fine vibrating screen: Used for complex particle size classification, improving separation targeting.
4. Wear-resistant spiral chute and shaking table: Meets the needs of continuous and stable separation of fine-grained tin ore.
V. Frequently Asked Questions (FAQ)
Q1: What technology does tin ore beneficiation in Malaysia mainly rely on?
A1: Mainly gravity separation technology, because cassiterite has a significant difference in specific gravity compared to common gangue. Jigging, spiral sluices, and shaking tables are the most commonly used gravity separation equipment.
Q2: As a crushing equipment supplier, where do our products fit in the tin ore beneficiation process?
A2: They are in the most critical "pre-treatment" stage. Your crushing, screening, and washing equipment is responsible for preparing the raw ore, and its effectiveness directly determines the feed quality and final recovery rate of all subsequent gravity separation equipment. Providing stable, appropriately sized feedstock is the first step to successful beneficiation.
Q3: What are the most important factors for modern Malaysian tin ore beneficiation plants when selecting equipment?
A3: They not only focus on the initial purchase cost but also value the long-term operational reliability, energy consumption, wear resistance, and after-sales technical support of the equipment. Equipment that can adapt to declining resource grades, handle complex minerals, and is easy to automate is preferred.
