In the field of gold mining, the adage holds true: "Time is money, and efficiency is life." Faced with complex, ever-changing mining terrain and extremely hard gold ore, traditional stationary crushing lines often deter investors due to their lengthy construction periods and high relocation costs.
Today, we will take an in-depth look at a mobile crushing "Golden Combination" meticulously crafted by Baichy Heavy Industry. This solution not only perfectly meets the client's required production capacity of 100–200 tons per hour but, with its proven actual output of 130–250 tons per hour, has also established itself as a performance benchmark in the field of hard rock crushing.
I. Why Are Mobile Crushing Stations the "Optimal Solution" for Gold Mining?
Gold mining operations are typically characterized by the uneven distribution of ore deposits and the need for frequent site relocations. By effectively "bringing the production line directly into the mining area," Baichy Heavy Industry’s mobile crushing stations resolve the following key pain points:
1. No Foundation Construction Required: Say goodbye to the tedious process of pouring concrete foundations; the equipment can be put into production almost immediately upon arrival at the site.
2. Reduced Transport Costs: Crushing takes place directly at the excavation face, significantly shortening the transport distance for raw ore.
3. Flexible Configuration: The primary crushing unit can be readily adjusted or swapped out to suit the specific properties of the ore (whether oxidized ore or primary ore).
II. Core Configuration: The "Ace Partners" of Two-Stage Closed-Circuit Crushing
This solution consists of two high-performance mobile stations, forming a complete closed-circuit loop encompassing "coarse crushing + medium-to-fine crushing + screening."
1. The First Line of Defense: YDPZ106-1142 Primary Mobile Crushing Station
The Core Brain: C106 Jaw Crusher

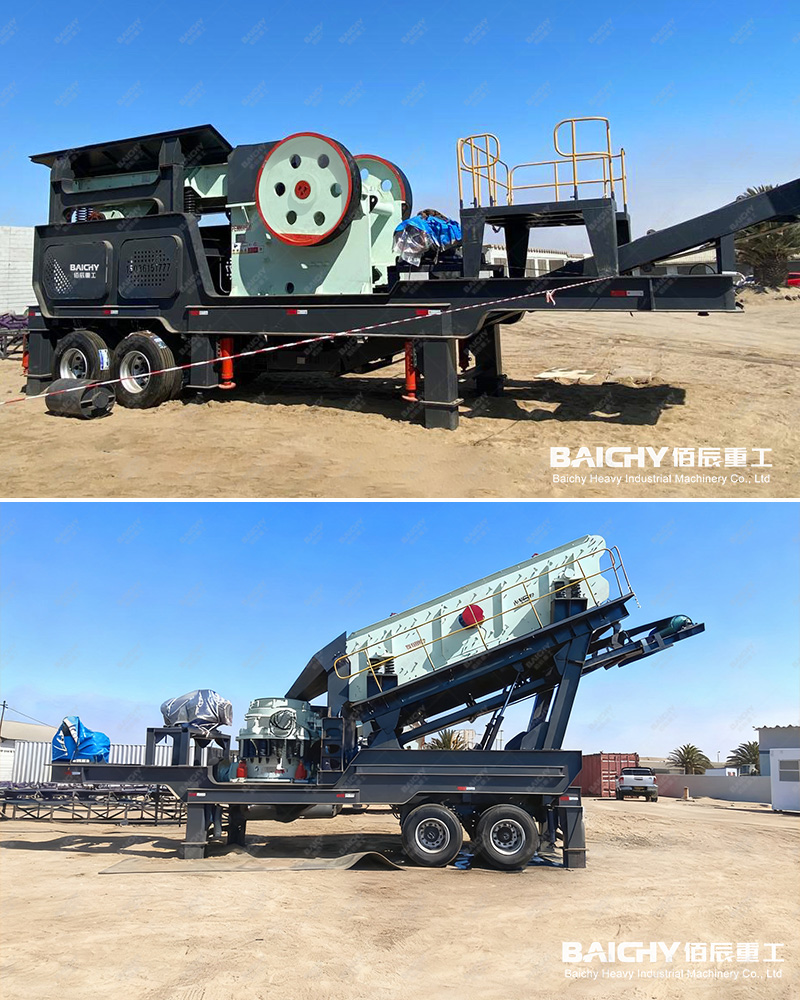

YDPZ106-1142 Primary Mobile Crushing Station
As an outstanding representative of European-style jaw crushers, the C106 features an optimized crushing chamber profile and a larger stroke. Whether processing hard quartz-vein gold ore or surrounding host rock, it effortlessly achieves a high crushing ratio. Stable Feeding: ZSW 1142 Vibrating Feeder
The Model 1142 feeder is responsible not only for uniform feeding but also features an integrated grizzly screen that pre-screens out soil and fine sand from the ore. This prevents "ineffective crushing" and boosts the overall production capacity of the entire line right from the source.
2. The Refined Core: YDPZ300-2160 Intermediate & Fine Crushing and Screening Station
Powerful Crushing: Model 300 Multi-Cylinder Hydraulic Cone Crusher

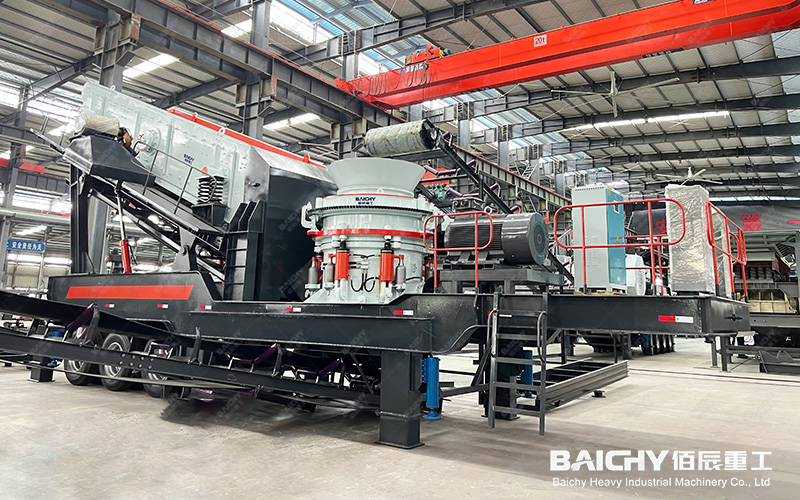

YDPZ300-2160 Intermediate & Fine Crushing and Screening Station
Hard Rock Slayer: Gold ore typically possesses high hardness; leveraging its powerful inter-particle lamination crushing force, this multi-cylinder hydraulic cone crusher produces semi-finished products with excellent particle shape and extremely fine particle sizes.
Intelligent Maintenance: Equipped with a fully automatic hydraulic cavity-clearing system and iron-overload protection, the machine automatically releases when encountering uncrushable objects, safeguarding the core components from damage.
Precise Classification: YK2160 Vibrating Screen
Boasting an ultra-large effective screening area of 2.1 meters x 6.0 meters, it ensures a clean and precise classification of the crushed materials. Oversized coarse materials are returned to the cone crusher via a closed-circuit system for re-crushing until they reach the optimal particle size for entry into the subsequent grinding process.
III. Verified Capacity: Robust Performance of 130–250 t/h
The client's specified requirement was 100–200 tons per hour, whereas the rated capacity range for this YDPZ series configuration from Baichy is 130–250 tons per hour.
This "upward-compatible" design offers significant advantages:
Effortless Full Load Operation: When operating at the required throughput of 150–180 tons per hour, the equipment runs in a non-peak-load state, enabling highly stable, continuous operation for 24 hours a day.
Handling Fluctuations: Variations in ore hardness and moisture content can impact production capacity; this solution incorporates ample power reserves to ensure a steady output of over 150 tons per hour, even under complex mining conditions. High-Quality Finished Products: Enhanced crushing power combined with a large screening area ensures highly uniform particle sizing in the finished product, reducing energy consumption by over 20% in subsequent ball milling and gold beneficiation processes.
Mobile Gold Ore Crushing Station Achieve High Output of 100–200 tph
IV. Baichy Heavy Industry’s Brand Promise
Choosing Baichy Heavy Industry means selecting not just a piece of equipment, but a comprehensive mining solution:
Rapid Delivery: Our modular design significantly shortens the cycle from order placement to operational launch.
Customized Services: Our engineers provide one-on-one optimization of equipment parameters, tailored specifically to your gold mine's ore grade, hardness, and on-site environmental conditions.
Global After-Sales Support: A professional overseas service team ensures seamless provision of spare parts and technical guidance.
Conclusion
In the field of gold mining development, choosing the right tools is half the battle. With the robust power of the C106 Jaw Crusher and the precision of the 300-series Multi-cylinder Cone Crusher, the Baichy Heavy Industry YDPZ Series Mobile Crushing Station empowers you to operate with stability and confidence on 100–200 t/h production lines, generating higher returns!
📞 Interested in receiving a detailed quotation and 3D design drawings for the YDPZ Series solution?
About of Baichy Heavy Industry
Baichy Heavy Industry – Your Trusted Partner for Seamless Equipment Operation
To ensure optimal performance of your equipment, Baichy Heavy Industry offers:
- Professional on-site installation guidance
- Comprehensive operator training
- 24/7 technical support & maintenance services
Our complete after-sales service system guarantees long-term, stable operation of your machinery with minimal downtime.
Protect Your Rights – Only Use Official Channels
To avoid scams and ensure authentic support, contact us exclusively through:
• Official Website: www.baichychina.com
• WhatsApp: +8615093222637
• Email: [email protected]
Your satisfaction is our priority – expect prompt, professional service every time.
(Note: Beware of unauthorized third parties claiming to represent Baichy. Always verify through official contacts.)
Please click below to leave a comment or send us a private message; a senior engineer from Baichy Heavy Industry will provide you with a free technical consultation!
To enhance the professional depth and interactivity of this blog post, we have designed three in-depth FAQs (Frequently Asked Questions) regarding this specific Gold Mine Mobile Crushing Solution:
Frequently Asked Questions (FAQ)
Q1: Can this 100–200 t/h mobile crushing station handle extremely hard gold ores (such as quartz vein deposits)?
A1: Absolutely. The core advantage of this solution lies in its "Hard Rock Configuration."
The C106 Jaw Crusher used for primary crushing is specifically engineered for high-strength, hard ores; its structural integrity and crushing force far exceed those of standard crusher models. The 300 Multi-cylinder Hydraulic Cone Crusher employed for secondary crushing is a true nemesis for hard rock. By utilizing the principle of inter-particle crushing (lamination), it not only efficiently crushes extremely hard gold ores but also significantly reduces the unit wear cost of wear parts (liners).
Q2: Why do you recommend a 130–250 t/h configuration to meet my specific requirement of 100–200 t/h?
A2: This recommendation is based on considerations regarding the "Optimal Load Zone" and "Production Continuity."
In actual mining operations, factors such as ore hardness, moisture content, and feed uniformity can cause actual production capacity to fluctuate. If you select equipment that operates right at the upper limit of your 100–200 t/h requirement, the machinery will frequently be forced to run at full capacity—or even under overload conditions—which increases the risk of mechanical failure and shortens the equipment's service life.
Baichy’s YDPZ series configuration incorporates a capacity redundancy of approximately 20%–30%. This means that when you need to maintain a stable output of 150–180 tons per hour, the equipment operates in its most relaxed and economical state. This approach ensures that production targets are met while significantly extending the intervals between major equipment overhauls.
Q3: Gold ore beneficiation processes impose strict requirements on the particle size of crushed output; how does this mobile station guarantee the required particle size?
A3: This is primarily achieved through the "Closed-Circuit Circulation" system of the YDPZ300-2160 unit.
Within the secondary crushing station, the crushed material is fed into a large-area YK2160 vibrating screen for precise classification.
Material that meets the specified particle size requirements (e.g., <15 mm or <20 mm) is screened out and conveyed to the finished product stockpile or the grinding bin.
Coarse material that does not meet the requirements is automatically returned via conveyor belt to the 300 cone crusher for secondary crushing.
This closed-circuit design ensures that 100% of the output material meets your preset standards, thereby enhancing efficiency and reducing energy consumption in the subsequent ball milling stage, while also preventing potential mill blockages caused by oversized particles.
