PE250x400 Mobile Jaw Crusher for Small Quarry in Slovenia
Nestled in the ravines and forests of the Slovenian Alps, small-scale infrastructure development and on-farm fossil processing are undergoing an efficiency revolution. Traditional stationary crushing lines, burdened by large land areas, complex approval processes, and high relocation costs, are no longer adequate for the demands of flexible operations. Baichy Heavy Industry's PE250x400 mobile jaw crusher, tailor-made for the local market, has become a star piece of equipment for small-scale stone crushing plants in Central Europe, boasting a precise capacity of 5-20 tph and a tractor-driven PTO solution.
I. Slovenian Operating Conditions: Why the PE250x400?
Slovenia features typical karst topography and abundant limestone resources. Local small-scale stone crushing plant owners and contractors typically face the following challenges:
1. Limited Site: Work sites are scattered across mountainous areas, limiting the access of large equipment.
2. Energy Costs: Insufficient industrial electricity coverage in remote areas, and high costs associated with fuel-powered generators.
3. Stone Hardness: While the local limestone and gravel are not ultra-hard, they still meet strict European standards (EN standard) for finished product particle shape and grading.
The PE250x400 jaw crusher, with its 250x400mm feed opening and 5-20 tons/hour capacity, precisely targets the entry-level stone crushing market.
II. Core Technology: A "Small-Scale Heavy-Duty" Machine Replicating the Genes of Large Machines
The PE250x400 is not just a simple crushing tool, but a mining equipment built strictly according to industrial-grade standards:
• Deep Cavity Crushing Principle: The crushing chamber adopts a deep cavity design with a long stroke and no dead zones. Materials undergo multiple compression and layering crushing within the chamber, significantly improving the crushing ratio and ensuring a reasonable aggregate gradation within the 20-60mm range.
• High Manganese Steel Material: For the harder limestone, the jaw plates are made of Mn13Cr2 high manganese alloy. This material undergoes surface work hardening upon severe impact, while the substrate retains excellent toughness, extending the replacement cycle of wear parts by over 40%.
• Heavy-duty bearing system: The eccentric shaft uses four-row self-aligning roller bearings, capable of withstanding extremely high radial loads, ensuring equipment stability under prolonged, high-load operation.
III. Highlights of the Slovenian Solution: Tractor PTO + Mobile Chassis

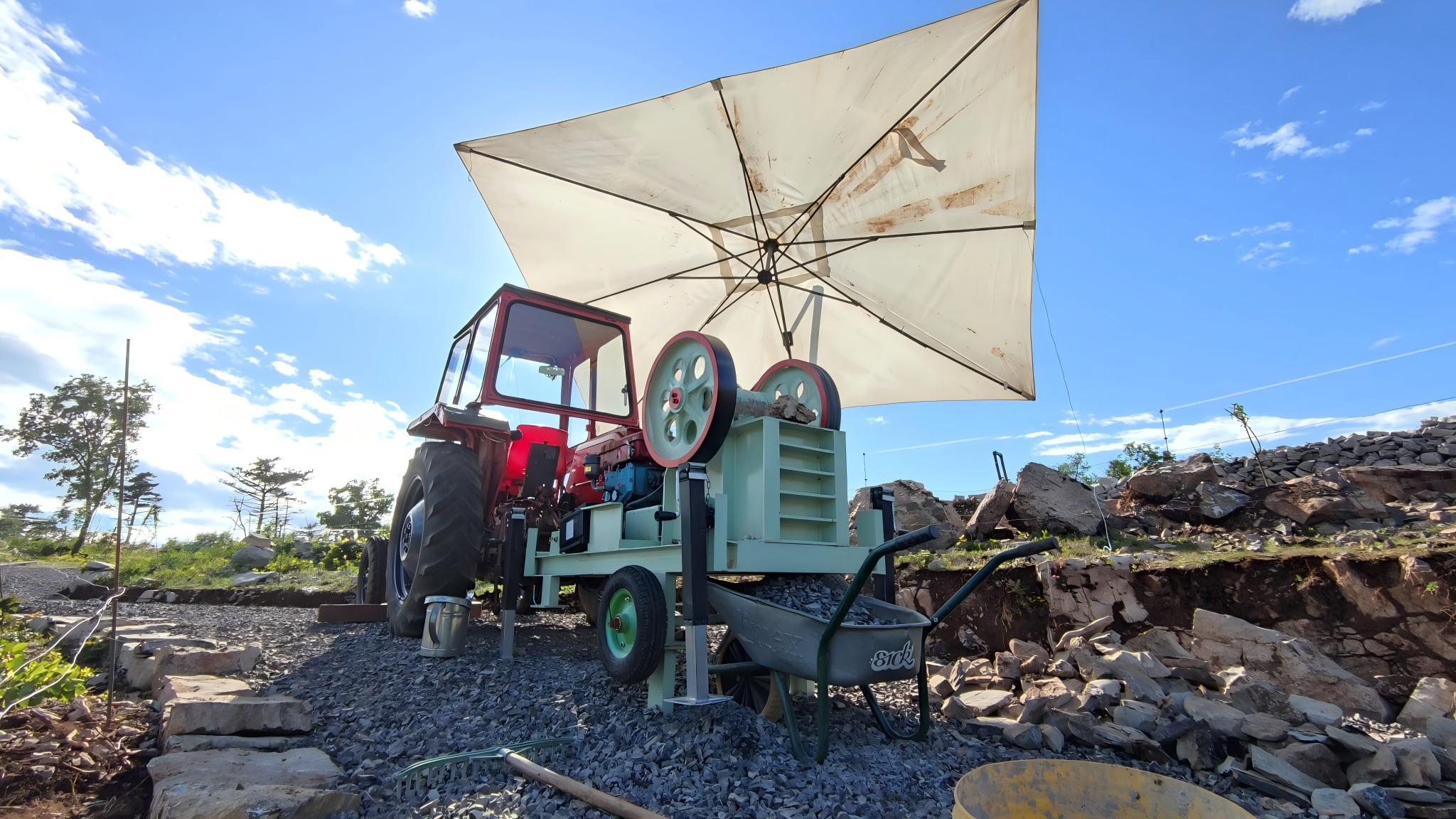

The configuration shown in the image is key to the project's success and its most attractive "hardcore" feature to European customers:
1. Tractor PTO (Power Take-Off) Linkage
No external power supply or dedicated generator is required. The equipment connects directly to the PTO interface of the on-site agricultural tractor via a universal joint drive shaft.
• Extreme fuel efficiency: Directly utilizing the tractor's high thermal efficiency engine saves approximately 20% more fuel than a standalone generator set.
• Low environmental impact: Reduces noise pollution and emissions from an additional engine, perfectly meeting Slovenia's high requirements for environmentally friendly construction.
2. All-Terrain Mobile Chassis
The crusher is integrated onto a modular chassis with tires:
• Zero Infrastructure Barrier: No concrete foundation required; simply lower the hydraulic/manual support legs to start.
• High Relocation Efficiency: Only a tractor of 50 horsepower or more is needed for towing, enabling "towing and moving on demand" in narrow mountain forest roads.
IV. Economic Considerations: Return on Investment for Small-Scale Crushing Plants
In Slovenia, the final selling price of aggregates typically includes high hauling costs.
• In-situ Crushing Value: By processing raw materials directly on-site using the PE250x400, transportation costs can be saved by €5-10 per ton of aggregate.
• Investment Recovery Period: Based on an average capacity of 15 tph and 8 hours of operation per day, producing 120 tons of high-quality aggregate per day, under the current infrastructure raw material price environment in Central and Eastern Europe, the purchase cost of the equipment can typically be fully recovered within 3-6 months.
V. Technical Specifications Quick Reference
| Parameter Item | Data Indicators | Remarks |
| Feed Inlet Size | 250 × 400 mm | Maximum Feed ≤ 210mm |
| Production Capacity Range | 5 - 20 tph | Depends on hardness and discharge particle size |
| Discharge Adjustment Range | 20 - 60 mm | Shim-type adjustment, easy operation |
| Power Supply | 15 kW / PTO | Compatible with tractors of 50HP and above |
| Chassis Configuration | With tire-mounted mobile chassis | Includes support legs and swivel hook |
VI. Frequently Asked Questions (FAQ)
Q: Can it process construction waste or waste concrete?
A: Yes. The PE250x400 is highly compatible with concrete blocks containing appropriate reinforcement, making it an ideal small entry point for Urban Construction Waste Recycling (RCA) projects.
Q: How does it perform in the mountainous, high-altitude regions of Slovenia?
A: The PTO drive mode is independent of atmospheric pressure affecting the naturally aspirated generator. As long as the tractor has sufficient power, the equipment's performance will not degrade under high-altitude conditions.
Q: Are wear parts readily available in Europe?
A: Bailey Heavy Industries uses internationally standardized jaw plates and bearings. We have long-term partners in Europe, enabling rapid local supply of wear parts.
