In the beneficiation process for hard rock gold mines, crushing and grinding constitute the critical front-end stages that determine both gold recovery rates and economic returns. High-efficiency, energy-saving crushing and grinding equipment processes hard ores into a particle size suitable for separation, thereby creating optimal conditions for subsequent processes such as cyanidation and flotation. This article provides a systematic introduction to the core equipment, process flows, and selection advantages associated with the crushing and grinding stages of hard rock gold mining, while also sharing practical application case studies.
Process Overview: The Transformative Journey from Rock to Gold Dust
The crushing and grinding of hard rock gold ores typically follows a "multi-stage crushing, staged grinding" sequence. The primary objective is to liberate the ore—separating the valuable minerals from the gangue—to a target particle size (typically with over 85% passing a -200 mesh screen) with minimal energy and steel consumption. This ensures that the gold minerals are fully liberated as discrete particles, facilitating their subsequent recovery.
A typical process flow is as follows: Run-of-Mine Ore → Coarse Crushing → Intermediate Crushing → Fine Crushing → Primary Grinding → Classification → Secondary Grinding. Each stage requires the deployment of specific crushing and grinding equipment to maximize both efficiency and economic returns.
Detailed Analysis of Core Crushing and Grinding Equipment
Coarse Crushing Equipment: The "First Gateway" of the Production Line
Coarse crushing is primarily responsible for processing large blocks of raw ore extracted directly from the mine (with particle sizes potentially exceeding 1000 mm), reducing them to a size of approximately 250–300 mm.

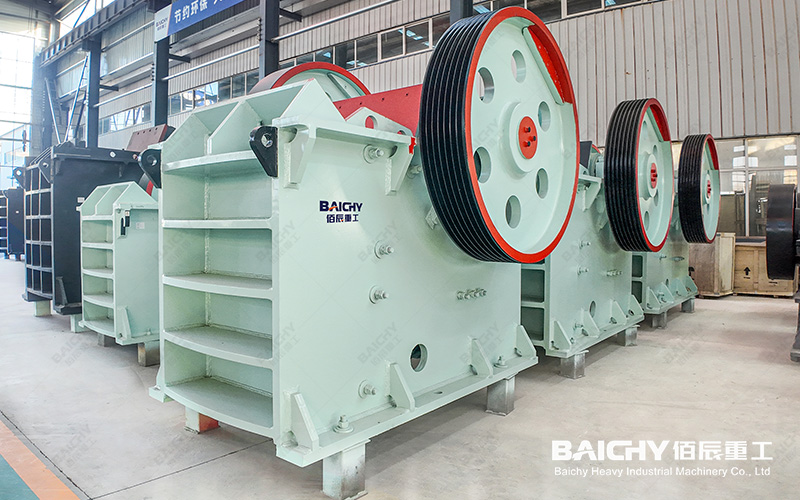

PE Jaw Crusher
• Jaw Crusher: The most widely utilized piece of equipment for coarse crushing. It features a simple structure, reliable operation, and strong adaptability, making it particularly suitable for processing ores with high moisture or clay content. It is the preferred choice for the coarse crushing stage in hard rock gold mining operations.
• Gyratory Crusher: Possesses immense processing capacity and is well-suited for large-scale mining operations. Its key characteristics include continuous crushing action, high productivity, and a uniform product particle size; however, it entails higher capital investment and maintenance costs.
Intermediate and Fine Crushing Equipment: The Critical Link for Refinement
The task of intermediate and fine crushing is to further reduce the size of the coarse-crushed product to a range of 20–50 mm, thereby providing an ideal feed material for the subsequent grinding operations.
Hydraulic Cone Crusher
• Cone Crusher: The core equipment for intermediate and fine crushing. It employs a "laminated crushing" principle, delivering high crushing efficiency, superior product particle shape, and an extended service life for wear parts. Among these, multi-cylinder hydraulic cone crushers and single-cylinder hydraulic cone crushers represent the mainstream choices, capable of effortlessly handling hard rock gold ores.
• High-Efficiency Fine Crushers: In certain processes, these are utilized to replace short-head cone crushers for fine crushing. They facilitate a "more crushing, less grinding" strategy by reducing the feed size entering the mills, thereby significantly lowering the overall energy consumption of the grinding equipment.
Grinding and Classification Equipment: Achieving the "Last Mile" of Mineral Liberation
Grinding is the most energy-intensive stage of the process; its objective is to reduce the finely crushed product to the specific fineness required for subsequent beneficiation.

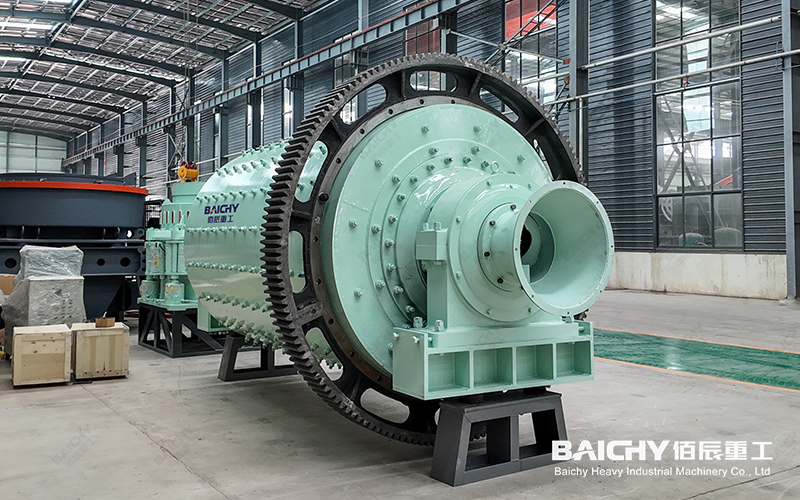

Gold Ball Mill
• Ball Mills: The most traditional and reliable type of grinding equipment. They achieve ore pulverization through the combined impact and abrasion actions of steel balls. Featuring mature technology and stable operation, they are suitable for beneficiation plants of all scales.
• Rod Mills: Used for coarse grinding in specific processes; they produce a product with uniform particle size and minimize the occurrence of over-grinding.
• Classification Equipment (Hydrocyclones): When paired with ball mills, they form a closed-circuit grinding system. This system promptly separates particles that have reached the required fineness while returning coarser particles for further grinding, thereby ensuring both grinding efficiency and product fineness.
Auxiliary and Optimization Equipment
• Feeders: Such as vibrating feeders, which ensure a uniform and stable feed supply to the crushing equipment.
• Conveying Equipment: Belt conveyors that link the various stages of the process together.
• Dust Removal and Noise Reduction Systems: Designed to ensure compliance with environmental protection regulations.
Equipment Selection Advantages and Case Studies
Comparison of Technical Advantages
| Equipment Type | Core Advantages | Applicable Stage | Contribution to Gold Recovery Rate Improvement |
| C-Series Jaw Crushers | Deep crushing chamber, high feed capacity, heavy-duty moving jaw assembly | Coarse Crushing | Provides a stable and uniform feed for downstream processes, ensuring the stable operation of the entire processing flow. |
| HP Multi-Cylinder Hydraulic Cone Crushers | Laminar crushing, high crushing ratio, fully automated control system, long service life for wear parts | Medium & Fine Crushing | Produces a product with excellent particle shape and uniform size, facilitating the "more crushing, less grinding" strategy and reducing grinding energy consumption by 15–30%. |
| Energy-Saving Overflow Ball Mill | Features large-scale double-row spherical roller bearings, ensures smooth transmission, and reduces energy consumption by 20–30% | Suitable for primary or secondary grinding | Efficiently achieves target particle size, promotes the full liberation of gold minerals, and lays a solid foundation for high leaching rates and flotation recovery rates. |
| Hydrocyclone Cluster | Offers high classification efficiency, features wear-resistant liners, and allows for flexible parameter adjustment | Classification | Establishes an efficient closed-circuit grinding system, prevents over-grinding, stabilizes the fineness of the ground product, and directly contributes to improved beneficiation performance indicators. |
Real-World Application Case Study
Case: Expansion Project at a Large-Scale Rock Gold Beneficiation Plant in China
• Challenge: The crushing equipment in the original production line was aging; the product particle size was coarse and inconsistent, resulting in heavy loads on the ball mills, high energy consumption, and a gold leaching rate of only 86%.
• Solution: Implemented a three-stage, one-closed-circuit crushing process—combining a Jaw Crusher, a Single-Cylinder Hydraulic Cone Crusher, and a Multi-Cylinder Hydraulic Cone Crusher—paired with a closed-circuit grinding system consisting of a Ball Mill and Hydrocyclones.
• Results: The final feed size entering the mill improved significantly: the proportion of particles finer than -12mm increased to over 90% (up from 70% at -15mm). The plant's overall electricity consumption for crushing and grinding decreased by 18%; grinding fineness became more stable; the total gold leaching rate rose to 91.5%; and the investment payback period was significantly shortened.
Recommended High-Efficiency Equipment Solutions
Based on the varying scales and processing requirements of rock gold mining projects, we recommend the following core combinations of crushing and grinding equipment:
1. Preferred Solution for Medium-Scale Gold Mines (500–1000 t/d):
◦ Coarse Crushing: JC Series European-Style Jaw Crusher
◦ Medium & Fine Crushing: CH Single-Cylinder Hydraulic Cone Crusher
◦ Grinding: MQG Series Energy-Saving Overflow Ball Mill
◦ Key Advantages: Flexible configuration, high cost-performance ratio, moderate level of automation, and convenient maintenance. 2. High-Efficiency Solution for Large-Scale Gold Mines (3000 t/d and above):
◦ Coarse Crushing: C-series large jaw crusher or gyratory crusher
◦ Medium Crushing: HPM multi-cylinder hydraulic cone crusher
◦ Fine Crushing: HPM multi-cylinder hydraulic cone crusher (Short Head type)
◦ Grinding: MQY-series large overflow-type ball mill + high-frequency fine screens / hydrocyclone cluster
◦ Core Advantages: High processing capacity; fully automated and intelligent process control; minimized energy and steel consumption; outstanding long-term operational efficiency.
Frequently Asked Questions (FAQ)
Q1: Why does the crushing process for hard rock gold mines typically require three stages?
A1: Hard rock gold ores are characterized by high hardness and strong abrasiveness. Employing a three-stage crushing process (coarse, medium, and fine) allows for the gradual reduction of ore particle size, thereby realizing a more rational "more crushing, less grinding" strategy. This significantly reduces the final feed size entering the grinding circuit—the most energy-intensive stage—thereby drastically lowering electricity consumption and steel ball wear. It is one of the most effective methods for reducing mineral processing costs.
Q2: What are the advantages of a closed-circuit grinding system comprising a ball mill and hydrocyclones?
A2: A closed-circuit grinding system enables real-time control over product particle size. Hydrocyclones efficiently and promptly separate the fine particles that have reached the target size from the ball mill's discharge, while returning the coarse particles to the mill for further grinding. This prevents the "over-grinding" of already-qualified particles and avoids energy waste, ensuring the stability of the grinding product's fineness—a critical factor for gold cyanidation processes that require consistent fineness specifications.
Q3: When selecting a cone crusher, what are the main differences between single-cylinder and multi-cylinder hydraulic models?
A3: Single-cylinder hydraulic cone crushers feature a relatively simple structure, offer convenient maintenance, and have lower upfront costs; they perform exceptionally well in small-to-medium scale operations and when crushing ores of medium hardness. Multi-cylinder hydraulic cone crushers, conversely, utilize a greater number of hydraulic cylinders and a more advanced laminated crushing chamber design; they generate greater crushing force, produce a superior product shape, and feature a higher degree of automation. Consequently, they are better suited for large-scale production lines and for processing extremely hard rock gold ores, enabling the production of superior-quality products at lower operating costs.
