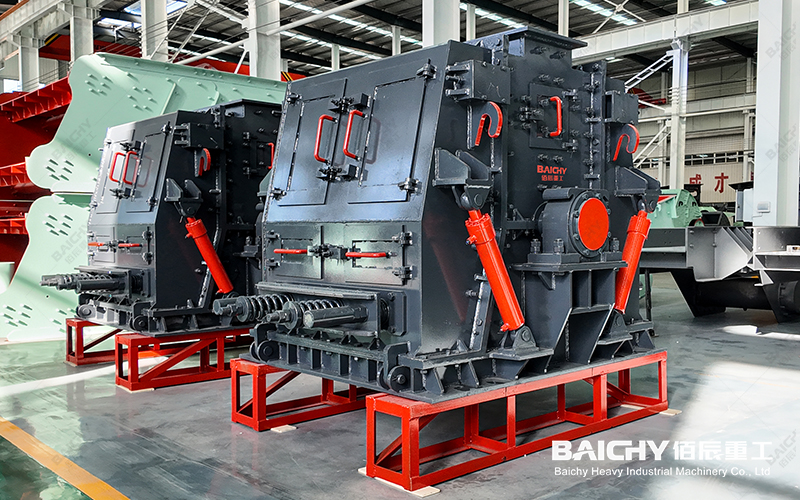

PCK reversible hammer crusher
Standard PC-series hammer crushers operate reliably with materials having a moisture content of ≤10%; the PCK reversible hammer crusher pushes this limit to 15% by automatically clearing blockages through rotor reversal; the 2PC two-stage hammer crusher, utilizing a dual-rotor structure and a specialized grate bar design, can handle materials with moisture levels as high as 20%. Beyond these thresholds, clogging and rotor stalling translate into costs incurred through downtime—the question is not simply "can it be done," but rather "how has your hammer crusher been designed to handle wet material?"
I. High-Moisture Material: The "Silent Killer" of Hammer Crushers
Hammer crushers rely on high-speed rotating hammers to impact material, which is then screened through bottom grate bars. Moisture creates a threefold problem in this process:
Adhesion of fines: When moisture content exceeds 8%, fine particles adhere to the hammers and liner plates, forming a layer of wet sludge that causes rotor imbalance and vibration;
Grate bar clogging: Wet fines accumulate and compact within the screen apertures, preventing properly sized material from discharging and causing a precipitous drop in output;
Crushing chamber buildup: In severe cases, wet material cakes into solid blocks and jams the rotor, necessitating a shutdown and disassembly for cleaning—a process taking 30–60 minutes per instance.
The industry threshold is clear: moisture content of ≤8% has virtually no impact; the 8%–10% range represents the upper limit of the "comfort zone" for standard hammer crushers; and exceeding 10% makes clearing blockages a routine monthly occurrence. During the rainy season in Southeast Asia, the number of effective production days per month for traditional hammer crusher lines drops from 26–28 days to approximately 22 days, resulting in a monthly production capacity loss of 15%–25%.

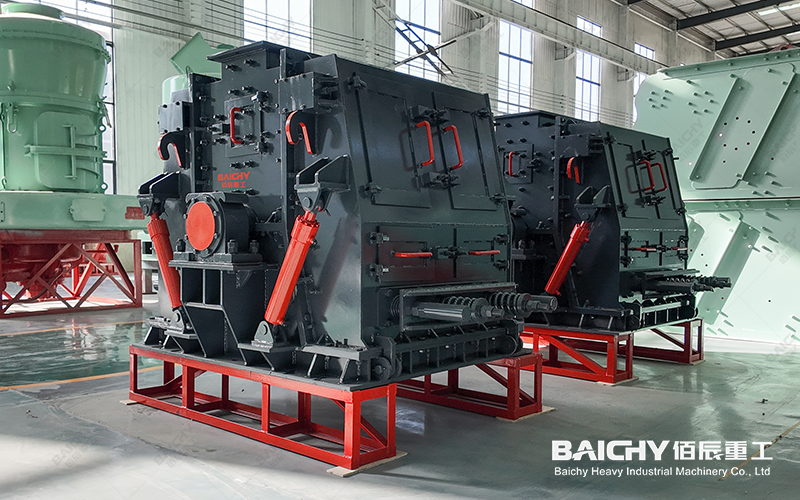

wet material crushing equipment
II. Moisture Content Limits: It Is a Matter of Design, Not Feasibility
| Model Series | Design Focus | Permissible Moisture Content | Anti-Clogging Mechanism | Typical Capacity |
|---|---|---|---|---|
| PC Standard Hammer Crusher | General-purpose (medium-to-fine crushing) | ≤10% | Adjustable grate aperture | 5–80 t/h |
| PCK Reversible Hammer Crusher | Anti-clogging (medium-to-fine crushing) | ≤15% | Automatic clog clearing via 30-second reversal | 25–350 t/h |
| 2PC Two-Stage Hammer Crusher | Fine crushing / Direct powder production | <20% | Dual rotors in series + special grates | 80–100 t/h (single unit) |
Three Design Variables Determining Moisture Adaptability
1. Discharge Structure: Grates are the primary point where wet material causes clogging; increasing aperture size alleviates clogging but sacrifices product fineness.
2. Rotor Reversibility: Reversing the PCK rotor for 2–3 minutes dislodges adhered wet material; reversing every 8–12 hours acts as a scheduled cleaning cycle.
3. Upstream Process: Pre-screening to remove wet, powdery soil is the most cost-effective moisture management strategy; for material with moisture consistently exceeding 15%, priority should be given to drying (using a rotary dryer) or switching to a double-roll crusher.
III. PCK Reversible Hammer Crusher Specifications (Flagship Model for High-Moisture Applications)
| Model | Rotor Diameter × Length | Feed Size | Output Size | Processing Capacity | Motor Power |
|---|---|---|---|---|---|
| PCK0808 | φ800×800 | ≤60 mm | ≤15 mm | 25–40 t/h | 90 kW |
| PCK1010 | φ1000×1000 | ≤80 mm | ≤15 mm | 35–70 t/h | 110 kW |
| PCK1012 | φ1000×1250 | ≤80 mm | ≤15 mm | 70–90 t/h | 132 kW |
| PCK1212 | φ1250×1250 | ≤100 mm | ≤15 mm | 90–120 t/h | 220 kW |
| PCK1214 | φ1250×1400 | ≤100 mm | ≤15 mm | 120–150 t/h | 250 kW |
| PCK1416 | φ1400×1600 | ≤120 mm | ≤15 mm | 160–250 t/h | 355 kW |
| PCK1418 | φ1400×1800 | ≤120 mm | ≤15 mm | 250–300 t/h | 400 kW |
| PCK1618 | φ1600×1800 | ≤140 mm | ≤15 mm | 280–350 t/h | 560 kW |
Capacity figures are reference values based on limestone processing (density approx. 1.6 t/m³); actual capacity may increase by 10%–30% when processing low-density materials such as coal. When moisture content approaches 15%, it is recommended to reduce capacity by 10%–20% to ensure the required product size distribution.
IV. Typical Application Scenarios for High-Moisture Materials
Wet Coal and Coal Gangue
The moisture content of coal arriving at power plants and raw coal from preparation plants typically fluctuates between 5% and 15% year-round. Coal gangue—wet, sticky, and dirty—is a "nightmare material" for traditional crushing equipment. The PCK series' reversible anti-clogging feature eliminates the need for downtime and manual clearing during wet coal crushing; a typical configuration for coal preparation plants is the PCK1212/1214, which crushes material to ≤15mm for direct feeding into screening and washing circuits.
Open-Pit Limestone During Rainy Seasons
During rainy seasons or in high-humidity coastal regions, the moisture content of open-pit limestone can reach 12%–15%. The PCK series maintains 26–28 effective production days per month under these conditions, delivering 15%–20% higher actual throughput than traditional solutions. With a Protodyakonov hardness (f) of 4–8 and high brittleness, limestone is an ideal material for hammer crushers.
Shale, Gypsum, and Construction Waste
Shale (high clay content), desulfurization gypsum (high moisture content), and construction waste (moisture levels fluctuating significantly during rainy seasons) all share a common characteristic: moisture levels that vary drastically with the seasons. A reversible hammer crusher combined with front-end pre-screening allows for seamless switching between dry and wet seasons without the need to change equipment.
V. Equipment Advantages: From "Vulnerable to Moisture" to "Moisture-Resistant"
| Dimension | Pain Points of Traditional Hammer Crushers | Value of PCK/2PC Series |
|---|---|---|
| Downtime | 30–60 minutes of manual clearing after wet material clogs the screen | Automatic clog clearing via rotor reversal (2–3 minutes); no downtime required |
| Hammer Lifespan | Single-sided wear; replacement every 200–300 hours | Alternating wear on both sides; lifespan doubles to 500–700 hours |
| Rainy Season Capacity | ~22 effective production days per month | 26–28 days; 15%–20% higher monthly capacity |
| Investment Barrier | Wet material conditions necessitate a two-stage "Jaw Crusher + Impact Crusher" setup | PCK1212 single unit costs ~$28,000; replaces a three-stage configuration costing ~$65,000 |
Benefit Analysis: For an 80 t/h wet coal processing line, replacing the traditional three-stage configuration ("Jaw Crusher + Impact Crusher + Hammer Crusher") with a single PCK1212 unit reduces main equipment investment from ~$65,000 to ~$28,000, lowers installed power from ~280 kW to 220 kW, and shrinks the footprint from ~120 m² to ~40 m²—resulting in total first-year savings of over $50,000.
VI. Real-World Case Studies
Case Study 1: Wet Coal Crushing Line in Southeast Asia (PCK Series)
Southeast Asia experiences annual rainfall of 2,000–3,000 mm; a coal preparation plant processes raw coal with 12%–15% moisture content. Traditional hammer crushers required 2–3 daily shutdowns for clog clearing during the rainy season. After switching to the PCK1212 reversible hammer crusher: reversing the rotor to clear blockages replaced manual cleaning, increasing effective daily operating time by approximately 2 hours; utilizing both sides of the hammer heads halved the annual replacement frequency; and monthly production capacity rose by 15%–20%. The 220 kW configuration is compatible with the local 380V/50Hz power grid, requiring no additional modifications.
Case Study 2: Open-pit limestone quarry in Saudi Arabia (2PC two-stage hammer crusher)
Limestone at this Saudi open-pit quarry has a moisture content fluctuating between 10% and 20%. Field tests of the 2PC1000×1200 two-stage hammer crusher (rated for moisture content <20%) showed: stable capacity of 85–95 t/h (with no drop-off) at 10%–15% moisture; capacity maintained at 70–80 t/h even as moisture approached 20%. This performance far exceeds traditional hammer crushers of the same specification, ensuring no production loss or clogging during the rainy season.
VII. Recommended Equipment
| Scenario | Recommended Equipment | Selection Rationale |
|---|---|---|
| Medium-to-fine crushing (moisture ≤10%) | PC Series Hammer Crusher | Lowest investment (approx. $1,500–10,000); suitable for both dry and wet materials |
| Large-scale production lines (moisture 10%–15%) | PCK Reversible Hammer Crusher | Automatic blockage clearing via rotor reversal; doubled hammer lifespan; highly recommended |
| Moisture 15%–20%; direct powder output required | 2PC Two-stage Hammer Crusher | Dual-rotor single-pass shaping; highest tolerance for moisture content |
| High-viscosity materials (moisture >15%) | Double-roll Crusher | Smooth roll + scraper design; resists clogging with wet/sticky material; low over-crushing rate |
| Materials with moisture >20% | Rotary Dryer + Hammer Crusher | Drying followed by crushing; solves moisture issues at the source |
VIII. FAQ
Q1: What is the maximum moisture content a hammer crusher can handle?
A: It depends on the specific model. PC standard hammer crushers can handle moisture levels ≤10%; PCK reversible hammer crushers ≤15%; and 2PC two-stage hammer crushers <20%. For materials exceeding 20% moisture, it is recommended to first dry them using a rotary dryer or switch to equipment designed for wet, sticky materials, such as a double-roll crusher.
Q2: What should be done if the hammer crusher gets clogged? How can frequent unclogging be avoided?
A: A three-step approach:
① Emergency handling—shut down the machine, open the casing, and clear the grate bars (takes 30–60 minutes per instance);
② Short-term measures—increase the grate bar aperture and install a pre-screening unit upstream to remove wet, powdery soil;
③ Long-term solution—if moisture content consistently exceeds 10%, upgrade to a PCK reversible hammer crusher; this allows for automatic unclogging by reversing the rotor for 2–3 minutes (performed every 8–12 hours without requiring a shutdown).
Q3: When crushing high-moisture materials, should I choose a PCK reversible hammer crusher or a double-roll crusher?
A: It depends on particle size and material stickiness. Choose a PCK reversible hammer crusher if you require fine output (≤15mm), a capacity exceeding 25 t/h, and a single-machine solution to replace a two-stage process. Choose a double-roll crusher if the material is extremely sticky (e.g., wet clay or high-viscosity material with >15% moisture) and you are concerned about the percentage of fines produced; the smooth-roll and scraper design prevents clogging from wet, sticky material and keeps the fine powder content below 10%.
