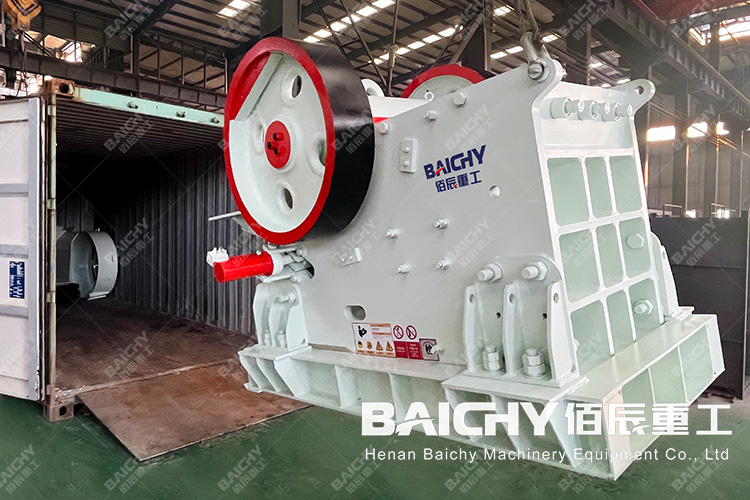

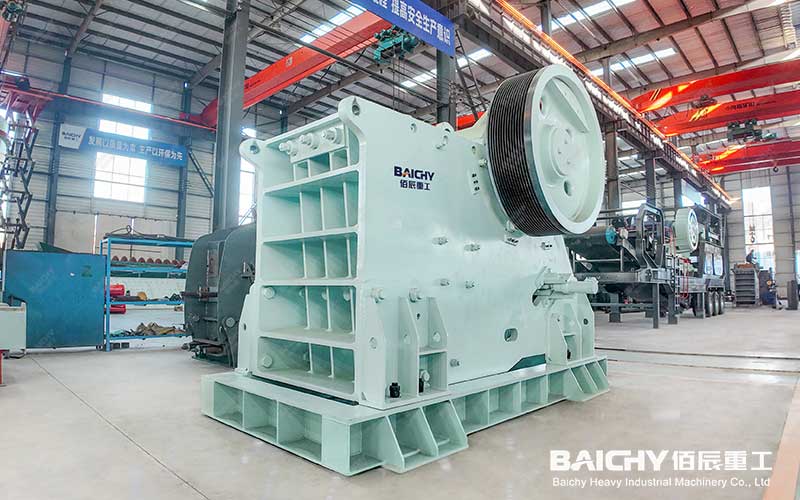

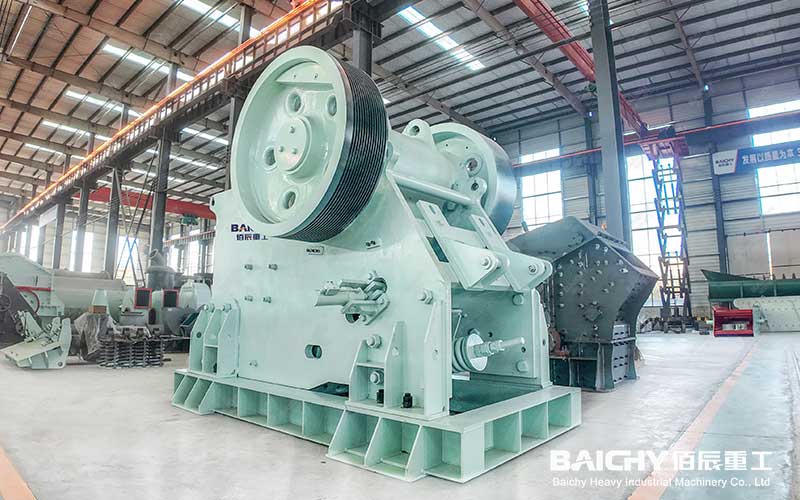

C-series jaw crusher is a classic product of Baichy Heavy Industry, designed for medium and high strength crushing tasks, and widely used in mining, construction, metallurgy, and other fields.
Core features of C-series jaw crusher
1. High efficiency crushing ratio
• Adopt an optimized cavity shape and movable jaw motion trajectory to improve crushing efficiency, and the processing capacity is 10%-20% higher than that of traditional models.
• Deep cavity design enhances material throughput and is suitable for high production capacity requirements.
2. Modular structure
• The European version of the C-series adopts modular design (such as CJ series), and the core components (frame, movable jaw) can be quickly disassembled to reduce downtime maintenance time.
3. Heavy-duty materials and processes
• The frame is welded or cast steel, and the key bearings are selected from Swedish SKF/German FAG brands, which have strong impact resistance and long life.
4. Intelligent adjustment and safety
• Hydraulically adjust the discharge port (some models), easy to operate; overload protection devices (such as hydraulic connecting rods or wedge systems) prevent equipment damage.
5. Low energy consumption and environmental protection
• The motor meets the IE3 energy efficiency standard and is equipped with a variable frequency drive option to reduce energy consumption; the sealed structure reduces dust spillage.
The C series jaw crusher is a jaw crusher with excellent performance introduced and developed by manufacturers such as Baichy Machinery according to customer market needs. It has significant improvements in crusher motion parameters, structural form, adjustment methods, etc. Compared with traditional jaw crushers, it has many unique advantages.
The C series jaw crusher is mainly used for medium-sized crushing of various ores and bulk materials. The maximum compressive strength of the crushed materials is 320MPa. It is suitable for river pebbles, granite, basalt, iron ore, limestone, quartz stone, diabase, iron ore, gold ore, copper ore, and other materials. This crusher is widely used in mining, smelting, building materials, highways, railways, water conservancy, and chemical industries.
The main features of C series European jaw crusher include:
• Small space occupation: lightweight design, small size, space-saving, making installation and transportation more convenient.
• Large crushing ratio: Due to the excellent motion parameters and structural design, the material can be crushed from the upper part of the crushing chamber, and the stroke in the lower part of the crushing chamber will be larger, making the crushing ratio larger.
• Smooth operation: The use of innovative modular, weld-free structural frames, high-quality alloy steel castings, and rolling bearings greatly improves the fatigue resistance and operational reliability of the equipment.
• Multiple installation methods: A variety of flexible installation methods can meet different application options, especially suitable for fixed crushing production lines and mobile crushing stations.
In terms of working principle, the C series European jaw crusher is mainly composed of the frame part, the eccentric shaft rotating part, the crushing cavity working part, the safety device, the discharge port adjustment device, etc. Its crushing method is curved extrusion type. The motor drives the belt and pulley, and the eccentric shaft makes the movable jaw swing back and forth up and down. When the movable jaw pushes the movable jaw plate to move toward the fixed jaw plate, the material is crushed or chopped. When the movable jaw and the movable jaw plate retreat under the action of the eccentric shaft and spring, the previously crushed or chopped materials are discharged from the lower discharge port of the jaw plate. As the motor continuously rotates, the movable jaw of the crusher periodically crushes and discharges materials to achieve mass production.
Overall, the
C series European jaw crusher has become an important product in the crushing equipment market due to its excellent performance and wide range of applications.
