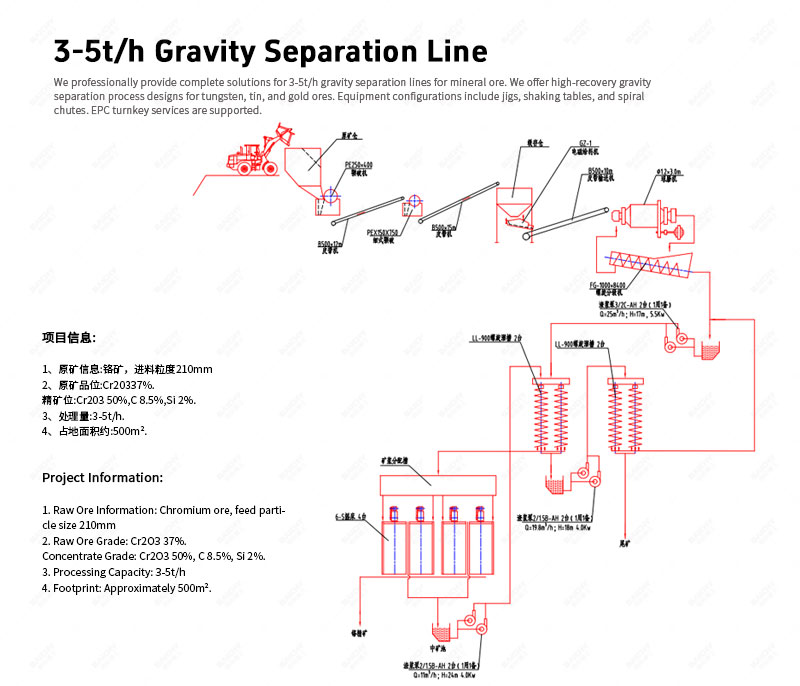

3-5t/h Gravity Separation Line for Mineral Ore
The 3-5t/h gravity separation line is a small-to-medium-sized mineral processing line specifically designed for heavy metal minerals such as tungsten, tin, tantalum, niobium, gold, lead, and zinc. This line uses gravity separation as its core principle, utilizing the density difference between minerals and gangue to achieve efficient separation in a moving medium (such as water). Its processing capacity is 3 to 5 tons of raw ore per hour, making it particularly suitable for small-to-medium-sized mines, tailings reprocessing projects, and pilot production needs.
Unlike traditional flotation or magnetic separation processes, gravity separation is characterized by being pollution-free, energy-efficient, and having a high recovery rate, making it especially suitable for processing coarse-grained or highly liberated minerals. This line typically employs a closed-loop process of "crushing-screening-gravity separation-dewatering" to ensure maximum resource utilization.

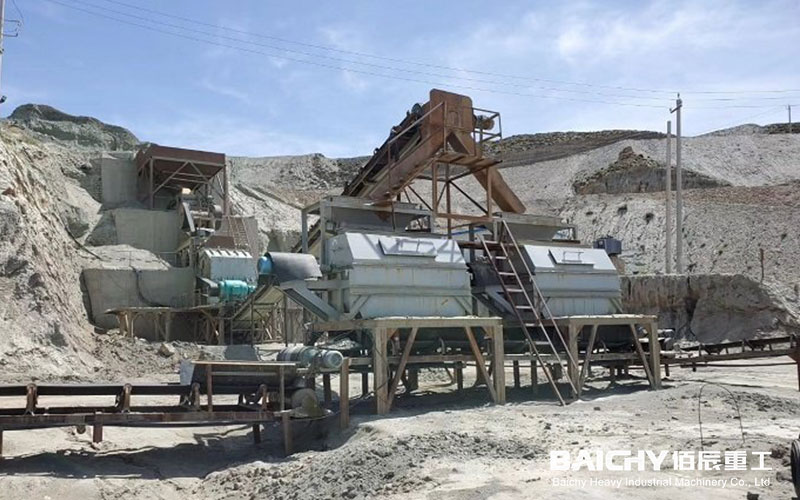

Gravity Concentration Equipment
Core Advantages: Why Choose a 3-5t/h Gravity Separation Line?
1. High Recovery Rate and Precise Separation
Gravity separation is extremely effective at recovering coarse-grained minerals. For minerals with high liberation rates, such as placer gold and tin, recovery rates can typically exceed 90%. A combination of equipment such as jigs, shaking tables, and spiral sluices allows for precise control of concentrate grade, effectively enriching the target metal.
2. Extremely Low Operating Costs
Gravity separation primarily relies on physical separation, eliminating the need for chemical reagents. This not only avoids environmental pollution but also significantly reduces reagent costs and wastewater treatment expenses. Furthermore, gravity separation equipment typically consumes less energy than ball mills and flotation machines, making its cost per ton of ore highly competitive.
3. Environmental Protection and Safety
The entire process is free of chemical pollution, and tailings can be directly dry-discharged or stockpiled, complying with current stringent environmental policies. The equipment operates with low noise, providing a friendly operating environment and high safety.
4. Flexibility and Adaptability
A processing capacity of 3-5 t/h makes it ideal for mobile or modular installations. The production line can be relocated at any time according to changes in the ore body or the process parameters can be flexibly adjusted according to fluctuations in the raw ore grade, demonstrating strong adaptability.
3-5t/h Gravity Separation Line for Mineral Ore
Detailed Process Flow: From Raw Ore to Concentrate
A standard 3-5t/h gravity separation line for major ore typically includes the following four core stages:
1. Crushing and Screening
• Equipment Configuration: Jaw crusher (coarse crushing), cone crusher/impact crusher (fine crushing), vibrating screen.
• Process Objective: To crush the raw ore to a suitable particle size for gravity separation (typically 0-10mm or finer), and to form a closed-loop circulation through screening to ensure the uniformity of the material entering the gravity separation process.
2. Gravity Concentration (Core Stage)
• Jigging Separation: Roughing is performed using jigs to quickly separate most of the heavy minerals and light gangue. Jigs have a large capacity and are suitable for processing coarse-grained materials.
• Shaking Table Concentration: The jig-separated rough concentrate is then processed on a shaking table. Shaking tables offer high separation accuracy and effectively improve concentrate grade, making them a key piece of equipment for obtaining the final qualified product.
• Spiral sluice: Used for processing fine-grained materials or for scavenging operations, recovering fine-grained valuable minerals lost during jigging and shaking table processes.
3. Dewatering and Drying
• The concentrate is dewatered by a dewatering screen or thickener to form a filter cake, facilitating transportation and storage.
Successful Cases: Practical Verification of Efficiency
Case 1: Upgrading of a Gravity Separation Line at a Tungsten Mine in Inner Mongolia
• Background: The mine originally used a full flotation process, which was costly and environmentally burdensome.
• Solution: Introducing a 3-5t/h gravity separation line for pre-milling tailings removal, employing a jigging + shaking table process.
• Results: 45% successful tailings removal; tungsten concentrate recovery rate increased to over 94%; beneficiation costs reduced by 75% compared to the original solution; environmental compliance achieved.
Case 2: Full Gravity Separation Project at a Scheelite Mine in Australia
• Background: The client required a green beneficiation solution without the addition of chemical reagents.
• Solution: Designing a full gravity separation process, with spiral sluice and shaking table as the core equipment.
• Results: The original ore grade was 0.68%, and after gravity separation, the scheelite concentrate grade reached 55%, with a recovery rate of 75%, fully meeting the customer's dual requirements for environmental protection and grade.
Equipment Recommendations and Selection Guide
Core Gravity Separation Equipment Recommendations
1. Jig: We recommend a sawtooth wave jig, which has a large processing capacity and is suitable for roughing operations with a capacity of 3-5 t/h.
2. Shaking Table: We recommend a 6-S shaking table or a Yunnan tin-type shaking table, which has clear table surface banding, stable operation, and good separation effect.
3. Spiral Chute: For ores with low mud content and uniform particle size, fiberglass spiral chutes are a cost-effective choice.
Supporting Crushing Equipment
As a manufacturer of mining crushing equipment, we recommend equipping this gravity separation line with a PE250×400 jaw crusher and a PEX150×750 fine jaw crusher, or a small cone crusher, to ensure uniform particle size of the material fed into the gravity separation equipment and avoid over-crushing.
Frequently Asked Questions (FAQ)
1. How fine a mineral can a gravity separation line handle?
Gravity separation processes have certain particle size requirements. Generally, the recovery effect deteriorates for fine mud smaller than -200 mesh (-0.074mm). For very fine minerals, a combined gravity separation + flotation process is recommended, or high-efficiency fine-particle gravity separation equipment such as centrifugal concentrators should be used.
2. Does the production line consume a lot of water?
Gravity separation processes require water as a medium, but modern gravity separation lines generally use a circulating water system. By configuring thickeners or sedimentation tanks, over 90% of the water can be recycled, resulting in very little actual water replenishment.
3. Is the equipment prone to wear? How to maintain it?
Gravity separation equipment such as jig diaphragms and shaking table surfaces are wear parts. Recommendations:
• Regular inspection: Check the rubber diaphragms for cracks and the table surface for wear weekly.
• Timely replacement: Wear parts will affect the separation effect when worn to a certain extent and should be replaced promptly according to the service life.
• Lubrication and maintenance: Regularly add lubricating oil to the equipment bearings to ensure smooth operation.
