I. Core of the 250 t/h Granite Crushing Line
Multi-stage crushing combined with laminated crushing constitutes the optimal configuration for production lines processing high-hardness granite.
This configuration significantly reduces the consumption of wear parts and enhances the quality of the finished product's particle shape, thereby meeting the aggregate standards required for high-performance concrete and highway construction, while simultaneously satisfying environmental protection and automation requirements.

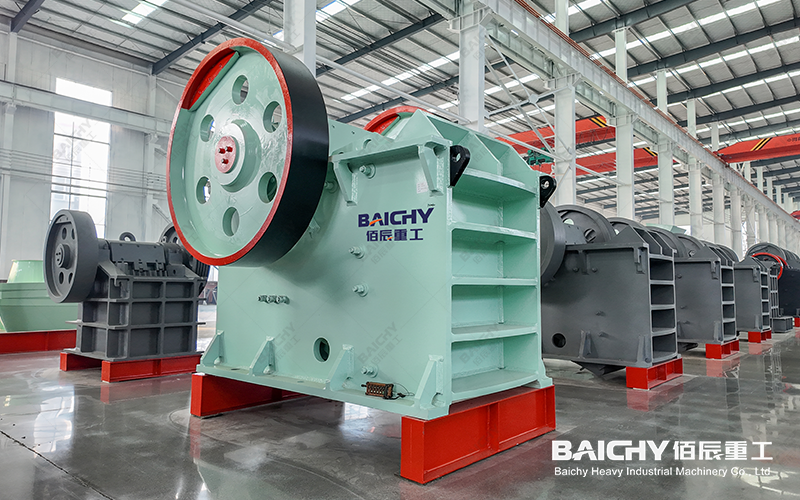

Primary Jaw Crusher
Hydraulic Cone Crusher
Core Logic Analysis
| Core Element | Execution Method | Actual Benefits |
| Multi-stage Crushing | Primary Crushing (Jaw Crusher) → Secondary Crushing (Cone Crusher) → Tertiary Crushing/Shaping (Optional Impact Crusher) | Controllable load at each stage; high crushing efficiency; extended equipment lifespan |
| Laminated Crushing | Utilizes mutual compression between material particles rather than direct impact | Finished product features a more cubic shape; low content of needle-like and flaky particles; reduced wear on wear-resistant parts |
| High Wear-Resistance Configuration | Cone crusher liners made of high-manganese steel or composite alloy materials | Liner lifespan extended to 600–800 hours |
| Integrated Environmental Protection | Fully enclosed conveying + Pulse dust removal + Noise isolation | | Dust emissions ≤ 20 mg/m³; Noise levels ≤ 85 dB(A) |
|
Intelligent Control |
Centralized PLC control + Automatic hydraulic adjustment of discharge opening | Real-time load monitoring; automatic overload protection |

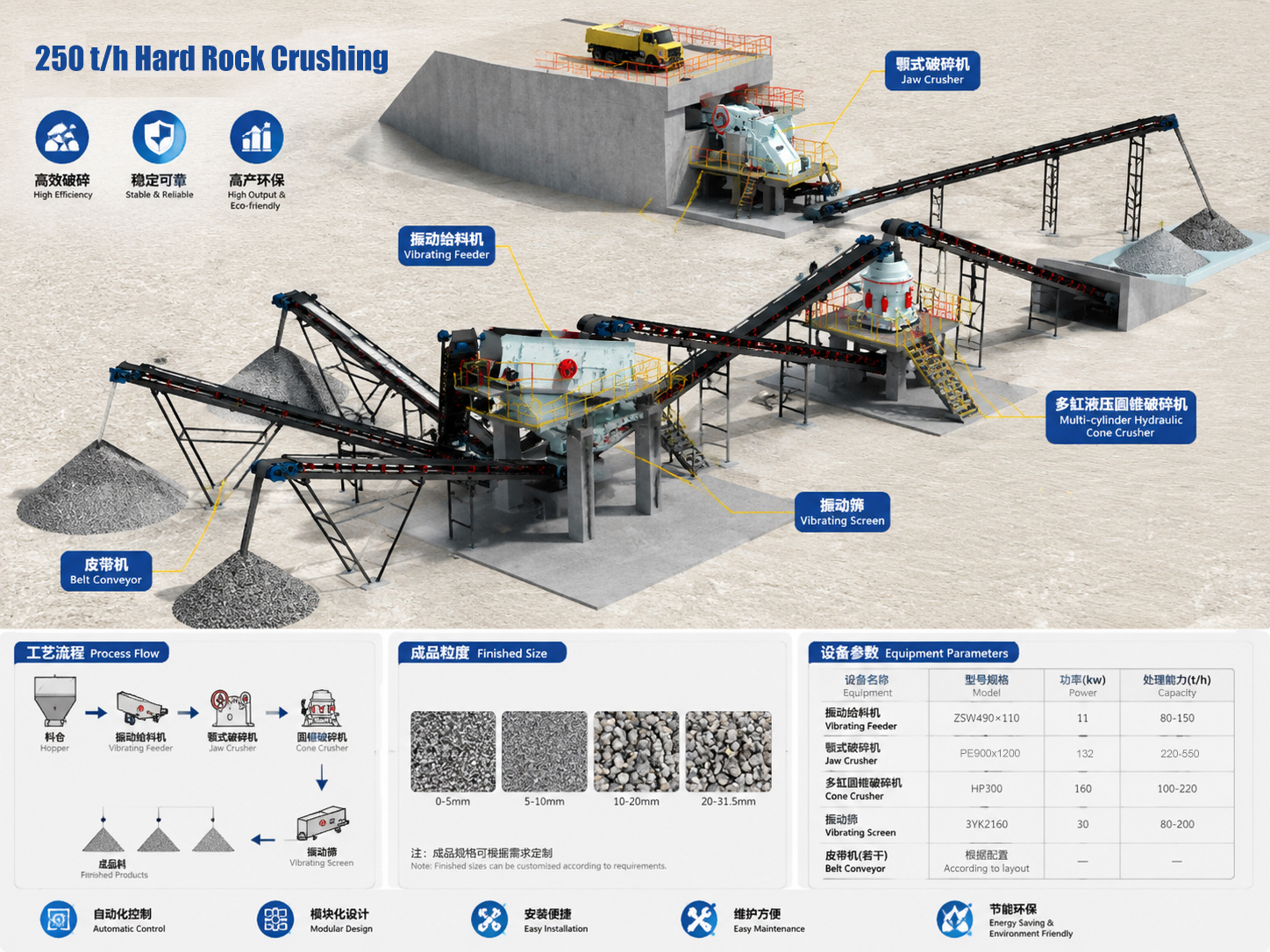

II. Typical Configuration Schemes (Structured Presentation)
| Processing Stage | Recommended Equipment Model | Key Parameters | Function Description |
| Feeding | GZD1100×4200 Vibrating Feeder | Processing Capacity ≥ 300 t/h | Uniform feeding; pre-screening of fine soil |
| Primary Crushing | PE-750×1060 Jaw Crusher | Feed Opening: 750mm; Discharge Opening: 80–140mm | Primary crushing of large granite blocks |
| Secondary Crushing | HP300 Multi-cylinder Hydraulic Cone Crusher | Capacity: 200–350 t/h | Laminated crushing; long lifespan for wear-resistant parts |
| Shaping/Sand Making | VSI8518 Impact Crusher (Optional) | Capacity: 250 t/h; Power: 2×185kW | Optimizes particle shape; produces manufactured sand |
| Screening | 3YZS2460 Circular Vibrating Screen | Three-layer screen deck; Grading Accuracy: ±1mm | Finished product grading: 0–5mm / 10–20mm / 20–30mm |
| Auxiliary Systems | Belt Conveyors + Pulse Bag Dust Collector | Conveying Speed: 1.6 m/s Dust Removal Efficiency: ≥99% | Closed-loop Conveying Environmental Compliance Achieved |
III. Advantages of the Production Line Equipment
1. Exceptional Wear Resistance — The service life of cone crusher liners can reach 600–800 hours, representing a 3–5 fold increase compared to impact crushers (referencing the GB/T 25706-2010 Standard for Wear-Resistant Parts of Crushers).
2. Superior Product Particle Shape — The content of flaky and elongated particles is <10%, meeting the JTG E42-2005 Standard for Aggregates in Highway Engineering.
3. High Degree of Automation — Hydraulic adjustment and automatic cavity-clearing systems reduce the time required for manual intervention by ≥40%.
4. Environmental Compliance — Noise levels are ≤85 dB(A) and dust emissions are ≤20 mg/m³, satisfying the GB 16297-1996 Integrated Emission Standard of Air Pollutants.
IV. Application Scenarios

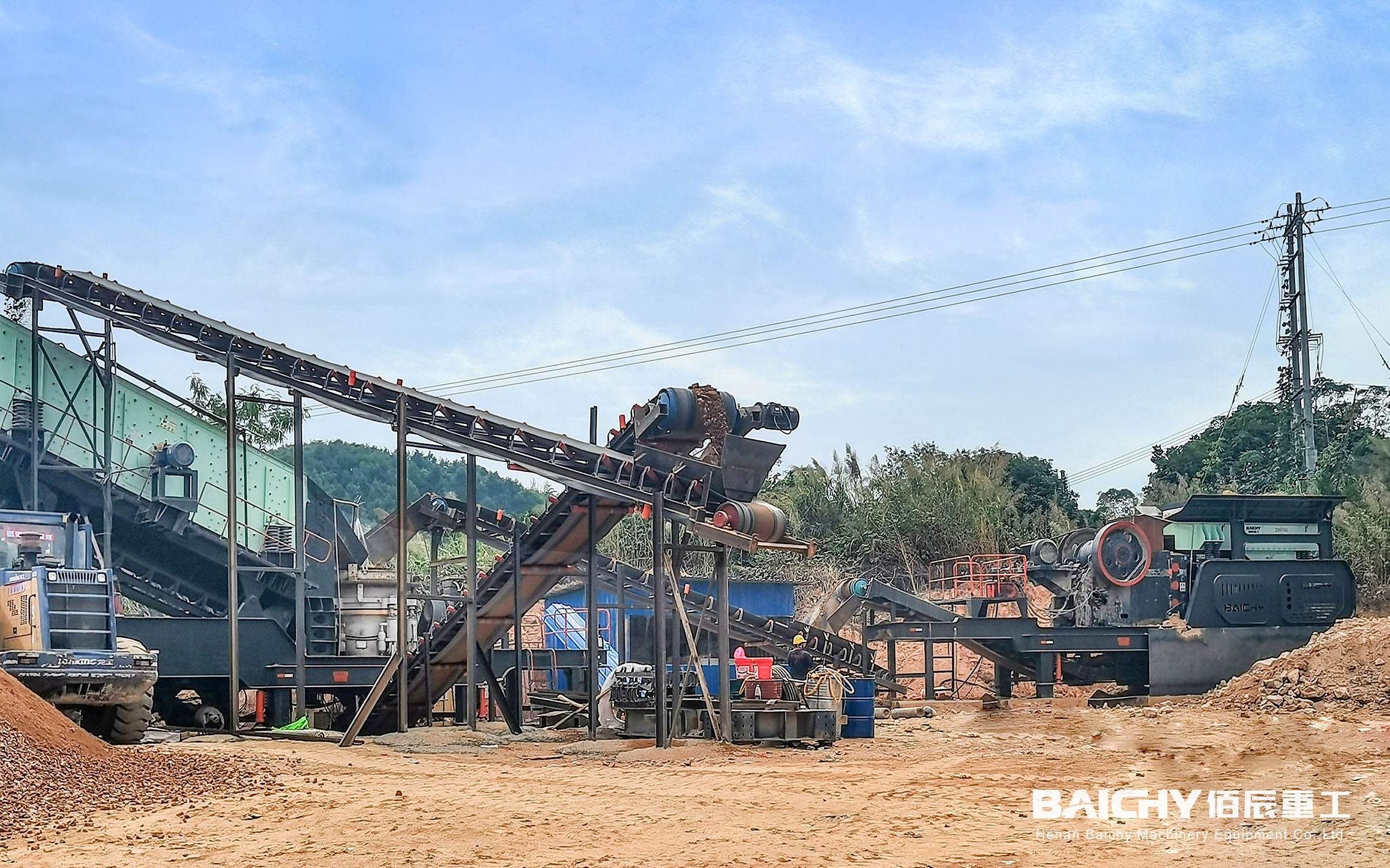

Guangdong 150 t/h Mobile Granite Crushing Production Line
The 150 t/h mobile granite line in Guangdong targets high-hardness granite (Mohs 6–7; Comp. Strength 120–200 MPa, GB/T 50266-2013). Utilizing a 2/3-stage closed circuit with mobile jaw and cone crushers (lamination tech), it produces 0–20 mm aggregates (<10% flakiness, JTG E42-2005) without heavy civil foundations (GB 51077-2015). Wheeled/crawler units reduce transport costs and feature integrated dust/noise control for full compliance in the Pearl River Delta and Northern Guangdong.
Configuration: Designed for South China granite, this 150 t/h mobile line uses a jaw-cone-screen closed circuit. It processes ≤500 mm feed into 0–20 mm specs, ensuring <10% flakiness (JTG E42-2005).
Advantage: Eliminates complex foundations (GB 51077-2015) and reduces transport costs via direct site deployment. Integrated pulse dust/noise modules guarantee compliance with stringent environmental regulations in Guangdong.
This 150 t/h mobile line crushes high-hardness Guangdong granite (Mohs 6–7) via a jaw-cone-screen system, producing <10% flaky aggregates (JTG E42-2005). It requires no heavy civil works (GB 51077-2015), cuts transport costs, and meets local eco-compliance with built-in dust/noise control. Ideal for dynamic extraction sites.
Typical Configuration Reference (150 t/h Class):
• Primary Crushing Unit: Mobile Jaw Crushing Station (e.g., with a feed opening in the 680×1060 mm class; reference standard: JB/T 25003-2016)
• Secondary/Tertiary Crushing Unit: Mobile Multi-cylinder/Single-cylinder Hydraulic Cone Crusher (utilizing lamination crushing for optimized liner lifespan)
• Screening Unit: Mobile Circular Vibrating Screen (featuring a 3-deck screen configuration with a grading precision of ±1 mm)
• Auxiliary Components: Integrated magnetic separator, return conveyor belt, and intelligent PLC control cabinet

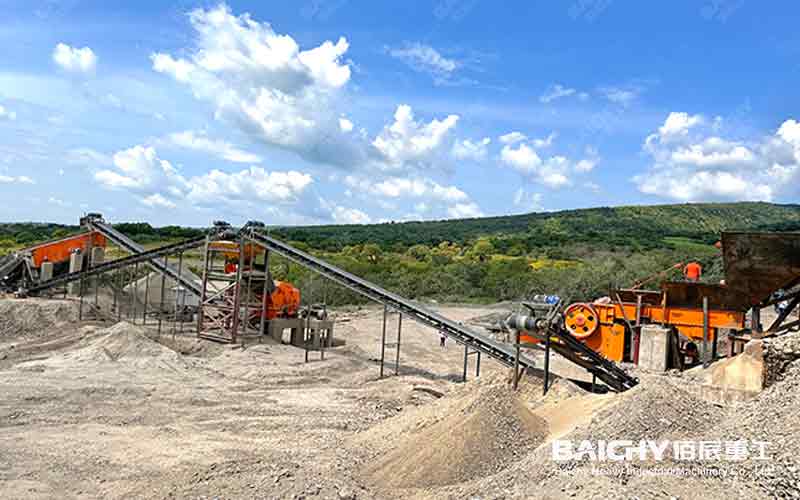

Mexico 200 t/h Stationary Granite Crushing Production Line
The 200 t/h Fixed Granite Crushing Production Line in Mexico is a large-scale, stationary processing solution specifically engineered to handle the characteristics of local granite—known for its high hardness and abrasiveness (Mohs hardness 6–7; compressive strength 100–300 MPa, based on the analogous standard GB/T 50266-2013). Its primary objective is to consistently produce 200 tons per hour of high-quality aggregates while simultaneously ensuring full compliance with Mexican federal environmental regulations.
• Process Configuration: The system employs a stationary "multi-stage crushing + laminated crushing" workflow. The typical equipment chain consists of: Vibrating Feeder → Jaw Crusher (primary crushing; feed size ≤ 630–750 mm) → Multi-cylinder/Single-cylinder Hydraulic Cone Crusher (secondary and tertiary crushing; utilizes the lamination principle to minimize wear on consumable parts) → Multi-layer Circular Vibrating Screen (closed-circuit circulation; classifies aggregates into specifications such as 0–5 mm, 5–10 mm, 10–20 mm, and 20–30 mm, with a flakiness and elongation content of <10%, meeting high-standard requirements akin to JTG E42-2005).
• Site Suitability: The stationary steel-structure foundation design is ideally suited for long-term quarrying operations in Mexico. Compared to mobile crushing lines, this fixed layout facilitates the integration of high-capacity pulse dust removal systems and noise control facilities. This ensures strict adherence to Mexican particulate matter emission control standards—such as the *General Law of Ecological Balance and Environmental Protection* (LGEEPA) and NOM-085-SEMARNAT—thereby streamlining the approval process for the Environmental Impact Assessment (MIA) required by SEMARNAT.
• Core Advantages: To address the highly abrasive nature of granite, the cone crusher liner materials have been specifically optimized (referencing GB/T 25706-2010), thereby extending maintenance intervals. Furthermore, the stationary layout enhances overall system operational stability and the efficiency of automated controls (via centralized PLC control), making it an ideal solution for the continuous supply of high-grade aggregates to local infrastructure projects (such as highways and concrete mixing plants).
