200 TPH Wheel-Mounted Mobile Crushing Plant Line
Overview: What is a Wheel-Mounted Mobile Crushing Station?
A wheel-mounted mobile crushing station is a "mobile crushing plant" that integrates feeding, crushing, screening, and conveying functions into a single unit. Utilizing a vehicle-mounted, towable chassis, it allows for rapid site relocation and is particularly well-suited for crushing operations that require frequent movement, or that take place on rugged or dispersed sites. When processing high-hardness, highly abrasive rocks—such as basalt—a well-designed 200 t/h wheel-mounted mobile crushing line strikes a perfect balance between efficiency, cost-effectiveness, and flexibility.
Core Application Scenarios
The inherent flexibility of wheel-mounted mobile crushing stations allows them to excel in a wide variety of scenarios:
• Urban Construction Waste Processing and Recycling: The unit can be driven directly to demolition sites, enabling the on-site crushing and resource recovery of construction debris.
• Small-to-Medium Scale Mining Operations: Ideal for mines with dispersed mining points or short extraction cycles; it eliminates the need to construct fixed production lines, thereby significantly reducing initial capital investment.
• Road and Bridge Construction Projects: Along the routes of highway and railway construction, the unit can crush the necessary roadbed aggregates on-site, resulting in substantial savings on material transportation costs.
• Emergency Relief and Temporary Supply Projects: Capable of rapid deployment, the unit provides a stable supply of sand and gravel aggregates for disaster-stricken areas undergoing reconstruction or for temporary engineering projects.
Key Advantages of a 200 t/h Wheel-Mounted Mobile Crushing Station for Basalt Processing
Compared to traditional fixed crushing lines, a 200 t/h wheel-mounted mobile crushing line—specifically engineered for basalt processing—offers the following unparalleled advantages:
1. Exceptional Mobility and Rapid Deployment: The equipment features self-propulsion capabilities (or can be towed by a tractor unit), allowing it to reach the job site quickly. Once on-site, it can be set up and ready for production within just 1–2 days, drastically shortening the project preparation cycle.
2. Significant Reduction in Comprehensive Costs: It eliminates the civil engineering expenses typically associated with fixed lines—such as concrete foundations and steel support structures—and also avoids the high freight costs associated with long-distance material transport. This realizes the principle: "Wherever the material is located, the equipment goes there, and the finished product is utilized right there."
3. Adaptability to Complex Terrain and Integrated Operations: A single unit integrates the entire crushing workflow. It is capable of operating on slopes and requires minimal site leveling, making it particularly well-suited for mountainous regions or mining areas characterized by complex topography.
4. Environmental Protection and Intelligent Control: Modern mobile crushing stations are equipped with advanced dust suppression and noise reduction systems, as well as centralized electrical control systems. Operation is simple, allowing a single operator to monitor the entire process, thereby achieving eco-friendly and intelligent production.

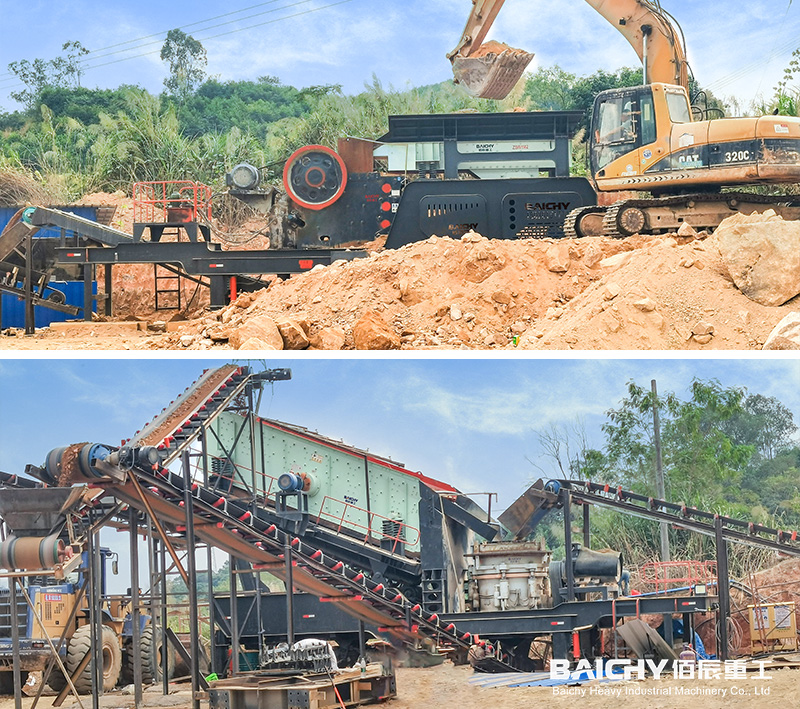

mobile jaw and cone crushing plant
Typical Production Line Configuration and Parameters (Example: Processing Basalt at 200 TPH)
To efficiently process high-hardness basalt, a two-stage crushing scheme—typically involving a "Jaw Crusher + Cone Crusher" combination—is employed. This ensures excellent product shape and minimizes the content of needle-like and flaky particles in the finished material.
| Equipment Module | Recommended Model | Key Parameters & Features | Function |
| Wheel-mounted Mobile Jaw Crushing Station | YDPZ75-1142 | Feeder: ZSW1142; Jaw Crusher: PE750X1060; Main Conveyor Belt: B1200X9M |
Responsible for primary crushing, breaking down large basalt raw materials into medium-sized particles. |
| Wheel-mounted Mobile Cone Crushing Station | YDPZ300-2160 | Cone Crusher: HP300; Vibrating Screen: 3YK2160; Conveyor Belt: B1200X15M (with return feed capability) |
Responsible for secondary/tertiary crushing and screening, producing finished aggregates of various specifications (e.g., 0–5mm, 5–10mm, 10–20mm). |
| Iron Removal & Control System | Optional | Iron Remover, Centralized Electrical Control Cabinet, Generator Set | Protects downstream equipment, provides power and control, and enables automated operation. |
Note: The above configuration can be customized based on the user's specific feed size and finished product requirements.
Successful Case Study
Case: A Provincial Highway Expansion Project in East China
• Material: Natural Basalt
• Requirements: To supply crushed stone of various gradations—meeting roadbed construction standards—across three dispersed construction sections. The total demand was approximately 300,000 tons, with a tight project schedule.
• Solution: We configured and supplied the aforementioned 200 TPH wheel-mounted mobile crushing station production line to meet their needs. • Results: The equipment was rapidly relocated between project sites, enabling a workflow of "proximate material sourcing, on-site processing, and direct paving." This reduced material transport costs by 40%, allowed the project to be completed 15 days ahead of schedule, and produced finished aggregates with a particle shape that fully met highway construction standards—earning high praise from the construction contractor.
Recommended Related Equipment
To achieve a wider range of crushing objectives, you may also be interested in the following equipment:

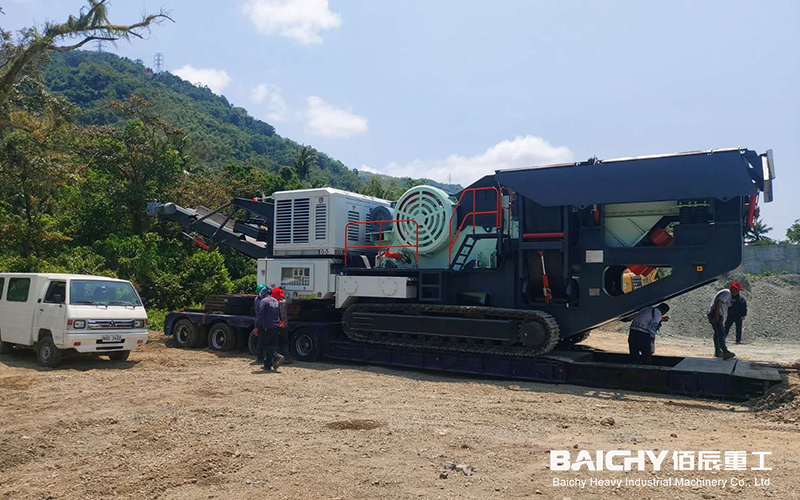

1. Crawler-type Mobile Crushing Station: Compared to wheel-mounted units, this version offers superior off-road capability across complex terrain and features on-the-spot turning functionality, making it ideal for extremely rugged, roadless mining environments.
2. VSI Mobile Sand-making Station (Vertical Shaft Impact Crusher Mobile Station): Specifically designed for the production of high-quality manufactured sand, this unit serves as the final stage in basalt crushing lines, further crushing and shaping smaller stones into high-value artificial sand.
3. Fixed Rock Crushing Production Line: Suitable for massive, single-site mining operations with a projected service life exceeding 10 years. We can customize large-scale production lines with capacities ranging from 500 to 2,000 tons per hour, offering significant advantages in terms of long-term operating costs.
Frequently Asked Questions (FAQ)
Q1: How many personnel are required to operate this 200 t/h wheel-mounted mobile crushing line?
A1: The entire production line is highly automated; typically, only 2–3 personnel are needed to handle daily operations and maintenance, with one inPidual primarily responsible for monitoring the equipment's operational status from the central control room.
Q2: When processing basalt, what is the replacement cycle for wear parts?
A2: This depends on the SiO2 content of the basalt and the specific operating conditions. Taking the mantle and bowl liner of the cone crusher as an example: thanks to our selection of high-manganese steel materials and optimized heat treatment processes, their service life under standard operating conditions typically ranges from 500 to 800 running hours. We provide detailed maintenance guidelines to assist you.
Q3: Can the equipment be equipped with a diesel generator to enable "off-grid" operation?
A3: Absolutely. We can integrate a high-power diesel generator set into the entire wheel-mounted mobile crushing line, transforming it into a completely self-sufficient, independent crushing unit—making it particularly well-suited for remote work sites or regions with unstable power supplies.
Summary
A well-designed 200 t/h tire-mounted mobile crushing plant represents the ideal solution for crushing tasks involving dispersed, short-term projects and high-hardness materials. By liberating crushing operations from "fixed locations," it serves end-use sites directly—delivering unprecedented flexibility, cost-effectiveness, and efficiency—thereby creating maximum value for the client.
