YK1848 Vibrating Screen
I. Overview: What is the YK1848 Vibrating Screen?
The YK1848 vibrating screen is a heavy-duty circular vibrating screen widely utilized across industries such as mining, sand and aggregate production, metallurgy, and construction materials. Its model designation, "YK1848," carries specific significance: "YK" typically denotes a circular vibrating screen; "18" indicates a screen surface width (or diameter) of 1.8 meters; and "48" indicates a screen surface length of 4.8 meters. Distinguished by its high processing capacity, exceptional screening efficiency, and stable, reliable operation, this equipment serves as a core component in medium-to-large-scale production lines, executing critical processes such as material classification, dewatering, and desliming.
This vibrating screen model incorporates an advanced block-eccentric exciter and a tire-type coupling, delivering powerful excitation forces that are easily adjustable. The strength of the screen box has been optimized through Finite Element Analysis (FEA), enabling it to withstand the continuous impact of high-volume, large-particle-size materials. Consequently, it constitutes a pivotal link in enhancing both the overall production capacity and the final product quality of the entire production line.
Baichy E-Catalog PDF，Download ↓↓↓

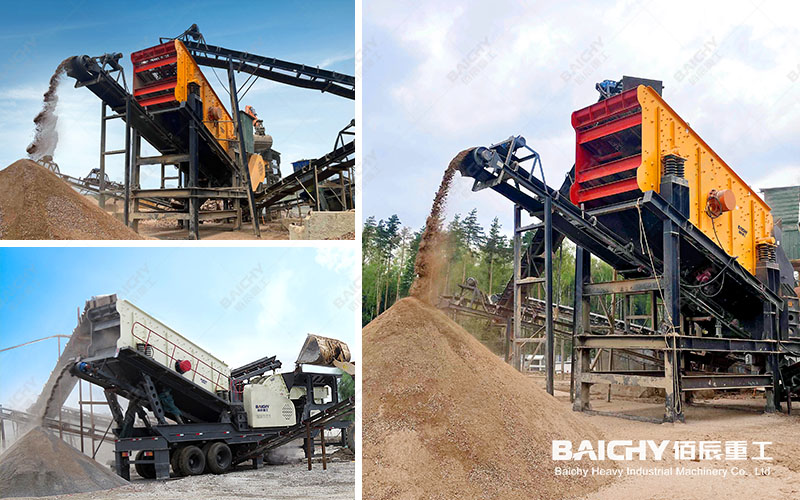

Vibrating Screen Screening Site
II. Core Application Scenarios: Where Does It Deliver Value?
Leveraging its specific dimensions and performance capabilities, the YK1848 vibrating screen primarily serves the following production environments:
1. Sand and Aggregate Production Lines
In medium-to-large-scale sand and aggregate production operations—typically yielding 200 to 300 tons per hour—the YK1848 vibrating screen is frequently deployed for secondary or tertiary screening. It efficiently separates the crushed mixed materials into various finished aggregate specifications—such as 0–5mm, 5–10mm, 10–20mm, and 20–31.5mm—thereby directly determining the final product's gradation and fines content.
2. Mineral Processing Operations
In mineral processing plants handling iron ore, copper ore, gold ore, and similar resources, the YK1848 vibrating screen is utilized for preliminary screening, check screening, or tailings dewatering. By separating appropriately sized particles prior to grinding, and by dewatering concentrates and tailings subsequent to beneficiation, the equipment optimizes the overall process flow while simultaneously reducing energy consumption and operational costs.
3. Construction Materials and Coal Industries
This equipment also demonstrates exceptional performance in the construction materials sector—specifically in the pre-homogenization of raw materials for cement production—as well as in the classification and dewatering of coal. Its reliable sealing structure effectively controls dust emissions, thereby meeting environmental protection requirements; furthermore, its powerful vibrating force facilitates the screening of wet and sticky materials, effectively preventing screen clogging.

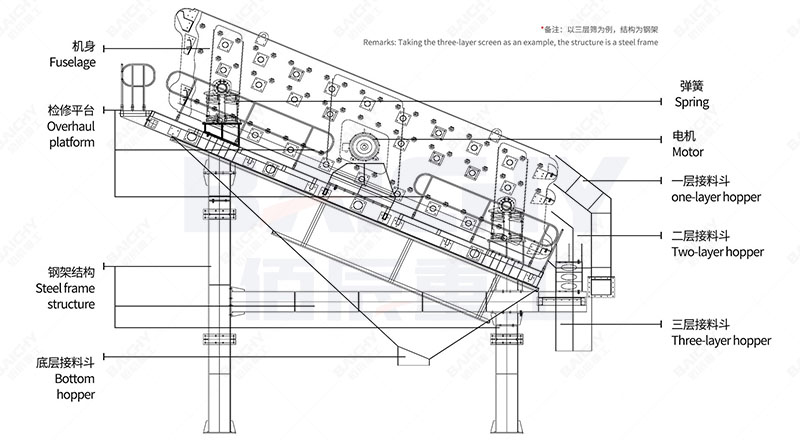

Vibrating Screen Structure Diagram
III. Technical Advantages: Why Choose the YK1848 Vibrating Screen?
By choosing our YK1848 vibrating screen, you will benefit from the following significant advantages:
• Exceptional Structural Reliability: The screen box side plates are constructed from high-strength steel, while the main beams and exciter base utilize structural steel profiles. These components undergo automated robotic welding followed by vibration aging treatment to eliminate internal stresses, ensuring a long service life for the equipment even under harsh operating conditions.
• High-Efficiency Screening Performance: Featuring a design characterized by a large inclination angle and powerful excitation force, the machine generates vigorous throwing motions of the material across the screen surface. This design minimizes screen clogging and is particularly well-suited for processing medium-to-fine-grained materials, achieving screening efficiencies exceeding 90%.
• Convenient Maintenance: The exciter features an external, thin-oil lubricated design, resulting in fewer maintenance points, easy oil replenishment, and extended bearing life. The screen mesh utilizes a modular tensioning design, allowing for the replacement of a single screen section in just 10–20 minutes—thereby significantly reducing downtime.
• Environmental Friendliness & Versatility: Equipped with a multi-layer dust-proof sealing cover, the unit effectively suppresses dust dispersion. The equipment's foundation load distribution is optimized, resulting in minimal impact force on the installation base. Furthermore, depending on the specific material characteristics, users can flexibly select from a variety of screen mesh materials, including polyurethane, rubber, and metal wire.
YK1848 Vibrating Screen: Model Specifications
| Model | Number of Decks | Screen Surface Dimensions (mm) | Screen Surface Area (m²) | Max. Feed Size (mm) | Processing Capacity (t/h) | Motor Power (kW) |
| 2YK1848 | 2 Decks | 1800×4800 | 17.28 | ≤400 | 56–400 | 18.5 |
| 3YK1848 | 3 Decks | 1800×4800 | 25.92 | ≤400 | 56–400 | 22 |
| 4YK1848 | 4 Decks | 1800×4800 | 34.56 | ≤400 | 32–285 | 22 |
IV. Success Stories: The Trusted Choice of Our Clients
Case Study 1: Large-Scale Granite Sand-Making Project in Southeast Asia
The client deployed two YK1848 vibrating screens (featuring three-layer decks) for the final screening and grading of finished aggregate products. Designed for a production capacity of 280 tons per hour, the YK1848 vibrating screens operated stably, precisely classifying the materials into four distinct product grades: 0–5mm manufactured sand, 5–10mm, 10–20mm, and 20–31.5mm. The resulting aggregate gradation fully met national high-standard requirements for construction sand and gravel. Having operated for two years without requiring any major overhauls, the equipment has garnered high praise from the client. Case Study
2: Mexico Iron Ore Beneficiation Plant Upgrade Project
In this beneficiation plant, a YK1848 vibrating screen was added after the primary grinding stage to perform pre-screening. This allowed for the early separation of qualified products that had already met the required particle size specifications, directing them straight into the magnetic separation process and thereby reducing the phenomenon of over-grinding. Following the upgrade, the system's hourly throughput increased by approximately 15%, while the specific energy consumption for grinding decreased by 10%, resulting in an extremely short return-on-investment period.
V. Recommended Equipment Combinations
To maximize the efficiency and performance of the YK1848 vibrating screen, we typically recommend the following equipment combinations to form a highly efficient and complete production system:
1. Primary Crushing Combination: PE Jaw Crusher + YK1848 Vibrating Screen (Pre-screening)
◦ The PE Jaw Crusher serves as the primary crusher; its discharge is screened by the YK1848 vibrating screen. Oversized particles are returned for re-crushing, while particles meeting the size requirements proceed to the secondary crushing stage, thereby significantly boosting the efficiency of the primary crushing section.
2. Secondary & Tertiary Crushing and Screening Closed-Circuit Combination: HPT/HST Cone Crusher + YK1848 Vibrating Screen (Check Screening)
◦ This constitutes the core process in aggregate production. The discharge from the cone crusher is classified by the YK1848 vibrating screen; the oversize material (retained on the screen) is returned to the cone crusher to form a closed circuit, ensuring that the final product possesses excellent particle shape and a low content of needle-like and flaky particles.
3. Sand Making and Screening Combination: VSI6X Sand Making Machine + YK1848 Vibrating Screen (Classification & Check Screening)
◦ The mixed manufactured sand produced by the VSI6X Sand Making Machine is processed through the YK1848 vibrating screen (often equipped with specialized screen meshes) for classification, dust removal, and adjustment of stone powder content, yielding high-quality manufactured sand with superior gradation.
VI. Frequently Asked Questions (FAQ)
Q1: What is the processing capacity of the YK1848 vibrating screen? What factors influence it?
A1: As indicated in the parameter table, the theoretical processing capacity range of the YK1848 vibrating screen is between 80 and 350 tons per hour. The actual processing capacity is influenced by various factors: material characteristics (density, moisture content, clay content), screening method (dry or wet), screen configuration (number of decks, mesh shape and size, open area ratio), and installation inclination. Generally, the larger the mesh aperture, the better the material flowability, and the lower the moisture content, the higher the processing capacity.
Q2: The equipment generates excessive noise and vibration during operation; how can this be resolved?
A2: Proper installation is the foundation. Ensure that the YK1848 vibrating screen is mounted on a sturdy, level concrete foundation, and install shock-absorbing springs or rubber pads as required. Operational noise primarily stems from bearings, metal-to-metal contact, and material impact. Regularly lubricating the exciter bearings with the specified grade of oil, inspecting and tightening all bolts, and installing rubber liners at the contact points between the screen box and the feed hopper or chutes can effectively reduce noise and secondary vibration.
Q3: The screen mesh has a short service life and is prone to damage; how can this be improved?
A3: A short screen mesh lifespan is typically caused by abnormal wear. The following points should be checked:
① Tension: The screen mesh must be tensioned uniformly; otherwise, localized fluttering can lead to fatigue failure.
② Material Impact: Install a buffer plate beneath the feed inlet or utilize a multi-layer screen configuration (where the upper layer, featuring thicker wires, protects the lower layer).
③ Material Characteristics: For highly abrasive materials, it is recommended to upgrade to polyurethane or rubber screen meshes, which offer 3 to 10 times the abrasion resistance of metal screens.
④ Cleaning Devices: Ensure that screen-cleaning mechanisms—such as rubber bouncing balls—are functioning correctly to prevent mesh clogging, which can result in excessive load on the screen.
